cortex_m.h File Reference

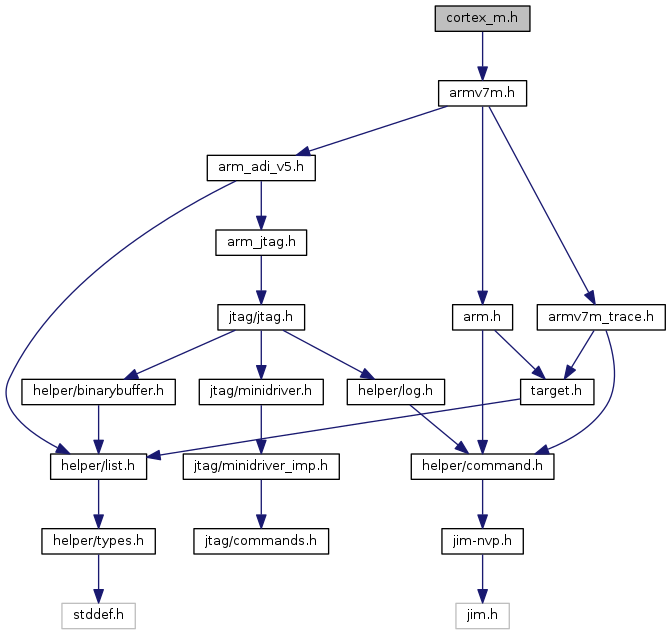

Include dependency graph for cortex_m.h:

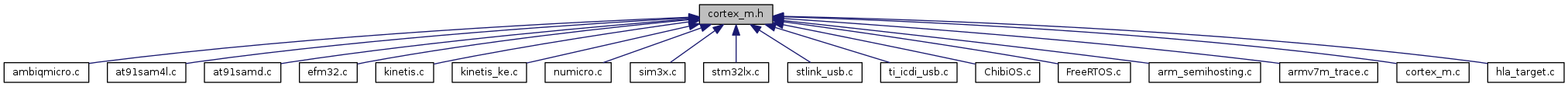

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	cortex_m_common
struct	cortex_m_dwt_comparator
struct	cortex_m_fp_comparator
struct	cortex_m_part_info

Macros
#define	AIRCR_SYSRESETREQ   BIT(2)
#define	AIRCR_VECTCLRACTIVE   BIT(1)
#define	AIRCR_VECTKEY   (0x5FAul << 16)
#define	AIRCR_VECTRESET   BIT(0)
#define	ARM_CPUID_PARTNO_MASK   (0xFFF << ARM_CPUID_PARTNO_POS)
#define	ARM_CPUID_PARTNO_POS   4
#define	C_DEBUGEN   BIT(0)
#define	C_HALT   BIT(1)
#define	C_MASKINTS   BIT(3)
#define	C_STEP   BIT(2)
#define	CORTEX_M_COMMON_MAGIC   0x1A451A45U
#define	CORTEX_M_F_HAS_FPV4   BIT(0)
#define	CORTEX_M_F_HAS_FPV5   BIT(1)
#define	CORTEX_M_F_TAR_AUTOINCR_BLOCK_4K   BIT(2)
#define	CPUID   0xE000ED00
#define	DAUTHSTATUS   0xE000EFB8
#define	DAUTHSTATUS_SID_MASK   0x00000030
#define	DBGKEY   (0xA05Ful << 16)
#define	DCB_DCRDR   0xE000EDF8
#define	DCB_DCRSR   0xE000EDF4
#define	DCB_DEMCR   0xE000EDFC
#define	DCB_DHCSR   0xE000EDF0
#define	DCB_DSCSR   0xE000EE08
#define	DCRSR_WNR   BIT(16)
#define	DFSR_BKPT   2
#define	DFSR_DWTTRAP   4
#define	DFSR_EXTERNAL   16
#define	DFSR_HALTED   1
#define	DFSR_VCATCH   8
#define	DSCSR_CDS   BIT(16)
#define	DWT_COMP0   0xE0001020
#define	DWT_CTRL   0xE0001000
#define	DWT_CYCCNT   0xE0001004
#define	DWT_DEVARCH   0xE0001FBC
#define	DWT_DEVARCH_ARMV8M   0x101A02
#define	DWT_FUNCTION0   0xE0001028
#define	DWT_MASK0   0xE0001024
#define	DWT_PCSR   0xE000101C
#define	FP_COMP0   0xE0002008
#define	FP_COMP1   0xE000200C
#define	FP_COMP2   0xE0002010
#define	FP_COMP3   0xE0002014
#define	FP_COMP4   0xE0002018
#define	FP_COMP5   0xE000201C
#define	FP_COMP6   0xE0002020
#define	FP_COMP7   0xE0002024
#define	FP_CTRL   0xE0002000
#define	FP_REMAP   0xE0002004
#define	FPCR_CODE   0
#define	FPCR_LITERAL   1
#define	FPCR_REPLACE_BKPT_BOTH   (3ul << 30)
#define	FPCR_REPLACE_BKPT_HIGH   (2ul << 30)
#define	FPCR_REPLACE_BKPT_LOW   (1ul << 30)
#define	FPCR_REPLACE_REMAP   (0ul << 30)
#define	FPU_CPACR   0xE000ED88
#define	FPU_FPCAR   0xE000EF38
#define	FPU_FPCCR   0xE000EF34
#define	FPU_FPDSCR   0xE000EF3C
#define	ITM_LAR   0xE0000FB0
#define	ITM_LAR_KEY   0xC5ACCE55
#define	ITM_TCR   0xE0000E80
#define	ITM_TCR_BUSY_BIT   BIT(23)
#define	ITM_TCR_ITMENA_BIT   BIT(0)
#define	ITM_TER0   0xE0000E00
#define	ITM_TPR   0xE0000E40
#define	NVIC_AIRCR   0xE000ED0C
#define	NVIC_BFAR   0xE000ED38
#define	NVIC_BFSRB   0xE000ED29
#define	NVIC_CFSR   0xE000ED28
#define	NVIC_DFSR   0xE000ED30
#define	NVIC_HFSR   0xE000ED2C
#define	NVIC_ICSR   0xE000ED04
#define	NVIC_ICTR   0xE000E004
#define	NVIC_ISE0   0xE000E100
#define	NVIC_MMFAR   0xE000ED34
#define	NVIC_MMFSRB   0xE000ED28
#define	NVIC_SFAR   0xE000EDE8
#define	NVIC_SFSR   0xE000EDE4
#define	NVIC_SHCSR   0xE000ED24
#define	NVIC_USFSRH   0xE000ED2A
#define	S_HALT   BIT(17)
#define	S_LOCKUP   BIT(19)
#define	S_REGRDY   BIT(16)
#define	S_RESET_ST   BIT(25)
#define	S_RETIRE_ST   BIT(24)
#define	S_SLEEP   BIT(18)
#define	SHCSR_BUSFAULTENA   BIT(17)
#define	SYSTEM_CONTROL_BASE   0x400FE000
#define	TPIU_ACPR   0xE0040010
#define	TPIU_ACPR_MAX_SWOSCALER   0x1fff
#define	TPIU_CSPSR   0xE0040004
#define	TPIU_FFCR   0xE0040304
#define	TPIU_FFSR   0xE0040300
#define	TPIU_FSCR   0xE0040308
#define	TPIU_SPPR   0xE00400F0
#define	TPIU_SSPSR   0xE0040000
#define	TRCENA   BIT(24)
#define	VC_BUSERR   BIT(8)
#define	VC_CHKERR   BIT(6)
#define	VC_CORERESET   BIT(0)
#define	VC_HARDERR   BIT(10)
#define	VC_INTERR   BIT(9)
#define	VC_MMERR   BIT(4)
#define	VC_NOCPERR   BIT(5)
#define	VC_STATERR   BIT(7)

Enumerations
enum	cortex_m_isrmasking_mode { CORTEX_M_ISRMASK_AUTO , CORTEX_M_ISRMASK_OFF , CORTEX_M_ISRMASK_ON , CORTEX_M_ISRMASK_STEPONLY }
enum	cortex_m_partno {   CORTEX_M_PARTNO_INVALID , STAR_MC1_PARTNO = 0x132 , CORTEX_M0_PARTNO = 0xC20 , CORTEX_M1_PARTNO = 0xC21 ,   CORTEX_M3_PARTNO = 0xC23 , CORTEX_M4_PARTNO = 0xC24 , CORTEX_M7_PARTNO = 0xC27 , CORTEX_M0P_PARTNO = 0xC60 ,   CORTEX_M23_PARTNO = 0xD20 , CORTEX_M33_PARTNO = 0xD21 , CORTEX_M35P_PARTNO = 0xD31 , CORTEX_M55_PARTNO = 0xD22 }
enum	cortex_m_soft_reset_config { CORTEX_M_RESET_SYSRESETREQ , CORTEX_M_RESET_VECTRESET }

Functions
int	cortex_m_add_breakpoint (struct target *target, struct breakpoint *breakpoint)
int	cortex_m_add_watchpoint (struct target *target, struct watchpoint *watchpoint)
void	cortex_m_deinit_target (struct target *target)
void	cortex_m_enable_breakpoints (struct target *target)
void	cortex_m_enable_watchpoints (struct target *target)
int	cortex_m_examine (struct target *target)
static enum cortex_m_partno	cortex_m_get_partno_safe (struct target *target)
int	cortex_m_profiling (struct target *target, uint32_t *samples, uint32_t max_num_samples, uint32_t *num_samples, uint32_t seconds)
int	cortex_m_remove_breakpoint (struct target *target, struct breakpoint *breakpoint)
int	cortex_m_remove_watchpoint (struct target *target, struct watchpoint *watchpoint)
int	cortex_m_set_breakpoint (struct target *target, struct breakpoint *breakpoint)
int	cortex_m_unset_breakpoint (struct target *target, struct breakpoint *breakpoint)
static bool	is_cortex_m_or_hla (const struct cortex_m_common *cortex_m)
static bool	is_cortex_m_with_dap_access (const struct cortex_m_common *cortex_m)
static struct cortex_m_common *	target_to_cm (struct target *target)
static struct cortex_m_common *	target_to_cortex_m_safe (struct target *target)

Macro Definition Documentation

AIRCR_SYSRESETREQ

#define AIRCR_SYSRESETREQ   BIT(2)

Definition at line 159 of file cortex_m.h.

AIRCR_VECTCLRACTIVE

#define AIRCR_VECTCLRACTIVE   BIT(1)

Definition at line 160 of file cortex_m.h.

AIRCR_VECTKEY

#define AIRCR_VECTKEY   (0x5FAul << 16)

Definition at line 158 of file cortex_m.h.

AIRCR_VECTRESET

#define AIRCR_VECTRESET   BIT(0)

Definition at line 161 of file cortex_m.h.

ARM_CPUID_PARTNO_MASK

#define ARM_CPUID_PARTNO_MASK   (0xFFF << ARM_CPUID_PARTNO_POS)

Definition at line 35 of file cortex_m.h.

ARM_CPUID_PARTNO_POS

#define ARM_CPUID_PARTNO_POS   4

Definition at line 34 of file cortex_m.h.

C_DEBUGEN

#define C_DEBUGEN   BIT(0)

Definition at line 115 of file cortex_m.h.

C_HALT

#define C_HALT   BIT(1)

Definition at line 116 of file cortex_m.h.

C_MASKINTS

#define C_MASKINTS   BIT(3)

Definition at line 118 of file cortex_m.h.

C_STEP

#define C_STEP   BIT(2)

Definition at line 117 of file cortex_m.h.

CORTEX_M_COMMON_MAGIC

#define CORTEX_M_COMMON_MAGIC   0x1A451A45U

Definition at line 20 of file cortex_m.h.

CORTEX_M_F_HAS_FPV4

#define CORTEX_M_F_HAS_FPV4   BIT(0)

Definition at line 53 of file cortex_m.h.

CORTEX_M_F_HAS_FPV5

#define CORTEX_M_F_HAS_FPV5   BIT(1)

Definition at line 54 of file cortex_m.h.

CORTEX_M_F_TAR_AUTOINCR_BLOCK_4K

#define CORTEX_M_F_TAR_AUTOINCR_BLOCK_4K   BIT(2)

Definition at line 55 of file cortex_m.h.

CPUID

#define CPUID   0xE000ED00

Definition at line 32 of file cortex_m.h.

DAUTHSTATUS

#define DAUTHSTATUS   0xE000EFB8

Definition at line 71 of file cortex_m.h.

DAUTHSTATUS_SID_MASK

#define DAUTHSTATUS_SID_MASK   0x00000030

Definition at line 72 of file cortex_m.h.

DBGKEY

#define DBGKEY   (0xA05Ful << 16)

Definition at line 114 of file cortex_m.h.

DCB_DCRDR

#define DCB_DCRDR   0xE000EDF8

Definition at line 67 of file cortex_m.h.

DCB_DCRSR

#define DCB_DCRSR   0xE000EDF4

Definition at line 66 of file cortex_m.h.

DCB_DEMCR

#define DCB_DEMCR   0xE000EDFC

Definition at line 68 of file cortex_m.h.

DCB_DHCSR

#define DCB_DHCSR   0xE000EDF0

Definition at line 65 of file cortex_m.h.

DCB_DSCSR

#define DCB_DSCSR   0xE000EE08

Definition at line 69 of file cortex_m.h.

DCRSR_WNR

#define DCRSR_WNR   BIT(16)

Definition at line 74 of file cortex_m.h.

DFSR_BKPT

#define DFSR_BKPT   2

Definition at line 166 of file cortex_m.h.

DFSR_DWTTRAP

#define DFSR_DWTTRAP   4

Definition at line 167 of file cortex_m.h.

DFSR_EXTERNAL

#define DFSR_EXTERNAL   16

Definition at line 169 of file cortex_m.h.

DFSR_HALTED

#define DFSR_HALTED   1

Definition at line 165 of file cortex_m.h.

DFSR_VCATCH

#define DFSR_VCATCH   8

Definition at line 168 of file cortex_m.h.

DSCSR_CDS

#define DSCSR_CDS   BIT(16)

Definition at line 138 of file cortex_m.h.

DWT_COMP0

#define DWT_COMP0   0xE0001020

Definition at line 79 of file cortex_m.h.

DWT_CTRL

#define DWT_CTRL   0xE0001000

Definition at line 76 of file cortex_m.h.

DWT_CYCCNT

#define DWT_CYCCNT   0xE0001004

Definition at line 77 of file cortex_m.h.

DWT_DEVARCH

#define DWT_DEVARCH   0xE0001FBC

Definition at line 82 of file cortex_m.h.

DWT_DEVARCH_ARMV8M

#define DWT_DEVARCH_ARMV8M   0x101A02

Definition at line 84 of file cortex_m.h.

DWT_FUNCTION0

#define DWT_FUNCTION0   0xE0001028

Definition at line 81 of file cortex_m.h.

DWT_MASK0

#define DWT_MASK0   0xE0001024

Definition at line 80 of file cortex_m.h.

DWT_PCSR

#define DWT_PCSR   0xE000101C

Definition at line 78 of file cortex_m.h.

FP_COMP0

#define FP_COMP0   0xE0002008

Definition at line 88 of file cortex_m.h.

FP_COMP1

#define FP_COMP1   0xE000200C

Definition at line 89 of file cortex_m.h.

FP_COMP2

#define FP_COMP2   0xE0002010

Definition at line 90 of file cortex_m.h.

FP_COMP3

#define FP_COMP3   0xE0002014

Definition at line 91 of file cortex_m.h.

FP_COMP4

#define FP_COMP4   0xE0002018

Definition at line 92 of file cortex_m.h.

FP_COMP5

#define FP_COMP5   0xE000201C

Definition at line 93 of file cortex_m.h.

FP_COMP6

#define FP_COMP6   0xE0002020

Definition at line 94 of file cortex_m.h.

FP_COMP7

#define FP_COMP7   0xE0002024

Definition at line 95 of file cortex_m.h.

FP_CTRL

#define FP_CTRL   0xE0002000

Definition at line 86 of file cortex_m.h.

FP_REMAP

#define FP_REMAP   0xE0002004

Definition at line 87 of file cortex_m.h.

FPCR_CODE

#define FPCR_CODE   0

Definition at line 171 of file cortex_m.h.

FPCR_LITERAL

#define FPCR_LITERAL   1

Definition at line 172 of file cortex_m.h.

FPCR_REPLACE_BKPT_BOTH

#define FPCR_REPLACE_BKPT_BOTH   (3ul << 30)

Definition at line 176 of file cortex_m.h.

FPCR_REPLACE_BKPT_HIGH

#define FPCR_REPLACE_BKPT_HIGH   (2ul << 30)

Definition at line 175 of file cortex_m.h.

FPCR_REPLACE_BKPT_LOW

#define FPCR_REPLACE_BKPT_LOW   (1ul << 30)

Definition at line 174 of file cortex_m.h.

FPCR_REPLACE_REMAP

#define FPCR_REPLACE_REMAP   (0ul << 30)

Definition at line 173 of file cortex_m.h.

FPU_CPACR

#define FPU_CPACR   0xE000ED88

Definition at line 97 of file cortex_m.h.

FPU_FPCAR

#define FPU_FPCAR   0xE000EF38

Definition at line 99 of file cortex_m.h.

FPU_FPCCR

#define FPU_FPCCR   0xE000EF34

Definition at line 98 of file cortex_m.h.

FPU_FPDSCR

#define FPU_FPDSCR   0xE000EF3C

Definition at line 100 of file cortex_m.h.

ITM_LAR

#define ITM_LAR   0xE0000FB0

Definition at line 29 of file cortex_m.h.

ITM_LAR_KEY

#define ITM_LAR_KEY   0xC5ACCE55

Definition at line 30 of file cortex_m.h.

ITM_TCR

#define ITM_TCR   0xE0000E80

Definition at line 26 of file cortex_m.h.

ITM_TCR_BUSY_BIT

#define ITM_TCR_BUSY_BIT   BIT(23)

Definition at line 28 of file cortex_m.h.

ITM_TCR_ITMENA_BIT

#define ITM_TCR_ITMENA_BIT   BIT(0)

Definition at line 27 of file cortex_m.h.

ITM_TER0

#define ITM_TER0   0xE0000E00

Definition at line 24 of file cortex_m.h.

ITM_TPR

#define ITM_TPR   0xE0000E40

Definition at line 25 of file cortex_m.h.

NVIC_AIRCR

#define NVIC_AIRCR   0xE000ED0C

Definition at line 144 of file cortex_m.h.

NVIC_BFAR

#define NVIC_BFAR   0xE000ED38

Definition at line 153 of file cortex_m.h.

NVIC_BFSRB

#define NVIC_BFSRB   0xE000ED29

Definition at line 148 of file cortex_m.h.

NVIC_CFSR

#define NVIC_CFSR   0xE000ED28

Definition at line 146 of file cortex_m.h.

NVIC_DFSR

#define NVIC_DFSR   0xE000ED30

Definition at line 151 of file cortex_m.h.

NVIC_HFSR

#define NVIC_HFSR   0xE000ED2C

Definition at line 150 of file cortex_m.h.

NVIC_ICSR

#define NVIC_ICSR   0xE000ED04

Definition at line 143 of file cortex_m.h.

NVIC_ICTR

#define NVIC_ICTR   0xE000E004

Definition at line 141 of file cortex_m.h.

NVIC_ISE0

#define NVIC_ISE0   0xE000E100

Definition at line 142 of file cortex_m.h.

NVIC_MMFAR

#define NVIC_MMFAR   0xE000ED34

Definition at line 152 of file cortex_m.h.

NVIC_MMFSRB

#define NVIC_MMFSRB   0xE000ED28

Definition at line 147 of file cortex_m.h.

NVIC_SFAR

#define NVIC_SFAR   0xE000EDE8

Definition at line 155 of file cortex_m.h.

NVIC_SFSR

#define NVIC_SFSR   0xE000EDE4

Definition at line 154 of file cortex_m.h.

NVIC_SHCSR

#define NVIC_SHCSR   0xE000ED24

Definition at line 145 of file cortex_m.h.

NVIC_USFSRH

#define NVIC_USFSRH   0xE000ED2A

Definition at line 149 of file cortex_m.h.

S_HALT

#define S_HALT   BIT(17)

Definition at line 120 of file cortex_m.h.

S_LOCKUP

#define S_LOCKUP   BIT(19)

Definition at line 122 of file cortex_m.h.

S_REGRDY

#define S_REGRDY   BIT(16)

Definition at line 119 of file cortex_m.h.

S_RESET_ST

#define S_RESET_ST   BIT(25)

Definition at line 124 of file cortex_m.h.

S_RETIRE_ST

#define S_RETIRE_ST   BIT(24)

Definition at line 123 of file cortex_m.h.

S_SLEEP

#define S_SLEEP   BIT(18)

Definition at line 121 of file cortex_m.h.

SHCSR_BUSFAULTENA

#define SHCSR_BUSFAULTENA   BIT(17)

Definition at line 163 of file cortex_m.h.

SYSTEM_CONTROL_BASE

#define SYSTEM_CONTROL_BASE   0x400FE000

Definition at line 22 of file cortex_m.h.

TPIU_ACPR

#define TPIU_ACPR   0xE0040010

Definition at line 104 of file cortex_m.h.

TPIU_ACPR_MAX_SWOSCALER

#define TPIU_ACPR_MAX_SWOSCALER   0x1fff

Definition at line 111 of file cortex_m.h.

TPIU_CSPSR

#define TPIU_CSPSR   0xE0040004

Definition at line 103 of file cortex_m.h.

TPIU_FFCR

#define TPIU_FFCR   0xE0040304

Definition at line 107 of file cortex_m.h.

TPIU_FFSR

#define TPIU_FFSR   0xE0040300

Definition at line 106 of file cortex_m.h.

TPIU_FSCR

#define TPIU_FSCR   0xE0040308

Definition at line 108 of file cortex_m.h.

TPIU_SPPR

#define TPIU_SPPR   0xE00400F0

Definition at line 105 of file cortex_m.h.

TPIU_SSPSR

#define TPIU_SSPSR   0xE0040000

Definition at line 102 of file cortex_m.h.

TRCENA

#define TRCENA   BIT(24)

Definition at line 127 of file cortex_m.h.

VC_BUSERR

#define VC_BUSERR   BIT(8)

Definition at line 130 of file cortex_m.h.

VC_CHKERR

#define VC_CHKERR   BIT(6)

Definition at line 132 of file cortex_m.h.

VC_CORERESET

#define VC_CORERESET   BIT(0)

Definition at line 135 of file cortex_m.h.

VC_HARDERR

#define VC_HARDERR   BIT(10)

Definition at line 128 of file cortex_m.h.

VC_INTERR

#define VC_INTERR   BIT(9)

Definition at line 129 of file cortex_m.h.

VC_MMERR

#define VC_MMERR   BIT(4)

Definition at line 134 of file cortex_m.h.

VC_NOCPERR

#define VC_NOCPERR   BIT(5)

Definition at line 133 of file cortex_m.h.

VC_STATERR

#define VC_STATERR   BIT(7)

Definition at line 131 of file cortex_m.h.

Enumeration Type Documentation

cortex_m_isrmasking_mode

enum cortex_m_isrmasking_mode

Enumerator
CORTEX_M_ISRMASK_AUTO
CORTEX_M_ISRMASK_OFF
CORTEX_M_ISRMASK_ON
CORTEX_M_ISRMASK_STEPONLY

Definition at line 198 of file cortex_m.h.

cortex_m_partno

enum cortex_m_partno

Enumerator
CORTEX_M_PARTNO_INVALID
STAR_MC1_PARTNO
CORTEX_M0_PARTNO
CORTEX_M1_PARTNO
CORTEX_M3_PARTNO
CORTEX_M4_PARTNO
CORTEX_M7_PARTNO
CORTEX_M0P_PARTNO
CORTEX_M23_PARTNO
CORTEX_M33_PARTNO
CORTEX_M35P_PARTNO
CORTEX_M55_PARTNO

Definition at line 37 of file cortex_m.h.

cortex_m_soft_reset_config

enum cortex_m_soft_reset_config

Enumerator
CORTEX_M_RESET_SYSRESETREQ
CORTEX_M_RESET_VECTRESET

Definition at line 193 of file cortex_m.h.

Function Documentation

cortex_m_add_breakpoint()

int cortex_m_add_breakpoint	(	struct target *	target,
		struct breakpoint *	breakpoint
	)

Definition at line 1718 of file cortex_m.c.

References cortex_m_set_breakpoint(), ERROR_TARGET_RESOURCE_NOT_AVAILABLE, breakpoint::length, LOG_TARGET_DEBUG, and LOG_TARGET_INFO.

cortex_m_add_watchpoint()

int cortex_m_add_watchpoint	(	struct target *	target,
		struct watchpoint *	watchpoint
	)

Definition at line 1857 of file cortex_m.c.

References watchpoint::address, cortex_m_common::dwt_comp_available, ERROR_OK, ERROR_TARGET_RESOURCE_NOT_AVAILABLE, watchpoint::length, LOG_TARGET_DEBUG, watchpoint::mask, mask, target_to_cm(), and watchpoint::value.

cortex_m_deinit_target()

void cortex_m_deinit_target

(

struct target *

target

)

Definition at line 2002 of file cortex_m.c.

References armv7m_free_reg_cache(), cortex_m_dwt_free(), dap_put_ap(), armv7m_common::debug_ap, cortex_m_common::fp_comparator_list, armv7m_common::is_hla_target, target::private_config, target_to_armv7m(), and target_to_cm().

cortex_m_enable_breakpoints()

void cortex_m_enable_breakpoints

(

struct target *

target

)

Definition at line 1087 of file cortex_m.c.

References target::breakpoints, cortex_m_set_breakpoint(), breakpoint::is_set, and breakpoint::next.

Referenced by adapter_resume(), and cortex_m_resume().

cortex_m_enable_watchpoints()

void cortex_m_enable_watchpoints

(

struct target *

target

)

Definition at line 1954 of file cortex_m.c.

References cortex_m_set_watchpoint(), watchpoint::is_set, watchpoint::next, and target::watchpoints.

Referenced by adapter_resume(), and cortex_m_resume().

cortex_m_examine()

int cortex_m_examine

(

struct target *

target

)

Definition at line 2309 of file cortex_m.c.

References cortex_m_common::apsel, arm::arch, cortex_m_part_info::arch, armv7m_common::arm, ARM_ARCH_V7M, ARM_CPUID_PARTNO_MASK, ARM_CPUID_PARTNO_POS, cortex_m_common::armv7m, ARMV7M_FPU_FIRST_REG, ARMV7M_FPU_LAST_REG, armv7m_trace_itm_config(), ARMV8M_FIRST_REG, ARMV8M_LAST_REG, ARRAY_SIZE, C_DEBUGEN, C_HALT, C_MASKINTS, C_STEP, arm::core_cache, cortex_m_common::core_info, CORTEX_M7_PARTNO, cortex_m_cumulate_dhcsr_sticky(), cortex_m_dwt_free(), cortex_m_dwt_setup(), CORTEX_M_F_HAS_FPV4, CORTEX_M_F_HAS_FPV5, CORTEX_M_F_TAR_AUTOINCR_BLOCK_4K, cortex_m_find_mem_ap(), cortex_m_has_tz(), cortex_m_parts, CPUID, arm::dap, dap_get_ap(), DBGKEY, DCB_DEMCR, DCB_DHCSR, cortex_m_common::dcb_dhcsr, cortex_m_common::dcb_dhcsr_sticky_is_recent, armv7m_common::debug_ap, armv7m_common::demcr, DP_APSEL_INVALID, cortex_m_common::dwt_num_comp, ERROR_FAIL, ERROR_OK, reg::exist, cortex_m_part_info::flags, FP_COMP0, cortex_m_common::fp_comparator_list, FP_CTRL, armv7m_common::fp_feature, FP_NONE, cortex_m_common::fp_num_code, cortex_m_common::fp_num_lit, cortex_m_common::fp_rev, cortex_m_common::fpb_enabled, cortex_m_fp_comparator::fpcr_address, FPCR_CODE, FPCR_LITERAL, FPV4_SP, FPV5_DP, FPV5_SP, armv7m_common::is_hla_target, armv7m_trace_config::itm_deferred_config, LOG_ERROR, LOG_TARGET_DEBUG, LOG_TARGET_ERROR, LOG_TARGET_INFO, LOG_TARGET_WARNING, cortex_m_common::maskints_erratum, mem_ap_init(), adiv5_ap::memaccess_tck, MVFR0, MVFR0_DEFAULT_M4, MVFR0_DEFAULT_M7_DP, MVFR0_DEFAULT_M7_SP, MVFR1, MVFR1_DEFAULT_M4, MVFR1_DEFAULT_M7_DP, MVFR1_DEFAULT_M7_SP, cortex_m_part_info::name, partno, reg_cache::reg_list, S_RESET_ST, adiv5_ap::tar_autoincr_block, target_read_u32(), target_set_examined(), target_to_armv7m(), target_to_cm(), target_was_examined(), target_write_u32(), armv7m_common::trace_config, TRCENA, cortex_m_fp_comparator::type, and cortex_m_common::vectreset_supported.

cortex_m_get_partno_safe()

static enum cortex_m_partno cortex_m_get_partno_safe ( struct target *  target )

inlinestatic

Returns

cached value of Cortex-M part number or CORTEX_M_PARTNO_INVALID if the magic number does not match or core_info is not initialised.

Definition at line 280 of file cortex_m.h.

References is_cortex_m_or_hla(), NULL, target_to_armv7m_safe(), and target_to_cm().

Referenced by stm32l4_read_idcode(), stm32x_get_device_id(), stm32x_get_property_addr(), and stm32x_probe().

cortex_m_profiling()

int cortex_m_profiling	(	struct target *	target,
		uint32_t *	samples,
		uint32_t	max_num_samples,
		uint32_t *	num_samples,
		uint32_t	seconds
	)

Definition at line 2019 of file cortex_m.c.

References armv7m_common::debug_ap, DWT_PCSR, ERROR_OK, gettimeofday(), LOG_TARGET_ERROR, LOG_TARGET_INFO, mem_ap_read_buf_noincr(), NULL, target::state, TARGET_HALTED, target_poll(), target_profiling_default(), target_read_u32(), target_resume(), target_to_armv7m(), timeval_add_time(), and timeval_compare().

cortex_m_remove_breakpoint()

int cortex_m_remove_breakpoint	(	struct target *	target,
		struct breakpoint *	breakpoint
	)

Definition at line 1733 of file cortex_m.c.

References cortex_m_unset_breakpoint(), ERROR_OK, and breakpoint::is_set.

cortex_m_remove_watchpoint()

int cortex_m_remove_watchpoint	(	struct target *	target,
		struct watchpoint *	watchpoint
	)

Definition at line 1906 of file cortex_m.c.

References cortex_m_unset_watchpoint(), cortex_m_common::dwt_comp_available, ERROR_OK, ERROR_TARGET_NOT_HALTED, watchpoint::is_set, LOG_TARGET_DEBUG, LOG_TARGET_WARNING, target::state, TARGET_HALTED, and target_to_cm().

cortex_m_set_breakpoint()

int cortex_m_set_breakpoint	(	struct target *	target,
		struct breakpoint *	breakpoint
	)

Definition at line 1592 of file cortex_m.c.

References breakpoint::address, ARMV5_T_BKPT, BKPT_HARD, BKPT_SOFT, breakpoint_hw_set(), buf_set_u32(), cortex_m_enable_fpb(), ERROR_FAIL, ERROR_OK, ERROR_TARGET_RESOURCE_NOT_AVAILABLE, cortex_m_common::fp_comparator_list, cortex_m_common::fp_num_code, cortex_m_common::fp_rev, cortex_m_common::fpb_enabled, cortex_m_fp_comparator::fpcr_address, FPCR_REPLACE_BKPT_HIGH, FPCR_REPLACE_BKPT_LOW, cortex_m_fp_comparator::fpcr_value, breakpoint::is_set, breakpoint::length, LOG_TARGET_DEBUG, LOG_TARGET_ERROR, LOG_TARGET_WARNING, breakpoint::number, breakpoint::orig_instr, TARGET_ADDR_FMT, target_read_memory(), target_to_cm(), target_write_memory(), target_write_u32(), breakpoint::type, breakpoint::unique_id, and cortex_m_fp_comparator::used.

Referenced by adapter_resume(), adapter_step(), cortex_m_add_breakpoint(), cortex_m_enable_breakpoints(), cortex_m_resume(), and cortex_m_step().

cortex_m_unset_breakpoint()

int cortex_m_unset_breakpoint	(	struct target *	target,
		struct breakpoint *	breakpoint
	)

Definition at line 1677 of file cortex_m.c.

References breakpoint::address, BKPT_HARD, BKPT_SOFT, ERROR_OK, cortex_m_common::fp_comparator_list, cortex_m_common::fp_num_code, cortex_m_fp_comparator::fpcr_address, cortex_m_fp_comparator::fpcr_value, breakpoint::is_set, breakpoint::length, LOG_TARGET_DEBUG, LOG_TARGET_WARNING, breakpoint::number, breakpoint::orig_instr, TARGET_ADDR_FMT, target_to_cm(), target_write_memory(), target_write_u32(), breakpoint::type, breakpoint::unique_id, and cortex_m_fp_comparator::used.

Referenced by adapter_resume(), adapter_step(), cortex_m_remove_breakpoint(), cortex_m_resume(), and cortex_m_step().

is_cortex_m_or_hla()

static bool is_cortex_m_or_hla ( const struct cortex_m_common *  cortex_m )

inlinestatic

Definition at line 247 of file cortex_m.h.

References cortex_m_common::common_magic, and CORTEX_M_COMMON_MAGIC.

Referenced by cortex_m_get_partno_safe(), and is_cortex_m_with_dap_access().

is_cortex_m_with_dap_access()

static bool is_cortex_m_with_dap_access ( const struct cortex_m_common *  cortex_m )

inlinestatic

Definition at line 252 of file cortex_m.h.

References cortex_m_common::armv7m, is_cortex_m_or_hla(), and armv7m_common::is_hla_target.

Referenced by cortex_m_verify_pointer().

target_to_cm()

static struct cortex_m_common* target_to_cm ( struct target *  target )

inlinestatic

Returns

the pointer to the target specific struct without matching a magic number. Use in target specific service routines, where the correct type of arch_info is certain.

Definition at line 267 of file cortex_m.h.

References target::arch_info, armv7m_common::arm, cortex_m_common::armv7m, and container_of.

Referenced by COMMAND_HANDLER(), cortex_m_add_watchpoint(), cortex_m_assert_reset(), cortex_m_clear_halt(), cortex_m_deassert_reset(), cortex_m_debug_entry(), cortex_m_deinit_target(), cortex_m_dwt_free(), cortex_m_endreset_event(), cortex_m_examine(), cortex_m_examine_debug_reason(), cortex_m_fast_read_all_regs(), cortex_m_get_partno_safe(), cortex_m_hit_watchpoint(), cortex_m_load_core_reg_u32(), cortex_m_poll(), cortex_m_read_dhcsr_atomic_sticky(), cortex_m_remove_watchpoint(), cortex_m_set_breakpoint(), cortex_m_set_maskints(), cortex_m_set_maskints_for_halt(), cortex_m_set_maskints_for_run(), cortex_m_set_maskints_for_step(), cortex_m_set_watchpoint(), cortex_m_single_step_core(), cortex_m_slow_read_all_regs(), cortex_m_soft_reset_halt(), cortex_m_step(), cortex_m_store_core_reg_u32(), cortex_m_unset_breakpoint(), cortex_m_unset_watchpoint(), cortex_m_write_debug_halt_mask(), efm32x_read_info(), and jim_arm_tpiu_swo_enable().

target_to_cortex_m_safe()

static struct cortex_m_common* target_to_cortex_m_safe ( struct target *  target )

inlinestatic

Returns

the pointer to the target specific struct or NULL if the magic number does not match. Use in a flash driver or any place where mismatch of the arch_info type can happen.

Definition at line 280 of file cortex_m.h.
