arm7_9_common.c File Reference

Hold common code supporting the ARM7 and ARM9 core generations. More...

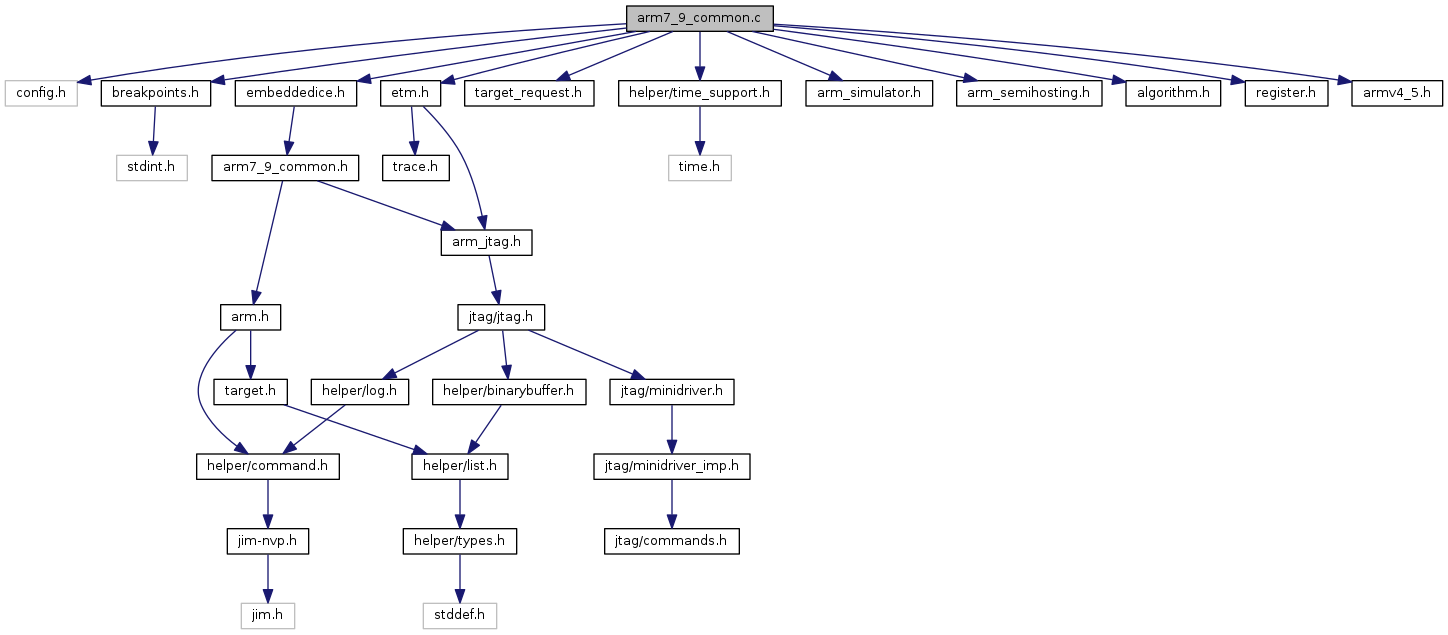

Include dependency graph for arm7_9_common.c:

Go to the source code of this file.

Functions

int arm7_9_add_breakpoint (struct target *target, struct breakpoint *breakpoint)
 Add a breakpoint to an ARM7/9 target. More...

int arm7_9_add_watchpoint (struct target *target, struct watchpoint *watchpoint)
 Add a watchpoint to an ARM7/9 target. More...

int arm7_9_assert_reset (struct target *target)
 Asserts the reset (SRST) on an ARM7/9 target. More...

static void arm7_9_assign_wp (struct arm7_9_common *arm7_9, struct breakpoint *breakpoint)
 Assign a watchpoint to one of the two available hardware comparators in an ARM7 or ARM9 target. More...

int arm7_9_bulk_write_memory (struct target *target, target_addr_t address, uint32_t count, const uint8_t *buffer)

int arm7_9_check_reset (struct target *target)

static int arm7_9_clear_halt (struct target *target)
 Clears the halt condition for an ARM7/9 target. More...

static int arm7_9_clear_watchpoints (struct arm7_9_common *arm7_9)
 Clear watchpoints for an ARM7/9 target. More...

static int arm7_9_dcc_completion (struct target *target, uint32_t exit_point, int timeout_ms, void *arch_info)

int arm7_9_deassert_reset (struct target *target)
 Deassert the reset (SRST) signal on an ARM7/9 target. More...

static int arm7_9_debug_entry (struct target *target)
 Handle an ARM7/9 target's entry into debug mode. More...

void arm7_9_deinit (struct target *target)

void arm7_9_disable_eice_step (struct target *target)

static void arm7_9_enable_breakpoints (struct target *target)
 Enable the breakpoints on an ARM7/9 target. More...

void arm7_9_enable_eice_step (struct target *target, uint32_t next_pc)

static void arm7_9_enable_watchpoints (struct target *target)
 Enable the watchpoints on an ARM7/9 target. More...

int arm7_9_endianness_callback (jtag_callback_data_t pu8_in, jtag_callback_data_t i_size, jtag_callback_data_t i_be, jtag_callback_data_t i_flip)

int arm7_9_examine (struct target *target)
 Perform per-target setup that requires JTAG access. More...

static int arm7_9_execute_fast_sys_speed (struct target *target)
 Restarts the target by sending a RESTART instruction and moving the JTAG state to IDLE. More...

int arm7_9_execute_sys_speed (struct target *target)
 Restarts the target by sending a RESTART instruction and moving the JTAG state to IDLE. More...

static int arm7_9_full_context (struct target *target)
 Validate the full context for an ARM7/9 target in all processor modes. More...

int arm7_9_halt (struct target *target)
 Halt an ARM7/9 target. More...

static int arm7_9_handle_target_request (void *priv)
 Handles requests to an ARM7/9 target. More...

int arm7_9_init_arch_info (struct target *target, struct arm7_9_common *arm7_9)

int arm7_9_poll (struct target *target)
 Polls an ARM7/9 target for its current status. More...

static int arm7_9_read_core_reg (struct target *target, struct reg *r, int num, enum arm_mode mode)

int arm7_9_read_memory (struct target *target, target_addr_t address, uint32_t size, uint32_t count, uint8_t *buffer)

int arm7_9_remove_breakpoint (struct target *target, struct breakpoint *breakpoint)
 Removes a breakpoint from an ARM7/9 target. More...

int arm7_9_remove_watchpoint (struct target *target, struct watchpoint *watchpoint)
 Remove a watchpoint from an ARM7/9 target. More...

static int arm7_9_restart_core (struct target *target)
 Restart the core of an ARM7/9 target. More...

static int arm7_9_restore_context (struct target *target)
 Restore the processor context on an ARM7/9 target. More...

int arm7_9_resume (struct target *target, int current, target_addr_t address, int handle_breakpoints, int debug_execution)

static int arm7_9_set_breakpoint (struct target *target, struct breakpoint *breakpoint)
 Set either a hardware or software breakpoint on an ARM7/9 target. More...

static int arm7_9_set_software_breakpoints (struct arm7_9_common *arm7_9)
 Setup an ARM7/9 target's embedded ICE registers for software breakpoints. More...

static int arm7_9_set_watchpoint (struct target *target, struct watchpoint *watchpoint)
 Sets a watchpoint for an ARM7/9 target in one of the watchpoint units. More...

static int arm7_9_setup (struct target *target)
 Setup the common pieces for an ARM7/9 target after reset or on startup. More...

static int arm7_9_setup_semihosting (struct target *target, int enable)

int arm7_9_soft_reset_halt (struct target *target)
 Issue a software reset and halt to an ARM7/9 target. More...

int arm7_9_step (struct target *target, int current, target_addr_t address, int handle_breakpoints)

int arm7_9_target_request_data (struct target *target, uint32_t size, uint8_t *buffer)
 Get some data from the ARM7/9 target. More...

static int arm7_9_unset_breakpoint (struct target *target, struct breakpoint *breakpoint)
 Unsets an existing breakpoint on an ARM7/9 target. More...

static int arm7_9_unset_watchpoint (struct target *target, struct watchpoint *watchpoint)
 Unset an existing watchpoint and clear the used watchpoint unit. More...

static int arm7_9_write_core_reg (struct target *target, struct reg *r, int num, enum arm_mode mode, uint8_t *value)

int arm7_9_write_memory (struct target *target, target_addr_t address, uint32_t size, uint32_t count, const uint8_t *buffer)

int arm7_9_write_memory_no_opt (struct target *target, uint32_t address, uint32_t size, uint32_t count, const uint8_t *buffer)

int arm7_9_write_memory_opt (struct target *target, target_addr_t address, uint32_t size, uint32_t count, const uint8_t *buffer)

 COMMAND_HANDLER (handle_arm7_9_dbgrq_command)

 COMMAND_HANDLER (handle_arm7_9_dcc_downloads_command)

 COMMAND_HANDLER (handle_arm7_9_fast_memory_access_command)


Variables

static const struct command_registration arm7_9_any_command_handlers []

const struct command_registration arm7_9_command_handlers []

static const uint8_t * dcc_buffer

static const uint32_t dcc_code []

static int dcc_count


Detailed Description

Hold common code supporting the ARM7 and ARM9 core generations.

While the ARM core implementations evolved substantially during these two generations, they look quite similar from the JTAG perspective. Both have similar debug facilities, based on the same two scan chains providing access to the core and to an EmbeddedICE module. Both can support similar ETM and ETB modules, for tracing. And both expose what could be viewed as "ARM Classic", with multiple processor modes, shadowed registers, and support for the Thumb instruction set.

Processor differences include things like presence or absence of MMU and cache, pipeline sizes, use of a modified Harvard Architecture (with separate instruction and data buses from the CPU), support for cpu clock gating during idle, and more.

Definition in file arm7_9_common.c.

Function Documentation

◆ arm7_9_add_breakpoint()

int arm7_9_add_breakpoint ( struct target target,
struct breakpoint breakpoint
)

Add a breakpoint to an ARM7/9 target.

This makes sure that there are no dangling breakpoints and that the desired breakpoint can be added.

Parameters
targetPointer to the target ARM7/9 device to add a breakpoint to
breakpointPointer to the breakpoint to be added
Returns
An error status if there is a problem adding the breakpoint or the result of setting the breakpoint

Definition at line 376 of file arm7_9_common.c.

References arm7_9_assign_wp(), arm7_9_clear_watchpoints(), arm7_9_set_breakpoint(), BKPT_HARD, arm7_9_common::breakpoint_count, ERROR_TARGET_RESOURCE_NOT_AVAILABLE, breakpoint::length, LOG_INFO, target_to_arm7_9(), breakpoint::type, and arm7_9_common::wp_available.

◆ arm7_9_add_watchpoint()

int arm7_9_add_watchpoint ( struct target target,
struct watchpoint watchpoint
)

Add a watchpoint to an ARM7/9 target.

If there are no watchpoint units available, an error response is returned.

Parameters
targetPointer to the ARM7/9 target to add a watchpoint to
watchpointPointer to the watchpoint to be added
Returns
Error status while trying to add the watchpoint

Definition at line 562 of file arm7_9_common.c.

References ERROR_OK, ERROR_TARGET_RESOURCE_NOT_AVAILABLE, watchpoint::length, target_to_arm7_9(), and arm7_9_common::wp_available.

◆ arm7_9_assert_reset()

int arm7_9_assert_reset ( struct target target)

Asserts the reset (SRST) on an ARM7/9 target.

Some -S targets (ARM966E-S in the STR912 isn't affected, ARM926EJ-S in the LPC3180 and AT91SAM9260 is affected) completely stop the JTAG clock while the core is held in reset (SRST). It isn't possible to program the halt condition once reset is asserted, hence a hook that allows the target to set up its reset-halt condition is setup prior to asserting reset.

Parameters
targetPointer to an ARM7/9 target to assert reset on
Returns
ERROR_FAIL if the JTAG device does not have SRST, otherwise ERROR_OK

Definition at line 861 of file arm7_9_common.c.

References arm7_9_common::arm, arm::core_cache, DBG_REASON_DBGRQ, target::debug_reason, arm7_9_common::eice_cache, EICE_VEC_CATCH, EICE_W0_ADDR_MASK, EICE_W0_ADDR_VALUE, EICE_W0_CONTROL_MASK, EICE_W0_CONTROL_VALUE, EICE_W0_DATA_MASK, EICE_W_CTRL_ENABLE, EICE_W_CTRL_NOPC, embeddedice_write_reg(), ERROR_FAIL, ERROR_OK, ERROR_TARGET_NOT_EXAMINED, arm7_9_common::has_vector_catch, jtag_add_reset(), jtag_add_runtest(), jtag_add_sleep(), jtag_get_reset_config(), jtag_reset_config, LOG_DEBUG, LOG_ERROR, LOG_WARNING, reg_cache::reg_list, register_cache_invalidate(), target::reset_halt, RESET_HAS_SRST, RESET_SRST_NO_GATING, RESET_SRST_PULLS_TRST, srst_asserted, target::state, TAP_IDLE, TARGET_EVENT_RESET_ASSERT, target_handle_event(), target_has_event_action(), target_name(), TARGET_RESET, target_state_name(), target_to_arm7_9(), and target_was_examined().

Referenced by feroceon_assert_reset().

◆ arm7_9_assign_wp()

static void arm7_9_assign_wp ( struct arm7_9_common arm7_9,
struct breakpoint breakpoint
)
static

Assign a watchpoint to one of the two available hardware comparators in an ARM7 or ARM9 target.

Parameters
arm7_9Pointer to the common struct for an ARM7/9 target
breakpointPointer to the breakpoint to be used as a watchpoint

Definition at line 81 of file arm7_9_common.c.

References breakpoint::address, breakpoint_hw_set(), LOG_DEBUG, LOG_ERROR, breakpoint::number, TARGET_PRIxADDR, breakpoint::unique_id, arm7_9_common::wp0_used, arm7_9_common::wp1_used, and arm7_9_common::wp_available.

Referenced by arm7_9_add_breakpoint(), and arm7_9_set_breakpoint().

◆ arm7_9_bulk_write_memory()

◆ arm7_9_check_reset()

◆ arm7_9_clear_halt()

static int arm7_9_clear_halt ( struct target target)
static

Clears the halt condition for an ARM7/9 target.

If it isn't coming out of reset and if DBGRQ is used, it is programmed to be deasserted. If the reset vector catch was used, it is restored. Otherwise, the control value is restored and the watchpoint unit is restored if it was in use.

Parameters
targetPointer to the ARM7/9 target to have halt cleared
Returns
Always ERROR_OK

Definition at line 1009 of file arm7_9_common.c.

References buf_set_u32(), arm7_9_common::debug_entry_from_reset, arm7_9_common::eice_cache, EICE_DBG_CONTROL_DBGRQ, EICE_DBG_CTRL, EICE_VEC_CATCH, EICE_W0_ADDR_MASK, EICE_W0_ADDR_VALUE, EICE_W0_CONTROL_MASK, EICE_W0_CONTROL_VALUE, EICE_W0_DATA_MASK, embeddedice_store_reg(), ERROR_OK, arm7_9_common::has_vector_catch, reg_cache::reg_list, target_to_arm7_9(), arm7_9_common::use_dbgrq, reg::value, and arm7_9_common::wp0_used.

Referenced by arm7_9_debug_entry(), and arm7_9_soft_reset_halt().

◆ arm7_9_clear_watchpoints()

static int arm7_9_clear_watchpoints ( struct arm7_9_common arm7_9)
static

◆ arm7_9_dcc_completion()

◆ arm7_9_deassert_reset()

int arm7_9_deassert_reset ( struct target target)

Deassert the reset (SRST) signal on an ARM7/9 target.

If SRST pulls TRST and the target is being reset into a halt, a warning will be triggered because it is not possible to reset into a halted mode in this case. The target is halted using the target's functions.

Parameters
targetPointer to the target to have the reset deasserted
Returns
ERROR_OK or an error from polling or halting the target

Definition at line 966 of file arm7_9_common.c.

References ERROR_OK, jtag_add_reset(), jtag_get_reset_config(), jtag_reset_config, LOG_DEBUG, LOG_WARNING, target::reset_halt, RESET_SRST_PULLS_TRST, target_examine_one(), target_halt(), target_poll(), and target_state_name().

◆ arm7_9_debug_entry()

static int arm7_9_debug_entry ( struct target target)
static

Handle an ARM7/9 target's entry into debug mode.

The halt is cleared on the ARM. The JTAG queue is then executed and the reason for debug entry is examined. Once done, the target is verified to be halted and the processor is forced into ARM mode. The core registers are saved for the current core mode and the program counter (register 15) is updated as needed. The core registers and CPSR and SPSR are saved for restoration later.

Parameters
targetPointer to target that is entering debug mode
Returns
Error code if anything fails, otherwise ERROR_OK

Definition at line 1224 of file arm7_9_common.c.

References arm7_9_common::arm, arm7_9_clear_halt(), arm_mode_name(), arm_reg_current(), arm_set_cpsr(), ARM_STATE_ARM, ARM_STATE_JAZELLE, ARM_STATE_THUMB, buf_get_u32(), buf_set_u32(), arm7_9_common::change_to_arm, arm::core_mode, arm::core_state, DBG_REASON_DBGRQ, arm7_9_common::dbgreq_adjust_pc, target::debug_reason, reg::dirty, arm7_9_common::eice_cache, EICE_DBG_CONTROL_DBGACK, EICE_DBG_CONTROL_DBGRQ, EICE_DBG_CONTROL_INTDIS, EICE_DBG_CTRL, EICE_DBG_STAT, EICE_DBG_STATUS_ITBIT, embeddedice_store_reg(), ERROR_OK, ERROR_TARGET_FAILURE, ERROR_TARGET_NOT_HALTED, arm7_9_common::examine_debug_reason, is_arm_mode(), jtag_execute_queue(), LOG_DEBUG, LOG_ERROR, LOG_WARNING, arm7_9_common::post_debug_entry, arm7_9_common::read_core_regs, arm7_9_common::read_xpsr, reg_cache::reg_list, arm::spsr, target::state, TARGET_HALTED, target_to_arm7_9(), TARGET_UNKNOWN, arm7_9_common::use_dbgrq, reg::valid, and reg::value.

Referenced by arm7_9_poll(), arm7_9_resume(), and arm7_9_step().

◆ arm7_9_deinit()

◆ arm7_9_disable_eice_step()

◆ arm7_9_enable_breakpoints()

static void arm7_9_enable_breakpoints ( struct target target)
static

Enable the breakpoints on an ARM7/9 target.

The target's breakpoints are iterated through and are set on the target.

Parameters
targetPointer to the ARM7/9 target to enable breakpoints on

Definition at line 1689 of file arm7_9_common.c.

References arm7_9_set_breakpoint(), target::breakpoints, and breakpoint::next.

Referenced by arm7_9_resume().

◆ arm7_9_enable_eice_step()

◆ arm7_9_enable_watchpoints()

static void arm7_9_enable_watchpoints ( struct target target)
static

Enable the watchpoints on an ARM7/9 target.

The target's watchpoints are iterated through and are set on the target if they aren't already set.

Parameters
targetPointer to the ARM7/9 target to enable watchpoints on

Definition at line 1672 of file arm7_9_common.c.

References arm7_9_set_watchpoint(), watchpoint::is_set, watchpoint::next, and target::watchpoints.

Referenced by arm7_9_resume().

◆ arm7_9_endianness_callback()

◆ arm7_9_examine()

◆ arm7_9_execute_fast_sys_speed()

static int arm7_9_execute_fast_sys_speed ( struct target target)
static

Restarts the target by sending a RESTART instruction and moving the JTAG state to IDLE.

This validates that DBGACK and SYSCOMP are set without waiting until they are.

Parameters
targetPointer to the target to issue commands to
Returns
Always ERROR_OK

Definition at line 661 of file arm7_9_common.c.

References arm_jtag_set_instr(), buf_set_u32(), arm7_9_common::eice_cache, EICE_DBG_STAT, embeddedice_read_reg_w_check(), ERROR_OK, arm7_9_common::jtag_info, arm7_9_common::need_bypass_before_restart, NULL, reg_cache::reg_list, arm_jtag::tap, TAP_IDLE, and target_to_arm7_9().

Referenced by arm7_9_read_memory(), and arm7_9_write_memory().

◆ arm7_9_execute_sys_speed()

int arm7_9_execute_sys_speed ( struct target target)

Restarts the target by sending a RESTART instruction and moving the JTAG state to IDLE.

This includes a timeout waiting for DBGACK and SYSCOMP to be asserted by the processor.

Parameters
targetPointer to target to issue commands to
Returns
Error status if there is a timeout or a problem while executing the JTAG queue

Definition at line 610 of file arm7_9_common.c.

References alive_sleep(), arm_jtag_set_instr(), buf_get_u32(), debug_level, arm7_9_common::eice_cache, EICE_DBG_STAT, EICE_DBG_STATUS_DBGACK, EICE_DBG_STATUS_SYSCOMP, embeddedice_read_reg(), ERROR_OK, ERROR_TARGET_TIMEOUT, jtag_execute_queue(), arm7_9_common::jtag_info, keep_alive(), LOG_ERROR, arm7_9_common::need_bypass_before_restart, NULL, reg_cache::reg_list, reg::size, arm_jtag::tap, TAP_IDLE, target_to_arm7_9(), timeval_ms(), and reg::value.

Referenced by arm7_9_read_memory(), arm7_9_resume(), arm7_9_step(), arm7_9_write_memory(), arm920t_execute_cp15(), feroceon_read_cp15(), and feroceon_write_cp15().

◆ arm7_9_full_context()

static int arm7_9_full_context ( struct target target)
static

Validate the full context for an ARM7/9 target in all processor modes.

If there are any invalid registers for the target, they will all be read. This includes the PSR.

Parameters
targetPointer to the ARM7/9 target to capture the full context from
Returns
Error if the target is not halted, has an invalid core mode, or if the JTAG queue fails to execute

Definition at line 1378 of file arm7_9_common.c.

References arm7_9_common::arm, ARMV4_5_CORE_REG_MODE, armv4_5_number_to_mode(), buf_get_u32(), buf_set_u32(), arm::core_cache, arm::core_mode, arm::cpsr, ERROR_FAIL, ERROR_OK, ERROR_TARGET_NOT_HALTED, is_arm_mode(), jtag_execute_queue(), LOG_DEBUG, LOG_ERROR, LOG_WARNING, mask, arm7_9_common::read_core_regs, arm7_9_common::read_xpsr, target::state, TARGET_HALTED, target_to_arm7_9(), reg::value, and arm7_9_common::write_xpsr_im8.

◆ arm7_9_halt()

int arm7_9_halt ( struct target target)

Halt an ARM7/9 target.

This is accomplished by either asserting the DBGRQ line or by programming a watchpoint to trigger on any address. It is considered a bug to call this function while the target is in the TARGET_RESET state.

Parameters
targetPointer to the ARM7/9 target to be halted
Returns
Always ERROR_OK

Definition at line 1166 of file arm7_9_common.c.

References buf_set_u32(), DBG_REASON_DBGRQ, target::debug_reason, arm7_9_common::eice_cache, EICE_DBG_CONTROL_DBGRQ, EICE_DBG_CTRL, EICE_W0_ADDR_MASK, EICE_W0_CONTROL_MASK, EICE_W0_CONTROL_VALUE, EICE_W0_DATA_MASK, EICE_W_CTRL_ENABLE, EICE_W_CTRL_NOPC, embeddedice_store_reg(), embeddedice_write_reg(), ERROR_OK, LOG_DEBUG, LOG_ERROR, LOG_WARNING, reg_cache::reg_list, arm7_9_common::set_special_dbgrq, target::state, TARGET_HALTED, TARGET_RESET, target_state_name(), target_to_arm7_9(), TARGET_UNKNOWN, arm7_9_common::use_dbgrq, and reg::value.

Referenced by feroceon_assert_reset().

◆ arm7_9_handle_target_request()

static int arm7_9_handle_target_request ( void *  priv)
static

Handles requests to an ARM7/9 target.

If debug messaging is enabled, the target is running and the DCC control register has the W bit high, this will execute the request on the target.

Parameters
privVoid pointer expected to be a struct target pointer
Returns
ERROR_OK unless there are issues with the JTAG queue or when reading from the Embedded ICE unit

Definition at line 738 of file arm7_9_common.c.

References buf_get_u32(), target::dbg_msg_enabled, arm7_9_common::eice_cache, EICE_COMMS_CTRL, embeddedice_read_reg(), embeddedice_receive(), ERROR_OK, jtag_execute_queue(), arm7_9_common::jtag_info, priv, reg_cache::reg_list, target::state, target_request(), TARGET_RUNNING, target_to_arm7_9(), target_was_examined(), and reg::value.

◆ arm7_9_init_arch_info()

int arm7_9_init_arch_info ( struct target target,
struct arm7_9_common arm7_9
)

◆ arm7_9_poll()

int arm7_9_poll ( struct target target)

Polls an ARM7/9 target for its current status.

If DBGACK is set, the target is manipulated to the right halted state based on its current state. This is what happens:

StateAction
TARGET_RUNNING | TARGET_RESET Enters debug mode. If TARGET_RESET, pc may be checked
TARGET_UNKNOWNWarning is logged
TARGET_DEBUG_RUNNINGEnters debug mode
TARGET_HALTEDNothing

If the target does not end up in the halted state, a warning is produced. If DBGACK is cleared, then the target is expected to either be running or running in debug.

Parameters
targetPointer to the ARM7/9 target to poll
Returns
ERROR_OK or an error status if a command fails

Definition at line 795 of file arm7_9_common.c.

References arm7_9_debug_entry(), arm_semihosting(), buf_get_u32(), arm7_9_common::eice_cache, EICE_DBG_STAT, EICE_DBG_STATUS_DBGACK, embeddedice_read_reg(), ERROR_OK, jtag_execute_queue(), LOG_DEBUG, LOG_WARNING, reg_cache::reg_list, target::state, target_call_event_callbacks(), TARGET_DEBUG_RUNNING, TARGET_EVENT_DEBUG_HALTED, TARGET_EVENT_HALTED, TARGET_HALTED, TARGET_RESET, TARGET_RUNNING, target_to_arm7_9(), TARGET_UNKNOWN, and reg::value.

◆ arm7_9_read_core_reg()

◆ arm7_9_read_memory()

◆ arm7_9_remove_breakpoint()

int arm7_9_remove_breakpoint ( struct target target,
struct breakpoint breakpoint
)

Removes a breakpoint from an ARM7/9 target.

This will make sure there are no dangling breakpoints and updates available watchpoints if it is a hardware breakpoint.

Parameters
targetPointer to the target to have a breakpoint removed
breakpointPointer to the breakpoint to be removed
Returns
Error status if there was a problem unsetting the breakpoint or the watchpoints could not be cleared

Definition at line 415 of file arm7_9_common.c.

References arm7_9_clear_watchpoints(), arm7_9_unset_breakpoint(), BKPT_HARD, arm7_9_common::breakpoint_count, ERROR_OK, target_to_arm7_9(), breakpoint::type, and arm7_9_common::wp_available.

◆ arm7_9_remove_watchpoint()

int arm7_9_remove_watchpoint ( struct target target,
struct watchpoint watchpoint
)

Remove a watchpoint from an ARM7/9 target.

The watchpoint will be unset and the used watchpoint unit will be reopened.

Parameters
targetPointer to the target to remove a watchpoint from
watchpointPointer to the watchpoint to be removed
Returns
Result of trying to unset the watchpoint

Definition at line 585 of file arm7_9_common.c.

References arm7_9_unset_watchpoint(), ERROR_OK, watchpoint::is_set, target_to_arm7_9(), and arm7_9_common::wp_available.

◆ arm7_9_restart_core()

static int arm7_9_restart_core ( struct target target)
static

Restart the core of an ARM7/9 target.

A RESTART command is sent to the instruction register and the JTAG state is set to TAP_IDLE causing a core restart.

Parameters
targetPointer to the ARM7/9 target to be restarted
Returns
Result of executing the JTAG queue

Definition at line 1644 of file arm7_9_common.c.

References arm_jtag_set_instr(), ERROR_OK, jtag_add_runtest(), jtag_execute_queue(), arm7_9_common::jtag_info, arm7_9_common::need_bypass_before_restart, NULL, arm_jtag::tap, TAP_IDLE, and target_to_arm7_9().

Referenced by arm7_9_resume().

◆ arm7_9_restore_context()

static int arm7_9_restore_context ( struct target target)
static

Restore the processor context on an ARM7/9 target.

The full processor context is analyzed to see if any of the registers are dirty on this end, but have a valid new value. If this is the case, the processor is changed to the appropriate mode and the new register values are written out to the processor. If there happens to be a dirty register with an invalid value, an error will be logged.

Parameters
targetPointer to the ARM7/9 target to have its context restored
Returns
Error status if the target is not halted or the core mode in the armv4_5 struct is invalid.

Definition at line 1496 of file arm7_9_common.c.

References reg::arch_info, arm7_9_common::arm, ARM_MODE_ANY, arm_mode_name(), ARM_MODE_SYS, ARM_MODE_USR, ARMV4_5_CORE_REG_MODE, armv4_5_number_to_mode(), buf_get_u32(), arm::core_cache, arm::core_mode, arm::cpsr, reg::dirty, ERROR_FAIL, ERROR_OK, ERROR_TARGET_NOT_HALTED, is_arm_mode(), LOG_DEBUG, LOG_ERROR, LOG_WARNING, mask, arm_reg::mode, reg::name, arm::pc, arm7_9_common::pre_restore_context, regs, target::state, TARGET_HALTED, target_to_arm7_9(), reg::valid, reg::value, arm7_9_common::write_core_regs, arm7_9_common::write_pc, arm7_9_common::write_xpsr, and arm7_9_common::write_xpsr_im8.

Referenced by arm7_9_resume(), and arm7_9_step().

◆ arm7_9_resume()

◆ arm7_9_set_breakpoint()

static int arm7_9_set_breakpoint ( struct target target,
struct breakpoint breakpoint
)
static

Set either a hardware or software breakpoint on an ARM7/9 target.

The breakpoint is set up even if it is already set. Some actions, e.g. reset, might have erased the values in Embedded ICE.

Parameters
targetPointer to the target device to set the breakpoints on
breakpointPointer to the breakpoint to be set
Returns
For hardware breakpoints, this is the result of executing the JTAG queue. For software breakpoints, this will be the status of the required memory reads and writes

Definition at line 176 of file arm7_9_common.c.

References breakpoint::address, arm7_9_assign_wp(), arm7_9_set_software_breakpoints(), arm7_9_common::arm_bkpt, BKPT_HARD, BKPT_SOFT, arm7_9_common::eice_cache, EICE_W0_ADDR_MASK, EICE_W0_ADDR_VALUE, EICE_W0_CONTROL_MASK, EICE_W0_CONTROL_VALUE, EICE_W0_DATA_MASK, EICE_W1_ADDR_MASK, EICE_W1_ADDR_VALUE, EICE_W1_CONTROL_MASK, EICE_W1_CONTROL_VALUE, EICE_W1_DATA_MASK, EICE_W_CTRL_ENABLE, EICE_W_CTRL_NOPC, embeddedice_set_reg(), ERROR_OK, ERROR_TARGET_NOT_HALTED, breakpoint::is_set, jtag_execute_queue(), breakpoint::length, LOG_DEBUG, LOG_ERROR, LOG_WARNING, mask, breakpoint::number, breakpoint::orig_instr, reg_cache::reg_list, target::state, arm7_9_common::sw_breakpoint_count, TARGET_HALTED, TARGET_PRIxADDR, target_read_memory(), target_read_u16(), target_read_u32(), target_to_arm7_9(), target_write_u16(), target_write_u32(), arm7_9_common::thumb_bkpt, breakpoint::type, and breakpoint::unique_id.

Referenced by arm7_9_add_breakpoint(), arm7_9_enable_breakpoints(), arm7_9_resume(), and arm7_9_step().

◆ arm7_9_set_software_breakpoints()

static int arm7_9_set_software_breakpoints ( struct arm7_9_common arm7_9)
static

◆ arm7_9_set_watchpoint()

static int arm7_9_set_watchpoint ( struct target target,
struct watchpoint watchpoint
)
static

Sets a watchpoint for an ARM7/9 target in one of the watchpoint units.

It is considered a bug to call this function when there are no available watchpoint units.

Parameters
targetPointer to an ARM7/9 target to set a watchpoint on
watchpointPointer to the watchpoint to be set
Returns
Error status if watchpoint set fails or the result of executing the JTAG queue

Definition at line 448 of file arm7_9_common.c.

References watchpoint::address, arm7_9_common::eice_cache, EICE_W0_ADDR_MASK, EICE_W0_ADDR_VALUE, EICE_W0_CONTROL_MASK, EICE_W0_CONTROL_VALUE, EICE_W0_DATA_MASK, EICE_W0_DATA_VALUE, EICE_W1_ADDR_MASK, EICE_W1_ADDR_VALUE, EICE_W1_CONTROL_MASK, EICE_W1_CONTROL_VALUE, EICE_W1_DATA_MASK, EICE_W1_DATA_VALUE, EICE_W_CTRL_ENABLE, EICE_W_CTRL_NOPC, embeddedice_set_reg(), ERROR_OK, ERROR_TARGET_NOT_HALTED, jtag_execute_queue(), watchpoint::length, LOG_ERROR, LOG_WARNING, watchpoint::mask, mask, reg_cache::reg_list, watchpoint::rw, target::state, TARGET_HALTED, target_to_arm7_9(), watchpoint::value, watchpoint_set(), arm7_9_common::wp0_used, arm7_9_common::wp1_used, and WPT_ACCESS.

Referenced by arm7_9_enable_watchpoints().

◆ arm7_9_setup()

static int arm7_9_setup ( struct target target)
static

Setup the common pieces for an ARM7/9 target after reset or on startup.

Parameters
targetPointer to an ARM7/9 target to setup
Returns
Result of clearing the watchpoints on the target

Definition at line 158 of file arm7_9_common.c.

References arm7_9_clear_watchpoints(), and target_to_arm7_9().

Referenced by arm7_9_examine().

◆ arm7_9_setup_semihosting()

◆ arm7_9_soft_reset_halt()

int arm7_9_soft_reset_halt ( struct target target)

Issue a software reset and halt to an ARM7/9 target.

The target is halted and then there is a wait until the processor shows the halt. This wait can timeout and results in an error being returned. The software reset involves clearing the halt, updating the debug control register, changing to ARM mode, reset of the program counter, and reset of all of the registers.

Parameters
targetPointer to the ARM7/9 target to be reset and halted by software
Returns
Error status if any of the commands fail, otherwise ERROR_OK

Definition at line 1061 of file arm7_9_common.c.

References alive_sleep(), arm7_9_common::arm, arm7_9_clear_halt(), arm_reg_current(), arm_set_cpsr(), ARM_STATE_THUMB, buf_get_u32(), buf_set_u32(), arm7_9_common::change_to_arm, arm::core_cache, arm::core_state, arm::cpsr, debug_level, reg::dirty, arm7_9_common::eice_cache, EICE_DBG_CONTROL_DBGACK, EICE_DBG_CONTROL_DBGRQ, EICE_DBG_CONTROL_INTDIS, EICE_DBG_CTRL, EICE_DBG_STAT, EICE_DBG_STATUS_DBGACK, EICE_DBG_STATUS_ITBIT, embeddedice_read_reg(), embeddedice_store_reg(), ERROR_OK, ERROR_TARGET_TIMEOUT, jtag_execute_queue(), keep_alive(), LOG_DEBUG, LOG_ERROR, arm::pc, reg_cache::reg_list, register_cache_invalidate(), target::state, target_call_event_callbacks(), TARGET_EVENT_HALTED, target_halt(), TARGET_HALTED, target_to_arm7_9(), timeval_ms(), reg::valid, and reg::value.

◆ arm7_9_step()

◆ arm7_9_target_request_data()

int arm7_9_target_request_data ( struct target target,
uint32_t  size,
uint8_t *  buffer
)

Get some data from the ARM7/9 target.

Parameters
targetPointer to the ARM7/9 target to read data from
sizeThe number of 32bit words to be read
bufferPointer to the buffer that will hold the data
Returns
The result of receiving data from the Embedded ICE unit

Definition at line 708 of file arm7_9_common.c.

References buffer, embeddedice_receive(), ERROR_OK, h_u32_to_le(), arm7_9_common::jtag_info, size, and target_to_arm7_9().

◆ arm7_9_unset_breakpoint()

static int arm7_9_unset_breakpoint ( struct target target,
struct breakpoint breakpoint
)
static

Unsets an existing breakpoint on an ARM7/9 target.

If it is a hardware breakpoint, the watchpoint used will be freed and the Embedded ICE registers will be updated. Otherwise, the software breakpoint will be restored to its original instruction if it hasn't already been modified.

Parameters
targetPointer to ARM7/9 target to unset the breakpoint from
breakpointPointer to breakpoint to be unset
Returns
For hardware breakpoints, this is the result of executing the JTAG queue. For software breakpoints, this will be the status of the required memory reads and writes

Definition at line 288 of file arm7_9_common.c.

References breakpoint::address, arm7_9_common::arm_bkpt, BKPT_HARD, arm7_9_common::eice_cache, EICE_W0_CONTROL_VALUE, EICE_W1_CONTROL_VALUE, embeddedice_set_reg(), ERROR_OK, breakpoint::is_set, jtag_execute_queue(), breakpoint::length, LOG_DEBUG, LOG_WARNING, breakpoint::number, breakpoint::orig_instr, reg_cache::reg_list, arm7_9_common::sw_breakpoint_count, arm7_9_common::sw_breakpoints_added, target_buffer_get_u16(), target_buffer_get_u32(), TARGET_PRIxADDR, target_read_memory(), target_to_arm7_9(), target_write_memory(), arm7_9_common::thumb_bkpt, breakpoint::type, breakpoint::unique_id, arm7_9_common::wp0_used, arm7_9_common::wp1_used, and arm7_9_common::wp_available.

Referenced by arm7_9_remove_breakpoint(), arm7_9_resume(), and arm7_9_step().

◆ arm7_9_unset_watchpoint()

static int arm7_9_unset_watchpoint ( struct target target,
struct watchpoint watchpoint
)
static

Unset an existing watchpoint and clear the used watchpoint unit.

Parameters
targetPointer to the target to have the watchpoint removed
watchpointPointer to the watchpoint to be removed
Returns
Error status while trying to unset the watchpoint or the result of executing the JTAG queue

Definition at line 521 of file arm7_9_common.c.

References arm7_9_common::eice_cache, EICE_W0_CONTROL_VALUE, EICE_W1_CONTROL_VALUE, embeddedice_set_reg(), ERROR_OK, ERROR_TARGET_NOT_HALTED, watchpoint::is_set, jtag_execute_queue(), LOG_WARNING, watchpoint::number, reg_cache::reg_list, target::state, TARGET_HALTED, target_to_arm7_9(), arm7_9_common::wp0_used, and arm7_9_common::wp1_used.

Referenced by arm7_9_remove_watchpoint().

◆ arm7_9_write_core_reg()

◆ arm7_9_write_memory()

◆ arm7_9_write_memory_no_opt()

int arm7_9_write_memory_no_opt ( struct target target,
uint32_t  address,
uint32_t  size,
uint32_t  count,
const uint8_t *  buffer
)

◆ arm7_9_write_memory_opt()

int arm7_9_write_memory_opt ( struct target target,
target_addr_t  address,
uint32_t  size,
uint32_t  count,
const uint8_t *  buffer
)

◆ COMMAND_HANDLER() [1/3]

◆ COMMAND_HANDLER() [2/3]

COMMAND_HANDLER ( handle_arm7_9_dcc_downloads_command  )

◆ COMMAND_HANDLER() [3/3]

COMMAND_HANDLER ( handle_arm7_9_fast_memory_access_command  )

Variable Documentation

◆ arm7_9_any_command_handlers

const struct command_registration arm7_9_any_command_handlers[]
static
Initial value:
= {
{
.name = "dbgrq",
.handler = handle_arm7_9_dbgrq_command,
.mode = COMMAND_ANY,
.usage = "['enable'|'disable']",
.help = "use EmbeddedICE dbgrq instead of breakpoint "
"for target halt requests",
},
{
.name = "fast_memory_access",
.handler = handle_arm7_9_fast_memory_access_command,
.mode = COMMAND_ANY,
.usage = "['enable'|'disable']",
.help = "use fast memory accesses instead of slower "
"but potentially safer accesses",
},
{
.name = "dcc_downloads",
.handler = handle_arm7_9_dcc_downloads_command,
.mode = COMMAND_ANY,
.usage = "['enable'|'disable']",
.help = "use DCC downloads for larger memory writes",
},
}
#define COMMAND_REGISTRATION_DONE
Use this as the last entry in an array of command_registration records.
Definition: command.h:247
@ COMMAND_ANY
Definition: command.h:42

Definition at line 2847 of file arm7_9_common.c.

◆ arm7_9_command_handlers

const struct command_registration arm7_9_command_handlers[]
Initial value:
= {
{
},
{
},
{
.name = "arm7_9",
.mode = COMMAND_ANY,
.help = "arm7/9 specific commands",
.usage = "",
},
}
static const struct command_registration arm7_9_any_command_handlers[]
const struct command_registration arm_command_handlers[]
Definition: armv4_5.c:1169
const struct command_registration etm_command_handlers[]
Definition: etm.c:2008
const char * name
Definition: command.h:229
const struct command_registration * chain
If non-NULL, the commands in chain will be registered in the same context and scope of this registrat...
Definition: command.h:243

Definition at line 2847 of file arm7_9_common.c.

◆ dcc_buffer

const uint8_t* dcc_buffer
static

◆ dcc_code

const uint32_t dcc_code[]
static
Initial value:
= {
0xee101e10,
0xe3110001,
0x0afffffc,
0xee111e10,
0xe4801004,
0xeafffff9
}

Definition at line 2569 of file arm7_9_common.c.

Referenced by arm7_9_bulk_write_memory(), and feroceon_bulk_write_memory().

◆ dcc_count

int dcc_count
static

Definition at line 2518 of file arm7_9_common.c.

Referenced by arm7_9_bulk_write_memory(), and arm7_9_dcc_completion().
