OpenOCD
|

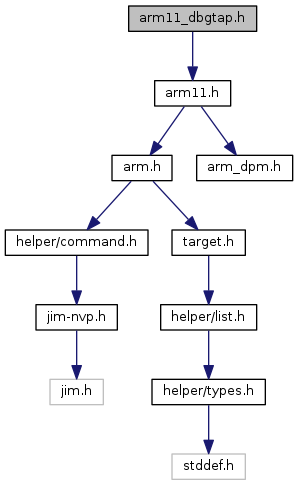

Go to the source code of this file.
Data Structures | |
struct | arm11_sc7_action |
Used with arm11_sc7_run to make a list of read/write commands for scan chain 7. More... | |
Functions | |
int | arm11_add_debug_scan_n (struct arm11_common *arm11, uint8_t chain, tap_state_t state) |
Select and write to Scan Chain Register (SCREG) More... | |
void | arm11_add_dr_scan_vc (struct jtag_tap *tap, int num_fields, struct scan_field *fields, tap_state_t state) |
void | arm11_add_ir (struct arm11_common *arm11, uint8_t instr, tap_state_t state) |
Write JTAG instruction register. More... | |
int | arm11_bpwp_flush (struct arm11_common *arm11) |
Flush any pending breakpoint and watchpoint updates. More... | |
void | arm11_dpm_deinit (struct arm11_common *arm11) |
int | arm11_dpm_init (struct arm11_common *arm11, uint32_t didr) |
Set up high-level debug module utilities. More... | |
int | arm11_read_dscr (struct arm11_common *arm11) |
Read and save the Debug Status and Control Register (DSCR). More... | |
int | arm11_read_memory_word (struct arm11_common *arm11, uint32_t address, uint32_t *result) |
Read word from address. More... | |
int | arm11_run_instr_data_finish (struct arm11_common *arm11) |
Cleanup after ITR/DTR operations from the arm11_run_instr... More... | |
int | arm11_run_instr_data_from_core (struct arm11_common *arm11, uint32_t opcode, uint32_t *data, size_t count) |
Execute one instruction via ITR repeatedly while reading data from the core via DTR on each execution. More... | |
int | arm11_run_instr_data_from_core_via_r0 (struct arm11_common *arm11, uint32_t opcode, uint32_t *data) |
Execute one instruction via ITR then load r0 into DTR and read DTR from core. More... | |
int | arm11_run_instr_data_prepare (struct arm11_common *arm11) |
Prepare the stage for ITR/DTR operations from the arm11_run_instr... More... | |
int | arm11_run_instr_data_to_core (struct arm11_common *arm11, uint32_t opcode, uint32_t *data, size_t count) |
Execute one instruction via ITR repeatedly while passing data to the core via DTR on each execution. More... | |
int | arm11_run_instr_data_to_core1 (struct arm11_common *arm11, uint32_t opcode, uint32_t data) |
Execute an instruction via ITR while handing data into the core via DTR. More... | |
int | arm11_run_instr_data_to_core_noack (struct arm11_common *arm11, uint32_t opcode, uint32_t *data, size_t count) |
Execute one instruction via ITR repeatedly while passing data to the core via DTR on each execution. More... | |
int | arm11_run_instr_data_to_core_via_r0 (struct arm11_common *arm11, uint32_t opcode, uint32_t data) |
Load data into core via DTR then move it to r0 then execute one instruction via ITR. More... | |
int | arm11_run_instr_no_data1 (struct arm11_common *arm11, uint32_t opcode) |
Execute one instruction via ITR. More... | |
int | arm11_sc7_clear_vbw (struct arm11_common *arm11) |
Clear VCR and all breakpoints and watchpoints via scan chain 7. More... | |
int | arm11_sc7_run (struct arm11_common *arm11, struct arm11_sc7_action *actions, size_t count) |
Apply reads and writes to scan chain 7. More... | |
int | arm11_sc7_set_vcr (struct arm11_common *arm11, uint32_t value) |
Write VCR register. More... | |
void | arm11_setup_field (struct arm11_common *arm11, int num_bits, void *in_data, void *out_data, struct scan_field *field) |
Code de-clutter: Construct struct scan_field to write out a value. More... | |
int | arm11_write_dscr (struct arm11_common *arm11, uint32_t dscr) |
Write the Debug Status and Control Register (DSCR) More... | |
int arm11_add_debug_scan_n | ( | struct arm11_common * | arm11, |
uint8_t | chain, | ||
tap_state_t | state | ||
) |
Select and write to Scan Chain Register (SCREG)
This function sets the instruction register to SCAN_N and writes the data register with the selected chain number.
http://infocenter.arm.com/help/topic/com.arm.doc.ddi0301f/Cacbjhfg.html
arm11 | Target state variable. |
chain | Scan chain that will be selected. |
state | Pass the final TAP state or ARM11_TAP_DEFAULT for the default value (Pause-DR). |
Changes the current scan chain if needed, transitions to the specified TAP state, and leaves the IR undefined.
The chain takes effect when Update-DR is passed (usually when subsequently the INTEXT/EXTEST instructions are written).
Definition at line 183 of file arm11_dbgtap.c.
References arm11_common::arm, arm11_add_dr_scan_vc(), arm11_add_ir(), arm11_in_handler_scan_n(), ARM11_SCAN_N, arm11_setup_field(), ARM11_TAP_DEFAULT, arm_jtag::cur_scan_chain, jtag_add_statemove(), JTAG_DEBUG, jtag_execute_queue(), jtag_execute_queue_noclear(), arm11_common::jtag_info, state, target::tap, TAP_DRPAUSE, and arm::target.
Referenced by arm11_debug_entry(), arm11_examine(), arm11_leave_debug_state(), arm11_read_dscr(), arm11_run_instr_data_finish(), arm11_run_instr_data_prepare(), arm11_sc7_run(), and arm11_write_dscr().
void arm11_add_dr_scan_vc | ( | struct jtag_tap * | tap, |
int | num_fields, | ||
struct scan_field * | fields, | ||
tap_state_t | state | ||
) |
Definition at line 54 of file arm11_dbgtap.c.
References arm11_move_pd_to_sd_via_cd, ARRAY_SIZE, cmd_queue_cur_state, jtag_add_dr_scan(), jtag_add_pathmove(), state, and TAP_DRPAUSE.
Referenced by arm11_add_debug_inst(), arm11_add_debug_scan_n(), arm11_debug_entry(), arm11_examine(), arm11_leave_debug_state(), arm11_read_dscr(), arm11_run_instr_data_from_core(), arm11_run_instr_data_to_core(), arm11_run_instr_data_to_core_noack(), arm11_sc7_run(), and arm11_write_dscr().
void arm11_add_ir | ( | struct arm11_common * | arm11, |
uint8_t | instr, | ||
tap_state_t | state | ||
) |
Write JTAG instruction register.
arm11 | Target state variable. |
instr | An ARM11 DBGTAP instruction. Use enum arm11_instructions. |
state | Pass the final TAP state or ARM11_TAP_DEFAULT for the default value (Pause-IR). |
Definition at line 124 of file arm11_dbgtap.c.
References arm11_common::arm, arm11_add_ir_scan_vc(), arm11_ir_to_string(), arm11_setup_field(), ARM11_TAP_DEFAULT, buf_get_u32(), jtag_tap::cur_instr, JTAG_DEBUG, NULL, state, target::tap, TAP_IRPAUSE, and arm::target.
Referenced by arm11_add_debug_scan_n(), arm11_debug_entry(), arm11_examine(), arm11_halt(), arm11_leave_debug_state(), arm11_read_dscr(), arm11_resume(), arm11_run_instr_data_from_core(), arm11_run_instr_data_to_core(), arm11_run_instr_data_to_core_noack(), arm11_run_instr_no_data(), arm11_sc7_run(), arm11_step(), and arm11_write_dscr().
int arm11_bpwp_flush | ( | struct arm11_common * | arm11 | ) |
Flush any pending breakpoint and watchpoint updates.
Definition at line 1115 of file arm11_dbgtap.c.
References arm11_sc7_run(), arm11_common::bpwp_actions, arm11_common::bpwp_n, and ERROR_OK.
Referenced by arm11_dpm_init(), and arm11_leave_debug_state().
void arm11_dpm_deinit | ( | struct arm11_common * | arm11 | ) |
Definition at line 1167 of file arm11_dbgtap.c.
References arm_dpm::arm, arm_free_reg_cache(), arm11_common::bpwp_actions, arm_dpm::dbp, arm11_common::dpm, and arm_dpm::dwp.
Referenced by arm11_deinit_target().
int arm11_dpm_init | ( | struct arm11_common * | arm11, |
uint32_t | didr | ||
) |
Set up high-level debug module utilities.
Definition at line 1129 of file arm11_dbgtap.c.
References arm11_common::arm, arm_dpm::arm, arm11_bpwp_disable(), arm11_bpwp_enable(), arm11_bpwp_flush(), arm11_dpm_finish(), arm11_dpm_instr_read_data_dcc(), arm11_dpm_instr_read_data_r0(), arm11_dpm_instr_write_data_dcc(), arm11_dpm_instr_write_data_r0(), arm11_dpm_prepare(), arm_dpm_initialize(), arm_dpm_setup(), arm11_common::bpwp_actions, arm_dpm::bpwp_disable, arm_dpm::bpwp_enable, arm_dpm::didr, arm11_common::dpm, ERROR_FAIL, ERROR_OK, arm_dpm::finish, arm_dpm::instr_read_data_dcc, arm_dpm::instr_read_data_r0, arm_dpm::instr_write_data_dcc, arm_dpm::instr_write_data_r0, arm_dpm::nbp, arm_dpm::nwp, and arm_dpm::prepare.
Referenced by arm11_examine().
int arm11_read_dscr | ( | struct arm11_common * | arm11 | ) |
Read and save the Debug Status and Control Register (DSCR).
arm11 | Target state variable. |
Definition at line 265 of file arm11_dbgtap.c.
References arm11_common::arm, arm11_add_debug_scan_n(), arm11_add_dr_scan_vc(), arm11_add_ir(), ARM11_INTEST, arm11_setup_field(), ARM11_TAP_DEFAULT, CHECK_RETVAL, arm11_common::dscr, ERROR_OK, JTAG_DEBUG, jtag_execute_queue(), NULL, target::tap, TAP_DRPAUSE, and arm::target.
Referenced by arm11_check_init(), arm11_debug_entry(), arm11_halt(), arm11_leave_debug_state(), arm11_resume(), and arm11_step().
int arm11_read_memory_word | ( | struct arm11_common * | arm11, |
uint32_t | address, | ||
uint32_t * | result | ||
) |
Read word from address.
arm11 | Target state variable. |
address | Memory address to be read |
result | Pointer where to store result |
Definition at line 980 of file arm11_dbgtap.c.
References arm11_sc7_action::address, arm11_run_instr_data_finish(), arm11_run_instr_data_from_core(), arm11_run_instr_data_prepare(), arm11_run_instr_data_to_core1(), CHECK_RETVAL, and ERROR_OK.
Referenced by arm11_step().
int arm11_run_instr_data_finish | ( | struct arm11_common * | arm11 | ) |
Cleanup after ITR/DTR operations from the arm11_run_instr...
group of functions
Put arm11_run_instr_data_prepare() and arm11_run_instr_data_finish() around a block of arm11_run_instr_... calls.
Any IDLE can lead to an instruction execution when scan chains 4 or 5 are selected and the IR holds INTEST or EXTEST. So we must disable that before any following activities lead to an IDLE.
arm11 | Target state variable. |
Definition at line 362 of file arm11_dbgtap.c.
References arm11_add_debug_scan_n(), and ARM11_TAP_DEFAULT.
Referenced by arm11_debug_entry(), arm11_dpm_finish(), arm11_leave_debug_state(), arm11_read_memory_inner(), arm11_read_memory_word(), and arm11_write_memory_inner().
int arm11_run_instr_data_from_core | ( | struct arm11_common * | arm11, |
uint32_t | opcode, | ||
uint32_t * | data, | ||
size_t | count | ||
) |
Execute one instruction via ITR repeatedly while reading data from the core via DTR on each execution.
Caller guarantees that processor is in debug state, that DSCR_ITR_EN is set, the ITR Ready flag is set (as seen on the previous entry to TAP_DRCAPTURE), and the DSCR sticky abort flag is clear.
The executed instruction must write data to DTR.
arm11 | Target state variable. |
opcode | ARM opcode |
data | Pointer to an array that receives the data words from the core |
count | Number of data words and instruction repetitions |
Definition at line 727 of file arm11_dbgtap.c.
References arm11_common::arm, arm11_add_debug_inst(), arm11_add_dr_scan_vc(), arm11_add_ir(), ARM11_INTEST, ARM11_ITRSEL, arm11_setup_field(), ARM11_TAP_DEFAULT, ARRAY_SIZE, CHECK_RETVAL, count, ERROR_FAIL, ERROR_OK, JTAG_DEBUG, jtag_execute_queue(), LOG_WARNING, NULL, target::tap, TAP_DRPAUSE, TAP_IDLE, arm::target, and timeval_ms().
Referenced by arm11_dpm_instr_read_data_dcc(), arm11_read_memory_inner(), arm11_read_memory_word(), arm11_run_instr_data_from_core_via_r0(), and arm11_write_memory_inner().
int arm11_run_instr_data_from_core_via_r0 | ( | struct arm11_common * | arm11, |
uint32_t | opcode, | ||
uint32_t * | data | ||
) |
Execute one instruction via ITR then load r0 into DTR and read DTR from core.
The first executed instruction (opcode
) should write data to r0.
arm11 | Target state variable. |
opcode | ARM opcode to write r0 with the value of interest |
data | Pointer to a data word that receives the value from r0 after opcode was executed. |
Definition at line 793 of file arm11_dbgtap.c.
References arm11_run_instr_data_from_core(), arm11_run_instr_no_data1(), and ERROR_OK.
Referenced by arm11_debug_entry(), and arm11_dpm_instr_read_data_r0().
int arm11_run_instr_data_prepare | ( | struct arm11_common * | arm11 | ) |
Prepare the stage for ITR/DTR operations from the arm11_run_instr...
group of functions.
Put arm11_run_instr_data_prepare() and arm11_run_instr_data_finish() around a block of arm11_run_instr_... calls.
Select scan chain 5 to allow quick access to DTR. When scan chain 4 is needed to put in a register the ITRSel instruction shortcut is used instead of actually changing the Scan_N register.
arm11 | Target state variable. |
Definition at line 343 of file arm11_dbgtap.c.
References arm11_add_debug_scan_n(), and ARM11_TAP_DEFAULT.
Referenced by arm11_debug_entry(), arm11_dpm_prepare(), arm11_leave_debug_state(), arm11_read_memory_inner(), arm11_read_memory_word(), and arm11_write_memory_inner().
int arm11_run_instr_data_to_core | ( | struct arm11_common * | arm11, |
uint32_t | opcode, | ||
uint32_t * | data, | ||
size_t | count | ||
) |
Execute one instruction via ITR repeatedly while passing data to the core via DTR on each execution.
Caller guarantees that processor is in debug state, that DSCR_ITR_EN is set, the ITR Ready flag is set (as seen on the previous entry to TAP_DRCAPTURE), and the DSCR sticky abort flag is clear.
The executed instruction must read data from DTR.
arm11 | Target state variable. |
opcode | ARM opcode |
data | Pointer to the data words to be passed to the core |
count | Number of data words and instruction repetitions |
Definition at line 450 of file arm11_dbgtap.c.
References arm11_common::arm, arm11_add_debug_inst(), arm11_add_dr_scan_vc(), arm11_add_ir(), ARM11_EXTEST, ARM11_INTEST, ARM11_ITRSEL, arm11_setup_field(), ARM11_TAP_DEFAULT, ARRAY_SIZE, CHECK_RETVAL, count, ERROR_FAIL, ERROR_OK, JTAG_DEBUG, jtag_execute_queue(), LOG_WARNING, NULL, target::tap, TAP_DRPAUSE, TAP_IDLE, arm::target, and timeval_ms().
Referenced by arm11_dpm_instr_write_data_dcc(), arm11_run_instr_data_to_core1(), and arm11_write_memory_inner().
int arm11_run_instr_data_to_core1 | ( | struct arm11_common * | arm11, |
uint32_t | opcode, | ||
uint32_t | data | ||
) |
Execute an instruction via ITR while handing data into the core via DTR.
The executed instruction must read data from DTR.
arm11 | Target state variable. |
opcode | ARM opcode |
data | Data word to be passed to the core via DTR |
Definition at line 704 of file arm11_dbgtap.c.
References arm11_run_instr_data_to_core().
Referenced by arm11_read_memory_inner(), arm11_read_memory_word(), arm11_run_instr_data_to_core_via_r0(), and arm11_write_memory_inner().
int arm11_run_instr_data_to_core_noack | ( | struct arm11_common * | arm11, |
uint32_t | opcode, | ||
uint32_t * | data, | ||
size_t | count | ||
) |
Execute one instruction via ITR repeatedly while passing data to the core via DTR on each execution.
Caller guarantees that processor is in debug state, that DSCR_ITR_EN is set, the ITR Ready flag is set (as seen on the previous entry to TAP_DRCAPTURE), and the DSCR sticky abort flag is clear.
No Ready check during transmission.
The executed instruction must read data from DTR.
arm11 | Target state variable. |
opcode | ARM opcode |
data | Pointer to the data words to be passed to the core |
count | Number of data words and instruction repetitions |
Definition at line 636 of file arm11_dbgtap.c.
References arm11_common::arm, arm11_add_debug_inst(), arm11_add_dr_scan_vc(), arm11_add_ir(), ARM11_EXTEST, ARM11_INTEST, ARM11_ITRSEL, arm11_run_instr_data_to_core_noack_inner(), arm11_setup_field(), ARM11_TAP_DEFAULT, ARRAY_SIZE, count, ERROR_FAIL, ERROR_OK, scan_field::in_value, jtag_execute_queue(), LOG_ERROR, NULL, target::tap, TAP_DRPAUSE, and arm::target.
Referenced by arm11_write_memory_inner().
int arm11_run_instr_data_to_core_via_r0 | ( | struct arm11_common * | arm11, |
uint32_t | opcode, | ||
uint32_t | data | ||
) |
Load data into core via DTR then move it to r0 then execute one instruction via ITR.
The final executed instruction (opcode
) should read data from r0.
arm11 | Target state variable. |
opcode | ARM opcode to read r0 act upon it |
data | Data word that will be written to r0 before opcode is executed |
Definition at line 820 of file arm11_dbgtap.c.
References arm11_run_instr_data_to_core1(), arm11_run_instr_no_data1(), and ERROR_OK.
Referenced by arm11_debug_entry(), arm11_dpm_instr_write_data_r0(), and arm11_leave_debug_state().
int arm11_run_instr_no_data1 | ( | struct arm11_common * | arm11, |
uint32_t | opcode | ||
) |
Execute one instruction via ITR.
arm11 | Target state variable. |
opcode | ARM opcode |
Definition at line 427 of file arm11_dbgtap.c.
References arm11_run_instr_no_data().
Referenced by arm11_debug_entry(), arm11_read_memory_inner(), arm11_run_instr_data_from_core_via_r0(), arm11_run_instr_data_to_core_via_r0(), and arm11_write_memory_inner().
int arm11_sc7_clear_vbw | ( | struct arm11_common * | arm11 | ) |
Clear VCR and all breakpoints and watchpoints via scan chain 7.
arm11 | Target state variable. |
Definition at line 933 of file arm11_dbgtap.c.
References arm11_sc7_action::address, ARM11_SC7_BCR0, arm11_sc7_run(), ARM11_SC7_VCR, arm11_common::brp, arm11_sc7_action::value, and arm11_sc7_action::write.
Referenced by arm11_check_init(), arm11_resume(), and arm11_step().
int arm11_sc7_run | ( | struct arm11_common * | arm11, |
struct arm11_sc7_action * | actions, | ||
size_t | count | ||
) |
Apply reads and writes to scan chain 7.
arm11 | Target state variable. |
actions | A list of read and/or write instructions |
count | Number of instructions in the list. |
Definition at line 844 of file arm11_dbgtap.c.
References arm11_sc7_action::address, arm11_common::arm, arm11_add_debug_scan_n(), arm11_add_dr_scan_vc(), arm11_add_ir(), ARM11_EXTEST, arm11_setup_field(), ARM11_TAP_DEFAULT, ARRAY_SIZE, CHECK_RETVAL, count, ERROR_FAIL, ERROR_OK, JTAG_DEBUG, jtag_execute_queue(), LOG_WARNING, target::tap, TAP_DRPAUSE, arm::target, timeval_ms(), arm11_sc7_action::value, and arm11_sc7_action::write.
Referenced by arm11_bpwp_flush(), arm11_resume(), arm11_sc7_clear_vbw(), arm11_sc7_set_vcr(), and arm11_step().
int arm11_sc7_set_vcr | ( | struct arm11_common * | arm11, |
uint32_t | value | ||
) |
Write VCR register.
arm11 | Target state variable. |
value | Value to be written |
Definition at line 962 of file arm11_dbgtap.c.
References arm11_sc7_action::address, arm11_sc7_run(), ARM11_SC7_VCR, arm11_sc7_action::value, and arm11_sc7_action::write.
Referenced by arm11_assert_reset(), arm11_deassert_reset(), and arm11_resume().
void arm11_setup_field | ( | struct arm11_common * | arm11, |
int | num_bits, | ||
void * | out_data, | ||
void * | in_data, | ||
struct scan_field * | field | ||
) |
Code de-clutter: Construct struct scan_field to write out a value.
arm11 | Target state variable. |
num_bits | Length of the data field |
out_data | pointer to the data that will be sent out (data is read when it is added to the JTAG queue) |
in_data | pointer to the memory that will receive data that was clocked in (data is written when the JTAG queue is executed) |
field | target data structure that will be initialized |
Definition at line 75 of file arm11_dbgtap.c.
References scan_field::in_value, scan_field::num_bits, and scan_field::out_value.
Referenced by arm11_add_debug_inst(), arm11_add_debug_scan_n(), arm11_add_ir(), arm11_debug_entry(), arm11_examine(), arm11_leave_debug_state(), arm11_read_dscr(), arm11_run_instr_data_from_core(), arm11_run_instr_data_to_core(), arm11_run_instr_data_to_core_noack(), arm11_sc7_run(), and arm11_write_dscr().
int arm11_write_dscr | ( | struct arm11_common * | arm11, |
uint32_t | dscr | ||
) |
Write the Debug Status and Control Register (DSCR)
same as CP14 c1
arm11 | Target state variable. |
dscr | DSCR content |
Definition at line 303 of file arm11_dbgtap.c.
References arm11_common::arm, arm11_add_debug_scan_n(), arm11_add_dr_scan_vc(), arm11_add_ir(), ARM11_EXTEST, arm11_setup_field(), ARM11_TAP_DEFAULT, CHECK_RETVAL, arm11_common::dscr, ERROR_OK, JTAG_DEBUG, jtag_execute_queue(), NULL, target::tap, TAP_DRPAUSE, and arm::target.
Referenced by arm11_check_init(), arm11_debug_entry(), and arm11_leave_debug_state().
