jlink.c File Reference

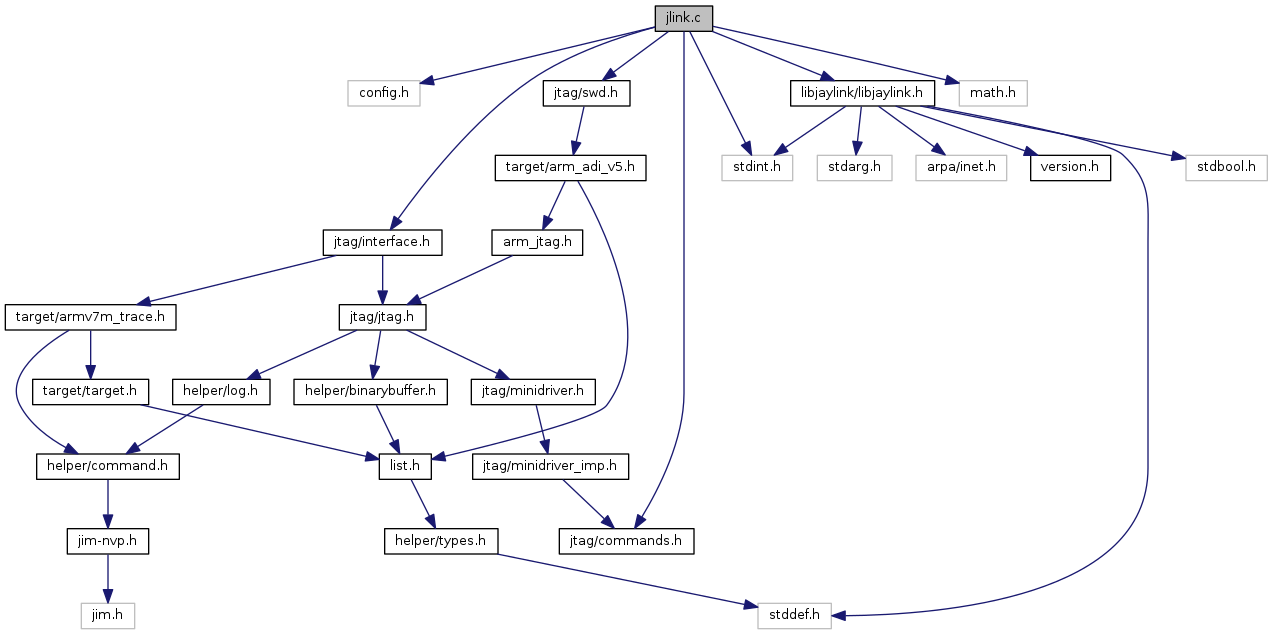

Include dependency graph for jlink.c:

Go to the source code of this file.

Data Structures
struct	device_config
struct	pending_scan_result

Macros
#define	JLINK_MAX_SPEED   12000
#define	JLINK_TAP_BUFFER_SIZE   2048
#define	MAX_PENDING_SCAN_RESULTS   256
#define	SWO_MAX_FREQ_DEV   0.03

Functions
struct device_config	__attribute__ ((packed))
static bool	adjust_swd_buffer_size (void)
static bool	calculate_swo_prescaler (unsigned int traceclkin_freq, uint32_t trace_freq, uint16_t *prescaler)
static uint32_t	calculate_trace_buffer_size (void)
	COMMAND_HANDLER (jlink_handle_config_command)
	COMMAND_HANDLER (jlink_handle_config_ip_address_command)
	COMMAND_HANDLER (jlink_handle_config_mac_address_command)
	COMMAND_HANDLER (jlink_handle_config_reset_command)
	COMMAND_HANDLER (jlink_handle_config_target_power_command)
	COMMAND_HANDLER (jlink_handle_config_usb_address_command)
	COMMAND_HANDLER (jlink_handle_config_write_command)
	COMMAND_HANDLER (jlink_handle_emucom_read_command)
	COMMAND_HANDLER (jlink_handle_emucom_write_command)
	COMMAND_HANDLER (jlink_handle_free_memory_command)
	COMMAND_HANDLER (jlink_handle_hwstatus_command)
	COMMAND_HANDLER (jlink_handle_jlink_jtag_command)
	COMMAND_HANDLER (jlink_handle_target_power_command)
	COMMAND_HANDLER (jlink_usb_command)
static int	config_trace (bool enabled, enum tpiu_pin_protocol pin_protocol, uint32_t port_size, unsigned int *trace_freq, unsigned int traceclkin_freq, uint16_t *prescaler)
static void	cpy_ip (uint8_t *dst, uint8_t *src)
static bool	detect_swo_freq_and_prescaler (struct jaylink_swo_speed speed, unsigned int traceclkin_freq, unsigned int *trace_freq, uint16_t *prescaler)
static void	fill_buffer (uint8_t *buf, uint32_t val, uint32_t len)
static int	jaylink_log_handler (const struct jaylink_context *ctx, enum jaylink_log_level level, const char *format, va_list args, void *user_data)
static void	jlink_clock_data (const uint8_t *out, unsigned out_offset, const uint8_t *tms_out, unsigned tms_offset, uint8_t *in, unsigned in_offset, unsigned length)
	Queue data to go out and in, flushing the queue as many times as necessary. More...
static void	jlink_end_state (tap_state_t state)
static int	jlink_execute_command (struct jtag_command *cmd)
static void	jlink_execute_pathmove (struct jtag_command *cmd)
static int	jlink_execute_queue (void)
static void	jlink_execute_runtest (struct jtag_command *cmd)
static void	jlink_execute_scan (struct jtag_command *cmd)
static void	jlink_execute_sleep (struct jtag_command *cmd)
static void	jlink_execute_stableclocks (struct jtag_command *cmd)
static void	jlink_execute_statemove (struct jtag_command *cmd)
static int	jlink_flush (void)
static int	jlink_init (void)
static int	jlink_khz (int khz, int *jtag_speed)
static int	jlink_open_device (uint32_t ifaces, bool *found_device)
static void	jlink_path_move (int num_states, tap_state_t *path)
static void	jlink_queue_data_in (uint32_t len)
static void	jlink_queue_data_out (const uint8_t *data, uint32_t len)
static int	jlink_quit (void)
static int	jlink_register (void)
static void	jlink_reset (int trst, int srst)
static int	jlink_reset_safe (int trst, int srst)
static void	jlink_runtest (int num_cycles)
static int	jlink_speed (int speed)
static int	jlink_speed_div (int speed, int *khz)
static void	jlink_stableclocks (int num_cycles)
static void	jlink_state_move (void)
static int	jlink_swd_init (void)
static void	jlink_swd_queue_cmd (uint8_t cmd, uint32_t *dst, uint32_t data, uint32_t ap_delay_clk)
static void	jlink_swd_read_reg (uint8_t cmd, uint32_t *value, uint32_t ap_delay_clk)
static int	jlink_swd_run_queue (void)
static int	jlink_swd_switch_seq (enum swd_special_seq seq)
static void	jlink_swd_write_reg (uint8_t cmd, uint32_t value, uint32_t ap_delay_clk)
static void	jlink_tap_init (void)
static bool	jlink_usb_location_equal (struct jaylink_device *dev)
static int	poll_trace (uint8_t *buf, size_t *size)
static bool	read_device_config (struct device_config *cfg)
static int	select_interface (void)
static void	show_config (struct command_invocation *cmd)
static void	show_config_ip_address (struct command_invocation *cmd)
static void	show_config_mac_address (struct command_invocation *cmd)
static void	show_config_target_power (struct command_invocation *cmd)
static void	show_config_usb_address (struct command_invocation *cmd)
static bool	string_to_ip (const char *s, uint8_t *ip, int *pos)

Variables
struct pending_scan_result	__attribute__
static uint8_t	caps [JAYLINK_DEV_EXT_CAPS_SIZE]
static struct device_config	config
static struct jaylink_connection	conn
static struct jaylink_connection	connlist [JAYLINK_MAX_CONNECTIONS]
static struct jaylink_device_handle *	devh
static enum jaylink_target_interface	iface = JAYLINK_TIF_JTAG
uint8_t	ip_address [4]
static struct jaylink_context *	jayctx
struct adapter_driver	jlink_adapter_driver
static const struct command_registration	jlink_command_handlers []
static const struct command_registration	jlink_config_subcommand_handlers []
static const struct command_registration	jlink_emucom_subcommand_handlers []
static struct jtag_interface	jlink_interface
static enum tap_state	jlink_last_state = TAP_RESET
static const struct command_registration	jlink_subcommand_handlers []
static const struct swd_driver	jlink_swd
static const char *const	jlink_transports [] = { "jtag", "swd", NULL }
static enum jaylink_jtag_version	jtag_command_version
uint8_t	mac_address [6]
static struct pending_scan_result	pending_scan_results_buffer [MAX_PENDING_SCAN_RESULTS]
static int	pending_scan_results_length
static int	queued_retval
uint8_t	reserved_1 [3]
uint8_t	reserved_2 [24]
uint8_t	reserved_3 [8]
uint8_t	reserved_4 [202]
static uint32_t	serial_number
uint8_t	subnet_mask [4]
static unsigned int	swd_buffer_size = JLINK_TAP_BUFFER_SIZE
static unsigned	tap_length
uint32_t	target_power
static uint8_t	tdi_buffer [JLINK_TAP_BUFFER_SIZE]
static uint8_t	tdo_buffer [JLINK_TAP_BUFFER_SIZE]
static struct device_config	tmp_config
static uint8_t	tms_buffer [JLINK_TAP_BUFFER_SIZE]
static bool	trace_enabled
static enum jaylink_usb_address	usb_address
static bool	use_serial_number
static bool	use_usb_address
static bool	use_usb_location

Macro Definition Documentation

JLINK_MAX_SPEED

#define JLINK_MAX_SPEED   12000

Definition at line 51 of file jlink.c.

JLINK_TAP_BUFFER_SIZE

#define JLINK_TAP_BUFFER_SIZE   2048

Definition at line 52 of file jlink.c.

MAX_PENDING_SCAN_RESULTS

#define MAX_PENDING_SCAN_RESULTS   256

Definition at line 1981 of file jlink.c.

SWO_MAX_FREQ_DEV

#define SWO_MAX_FREQ_DEV   0.03

Definition at line 57 of file jlink.c.

Function Documentation

__attribute__()

struct device_config __attribute__

(

(packed)

)

adjust_swd_buffer_size()

static bool adjust_swd_buffer_size ( void  )

static

Definition at line 454 of file jlink.c.

References caps, devh, JLINK_TAP_BUFFER_SIZE, LOG_DEBUG, LOG_ERROR, MIN, and swd_buffer_size.

Referenced by config_trace(), and jlink_init().

calculate_swo_prescaler()

static bool calculate_swo_prescaler ( unsigned int  traceclkin_freq, uint32_t  trace_freq, uint16_t *  prescaler  )

static

Definition at line 1252 of file jlink.c.

References TPIU_ACPR_MAX_SWOSCALER.

Referenced by config_trace().

calculate_trace_buffer_size()

static uint32_t calculate_trace_buffer_size ( void  )

static

Definition at line 1228 of file jlink.c.

References caps, devh, ERROR_FAIL, and LOG_ERROR.

Referenced by config_trace().

COMMAND_HANDLER() [1/14]

COMMAND_HANDLER

(

jlink_handle_config_command

)

Definition at line 1681 of file jlink.c.

References caps, CMD, CMD_ARGC, command_print(), ERROR_OK, and show_config().

COMMAND_HANDLER() [2/14]

COMMAND_HANDLER

(

jlink_handle_config_ip_address_command

)

Definition at line 1573 of file jlink.c.

References caps, CMD, CMD_ARGC, CMD_ARGV, COMMAND_PARSE_NUMBER, command_print(), cpy_ip(), ERROR_COMMAND_SYNTAX_ERROR, ERROR_OK, ip_address, device_config::ip_address, show_config_ip_address(), string_to_ip(), subnet_mask, device_config::subnet_mask, and tmp_config.

COMMAND_HANDLER() [3/14]

COMMAND_HANDLER

(

jlink_handle_config_mac_address_command

)

Definition at line 1486 of file jlink.c.

References addr, caps, CMD, CMD_ARGC, CMD_ARGV, command_print(), ERROR_COMMAND_SYNTAX_ERROR, ERROR_OK, device_config::mac_address, show_config_mac_address(), and tmp_config.

COMMAND_HANDLER() [4/14]

COMMAND_HANDLER

(

jlink_handle_config_reset_command

)

Definition at line 1622 of file jlink.c.

References caps, config, ERROR_OK, and tmp_config.

COMMAND_HANDLER() [5/14]

COMMAND_HANDLER

(

jlink_handle_config_target_power_command

)

Definition at line 1448 of file jlink.c.

References caps, CMD, CMD_ARGC, CMD_ARGV, command_print(), ERROR_COMMAND_SYNTAX_ERROR, ERROR_FAIL, ERROR_OK, show_config_target_power(), device_config::target_power, and tmp_config.

COMMAND_HANDLER() [6/14]

COMMAND_HANDLER

(

jlink_handle_config_usb_address_command

)

Definition at line 1416 of file jlink.c.

References caps, CMD, CMD_ARGC, CMD_ARGV, command_print(), ERROR_COMMAND_SYNTAX_ERROR, ERROR_FAIL, ERROR_OK, show_config_usb_address(), tmp_config, and device_config::usb_address.

COMMAND_HANDLER() [7/14]

COMMAND_HANDLER

(

jlink_handle_config_write_command

)

Definition at line 1633 of file jlink.c.

References caps, CMD, command_print(), config, devh, ERROR_FAIL, ERROR_OK, LOG_ERROR, read_device_config(), and tmp_config.

COMMAND_HANDLER() [8/14]

COMMAND_HANDLER

(

jlink_handle_emucom_read_command

)

Definition at line 1754 of file jlink.c.

References caps, CMD, CMD_ARGC, CMD_ARGV, COMMAND_PARSE_NUMBER, command_print(), devh, ERROR_COMMAND_SYNTAX_ERROR, ERROR_FAIL, ERROR_OK, hexify(), length, and LOG_ERROR.

COMMAND_HANDLER() [9/14]

COMMAND_HANDLER

(

jlink_handle_emucom_write_command

)

Definition at line 1694 of file jlink.c.

References caps, CMD_ARGC, CMD_ARGV, COMMAND_PARSE_NUMBER, devh, dummy, ERROR_COMMAND_ARGUMENT_INVALID, ERROR_COMMAND_SYNTAX_ERROR, ERROR_FAIL, ERROR_OK, length, LOG_ERROR, LOG_WARNING, and unhexify().

COMMAND_HANDLER() [10/14]

COMMAND_HANDLER

(

jlink_handle_free_memory_command

)

Definition at line 1017 of file jlink.c.

References caps, CMD, command_print(), devh, ERROR_FAIL, and ERROR_OK.

COMMAND_HANDLER() [11/14]

COMMAND_HANDLER

(

jlink_handle_hwstatus_command

)

Definition at line 991 of file jlink.c.

References CMD, command_print(), devh, ERROR_FAIL, ERROR_OK, and status.

COMMAND_HANDLER() [12/14]

COMMAND_HANDLER

(

jlink_handle_jlink_jtag_command

)

Definition at line 1041 of file jlink.c.

References CMD, CMD_ARGC, CMD_ARGV, command_print(), ERROR_COMMAND_SYNTAX_ERROR, ERROR_FAIL, ERROR_OK, and jtag_command_version.

COMMAND_HANDLER() [13/14]

COMMAND_HANDLER

(

jlink_handle_target_power_command

)

Definition at line 1084 of file jlink.c.

References caps, CMD, CMD_ARGC, CMD_ARGV, command_print(), devh, ERROR_COMMAND_SYNTAX_ERROR, ERROR_FAIL, and ERROR_OK.

COMMAND_HANDLER() [14/14]

COMMAND_HANDLER

(

jlink_usb_command

)

Definition at line 965 of file jlink.c.

References CMD, CMD_ARGC, CMD_ARGV, command_print(), ERROR_COMMAND_SYNTAX_ERROR, ERROR_FAIL, ERROR_OK, usb_address, and use_usb_address.

config_trace()

static int config_trace ( bool  enabled, enum tpiu_pin_protocol  pin_protocol, uint32_t  port_size, unsigned int *  trace_freq, unsigned int  traceclkin_freq, uint16_t *  prescaler  )

static

Definition at line 1296 of file jlink.c.

References adjust_swd_buffer_size(), calculate_swo_prescaler(), calculate_trace_buffer_size(), caps, detect_swo_freq_and_prescaler(), devh, ERROR_FAIL, ERROR_OK, LOG_DEBUG, LOG_ERROR, LOG_INFO, SWO_MAX_FREQ_DEV, TPIU_PIN_PROTOCOL_ASYNC_UART, and trace_enabled.

cpy_ip()

static void cpy_ip ( uint8_t *  dst, uint8_t *  src  )

static

Definition at line 1565 of file jlink.c.

Referenced by COMMAND_HANDLER().

detect_swo_freq_and_prescaler()

static bool detect_swo_freq_and_prescaler ( struct jaylink_swo_speed  speed, unsigned int  traceclkin_freq, unsigned int *  trace_freq, uint16_t *  prescaler  )

static

Definition at line 1270 of file jlink.c.

References SWO_MAX_FREQ_DEV, and TPIU_ACPR_MAX_SWOSCALER.

Referenced by config_trace().

fill_buffer()

static void fill_buffer ( uint8_t *  buf, uint32_t  val, uint32_t  len  )

static

Definition at line 2070 of file jlink.c.

References buf_set_u32(), and tap_length.

Referenced by jlink_queue_data_in(), and jlink_queue_data_out().

jaylink_log_handler()

static int jaylink_log_handler ( const struct jaylink_context *  ctx, enum jaylink_log_level  level, const char *  format, va_list  args, void *  user_data  )

static

Definition at line 486 of file jlink.c.

References LOG_LVL_DEBUG, LOG_LVL_DEBUG_IO, LOG_LVL_ERROR, LOG_LVL_WARNING, and log_vprintf_lf().

Referenced by jlink_init().

jlink_clock_data()

static void jlink_clock_data ( const uint8_t *  out, unsigned  out_offset, const uint8_t *  tms_out, unsigned  tms_offset, uint8_t *  in, unsigned  in_offset, unsigned  length  )

static

Queue data to go out and in, flushing the queue as many times as necessary.

Parameters

out	A pointer to TDI data, if NULL, old stale data will be used.
out_offset	A bit offset for TDI data.
tms_out	A pointer to TMS data, if NULL, zeroes will be emitted.
tms_offset	A bit offset for TMS data.
in	A pointer to store TDO data to, if NULL the data will be discarded.
in_offset	A bit offset for TDO data.
length	Amount of bits to transfer out and in.

Definition at line 1994 of file jlink.c.

References buf_set_buf(), pending_scan_result::buffer, pending_scan_result::buffer_offset, ERROR_OK, pending_scan_result::first, jlink_flush(), JLINK_TAP_BUFFER_SIZE, pending_scan_result::length, length, MAX_PENDING_SCAN_RESULTS, pending_scan_results_buffer, pending_scan_results_length, tap_length, tdi_buffer, and tms_buffer.

Referenced by jlink_execute_scan(), jlink_init(), jlink_path_move(), jlink_stableclocks(), and jlink_state_move().

jlink_end_state()

static void jlink_end_state ( tap_state_t  state )

static

Definition at line 864 of file jlink.c.

References LOG_ERROR, state, tap_is_state_stable(), and tap_set_end_state().

Referenced by jlink_execute_runtest(), jlink_execute_scan(), jlink_execute_statemove(), and jlink_runtest().

jlink_execute_command()

static int jlink_execute_command ( struct jtag_command *  cmd )

static

Definition at line 250 of file jlink.c.

References cmd, ERROR_JTAG_QUEUE_FAILED, ERROR_OK, jlink_execute_pathmove(), jlink_execute_runtest(), jlink_execute_scan(), jlink_execute_sleep(), jlink_execute_stableclocks(), jlink_execute_statemove(), JTAG_PATHMOVE, JTAG_RUNTEST, JTAG_SCAN, JTAG_SLEEP, JTAG_STABLECLOCKS, JTAG_TLR_RESET, and LOG_ERROR.

Referenced by jlink_execute_queue().

jlink_execute_pathmove()

static void jlink_execute_pathmove ( struct jtag_command *  cmd )

static

Definition at line 141 of file jlink.c.

References cmd, jlink_path_move(), and LOG_DEBUG_IO.

Referenced by jlink_execute_command().

jlink_execute_queue()

static int jlink_execute_queue ( void  )

static

Definition at line 279 of file jlink.c.

References cmd, ERROR_OK, jlink_execute_command(), jlink_flush(), and jtag_command_queue.

jlink_execute_runtest()

static void jlink_execute_runtest ( struct jtag_command *  cmd )

static

Definition at line 124 of file jlink.c.

References cmd, jlink_end_state(), jlink_runtest(), and LOG_DEBUG_IO.

Referenced by jlink_execute_command().

jlink_execute_scan()

static void jlink_execute_scan ( struct jtag_command *  cmd )

static

Definition at line 150 of file jlink.c.

References bit_copy(), cmd, scan_field::in_value, jlink_clock_data(), jlink_end_state(), jlink_state_move(), jtag_scan_type(), LOG_DEBUG, LOG_DEBUG_IO, NULL, scan_field::num_bits, scan_field::out_value, TAP_DRSHIFT, tap_get_end_state(), tap_get_state(), TAP_IRSHIFT, tap_set_state, tap_state_name(), and tap_state_transition().

Referenced by jlink_execute_command().

jlink_execute_sleep()

static void jlink_execute_sleep ( struct jtag_command *  cmd )

static

Definition at line 243 of file jlink.c.

References cmd, jlink_flush(), jtag_sleep(), and LOG_DEBUG_IO.

Referenced by jlink_execute_command().

jlink_execute_stableclocks()

static void jlink_execute_stableclocks ( struct jtag_command *  cmd )

static

Definition at line 118 of file jlink.c.

References cmd, jlink_stableclocks(), and LOG_DEBUG_IO.

Referenced by jlink_execute_command().

jlink_execute_statemove()

static void jlink_execute_statemove ( struct jtag_command *  cmd )

static

Definition at line 133 of file jlink.c.

References cmd, jlink_end_state(), jlink_state_move(), and LOG_DEBUG_IO.

Referenced by jlink_execute_command().

jlink_flush()

static int jlink_flush ( void  )

static

Definition at line 2036 of file jlink.c.

References buf_set_buf(), pending_scan_result::buffer, pending_scan_result::buffer_offset, devh, ERROR_JTAG_QUEUE_FAILED, ERROR_OK, pending_scan_result::first, jlink_last_state, jlink_tap_init(), jtag_command_version, jtag_debug_state_machine(), pending_scan_result::length, LOG_DEBUG_IO, LOG_ERROR, pending_scan_results_buffer, pending_scan_results_length, tap_length, tdi_buffer, tdo_buffer, and tms_buffer.

Referenced by jlink_clock_data(), jlink_execute_queue(), jlink_execute_sleep(), jlink_init(), and jlink_reset_safe().

jlink_init()

static int jlink_init ( void  )

static

Definition at line 627 of file jlink.c.

References adapter_get_required_serial(), adapter_get_speed_khz(), adjust_swd_buffer_size(), caps, config, conn, devh, ERROR_JTAG_INIT_FAILED, ERROR_OK, iface, jayctx, jaylink_log_handler(), jlink_clock_data(), jlink_flush(), jlink_open_device(), jlink_register(), jlink_reset(), jlink_speed(), jlink_tap_init(), jtag_command_version, jtag_sleep(), length, LOG_DEBUG, LOG_ERROR, LOG_INFO, LOG_WARNING, NULL, read_device_config(), select_interface(), serial, serial_number, tmp_config, use_serial_number, and use_usb_address.

jlink_khz()

static int jlink_khz ( int  khz, int *  jtag_speed  )

static

Definition at line 348 of file jlink.c.

References ERROR_OK.

jlink_open_device()

static int jlink_open_device ( uint32_t  ifaces, bool *  found_device  )

static

Definition at line 544 of file jlink.c.

References adapter_usb_get_location(), devh, devs, ERROR_JTAG_INIT_FAILED, ERROR_OK, jayctx, jlink_usb_location_equal(), LOG_ERROR, LOG_WARNING, serial_number, usb_address, use_serial_number, use_usb_address, and use_usb_location.

Referenced by jlink_init().

jlink_path_move()

static void jlink_path_move ( int  num_states, tap_state_t *  path  )

static

Definition at line 888 of file jlink.c.

References jlink_clock_data(), LOG_ERROR, NULL, tap_get_state(), tap_set_end_state(), tap_set_state, tap_state_name(), and tap_state_transition().

Referenced by jlink_execute_pathmove().

jlink_queue_data_in()

static void jlink_queue_data_in ( uint32_t  len )

static

Definition at line 2097 of file jlink.c.

References fill_buffer(), tap_length, and tms_buffer.

jlink_queue_data_out()

static void jlink_queue_data_out ( const uint8_t *  data, uint32_t  len  )

static

Definition at line 2084 of file jlink.c.

References bit_copy(), fill_buffer(), tap_length, tdi_buffer, and tms_buffer.

Referenced by jlink_swd_run_queue(), and jlink_swd_switch_seq().

jlink_quit()

static int jlink_quit ( void  )

static

Definition at line 835 of file jlink.c.

References caps, conn, connlist, count, devh, ERROR_OK, jayctx, LOG_ERROR, and trace_enabled.

jlink_register()

static int jlink_register ( void  )

static

Definition at line 414 of file jlink.c.

References caps, conn, connlist, count, devh, ERROR_FAIL, ERROR_OK, and LOG_ERROR.

Referenced by jlink_init().

jlink_reset()

static void jlink_reset ( int  trst, int  srst  )

static

Definition at line 940 of file jlink.c.

References devh, and LOG_DEBUG.

Referenced by jlink_init(), and jlink_reset_safe().

jlink_reset_safe()

static int jlink_reset_safe ( int  trst, int  srst  )

static

Definition at line 958 of file jlink.c.

References jlink_flush(), and jlink_reset().

jlink_runtest()

static void jlink_runtest ( int  num_cycles )

static

Definition at line 920 of file jlink.c.

References jlink_end_state(), jlink_stableclocks(), jlink_state_move(), tap_get_end_state(), tap_get_state(), and TAP_IDLE.

Referenced by jlink_execute_runtest().

jlink_speed()

static int jlink_speed ( int  speed )

static

Definition at line 296 of file jlink.c.

References caps, devh, ERROR_JTAG_DEVICE_ERROR, ERROR_JTAG_NOT_IMPLEMENTED, ERROR_OK, JLINK_MAX_SPEED, LOG_ERROR, and LOG_INFO.

Referenced by jlink_init().

jlink_speed_div()

static int jlink_speed_div ( int  speed, int *  khz  )

static

Definition at line 341 of file jlink.c.

References ERROR_OK.

jlink_stableclocks()

static void jlink_stableclocks ( int  num_cycles )

static

Definition at line 910 of file jlink.c.

References jlink_clock_data(), NULL, tap_get_state(), and TAP_RESET.

Referenced by jlink_execute_stableclocks(), and jlink_runtest().

jlink_state_move()

static void jlink_state_move ( void  )

static

Definition at line 875 of file jlink.c.

References jlink_clock_data(), NULL, tap_get_end_state(), tap_get_state(), tap_get_tms_path(), tap_get_tms_path_len(), and tap_set_state.

Referenced by jlink_execute_scan(), jlink_execute_statemove(), and jlink_runtest().

jlink_swd_init()

static int jlink_swd_init ( void  )

static

Definition at line 1942 of file jlink.c.

References ERROR_OK, and iface.

jlink_swd_queue_cmd()

static void jlink_swd_queue_cmd ( uint8_t  cmd, uint32_t *  dst, uint32_t  data, uint32_t  ap_delay_clk  )

static

Definition at line 2212 of file jlink.c.

Referenced by jlink_swd_read_reg(), and jlink_swd_write_reg().

jlink_swd_read_reg()

static void jlink_swd_read_reg ( uint8_t  cmd, uint32_t *  value, uint32_t  ap_delay_clk  )

static

Definition at line 1955 of file jlink.c.

References cmd, jlink_swd_queue_cmd(), and SWD_CMD_RNW.

jlink_swd_run_queue()

static int jlink_swd_run_queue ( void  )

static

Definition at line 2156 of file jlink.c.

References pending_scan_result::ack, buf_get_u32(), buffer, devh, ERROR_FAIL, ERROR_OK, ERROR_WAIT, pending_scan_result::first, jlink_queue_data_out(), jlink_tap_init(), length, LOG_DEBUG, LOG_ERROR, NULL, parity(), parity_u32(), pending_scan_results_buffer, pending_scan_results_length, queued_retval, SWD_ACK_FAULT, SWD_ACK_OK, SWD_ACK_WAIT, tap_length, tdi_buffer, tdo_buffer, and tms_buffer.

jlink_swd_switch_seq()

static int jlink_swd_switch_seq ( enum swd_special_seq  seq )

static

Definition at line 2105 of file jlink.c.

References DORMANT_TO_JTAG, DORMANT_TO_SWD, ERROR_FAIL, ERROR_OK, jlink_queue_data_out(), JTAG_TO_DORMANT, JTAG_TO_SWD, LINE_RESET, LOG_DEBUG, LOG_ERROR, swd_seq_dormant_to_jtag, swd_seq_dormant_to_jtag_len, swd_seq_dormant_to_swd, swd_seq_dormant_to_swd_len, swd_seq_jtag_to_dormant, swd_seq_jtag_to_dormant_len, swd_seq_jtag_to_swd, swd_seq_jtag_to_swd_len, swd_seq_line_reset, swd_seq_line_reset_len, swd_seq_swd_to_dormant, swd_seq_swd_to_dormant_len, swd_seq_swd_to_jtag, swd_seq_swd_to_jtag_len, SWD_TO_DORMANT, and SWD_TO_JTAG.

jlink_swd_write_reg()

static void jlink_swd_write_reg ( uint8_t  cmd, uint32_t  value, uint32_t  ap_delay_clk  )

static

Definition at line 1949 of file jlink.c.

References cmd, jlink_swd_queue_cmd(), NULL, and SWD_CMD_RNW.

jlink_tap_init()

static void jlink_tap_init ( void  )

static

Definition at line 1986 of file jlink.c.

References pending_scan_results_length, tap_length, tdi_buffer, and tms_buffer.

Referenced by jlink_flush(), jlink_init(), and jlink_swd_run_queue().

jlink_usb_location_equal()

static bool jlink_usb_location_equal ( struct jaylink_device *  dev )

static

Definition at line 519 of file jlink.c.

References adapter_usb_location_equal(), and LOG_WARNING.

Referenced by jlink_open_device().

poll_trace()

static int poll_trace ( uint8_t *  buf, size_t *  size  )

static

Definition at line 1209 of file jlink.c.

References devh, ERROR_FAIL, ERROR_OK, length, LOG_ERROR, and size.

read_device_config()

static bool read_device_config ( struct device_config *  cfg )

static

Definition at line 355 of file jlink.c.

References devh, LOG_ERROR, device_config::target_power, and device_config::usb_address.

Referenced by COMMAND_HANDLER(), and jlink_init().

select_interface()

static int select_interface ( void  )

static

Definition at line 376 of file jlink.c.

References caps, devh, ERROR_JTAG_INIT_FAILED, ERROR_OK, iface, LOG_ERROR, and NULL.

Referenced by jlink_init().

show_config()

static void show_config ( struct command_invocation *  cmd )

static

Definition at line 1194 of file jlink.c.

References caps, cmd, command_print(), show_config_ip_address(), show_config_mac_address(), show_config_target_power(), and show_config_usb_address().

Referenced by COMMAND_HANDLER().

show_config_ip_address()

static void show_config_ip_address ( struct command_invocation *  cmd )

static

Definition at line 1129 of file jlink.c.

References cmd, command_print(), config, device_config::ip_address, device_config::subnet_mask, and tmp_config.

Referenced by COMMAND_HANDLER(), and show_config().

show_config_mac_address()

static void show_config_mac_address ( struct command_invocation *  cmd )

static

Definition at line 1154 of file jlink.c.

References cmd, command_print(), config, device_config::mac_address, and tmp_config.

Referenced by COMMAND_HANDLER(), and show_config().

show_config_target_power()

static void show_config_target_power ( struct command_invocation *  cmd )

static

Definition at line 1172 of file jlink.c.

References cmd, command_print(), config, target_power, device_config::target_power, and tmp_config.

Referenced by COMMAND_HANDLER(), and show_config().

show_config_usb_address()

static void show_config_usb_address ( struct command_invocation *  cmd )

static

Definition at line 1120 of file jlink.c.

References cmd, command_print(), config, tmp_config, and device_config::usb_address.

Referenced by COMMAND_HANDLER(), and show_config().

string_to_ip()

static bool string_to_ip ( const char *  s, uint8_t *  ip, int *  pos  )

static

Definition at line 1540 of file jlink.c.

Referenced by COMMAND_HANDLER().

Variable Documentation

__attribute__

struct pending_scan_result __attribute__

caps

uint8_t caps[JAYLINK_DEV_EXT_CAPS_SIZE]

static

Definition at line 41 of file jlink.c.

Referenced by adjust_swd_buffer_size(), calculate_trace_buffer_size(), cmsis_dap_get_caps_info(), COMMAND_HANDLER(), config_trace(), jlink_init(), jlink_quit(), jlink_register(), jlink_speed(), select_interface(), and show_config().

config

struct device_config config

static

Definition at line 54 of file jlink.c.

Referenced by armjtagew_usb_open(), cmsis_dap_usb_open(), COMMAND_HANDLER(), COMMAND_HELPER(), etm_build_reg_cache(), helper_get_line(), jlink_init(), jtag_libusb_choose_interface(), jtag_libusb_set_configuration(), numicro_protect_check(), rlink_init(), sample_memory(), sample_memory_bus_v1(), show_config_ip_address(), show_config_mac_address(), show_config_target_power(), show_config_usb_address(), xmc4xxx_probe(), xtensa_dm_perfmon_enable(), and xtensa_dm_trace_config_read().

conn

struct jaylink_connection conn

static

Definition at line 37 of file jlink.c.

Referenced by ipdbg_distribute_data_from_hub(), ipdbg_move_buffer_to_connection(), ipdbg_on_connection_closed(), ipdbg_on_connection_input(), ipdbg_on_new_connection(), ipdbg_polling_callback(), jlink_init(), jlink_quit(), and jlink_register().

connlist

struct jaylink_connection connlist[JAYLINK_MAX_CONNECTIONS]

static

Definition at line 37 of file jlink.c.

Referenced by jlink_quit(), and jlink_register().

devh

struct jaylink_device_handle* devh

static

Definition at line 37 of file jlink.c.

Referenced by adjust_swd_buffer_size(), aice_usb_open(), calculate_trace_buffer_size(), COMMAND_HANDLER(), config_trace(), jlink_flush(), jlink_init(), jlink_open_device(), jlink_quit(), jlink_register(), jlink_reset(), jlink_speed(), jlink_swd_run_queue(), jtag_libusb_choose_interface(), jtag_libusb_set_configuration(), opendous_usb_open(), poll_trace(), read_device_config(), and select_interface().

iface

enum jaylink_target_interface iface = JAYLINK_TIF_JTAG

static

Definition at line 47 of file jlink.c.

Referenced by jlink_init(), jlink_swd_init(), and select_interface().

ip_address

uint8_t ip_address[4]

Definition at line 7 of file jlink.c.

Referenced by COMMAND_HANDLER().

jayctx

struct jaylink_context* jayctx

static

Definition at line 36 of file jlink.c.

Referenced by jlink_init(), jlink_open_device(), and jlink_quit().

jlink_adapter_driver

struct adapter_driver jlink_adapter_driver

Initial value:

= {
    .name = "jlink",
    .transports = jlink_transports,
    .commands = jlink_command_handlers,

    .init = &jlink_init,
    .quit = &jlink_quit,
    .reset = &jlink_reset_safe,
    .speed = &jlink_speed,
    .khz = &jlink_khz,
    .speed_div = &jlink_speed_div,
    .config_trace = &config_trace,
    .poll_trace = &poll_trace,

    .jtag_ops = &jlink_interface,
    .swd_ops = &jlink_swd,
}

Definition at line 2262 of file jlink.c.

jlink_command_handlers

const struct command_registration jlink_command_handlers[]

static

Initial value:

= {
    {
        .name = "jlink",
        .mode = COMMAND_ANY,
        .help = "perform jlink management",
        .chain = jlink_subcommand_handlers,
        .usage = "",
    },
    COMMAND_REGISTRATION_DONE
}

Definition at line 1754 of file jlink.c.

jlink_config_subcommand_handlers

const struct command_registration jlink_config_subcommand_handlers[]

static

Definition at line 1754 of file jlink.c.

jlink_emucom_subcommand_handlers

const struct command_registration jlink_emucom_subcommand_handlers[]

static

Initial value:

= {
    {
        .name = "write",
        .handler = &jlink_handle_emucom_write_command,
        .mode = COMMAND_EXEC,
        .help = "write to a channel",
        .usage = "<channel> <data>",
    },
    {
        .name = "read",
        .handler = &jlink_handle_emucom_read_command,
        .mode = COMMAND_EXEC,
        .help = "read from a channel",
        .usage = "<channel> <length>"
    },
    COMMAND_REGISTRATION_DONE
}

Definition at line 1754 of file jlink.c.

jlink_interface

struct jtag_interface jlink_interface

static

Initial value:

= {
    .execute_queue = &jlink_execute_queue,
}

Definition at line 2262 of file jlink.c.

jlink_last_state

enum tap_state jlink_last_state = TAP_RESET

static

Definition at line 107 of file jlink.c.

Referenced by jlink_flush().

jlink_subcommand_handlers

const struct command_registration jlink_subcommand_handlers[]

static

Definition at line 1754 of file jlink.c.

jlink_swd

const struct swd_driver jlink_swd

static

Initial value:

= {
    .init = &jlink_swd_init,
    .switch_seq = &jlink_swd_switch_seq,
    .read_reg = &jlink_swd_read_reg,
    .write_reg = &jlink_swd_write_reg,
    .run = &jlink_swd_run_queue,
}

Definition at line 2212 of file jlink.c.

jlink_transports

const char* const jlink_transports[] = { "jtag", "swd", NULL }

static

Definition at line 2262 of file jlink.c.

jtag_command_version

enum jaylink_jtag_version jtag_command_version

static

Definition at line 37 of file jlink.c.

Referenced by COMMAND_HANDLER(), jlink_flush(), and jlink_init().

mac_address

uint8_t mac_address[6]

Definition at line 11 of file jlink.c.

pending_scan_results_buffer

struct pending_scan_result pending_scan_results_buffer[MAX_PENDING_SCAN_RESULTS]

static

Definition at line 1983 of file jlink.c.

Referenced by jlink_clock_data(), jlink_flush(), and jlink_swd_run_queue().

pending_scan_results_length

int pending_scan_results_length

static

Definition at line 1983 of file jlink.c.

Referenced by jlink_clock_data(), jlink_flush(), jlink_swd_run_queue(), and jlink_tap_init().

queued_retval

int queued_retval

static

Definition at line 113 of file jlink.c.

Referenced by jlink_swd_run_queue().

reserved_1

uint8_t reserved_1[3]

Definition at line 2 of file jlink.c.

reserved_2

uint8_t reserved_2[24]

Definition at line 5 of file jlink.c.

reserved_3

uint8_t reserved_3[8]

Definition at line 10 of file jlink.c.

reserved_4

uint8_t reserved_4[202]

Definition at line 13 of file jlink.c.

serial_number

uint32_t serial_number

static

Definition at line 43 of file jlink.c.

Referenced by jlink_init(), and jlink_open_device().

subnet_mask

uint8_t subnet_mask[4]

Definition at line 8 of file jlink.c.

Referenced by COMMAND_HANDLER().

swd_buffer_size

unsigned int swd_buffer_size = JLINK_TAP_BUFFER_SIZE

static

Definition at line 54 of file jlink.c.

Referenced by adjust_swd_buffer_size().

tap_length

unsigned tap_length

static

Definition at line 1964 of file jlink.c.

Referenced by fill_buffer(), jlink_clock_data(), jlink_flush(), jlink_queue_data_in(), jlink_queue_data_out(), jlink_swd_run_queue(), and jlink_tap_init().

target_power

uint32_t target_power

Definition at line 3 of file jlink.c.

Referenced by show_config_target_power().

tdi_buffer

uint8_t tdi_buffer[JLINK_TAP_BUFFER_SIZE]

static

Definition at line 1967 of file jlink.c.

Referenced by jlink_clock_data(), jlink_flush(), jlink_queue_data_out(), jlink_swd_run_queue(), and jlink_tap_init().

tdo_buffer

uint8_t tdo_buffer[JLINK_TAP_BUFFER_SIZE]

static

Definition at line 1968 of file jlink.c.

Referenced by jlink_flush(), and jlink_swd_run_queue().

tmp_config

struct device_config tmp_config

static

Definition at line 54 of file jlink.c.

Referenced by COMMAND_HANDLER(), jlink_init(), show_config_ip_address(), show_config_mac_address(), show_config_target_power(), and show_config_usb_address().

tms_buffer

uint8_t tms_buffer[JLINK_TAP_BUFFER_SIZE]

static

Definition at line 1966 of file jlink.c.

Referenced by jlink_clock_data(), jlink_flush(), jlink_queue_data_in(), jlink_queue_data_out(), jlink_swd_run_queue(), and jlink_tap_init().

trace_enabled

bool trace_enabled

static

Definition at line 49 of file jlink.c.

Referenced by cmsis_dap_config_trace(), config_trace(), and jlink_quit().

usb_address

uint8_t usb_address

static

Definition at line 45 of file jlink.c.

Referenced by COMMAND_HANDLER(), and jlink_open_device().

use_serial_number

bool use_serial_number

static

Definition at line 44 of file jlink.c.

Referenced by jlink_init(), and jlink_open_device().

use_usb_address

bool use_usb_address

static

Definition at line 47 of file jlink.c.

Referenced by COMMAND_HANDLER(), jlink_init(), and jlink_open_device().

use_usb_location

bool use_usb_location

static

Definition at line 45 of file jlink.c.

Referenced by jlink_open_device().
