kinetis_ke.c File Reference

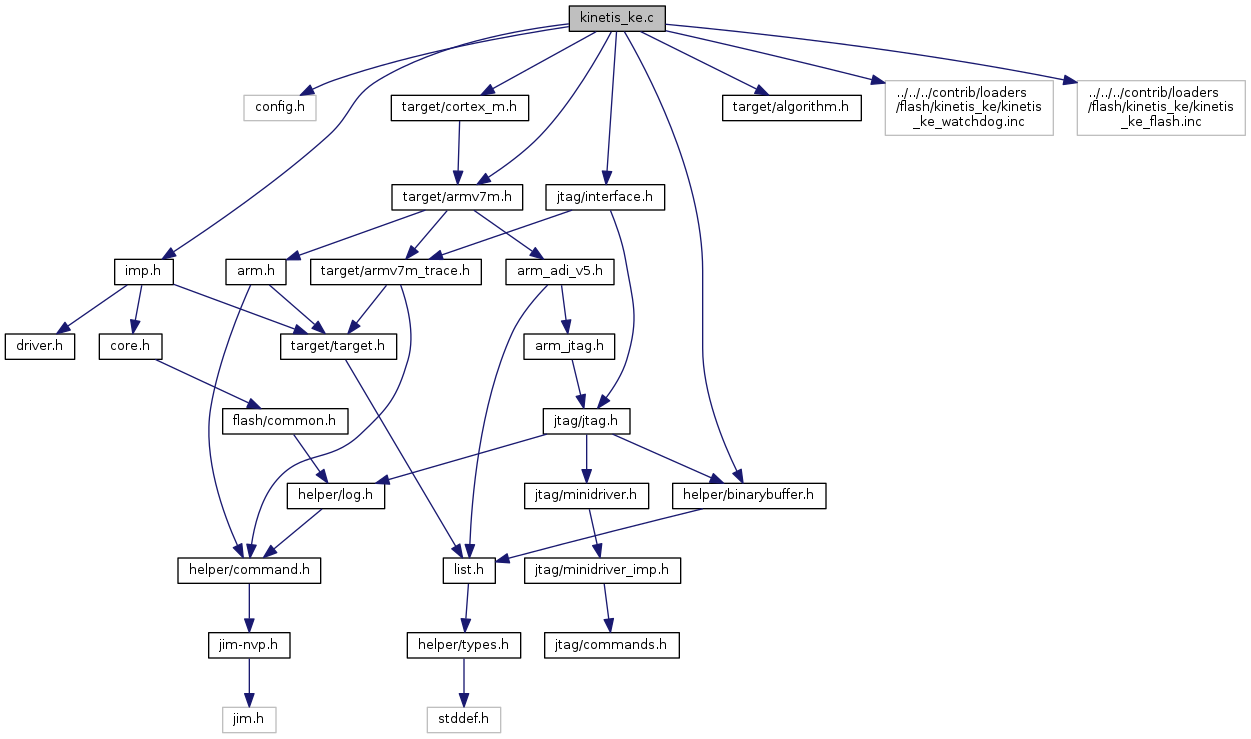

Include dependency graph for kinetis_ke.c:

Go to the source code of this file.

Data Structures

struct  kinetis_ke_flash_bank


Macros

#define FTMRX_CMD_ALLERASED   0x01

#define FTMRX_CMD_BLOCKERASED   0x02

#define FTMRX_CMD_CONFIGNVM   0x0F

#define FTMRX_CMD_ERASEALL   0x08

#define FTMRX_CMD_ERASEBLOCK   0x09

#define FTMRX_CMD_ERASESECTOR   0x0A

#define FTMRX_CMD_PROGFLASH   0x06

#define FTMRX_CMD_PROGONCE   0x07

#define FTMRX_CMD_READONCE   0x04

#define FTMRX_CMD_SECTIONERASED   0x03

#define FTMRX_CMD_SETFACTORYLVL   0x0E

#define FTMRX_CMD_SETMARGINLVL   0x0D

#define FTMRX_CMD_UNSECURE   0x0B

#define FTMRX_CMD_VERIFYACCESS   0x0C

#define FTMRX_ERROR_ACCERR   0x20

#define FTMRX_ERROR_FPVIOL   0x10

#define FTMRX_FCLKDIV_FDIV(x)   (((uint8_t)(((uint8_t)(x))<<FTMRX_FCLKDIV_FDIV_SHIFT))&FTMRX_FCLKDIV_FDIV_MASK)

#define FTMRX_FCLKDIV_FDIV_MASK   0x3F

#define FTMRX_FCLKDIV_FDIV_SHIFT   0

#define FTMRX_FCLKDIV_FDIVLCK_MASK   0x40

#define FTMRX_FCLKDIV_FDIVLCK_SHIFT   6

#define FTMRX_FCLKDIV_FDIVLD_MASK   0x80

#define FTMRX_FCLKDIV_FDIVLD_SHIFT   7

#define FTMRX_FSTAT_CCIF_MASK   0x80

#define FTMRX_FSTAT_MGSTAT0_MASK   0x01

#define FTMRX_FSTAT_MGSTAT1_MASK   0x02

#define ICS_C1   0x40064000

#define ICS_C2   0x40064001

#define ICS_C2_BDIV(x)   (((uint8_t)(((uint8_t)(x))<<ICS_C2_BDIV_SHIFT))&ICS_C2_BDIV_MASK)

#define ICS_C2_BDIV_MASK   0xE0

#define ICS_C2_BDIV_SHIFT   5

#define ICS_C3   0x40064002

#define ICS_C4   0x40064003

#define ICS_C4_SCFTRIM_MASK   0x1

#define ICS_S   0x40064004

#define ICS_S_LOCK_MASK   0x40

#define KINETIS_KE_SRSID_FAMID(x)   ((x >> 28) & 0x0F)

#define KINETIS_KE_SRSID_KEX2   0x02

#define KINETIS_KE_SRSID_KEX4   0x04

#define KINETIS_KE_SRSID_KEX6   0x06

#define KINETIS_KE_SRSID_PINCOUNT(x)   ((x >> 16) & 0x0F)

#define KINETIS_KE_SRSID_SUBFAMID(x)   ((x >> 24) & 0x0F)

#define MDM_ACCESS_TIMEOUT   3000 /* iterations */

#define MDM_REG_CTRL   0x04

#define MDM_REG_ID   0xfc

#define MDM_REG_STAT   0x00

#define MDM_STAT_BACKDOOREN   (1<<6)

#define MDM_STAT_CORE_HALTED   (1<<16)

#define MDM_STAT_CORE_SLEEPDEEP   (1<<17)

#define MDM_STAT_CORESLEEPING   (1<<18)

#define MDM_STAT_FMEACK   (1<<0)

#define MDM_STAT_FMEEN   (1<<5)

#define MDM_STAT_FREADY   (1<<1)

#define MDM_STAT_LLSMODEXIT   (1<<9)

#define MDM_STAT_LPEN   (1<<7)

#define MDM_STAT_SYSRES   (1<<3)

#define MDM_STAT_SYSSEC   (1<<2)

#define MDM_STAT_VLLSXMODEXIT   (1<<10)

#define MDM_STAT_VLPEN   (1<<8)

#define MEM_CTRL_CORE_HOLD_RES   (1<<4)

#define MEM_CTRL_DBG_DIS   (1<<1)

#define MEM_CTRL_DBG_REQ   (1<<2)

#define MEM_CTRL_FMEIP   (1<<0)

#define MEM_CTRL_SYS_RES_REQ   (1<<3)

#define MEM_CTRL_VLLSX_DBG_ACK   (1<<6)

#define MEM_CTRL_VLLSX_DBG_REQ   (1<<5)

#define MEM_CTRL_VLLSX_STAT_ACK   (1<<7)

#define SIM_BUSDIV   0x40048018

#define SIM_CLKDIV_KE04_16_20_24   0x4004801C

#define SIM_CLKDIV_KE04_44_64_80   0x40048024

#define SIM_CLKDIV_KE06   0x40048024

#define SIM_CLKDIV_OUTDIV2_MASK   0x1000000

#define SIM_SRSID   0x40048000

#define WDOG_CS1   0x40052000


Functions

 COMMAND_HANDLER (kinetis_ke_check_flash_security_status)

 COMMAND_HANDLER (kinetis_ke_disable_wdog_handler)

 COMMAND_HANDLER (kinetis_ke_mdm_mass_erase)

 FLASH_BANK_COMMAND_HANDLER (kinetis_ke_flash_bank_command)

static int kinetis_ke_auto_probe (struct flash_bank *bank)

static int kinetis_ke_blank_check (struct flash_bank *bank)

static int kinetis_ke_erase (struct flash_bank *bank, unsigned int first, unsigned int last)

static int kinetis_ke_ftmrx_command (struct flash_bank *bank, uint8_t count, uint8_t *FCCOBIX, uint8_t *FCCOBHI, uint8_t *FCCOBLO, uint8_t *fstat)

static int kinetis_ke_info (struct flash_bank *bank, struct command_invocation *cmd)

static int kinetis_ke_mdm_poll_register (struct adiv5_dap *dap, unsigned reg, uint32_t mask, uint32_t value)

static int kinetis_ke_mdm_read_register (struct adiv5_dap *dap, unsigned reg, uint32_t *result)

static int kinetis_ke_mdm_write_register (struct adiv5_dap *dap, unsigned reg, uint32_t value)

static int kinetis_ke_prepare_flash (struct flash_bank *bank)

static int kinetis_ke_probe (struct flash_bank *bank)

static int kinetis_ke_protect (struct flash_bank *bank, int set, unsigned int first, unsigned int last)

static int kinetis_ke_protect_check (struct flash_bank *bank)

static int kinetis_ke_stop_watchdog (struct target *target)

static int kinetis_ke_write (struct flash_bank *bank, const uint8_t *buffer, uint32_t offset, uint32_t count)

static int kinetis_ke_write_words (struct flash_bank *bank, const uint8_t *buffer, uint32_t offset, uint32_t words)


Variables

static const struct command_registration kinetis_ke_command_handler []

static const struct command_registration kinetis_ke_exec_command_handlers []

const struct flash_driver kinetis_ke_flash

static uint8_t kinetis_ke_flash_write_code []

static const uint32_t kinetis_ke_known_mdm_ids []

static const struct command_registration kinetis_ke_security_command_handlers []


Macro Definition Documentation

◆ FTMRX_CMD_ALLERASED

#define FTMRX_CMD_ALLERASED   0x01

Definition at line 68 of file kinetis_ke.c.

◆ FTMRX_CMD_BLOCKERASED

#define FTMRX_CMD_BLOCKERASED   0x02

Definition at line 69 of file kinetis_ke.c.

◆ FTMRX_CMD_CONFIGNVM

#define FTMRX_CMD_CONFIGNVM   0x0F

Definition at line 81 of file kinetis_ke.c.

◆ FTMRX_CMD_ERASEALL

#define FTMRX_CMD_ERASEALL   0x08

Definition at line 74 of file kinetis_ke.c.

◆ FTMRX_CMD_ERASEBLOCK

#define FTMRX_CMD_ERASEBLOCK   0x09

Definition at line 75 of file kinetis_ke.c.

◆ FTMRX_CMD_ERASESECTOR

#define FTMRX_CMD_ERASESECTOR   0x0A

Definition at line 76 of file kinetis_ke.c.

◆ FTMRX_CMD_PROGFLASH

#define FTMRX_CMD_PROGFLASH   0x06

Definition at line 72 of file kinetis_ke.c.

◆ FTMRX_CMD_PROGONCE

#define FTMRX_CMD_PROGONCE   0x07

Definition at line 73 of file kinetis_ke.c.

◆ FTMRX_CMD_READONCE

#define FTMRX_CMD_READONCE   0x04

Definition at line 71 of file kinetis_ke.c.

◆ FTMRX_CMD_SECTIONERASED

#define FTMRX_CMD_SECTIONERASED   0x03

Definition at line 70 of file kinetis_ke.c.

◆ FTMRX_CMD_SETFACTORYLVL

#define FTMRX_CMD_SETFACTORYLVL   0x0E

Definition at line 80 of file kinetis_ke.c.

◆ FTMRX_CMD_SETMARGINLVL

#define FTMRX_CMD_SETMARGINLVL   0x0D

Definition at line 79 of file kinetis_ke.c.

◆ FTMRX_CMD_UNSECURE

#define FTMRX_CMD_UNSECURE   0x0B

Definition at line 77 of file kinetis_ke.c.

◆ FTMRX_CMD_VERIFYACCESS

#define FTMRX_CMD_VERIFYACCESS   0x0C

Definition at line 78 of file kinetis_ke.c.

◆ FTMRX_ERROR_ACCERR

#define FTMRX_ERROR_ACCERR   0x20

Definition at line 84 of file kinetis_ke.c.

◆ FTMRX_ERROR_FPVIOL

#define FTMRX_ERROR_FPVIOL   0x10

Definition at line 85 of file kinetis_ke.c.

◆ FTMRX_FCLKDIV_FDIV

#define FTMRX_FCLKDIV_FDIV (   x)    (((uint8_t)(((uint8_t)(x))<<FTMRX_FCLKDIV_FDIV_SHIFT))&FTMRX_FCLKDIV_FDIV_MASK)

Definition at line 58 of file kinetis_ke.c.

◆ FTMRX_FCLKDIV_FDIV_MASK

#define FTMRX_FCLKDIV_FDIV_MASK   0x3F

Definition at line 56 of file kinetis_ke.c.

◆ FTMRX_FCLKDIV_FDIV_SHIFT

#define FTMRX_FCLKDIV_FDIV_SHIFT   0

Definition at line 57 of file kinetis_ke.c.

◆ FTMRX_FCLKDIV_FDIVLCK_MASK

#define FTMRX_FCLKDIV_FDIVLCK_MASK   0x40

Definition at line 59 of file kinetis_ke.c.

◆ FTMRX_FCLKDIV_FDIVLCK_SHIFT

#define FTMRX_FCLKDIV_FDIVLCK_SHIFT   6

Definition at line 60 of file kinetis_ke.c.

◆ FTMRX_FCLKDIV_FDIVLD_MASK

#define FTMRX_FCLKDIV_FDIVLD_MASK   0x80

Definition at line 61 of file kinetis_ke.c.

◆ FTMRX_FCLKDIV_FDIVLD_SHIFT

#define FTMRX_FCLKDIV_FDIVLD_SHIFT   7

Definition at line 62 of file kinetis_ke.c.

◆ FTMRX_FSTAT_CCIF_MASK

#define FTMRX_FSTAT_CCIF_MASK   0x80

Definition at line 63 of file kinetis_ke.c.

◆ FTMRX_FSTAT_MGSTAT0_MASK

#define FTMRX_FSTAT_MGSTAT0_MASK   0x01

Definition at line 64 of file kinetis_ke.c.

◆ FTMRX_FSTAT_MGSTAT1_MASK

#define FTMRX_FSTAT_MGSTAT1_MASK   0x02

Definition at line 65 of file kinetis_ke.c.

◆ ICS_C1

#define ICS_C1   0x40064000

Definition at line 39 of file kinetis_ke.c.

◆ ICS_C2

#define ICS_C2   0x40064001

Definition at line 40 of file kinetis_ke.c.

◆ ICS_C2_BDIV

#define ICS_C2_BDIV (   x)    (((uint8_t)(((uint8_t)(x))<<ICS_C2_BDIV_SHIFT))&ICS_C2_BDIV_MASK)

Definition at line 52 of file kinetis_ke.c.

◆ ICS_C2_BDIV_MASK

#define ICS_C2_BDIV_MASK   0xE0

Definition at line 50 of file kinetis_ke.c.

◆ ICS_C2_BDIV_SHIFT

#define ICS_C2_BDIV_SHIFT   5

Definition at line 51 of file kinetis_ke.c.

◆ ICS_C3

#define ICS_C3   0x40064002

Definition at line 41 of file kinetis_ke.c.

◆ ICS_C4

#define ICS_C4   0x40064003

Definition at line 42 of file kinetis_ke.c.

◆ ICS_C4_SCFTRIM_MASK

#define ICS_C4_SCFTRIM_MASK   0x1

Definition at line 54 of file kinetis_ke.c.

◆ ICS_S

#define ICS_S   0x40064004

Definition at line 43 of file kinetis_ke.c.

◆ ICS_S_LOCK_MASK

#define ICS_S_LOCK_MASK   0x40

Definition at line 53 of file kinetis_ke.c.

◆ KINETIS_KE_SRSID_FAMID

#define KINETIS_KE_SRSID_FAMID (   x)    ((x >> 28) & 0x0F)

Definition at line 87 of file kinetis_ke.c.

◆ KINETIS_KE_SRSID_KEX2

#define KINETIS_KE_SRSID_KEX2   0x02

Definition at line 91 of file kinetis_ke.c.

◆ KINETIS_KE_SRSID_KEX4

#define KINETIS_KE_SRSID_KEX4   0x04

Definition at line 92 of file kinetis_ke.c.

◆ KINETIS_KE_SRSID_KEX6

#define KINETIS_KE_SRSID_KEX6   0x06

Definition at line 93 of file kinetis_ke.c.

◆ KINETIS_KE_SRSID_PINCOUNT

#define KINETIS_KE_SRSID_PINCOUNT (   x)    ((x >> 16) & 0x0F)

Definition at line 89 of file kinetis_ke.c.

◆ KINETIS_KE_SRSID_SUBFAMID

#define KINETIS_KE_SRSID_SUBFAMID (   x)    ((x >> 24) & 0x0F)

Definition at line 88 of file kinetis_ke.c.

◆ MDM_ACCESS_TIMEOUT

#define MDM_ACCESS_TIMEOUT   3000 /* iterations */

Definition at line 135 of file kinetis_ke.c.

◆ MDM_REG_CTRL

#define MDM_REG_CTRL   0x04

Definition at line 109 of file kinetis_ke.c.

◆ MDM_REG_ID

#define MDM_REG_ID   0xfc

Definition at line 110 of file kinetis_ke.c.

◆ MDM_REG_STAT

#define MDM_REG_STAT   0x00

Definition at line 108 of file kinetis_ke.c.

◆ MDM_STAT_BACKDOOREN

#define MDM_STAT_BACKDOOREN   (1<<6)

Definition at line 117 of file kinetis_ke.c.

◆ MDM_STAT_CORE_HALTED

#define MDM_STAT_CORE_HALTED   (1<<16)

Definition at line 122 of file kinetis_ke.c.

◆ MDM_STAT_CORE_SLEEPDEEP

#define MDM_STAT_CORE_SLEEPDEEP   (1<<17)

Definition at line 123 of file kinetis_ke.c.

◆ MDM_STAT_CORESLEEPING

#define MDM_STAT_CORESLEEPING   (1<<18)

Definition at line 124 of file kinetis_ke.c.

◆ MDM_STAT_FMEACK

#define MDM_STAT_FMEACK   (1<<0)

Definition at line 112 of file kinetis_ke.c.

◆ MDM_STAT_FMEEN

#define MDM_STAT_FMEEN   (1<<5)

Definition at line 116 of file kinetis_ke.c.

◆ MDM_STAT_FREADY

#define MDM_STAT_FREADY   (1<<1)

Definition at line 113 of file kinetis_ke.c.

◆ MDM_STAT_LLSMODEXIT

#define MDM_STAT_LLSMODEXIT   (1<<9)

Definition at line 120 of file kinetis_ke.c.

◆ MDM_STAT_LPEN

#define MDM_STAT_LPEN   (1<<7)

Definition at line 118 of file kinetis_ke.c.

◆ MDM_STAT_SYSRES

#define MDM_STAT_SYSRES   (1<<3)

Definition at line 115 of file kinetis_ke.c.

◆ MDM_STAT_SYSSEC

#define MDM_STAT_SYSSEC   (1<<2)

Definition at line 114 of file kinetis_ke.c.

◆ MDM_STAT_VLLSXMODEXIT

#define MDM_STAT_VLLSXMODEXIT   (1<<10)

Definition at line 121 of file kinetis_ke.c.

◆ MDM_STAT_VLPEN

#define MDM_STAT_VLPEN   (1<<8)

Definition at line 119 of file kinetis_ke.c.

◆ MEM_CTRL_CORE_HOLD_RES

#define MEM_CTRL_CORE_HOLD_RES   (1<<4)

Definition at line 130 of file kinetis_ke.c.

◆ MEM_CTRL_DBG_DIS

#define MEM_CTRL_DBG_DIS   (1<<1)

Definition at line 127 of file kinetis_ke.c.

◆ MEM_CTRL_DBG_REQ

#define MEM_CTRL_DBG_REQ   (1<<2)

Definition at line 128 of file kinetis_ke.c.

◆ MEM_CTRL_FMEIP

#define MEM_CTRL_FMEIP   (1<<0)

Definition at line 126 of file kinetis_ke.c.

◆ MEM_CTRL_SYS_RES_REQ

#define MEM_CTRL_SYS_RES_REQ   (1<<3)

Definition at line 129 of file kinetis_ke.c.

◆ MEM_CTRL_VLLSX_DBG_ACK

#define MEM_CTRL_VLLSX_DBG_ACK   (1<<6)

Definition at line 132 of file kinetis_ke.c.

◆ MEM_CTRL_VLLSX_DBG_REQ

#define MEM_CTRL_VLLSX_DBG_REQ   (1<<5)

Definition at line 131 of file kinetis_ke.c.

◆ MEM_CTRL_VLLSX_STAT_ACK

#define MEM_CTRL_VLLSX_STAT_ACK   (1<<7)

Definition at line 133 of file kinetis_ke.c.

◆ SIM_BUSDIV

#define SIM_BUSDIV   0x40048018

Definition at line 44 of file kinetis_ke.c.

◆ SIM_CLKDIV_KE04_16_20_24

#define SIM_CLKDIV_KE04_16_20_24   0x4004801C

Definition at line 47 of file kinetis_ke.c.

◆ SIM_CLKDIV_KE04_44_64_80

#define SIM_CLKDIV_KE04_44_64_80   0x40048024

Definition at line 46 of file kinetis_ke.c.

◆ SIM_CLKDIV_KE06

#define SIM_CLKDIV_KE06   0x40048024

Definition at line 45 of file kinetis_ke.c.

◆ SIM_CLKDIV_OUTDIV2_MASK

#define SIM_CLKDIV_OUTDIV2_MASK   0x1000000

Definition at line 55 of file kinetis_ke.c.

◆ SIM_SRSID

#define SIM_SRSID   0x40048000

Definition at line 38 of file kinetis_ke.c.

◆ WDOG_CS1

#define WDOG_CS1   0x40052000

Definition at line 48 of file kinetis_ke.c.

Function Documentation

◆ COMMAND_HANDLER() [1/3]

COMMAND_HANDLER ( kinetis_ke_check_flash_security_status  )

Definition at line 581 of file kinetis_ke.c.

References armv7m_common::arm, cortex_m_common::armv7m, ARRAY_SIZE, CMD_CTX, arm::dap, ERROR_OK, get_current_target(), jtag_poll_set_enabled(), kinetis_ke_known_mdm_ids, kinetis_ke_mdm_poll_register(), kinetis_ke_mdm_read_register(), LOG_ERROR, LOG_INFO, LOG_WARNING, MDM_REG_ID, MDM_REG_STAT, MDM_STAT_FREADY, MDM_STAT_SYSSEC, and target_to_cm().

◆ COMMAND_HANDLER() [2/3]

COMMAND_HANDLER ( kinetis_ke_disable_wdog_handler  )

Definition at line 494 of file kinetis_ke.c.

References CMD_ARGC, CMD_CTX, ERROR_COMMAND_SYNTAX_ERROR, get_current_target(), and kinetis_ke_stop_watchdog().

◆ COMMAND_HANDLER() [3/3]

COMMAND_HANDLER ( kinetis_ke_mdm_mass_erase  )

Definition at line 504 of file kinetis_ke.c.

References adapter_assert_reset(), adapter_deassert_reset(), armv7m_common::arm, cortex_m_common::armv7m, CMD_CTX, arm::dap, ERROR_FAIL, ERROR_OK, get_current_target(), jtag_get_reset_config(), kinetis_ke_mdm_poll_register(), kinetis_ke_mdm_write_register(), LOG_ERROR, MDM_REG_CTRL, MDM_REG_STAT, MDM_STAT_FMEACK, MDM_STAT_FREADY, MDM_STAT_SYSRES, MEM_CTRL_FMEIP, MEM_CTRL_SYS_RES_REQ, RESET_HAS_SRST, and target_to_cm().

◆ FLASH_BANK_COMMAND_HANDLER()

FLASH_BANK_COMMAND_HANDLER ( kinetis_ke_flash_bank_command  )

Definition at line 665 of file kinetis_ke.c.

References bank, CMD_ARGC, ERROR_COMMAND_SYNTAX_ERROR, ERROR_OK, and LOG_INFO.

◆ kinetis_ke_auto_probe()

static int kinetis_ke_auto_probe ( struct flash_bank *  bank)
static

Definition at line 1133 of file kinetis_ke.c.

References bank, ERROR_OK, kinetis_ke_probe(), and kinetis_ke_flash_bank::sim_srsid.

◆ kinetis_ke_blank_check()

static int kinetis_ke_blank_check ( struct flash_bank *  bank)
static

Definition at line 1151 of file kinetis_ke.c.

References bank, ERROR_OK, ERROR_TARGET_NOT_HALTED, FTMRX_CMD_ALLERASED, FTMRX_CMD_SECTIONERASED, FTMRX_FSTAT_MGSTAT0_MASK, FTMRX_FSTAT_MGSTAT1_MASK, kinetis_ke_ftmrx_command(), kinetis_ke_prepare_flash(), LOG_DEBUG, LOG_ERROR, NULL, and TARGET_HALTED.

◆ kinetis_ke_erase()

static int kinetis_ke_erase ( struct flash_bank *  bank,
unsigned int  first,
unsigned int  last
)
static

Definition at line 939 of file kinetis_ke.c.

References bank, ERROR_FLASH_OPERATION_FAILED, ERROR_OK, ERROR_TARGET_NOT_HALTED, FTMRX_CMD_ERASESECTOR, kinetis_ke_ftmrx_command(), kinetis_ke_prepare_flash(), LOG_ERROR, LOG_WARNING, and TARGET_HALTED.

◆ kinetis_ke_ftmrx_command()

static int kinetis_ke_ftmrx_command ( struct flash_bank *  bank,
uint8_t  count,
uint8_t *  FCCOBIX,
uint8_t *  FCCOBHI,
uint8_t *  FCCOBLO,
uint8_t *  fstat
)
static

Definition at line 880 of file kinetis_ke.c.

References alive_sleep(), bank, count, ERROR_FLASH_OPERATION_FAILED, ERROR_OK, kinetis_ke_flash_bank::ftmrx_fccobhi_addr, kinetis_ke_flash_bank::ftmrx_fccobix_addr, kinetis_ke_flash_bank::ftmrx_fccoblo_addr, kinetis_ke_flash_bank::ftmrx_fstat_addr, FTMRX_FSTAT_CCIF_MASK, target_read_u8(), and target_write_u8().

Referenced by kinetis_ke_blank_check(), and kinetis_ke_erase().

◆ kinetis_ke_info()

static int kinetis_ke_info ( struct flash_bank *  bank,
struct command_invocation *  cmd
)
static

Definition at line 1143 of file kinetis_ke.c.

References bank, cmd, command_print_sameline(), ERROR_OK, and TARGET_ADDR_FMT.

◆ kinetis_ke_mdm_poll_register()

static int kinetis_ke_mdm_poll_register ( struct adiv5_dap *  dap,
unsigned  reg,
uint32_t  mask,
uint32_t  value
)
static

Definition at line 190 of file kinetis_ke.c.

References alive_sleep(), adiv5_ap::dap, ERROR_FAIL, ERROR_OK, kinetis_ke_mdm_read_register(), LOG_DEBUG, mask, and MDM_ACCESS_TIMEOUT.

Referenced by COMMAND_HANDLER().

◆ kinetis_ke_mdm_read_register()

static int kinetis_ke_mdm_read_register ( struct adiv5_dap *  dap,
unsigned  reg,
uint32_t *  result
)
static

Definition at line 164 of file kinetis_ke.c.

References adiv5_ap::dap, dap_get_ap(), dap_put_ap(), dap_queue_ap_read(), dap_run(), ERROR_FAIL, ERROR_OK, and LOG_DEBUG.

Referenced by COMMAND_HANDLER(), and kinetis_ke_mdm_poll_register().

◆ kinetis_ke_mdm_write_register()

static int kinetis_ke_mdm_write_register ( struct adiv5_dap *  dap,
unsigned  reg,
uint32_t  value
)
static

Definition at line 137 of file kinetis_ke.c.

References adiv5_ap::dap, dap_get_ap(), dap_put_ap(), dap_queue_ap_write(), dap_run(), ERROR_FAIL, ERROR_OK, and LOG_DEBUG.

Referenced by COMMAND_HANDLER().

◆ kinetis_ke_prepare_flash()

static int kinetis_ke_prepare_flash ( struct flash_bank *  bank)
static

Definition at line 208 of file kinetis_ke.c.

References alive_sleep(), bank, ERROR_FAIL, ERROR_FLASH_OPERATION_FAILED, ERROR_OK, kinetis_ke_flash_bank::ftmrx_fclkdiv_addr, FTMRX_FCLKDIV_FDIV, FTMRX_FCLKDIV_FDIV_MASK, FTMRX_FCLKDIV_FDIVLCK_MASK, FTMRX_FCLKDIV_FDIVLD_MASK, ICS_C1, ICS_C2, ICS_C2_BDIV, ICS_C2_BDIV_MASK, ICS_C3, ICS_C4, ICS_C4_SCFTRIM_MASK, ICS_S, ICS_S_LOCK_MASK, KINETIS_KE_SRSID_KEX2, KINETIS_KE_SRSID_KEX4, KINETIS_KE_SRSID_KEX6, KINETIS_KE_SRSID_PINCOUNT, KINETIS_KE_SRSID_SUBFAMID, LOG_ERROR, LOG_INFO, LOG_WARNING, SIM_BUSDIV, SIM_CLKDIV_KE04_16_20_24, SIM_CLKDIV_KE04_44_64_80, SIM_CLKDIV_KE06, SIM_CLKDIV_OUTDIV2_MASK, kinetis_ke_flash_bank::sim_srsid, target_read_u8(), target_write_u32(), and target_write_u8().

Referenced by kinetis_ke_blank_check(), kinetis_ke_erase(), and kinetis_ke_write().

◆ kinetis_ke_probe()

static int kinetis_ke_probe ( struct flash_bank *  bank)
static

Definition at line 1038 of file kinetis_ke.c.

References bank, ERROR_FLASH_OPER_UNSUPPORTED, ERROR_OK, kinetis_ke_flash_bank::ftmrx_fccobhi_addr, kinetis_ke_flash_bank::ftmrx_fccobix_addr, kinetis_ke_flash_bank::ftmrx_fccoblo_addr, kinetis_ke_flash_bank::ftmrx_fclkdiv_addr, kinetis_ke_flash_bank::ftmrx_fprot_addr, kinetis_ke_flash_bank::ftmrx_fstat_addr, KINETIS_KE_SRSID_FAMID, KINETIS_KE_SRSID_KEX2, KINETIS_KE_SRSID_KEX4, KINETIS_KE_SRSID_KEX6, KINETIS_KE_SRSID_SUBFAMID, LOG_ERROR, LOG_INFO, offset, kinetis_ke_flash_bank::sector_size, SIM_SRSID, kinetis_ke_flash_bank::sim_srsid, and target_read_u32().

Referenced by kinetis_ke_auto_probe().

◆ kinetis_ke_protect()

static int kinetis_ke_protect ( struct flash_bank *  bank,
int  set,
unsigned int  first,
unsigned int  last
)
static

Definition at line 771 of file kinetis_ke.c.

References bank, ERROR_FLASH_BANK_INVALID, ERROR_TARGET_NOT_HALTED, LOG_ERROR, LOG_WARNING, and TARGET_HALTED.

◆ kinetis_ke_protect_check()

static int kinetis_ke_protect_check ( struct flash_bank *  bank)
static

Definition at line 785 of file kinetis_ke.c.

References bank, ERROR_OK, ERROR_TARGET_NOT_HALTED, kinetis_ke_flash_bank::ftmrx_fprot_addr, LOG_ERROR, LOG_WARNING, kinetis_ke_flash_bank::protection_size, kinetis_ke_flash_bank::sector_size, TARGET_HALTED, and target_read_u8().

◆ kinetis_ke_stop_watchdog()

static int kinetis_ke_stop_watchdog ( struct target *  target)
static

Definition at line 441 of file kinetis_ke.c.

References working_area::address, ARM_MODE_THREAD, ARMV7M_COMMON_MAGIC, armv7m_algorithm::common_magic, armv7m_algorithm::core_mode, ERROR_OK, ERROR_TARGET_NOT_HALTED, ERROR_TARGET_RESOURCE_NOT_AVAILABLE, LOG_ERROR, LOG_INFO, LOG_WARNING, NULL, target::state, target_alloc_working_area(), target_free_working_area(), TARGET_HALTED, target_read_u8(), target_run_algorithm(), target_write_buffer(), and WDOG_CS1.

Referenced by COMMAND_HANDLER(), and kinetis_ke_write().

◆ kinetis_ke_write()

static int kinetis_ke_write ( struct flash_bank *  bank,
const uint8_t *  buffer,
uint32_t  offset,
uint32_t  count
)
static

Definition at line 986 of file kinetis_ke.c.

References bank, buffer, count, ERROR_FAIL, ERROR_FLASH_BANK_INVALID, ERROR_FLASH_DST_BREAKS_ALIGNMENT, ERROR_OK, ERROR_TARGET_NOT_HALTED, kinetis_ke_prepare_flash(), kinetis_ke_stop_watchdog(), kinetis_ke_write_words(), LOG_ERROR, LOG_INFO, LOG_WARNING, NULL, offset, and TARGET_HALTED.

◆ kinetis_ke_write_words()

static int kinetis_ke_write_words ( struct flash_bank *  bank,
const uint8_t *  buffer,
uint32_t  offset,
uint32_t  words
)
static

Definition at line 688 of file kinetis_ke.c.

References working_area::address, ARM_MODE_THREAD, ARMV7M_COMMON_MAGIC, bank, buf_get_u32(), buf_set_u32(), buffer, armv7m_algorithm::common_magic, armv7m_algorithm::core_mode, destroy_reg_param(), ERROR_FLASH_OPERATION_FAILED, ERROR_OK, ERROR_TARGET_RESOURCE_NOT_AVAILABLE, FTMRX_ERROR_ACCERR, FTMRX_ERROR_FPVIOL, kinetis_ke_flash_bank::ftmrx_fccobhi_addr, kinetis_ke_flash_bank::ftmrx_fccobix_addr, kinetis_ke_flash_bank::ftmrx_fccoblo_addr, kinetis_ke_flash_bank::ftmrx_fstat_addr, init_reg_param(), kinetis_ke_flash_write_code, LOG_ERROR, LOG_INFO, LOG_WARNING, NULL, offset, PARAM_IN_OUT, PARAM_OUT, source, target_alloc_working_area(), target_free_working_area(), target_run_flash_async_algorithm(), and target_write_buffer().

Referenced by kinetis_ke_write().

Variable Documentation

◆ kinetis_ke_command_handler

const struct command_registration kinetis_ke_command_handler[]
static
Initial value:
= {
{
.name = "kinetis_ke",
.mode = COMMAND_ANY,
.help = "Kinetis KE flash controller commands",
.usage = "",
.chain = kinetis_ke_exec_command_handlers,
},
COMMAND_REGISTRATION_DONE
}
COMMAND_REGISTRATION_DONE
#define COMMAND_REGISTRATION_DONE
Use this as the last entry in an array of command_registration records.
Definition: command.h:247
COMMAND_ANY
@ COMMAND_ANY
Definition: command.h:42
kinetis_ke_exec_command_handlers
static const struct command_registration kinetis_ke_exec_command_handlers[]
Definition: kinetis_ke.c:1228

Definition at line 1151 of file kinetis_ke.c.

◆ kinetis_ke_exec_command_handlers

const struct command_registration kinetis_ke_exec_command_handlers[]
static
Initial value:
= {
{
.name = "mdm",
.mode = COMMAND_ANY,
.help = "MDM-AP command group",
.usage = "",
.chain = kinetis_ke_security_command_handlers,
},
{
.name = "disable_wdog",
.mode = COMMAND_EXEC,
.help = "Disable the watchdog timer",
.usage = "",
.handler = kinetis_ke_disable_wdog_handler,
},
COMMAND_REGISTRATION_DONE
}
COMMAND_EXEC
@ COMMAND_EXEC
Definition: command.h:40
kinetis_ke_security_command_handlers
static const struct command_registration kinetis_ke_security_command_handlers[]
Definition: kinetis_ke.c:1210
command_registration::name
const char * name
Definition: command.h:229

Definition at line 1151 of file kinetis_ke.c.

◆ kinetis_ke_flash

const struct flash_driver kinetis_ke_flash
Initial value:
= {
.name = "kinetis_ke",
.commands = kinetis_ke_command_handler,
.flash_bank_command = kinetis_ke_flash_bank_command,
.erase = kinetis_ke_erase,
.protect = kinetis_ke_protect,
.write = kinetis_ke_write,
.read = default_flash_read,
.probe = kinetis_ke_probe,
.auto_probe = kinetis_ke_auto_probe,
.erase_check = kinetis_ke_blank_check,
.protect_check = kinetis_ke_protect_check,
.info = kinetis_ke_info,
.free_driver_priv = default_flash_free_driver_priv,
}
default_flash_read
int default_flash_read(struct flash_bank *bank, uint8_t *buffer, uint32_t offset, uint32_t count)
Provides default read implementation for flash memory.
Definition: flash/nor/core.c:121
default_flash_free_driver_priv
void default_flash_free_driver_priv(struct flash_bank *bank)
Deallocates bank->driver_priv.
Definition: flash/nor/core.c:210
kinetis_ke_protect
static int kinetis_ke_protect(struct flash_bank *bank, int set, unsigned int first, unsigned int last)
Definition: kinetis_ke.c:771
kinetis_ke_erase
static int kinetis_ke_erase(struct flash_bank *bank, unsigned int first, unsigned int last)
Definition: kinetis_ke.c:939
kinetis_ke_auto_probe
static int kinetis_ke_auto_probe(struct flash_bank *bank)
Definition: kinetis_ke.c:1133
kinetis_ke_blank_check
static int kinetis_ke_blank_check(struct flash_bank *bank)
Definition: kinetis_ke.c:1151
kinetis_ke_protect_check
static int kinetis_ke_protect_check(struct flash_bank *bank)
Definition: kinetis_ke.c:785
kinetis_ke_command_handler
static const struct command_registration kinetis_ke_command_handler[]
Definition: kinetis_ke.c:1246
kinetis_ke_write
static int kinetis_ke_write(struct flash_bank *bank, const uint8_t *buffer, uint32_t offset, uint32_t count)
Definition: kinetis_ke.c:986
kinetis_ke_probe
static int kinetis_ke_probe(struct flash_bank *bank)
Definition: kinetis_ke.c:1038
kinetis_ke_info
static int kinetis_ke_info(struct flash_bank *bank, struct command_invocation *cmd)
Definition: kinetis_ke.c:1143

Definition at line 1151 of file kinetis_ke.c.

◆ kinetis_ke_flash_write_code

uint8_t kinetis_ke_flash_write_code[]
static
Initial value:
= {
}

Definition at line 684 of file kinetis_ke.c.

Referenced by kinetis_ke_write_words().

◆ kinetis_ke_known_mdm_ids

const uint32_t kinetis_ke_known_mdm_ids[]
static
Initial value:
= {
0x001C0020,
}

Definition at line 571 of file kinetis_ke.c.

Referenced by COMMAND_HANDLER().

◆ kinetis_ke_security_command_handlers

const struct command_registration kinetis_ke_security_command_handlers[]
static
Initial value:
= {
{
.name = "check_security",
.mode = COMMAND_EXEC,
.help = "Check status of device security lock",
.usage = "",
.handler = kinetis_ke_check_flash_security_status,
},
{
.name = "mass_erase",
.mode = COMMAND_EXEC,
.help = "Issue a complete flash erase via the MDM-AP",
.usage = "",
.handler = kinetis_ke_mdm_mass_erase,
},
COMMAND_REGISTRATION_DONE
}

Definition at line 1151 of file kinetis_ke.c.
