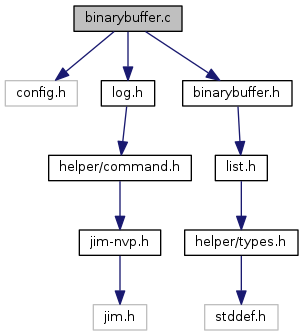

Include dependency graph for binarybuffer.c:

Functions
void	bit_copy_discard (struct bit_copy_queue *q)

void	bit_copy_execute (struct bit_copy_queue *q)

void	bit_copy_queue_init (struct bit_copy_queue *q)

int	bit_copy_queued (struct bit_copy_queue q, uint8_t dst, unsigned dst_offset, const uint8_t *src, unsigned src_offset, unsigned bit_count)

bool	buf_cmp (const void _buf1, const void _buf2, unsigned size)

bool	buf_cmp_mask (const void _buf1, const void _buf2, const void *_mask, unsigned size)

static bool	buf_cmp_masked (uint8_t a, uint8_t b, uint8_t m)

static bool	buf_cmp_trailing (uint8_t a, uint8_t b, uint8_t m, unsigned trailing)

void *	buf_cpy (const void from, void _to, unsigned size)
	Copies `size` bits out of `from` and into `to`. More...

void *	buf_set_buf (const void _src, unsigned src_start, void _dst, unsigned dst_start, unsigned len)

void *	buf_set_ones (void *_buf, unsigned size)
	Set the contents of `buf` with `count` bits, all set to 1. More...

char *	buf_to_hex_str (const void *_buf, unsigned buf_len)

void	buffer_shr (void *_buf, unsigned buf_len, unsigned count)

static int	ceil_f_to_u32 (float x)

uint32_t	flip_u32 (uint32_t value, unsigned int num)

size_t	hexify (char hex, const uint8_t bin, size_t count, size_t length)
	Convert binary data into a string of hexadecimal pairs. More...

static void	str_radix_guess (const char *_str, unsigned _str_len, unsigned *_radix)
	identify radix, and skip radix-prefix (0, 0x or 0X) More...

int	str_to_buf (const char str, unsigned str_len, void _buf, unsigned buf_len, unsigned radix)

size_t	unhexify (uint8_t bin, const char hex, size_t count)
	Convert a string of hexadecimal pairs into its binary representation. More...

Variables
static const unsigned char	bit_reverse_table256 []

static const char	hex_digits []

Function Documentation

◆ bit_copy_discard()

void bit_copy_discard ( struct bit_copy_queue * q )

Definition at line 332 of file binarybuffer.c.

References bit_copy_queue_entry::list, bit_copy_queue::list, list_del(), and list_for_each_entry_safe.

Referenced by mpsse_close(), mpsse_flush(), and mpsse_purge().

◆ bit_copy_execute()

void bit_copy_execute ( struct bit_copy_queue * q )

Definition at line 321 of file binarybuffer.c.

References bit_copy(), bit_copy_queue_entry::bit_count, bit_copy_queue_entry::dst, bit_copy_queue_entry::dst_offset, bit_copy_queue_entry::list, bit_copy_queue::list, list_del(), list_for_each_entry_safe, bit_copy_queue_entry::src, and bit_copy_queue_entry::src_offset.

Referenced by mpsse_flush().

◆ bit_copy_queue_init()

void bit_copy_queue_init ( struct bit_copy_queue * q )

Definition at line 299 of file binarybuffer.c.

References INIT_LIST_HEAD(), and bit_copy_queue::list.

Referenced by mpsse_open().

◆ bit_copy_queued()

int bit_copy_queued	(	struct bit_copy_queue *	q,
		uint8_t *	dst,
		unsigned	dst_offset,
		const uint8_t *	src,
		unsigned	src_offset,
		unsigned	bit_count
	)

Definition at line 304 of file binarybuffer.c.

References bit_copy_queue_entry::bit_count, bit_copy_queue_entry::dst, bit_copy_queue_entry::dst_offset, ERROR_FAIL, ERROR_OK, bit_copy_queue_entry::list, bit_copy_queue::list, list_add_tail(), bit_copy_queue_entry::src, and bit_copy_queue_entry::src_offset.

Referenced by buffer_add_read().

◆ buf_cmp()

bool buf_cmp	(	const void *	_buf1,
		const void *	_buf2,
		unsigned	size
	)

Definition at line 70 of file binarybuffer.c.

References buf_cmp_trailing(), and size.

Referenced by jtag_check_value_inner().

◆ buf_cmp_mask()

bool buf_cmp_mask	(	const void *	_buf1,
		const void *	_buf2,
		const void *	_mask,
		unsigned	size
	)

Definition at line 87 of file binarybuffer.c.

References buf_cmp_masked(), buf_cmp_trailing(), mask, and size.

Referenced by jtag_check_value_inner(), and svf_check_tdo().

◆ buf_cmp_masked()

static bool buf_cmp_masked	(	uint8_t	a,
		uint8_t	b,
		uint8_t	m
	)

static

Definition at line 60 of file binarybuffer.c.

Referenced by buf_cmp_mask(), and buf_cmp_trailing().

◆ buf_cmp_trailing()

static bool buf_cmp_trailing	(	uint8_t	a,
		uint8_t	b,
		uint8_t	m,
		unsigned	trailing
	)

static

Definition at line 64 of file binarybuffer.c.

References buf_cmp_masked(), and mask.

Referenced by buf_cmp(), and buf_cmp_mask().

◆ buf_cpy()

void* buf_cpy	(	const void *	from,
		void *	to,
		unsigned	size
	)

Copies size bits out of from and into to.

Any extra bits in the final byte will be set to zero.

Parameters

from	The buffer to copy into `to`.
to	The buffer that will receive the copy of `from`.
size	The number of bits to copy.

Definition at line 43 of file binarybuffer.c.

References DIV_ROUND_UP, NULL, and size.

Referenced by armv7m_read_core_reg(), armv7m_set_core_reg(), armv7m_write_core_reg(), cortex_m_fast_read_all_regs(), esirisc_read_memory(), interface_add_tms_seq(), interface_jtag_add_ir_scan(), jtag_add_plain_scan(), jtag_read_buffer(), jtag_scan_field_clone(), riscv_run_algorithm(), rtos_generic_stack_read(), xscale_get_reg(), xtensa_canonical_to_windowbase_offset(), xtensa_fetch_all_regs(), zephyr_get_arc_state(), and zephyr_get_arm_state().

◆ buf_set_buf()

void* buf_set_buf	(	const void *	_src,
		unsigned	src_start,
		void *	_dst,
		unsigned	dst_start,
		unsigned	len
	)

Definition at line 121 of file binarybuffer.c.

References lb(), and sb().

Referenced by armjtagew_tap_execute(), bit_copy(), buspirate_tap_execute(), esirisc_jtag_recv(), jlink_clock_data(), jlink_flush(), jtag_build_buffer(), jtag_read_buffer(), opendous_tap_execute(), osbdm_add_tms(), osbdm_flush(), and vsllink_jtag_execute().

◆ buf_set_ones()

void* buf_set_ones	(	void *	buf,
		unsigned	size
	)

Set the contents of buf with count bits, all set to 1.

Parameters

buf	The buffer to fill with ones.
size	The number of bits.

Returns: The original buffer (buf).

Definition at line 106 of file binarybuffer.c.

References NULL, and size.

Referenced by interface_jtag_add_ir_scan(), jtag_reset_callback(), jtag_tap_init(), and jtag_validate_ircapture().

◆ buf_to_hex_str()

char* buf_to_hex_str	(	const void *	_buf,
		unsigned	buf_len
	)

Definition at line 192 of file binarybuffer.c.

References DIV_ROUND_UP, and hex_digits.

Referenced by COMMAND_HANDLER(), default_interface_jtag_execute_queue(), handle_bp_command_list(), jim_command_drscan(), jtag_build_buffer(), jtag_check_value_inner(), jtag_read_buffer(), jtag_validate_ircapture(), jtag_vpi_queue_tdi_xfer(), jtag_vpi_send_cmd(), register_get(), register_set(), and target_jim_get_reg().

◆ buffer_shr()

void buffer_shr	(	void *	_buf,
		unsigned	buf_len,
		unsigned	count
	)

Definition at line 410 of file binarybuffer.c.

References count.

Referenced by adbg_wb_burst_read(), dmi_scan(), and riscv_batch_run().

◆ ceil_f_to_u32()

static int ceil_f_to_u32 ( float x )

static

Definition at line 179 of file binarybuffer.c.

Referenced by str_to_buf().

◆ flip_u32()

uint32_t flip_u32	(	uint32_t	value,
		unsigned int	num
	)

Definition at line 166 of file binarybuffer.c.

References bit_reverse_table256.

Referenced by arm720t_scan_cp15(), arm7_9_endianness_callback(), arm7flip32(), arm7tdmi_clock_out_inner(), arm9tdmi_clock_out(), armjtagew_tap_execute(), feroceon_dummy_clock_out(), flip_u8(), virtex2_load(), virtex2_send_32(), and virtexflip32().

◆ hexify()

size_t hexify	(	char *	hex,
		const uint8_t *	bin,
		size_t	count,
		size_t	length
	)

Convert binary data into a string of hexadecimal pairs.

Parameters

[out]	hex	Buffer to store string of hexadecimal pairs. The buffer size must be at least `length`.
[in]	bin	Buffer with binary data to convert into hexadecimal pairs.
[in]	count	Number of bytes to convert.
[in]	length	Maximum number of characters, including null-terminator, to store into `hex`.

Returns: The length of the converted string excluding null-terminator.

Definition at line 392 of file binarybuffer.c.

References count, hex_digits, and length.

Referenced by COMMAND_HANDLER(), gdb_output_con(), gdb_query_packet(), gdb_read_memory_packet(), gdb_read_smp_packet(), icdi_send_remote_cmd(), icdi_usb_write_reg(), linux_thread_extra_info(), rtos_put_gdb_reg_list(), rtos_qsymbol(), rtos_thread_packet(), and tcl_target_callback_trace_handler().

◆ str_radix_guess()

static void str_radix_guess	(	const char **	_str,
		unsigned *	_str_len,
		unsigned *	_radix
	)

static

identify radix, and skip radix-prefix (0, 0x or 0X)

Definition at line 210 of file binarybuffer.c.

Referenced by str_to_buf().

◆ str_to_buf()

int str_to_buf	(	const char *	str,
		unsigned	str_len,
		void *	_buf,
		unsigned	buf_len,
		unsigned	radix
	)

Definition at line 233 of file binarybuffer.c.

References ceil_f_to_u32(), DIV_ROUND_UP, str_radix_guess(), and strndup().

Referenced by COMMAND_HANDLER(), jim_command_drscan(), and target_jim_set_reg().

◆ unhexify()

size_t unhexify	(	uint8_t *	bin,
		const char *	hex,
		size_t	count
	)

Convert a string of hexadecimal pairs into its binary representation.

Parameters

[out]	bin	Buffer to store binary representation. The buffer size must be at least `count`.
[in]	hex	String with hexadecimal pairs to convert into its binary representation.
[in]	count	Number of hexadecimal pairs to convert.

Returns: The number of converted hexadecimal pairs.

Definition at line 354 of file binarybuffer.c.

References count.

Referenced by COMMAND_HANDLER(), gdb_query_packet(), gdb_write_memory_packet(), icdi_get_cmd_result(), icdi_usb_read_reg(), icdi_usb_version(), next_hex_encoded_field(), nuttx_thread_packet(), and rtos_qsymbol().

Variable Documentation

◆ bit_reverse_table256

const unsigned char bit_reverse_table256[]

static

Initial value:

= {
    0x00, 0x80, 0x40, 0xC0, 0x20, 0xA0, 0x60, 0xE0, 0x10, 0x90, 0x50, 0xD0, 0x30, 0xB0, 0x70, 0xF0,
    0x08, 0x88, 0x48, 0xC8, 0x28, 0xA8, 0x68, 0xE8, 0x18, 0x98, 0x58, 0xD8, 0x38, 0xB8, 0x78, 0xF8,
    0x04, 0x84, 0x44, 0xC4, 0x24, 0xA4, 0x64, 0xE4, 0x14, 0x94, 0x54, 0xD4, 0x34, 0xB4, 0x74, 0xF4,
    0x0C, 0x8C, 0x4C, 0xCC, 0x2C, 0xAC, 0x6C, 0xEC, 0x1C, 0x9C, 0x5C, 0xDC, 0x3C, 0xBC, 0x7C, 0xFC,
    0x02, 0x82, 0x42, 0xC2, 0x22, 0xA2, 0x62, 0xE2, 0x12, 0x92, 0x52, 0xD2, 0x32, 0xB2, 0x72, 0xF2,
    0x0A, 0x8A, 0x4A, 0xCA, 0x2A, 0xAA, 0x6A, 0xEA, 0x1A, 0x9A, 0x5A, 0xDA, 0x3A, 0xBA, 0x7A, 0xFA,
    0x06, 0x86, 0x46, 0xC6, 0x26, 0xA6, 0x66, 0xE6, 0x16, 0x96, 0x56, 0xD6, 0x36, 0xB6, 0x76, 0xF6,
    0x0E, 0x8E, 0x4E, 0xCE, 0x2E, 0xAE, 0x6E, 0xEE, 0x1E, 0x9E, 0x5E, 0xDE, 0x3E, 0xBE, 0x7E, 0xFE,
    0x01, 0x81, 0x41, 0xC1, 0x21, 0xA1, 0x61, 0xE1, 0x11, 0x91, 0x51, 0xD1, 0x31, 0xB1, 0x71, 0xF1,
    0x09, 0x89, 0x49, 0xC9, 0x29, 0xA9, 0x69, 0xE9, 0x19, 0x99, 0x59, 0xD9, 0x39, 0xB9, 0x79, 0xF9,
    0x05, 0x85, 0x45, 0xC5, 0x25, 0xA5, 0x65, 0xE5, 0x15, 0x95, 0x55, 0xD5, 0x35, 0xB5, 0x75, 0xF5,
    0x0D, 0x8D, 0x4D, 0xCD, 0x2D, 0xAD, 0x6D, 0xED, 0x1D, 0x9D, 0x5D, 0xDD, 0x3D, 0xBD, 0x7D, 0xFD,
    0x03, 0x83, 0x43, 0xC3, 0x23, 0xA3, 0x63, 0xE3, 0x13, 0x93, 0x53, 0xD3, 0x33, 0xB3, 0x73, 0xF3,
    0x0B, 0x8B, 0x4B, 0xCB, 0x2B, 0xAB, 0x6B, 0xEB, 0x1B, 0x9B, 0x5B, 0xDB, 0x3B, 0xBB, 0x7B, 0xFB,
    0x07, 0x87, 0x47, 0xC7, 0x27, 0xA7, 0x67, 0xE7, 0x17, 0x97, 0x57, 0xD7, 0x37, 0xB7, 0x77, 0xF7,
    0x0F, 0x8F, 0x4F, 0xCF, 0x2F, 0xAF, 0x6F, 0xEF, 0x1F, 0x9F, 0x5F, 0xDF, 0x3F, 0xBF, 0x7F, 0xFF
}

Definition at line 19 of file binarybuffer.c.

Referenced by flip_u32().

◆ hex_digits

const char hex_digits[]

static

Initial value:

= {
    '0', '1', '2', '3', '4', '5', '6', '7', '8', '9',
    'a', 'b', 'c', 'd', 'e', 'f'
}

Definition at line 38 of file binarybuffer.c.

Referenced by buf_to_hex_str(), and hexify().
