mflash.c File Reference

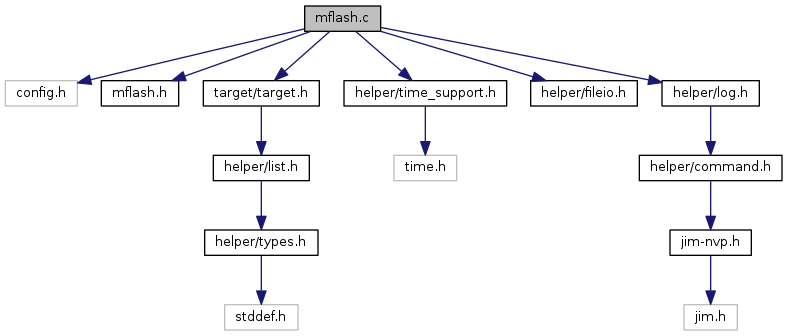

Include dependency graph for mflash.c:

Go to the source code of this file.

Macros
#define	PXA270_GAFR0_L   0x40E00054
#define	PXA270_GAFR3_U   0x40E00070
#define	PXA270_GAFR3_U_RESERVED_BITS   0xfffc0000u
#define	PXA270_GPCR0   0x40E00024
#define	PXA270_GPDR0   0x40E0000C
#define	PXA270_GPDR3   0x40E0010C
#define	PXA270_GPDR3_RESERVED_BITS   0xfe000000u
#define	PXA270_GPSR0   0x40E00018
#define	S3C2440_GPACON   0x56000000
#define	S3C2440_GPADAT   0x56000004
#define	S3C2440_GPJCON   0x560000d0
#define	S3C2440_GPJDAT   0x560000d4

Functions
	COMMAND_HANDLER (mg_probe_cmd)
	COMMAND_HANDLER (mg_write_cmd)
	COMMAND_HANDLER (mg_dump_cmd)
	COMMAND_HANDLER (mg_config_cmd)
	COMMAND_HANDLER (handle_mflash_init_command)
	COMMAND_HANDLER (mg_bank_cmd)
static int	mflash_init_drivers (struct command_context *cmd_ctx)
int	mflash_register_commands (struct command_context *cmd_ctx)
static int	mg_boot_config (void)
static double	mg_calc_pll (double XIN, mg_pll_t *p_pll_val)
static double	mg_do_calc_pll (double XIN, mg_pll_t *p_pll_val, int is_approximate)
static int	mg_dsk_drv_info (void)
static int	mg_dsk_io_cmd (uint32_t sect_num, uint32_t cnt, uint8_t cmd)
static int	mg_dsk_srst (uint8_t on)
static int	mg_dsk_wait (mg_io_type_wait wait_local, uint32_t time_var)
static int	mg_erase_nand (void)
static void	mg_gen_ataid (mg_io_type_drv_info *pSegIdDrvInfo)
static int	mg_hdrst (uint8_t level)
static int	mg_init_gpio (void)
static int	mg_is_valid_pll (double XIN, int N, double CLK_OUT, int NO)
static int	mg_mflash_do_read_sects (void *buff, uint32_t sect_num, uint32_t sect_cnt)
static int	mg_mflash_do_write_sects (void *buff, uint32_t sect_num, uint32_t sect_cnt, uint8_t cmd)
static int	mg_mflash_probe (void)
static int	mg_mflash_read (uint32_t addr, uint8_t *buff, uint32_t len)
static int	mg_mflash_read_sects (void *buff, uint32_t sect_num, uint32_t sect_cnt)
static int	mg_mflash_rst (void)
static int	mg_mflash_write (uint32_t addr, uint8_t *buff, uint32_t len)
static int	mg_mflash_write_sects (void *buff, uint32_t sect_num, uint32_t sect_cnt)
static int	mg_pll_get_M (unsigned short feedback_div)
static int	mg_pll_get_N (unsigned char input_div)
static int	mg_pll_get_NO (unsigned char output_div)
static int	mg_set_feature (mg_feature_id feature, mg_feature_val config)
static int	mg_set_pll (mg_pll_t *pll)
static int	mg_storage_config (void)
static int	mg_verify_interface (void)
static int	pxa270_set_gpio_output_val (struct mflash_gpio_num gpio, uint8_t val)
static int	pxa270_set_gpio_to_output (struct mflash_gpio_num gpio)
static int	s3c2440_set_gpio_output_val (struct mflash_gpio_num gpio, uint8_t val)
static int	s3c2440_set_gpio_to_output (struct mflash_gpio_num gpio)

Variables
static const char	g_strSEG_FWRev [8]
static const char	g_strSEG_ModelNum [40]
static const char	g_strSEG_SerialNum [20]
static struct mflash_bank *	mflash_bank
static const struct command_registration	mflash_command_handler []
static const struct command_registration	mflash_config_command_handlers []
static const struct command_registration	mflash_exec_command_handlers []
static struct mflash_gpio_drv *	mflash_gpio []
static struct mflash_gpio_drv	pxa270_gpio
static struct mflash_gpio_drv	s3c2440_gpio

Macro Definition Documentation

#define PXA270_GAFR0_L   0x40E00054

Definition at line 53 of file mflash.c.

Referenced by pxa270_set_gpio_to_output().

#define PXA270_GAFR3_U   0x40E00070

Definition at line 54 of file mflash.c.

Referenced by pxa270_set_gpio_to_output().

#define PXA270_GAFR3_U_RESERVED_BITS   0xfffc0000u

Definition at line 55 of file mflash.c.

Referenced by pxa270_set_gpio_to_output().

#define PXA270_GPCR0   0x40E00024

Definition at line 60 of file mflash.c.

Referenced by pxa270_set_gpio_output_val().

#define PXA270_GPDR0   0x40E0000C

Definition at line 56 of file mflash.c.

Referenced by pxa270_set_gpio_to_output().

#define PXA270_GPDR3   0x40E0010C

Definition at line 57 of file mflash.c.

Referenced by pxa270_set_gpio_to_output().

#define PXA270_GPDR3_RESERVED_BITS   0xfe000000u

Definition at line 58 of file mflash.c.

Referenced by pxa270_set_gpio_to_output().

#define PXA270_GPSR0   0x40E00018

Definition at line 59 of file mflash.c.

Referenced by pxa270_set_gpio_output_val().

#define S3C2440_GPACON   0x56000000

Definition at line 126 of file mflash.c.

Referenced by s3c2440_set_gpio_to_output().

#define S3C2440_GPADAT   0x56000004

Definition at line 127 of file mflash.c.

Referenced by s3c2440_set_gpio_output_val().

#define S3C2440_GPJCON   0x560000d0

Definition at line 128 of file mflash.c.

Referenced by s3c2440_set_gpio_to_output().

#define S3C2440_GPJDAT   0x560000d4

Definition at line 129 of file mflash.c.

Referenced by s3c2440_set_gpio_output_val().

Function Documentation

COMMAND_HANDLER

(

mg_probe_cmd

)

Definition at line 419 of file mflash.c.

References mflash_bank::base, CMD_CTX, command_print(), mflash_bank::drv_info, ERROR_OK, mg_mflash_probe(), and mg_drv_info::tot_sects.

COMMAND_HANDLER

(

mg_write_cmd

)

Definition at line 746 of file mflash.c.

References buffer, CMD_ARGC, CMD_ARGV, CMD_CTX, COMMAND_PARSE_NUMBER, command_print(), duration_elapsed(), duration_kbps(), duration_measure(), duration_start(), ERROR_COMMAND_SYNTAX_ERROR, ERROR_FAIL, ERROR_OK, FILEIO_BINARY, fileio_close(), fileio_open(), FILEIO_READ, fileio_read(), fileio_size(), MG_FILEIO_CHUNK, and mg_mflash_write().

COMMAND_HANDLER

(

mg_dump_cmd

)

Definition at line 819 of file mflash.c.

References buffer, CMD_ARGC, CMD_ARGV, CMD_CTX, COMMAND_PARSE_NUMBER, command_print(), duration_elapsed(), duration_kbps(), duration_measure(), duration_start(), ERROR_COMMAND_SYNTAX_ERROR, ERROR_FAIL, ERROR_OK, FILEIO_BINARY, fileio_close(), fileio_open(), FILEIO_WRITE, fileio_write(), MG_FILEIO_CHUNK, and mg_mflash_read().

COMMAND_HANDLER

(

mg_config_cmd

)

Definition at line 1264 of file mflash.c.

References CMD_ARGC, CMD_ARGV, COMMAND_PARSE_NUMBER, ERROR_COMMAND_NOTFOUND, ERROR_COMMAND_SYNTAX_ERROR, ERROR_MG_INVALID_OSC, ERROR_MG_INVALID_PLL, ERROR_OK, _mg_pll_t::feedback_div, freq, _mg_pll_t::input_div, _mg_pll_t::lock_cyc, LOG_ERROR, LOG_INFO, mg_boot_config(), mg_calc_pll(), mg_erase_nand(), mg_mflash_rst(), MG_PLL_CLK_OUT, mg_set_pll(), mg_storage_config(), mg_verify_interface(), and _mg_pll_t::output_div.

COMMAND_HANDLER

(

handle_mflash_init_command

)

Definition at line 1365 of file mflash.c.

References CMD_ARGC, CMD_CTX, ERROR_COMMAND_SYNTAX_ERROR, ERROR_OK, LOG_DEBUG, LOG_INFO, and mflash_init_drivers().

COMMAND_HANDLER

(

mg_bank_cmd

)

Todo:

Verify how this parsing should work, then document it.

Definition at line 1381 of file mflash.c.

References mflash_bank::base, CMD_ARGC, CMD_ARGV, COMMAND_PARSE_NUMBER, ERROR_COMMAND_SYNTAX_ERROR, ERROR_FAIL, ERROR_MG_UNSUPPORTED_SOC, ERROR_OK, get_target(), mflash_bank::gpio_drv, LOG_ERROR, name, NULL, mflash_gpio_num::num, mflash_gpio_num::port, mflash_bank::rst_pin, and mflash_bank::target.

static int mflash_init_drivers ( struct command_context *  cmd_ctx )

static

Definition at line 1358 of file mflash.c.

References ERROR_OK, NULL, and register_commands().

Referenced by COMMAND_HANDLER().

int mflash_register_commands

(

struct command_context *

cmd_ctx

)

Definition at line 1446 of file mflash.c.

References NULL, and register_commands().

Referenced by setup_command_handler().

static int mg_boot_config ( void  )

static

Definition at line 1188 of file mflash.c.

References ERROR_OK, LOG_INFO, mg_feature_id_transmode, mg_feature_val_trans_default, mg_feature_val_trans_vcmd, mg_mflash_do_write_sects(), mg_op_mode_snd, mg_set_feature(), MG_UNLOCK_OTP_AREA, and mg_vcmd_update_xipinfo.

Referenced by COMMAND_HANDLER().

static double mg_calc_pll ( double  XIN, mg_pll_t *  p_pll_val  )

static

Definition at line 992 of file mflash.c.

References mg_do_calc_pll().

Referenced by COMMAND_HANDLER().

static double mg_do_calc_pll ( double  XIN, mg_pll_t *  p_pll_val, int  is_approximate  )

static

Definition at line 947 of file mflash.c.

References ERROR_OK, _mg_pll_t::feedback_div, _mg_pll_t::input_div, _mg_pll_t::lock_cyc, mg_is_valid_pll(), MG_PLL_CLK_OUT, mg_pll_get_M(), mg_pll_get_N(), mg_pll_get_NO(), MG_PLL_MAX_FEEDBACKDIV_VAL, MG_PLL_MAX_INPUTDIV_VAL, MG_PLL_MAX_OUTPUTDIV_VAL, MG_PLL_STD_INPUTCLK, MG_PLL_STD_LOCKCYCLE, and _mg_pll_t::output_div.

Referenced by mg_calc_pll().

static int mg_dsk_drv_info ( void  )

static

Definition at line 331 of file mflash.c.

References mflash_bank::base, mg_drv_info::drv_id, mflash_bank::drv_info, ERROR_OK, LOG_INFO, MG_BUFFER_OFFSET, mg_dsk_io_cmd(), mg_dsk_wait(), mg_io_cmd_confirm_read, mg_io_cmd_identify, mg_io_wait_drq, MG_OEM_DISK_WAIT_TIME_NORMAL, MG_REG_COMMAND, MG_REG_OFFSET, mflash_bank::target, target_read_memory(), target_write_u8(), mg_drv_info::tot_sects, _mg_io_type_drv_info::total_user_addressable_sectors_hi, and _mg_io_type_drv_info::total_user_addressable_sectors_lo.

Referenced by mg_mflash_probe().

static int mg_dsk_io_cmd ( uint32_t  sect_num, uint32_t  cnt, uint8_t  cmd  )

static

Definition at line 306 of file mflash.c.

References mflash_bank::base, ERROR_OK, mg_dsk_wait(), mg_io_rval_dev_drv_master, mg_io_rval_dev_lba_mode, mg_io_wait_rdy_noerr, MG_OEM_DISK_WAIT_TIME_NORMAL, MG_REG_COMMAND, MG_REG_CYL_HIGH, MG_REG_CYL_LOW, MG_REG_DRV_HEAD, MG_REG_OFFSET, MG_REG_SECT_CNT, MG_REG_SECT_NUM, mflash_bank::target, and target_write_u8().

Referenced by mg_dsk_drv_info(), mg_mflash_do_read_sects(), and mg_mflash_do_write_sects().

static int mg_dsk_srst ( uint8_t  on )

static

Definition at line 286 of file mflash.c.

References mflash_bank::base, ERROR_OK, mg_io_rbit_devc_srst, MG_REG_DRV_CTRL, MG_REG_OFFSET, mflash_bank::target, target_read_u8(), and target_write_u8().

Referenced by mg_mflash_rst().

static int mg_dsk_wait ( mg_io_type_wait  wait_local, uint32_t  time_var  )

static

Definition at line 211 of file mflash.c.

References mflash_bank::base, duration_elapsed(), duration_measure(), duration_start(), ERROR_MG_IO, ERROR_MG_TIMEOUT, ERROR_OK, LOG_ERROR, mg_io_rbit_status_busy, mg_io_rbit_status_data_req, mg_io_rbit_status_error, mg_io_rbit_status_ready, mg_io_wait_bsy, mg_io_wait_drq, mg_io_wait_drq_noerr, mg_io_wait_not_bsy, mg_io_wait_rdy, mg_io_wait_rdy_noerr, MG_REG_ERROR, MG_REG_OFFSET, MG_REG_STATUS, mflash_bank::target, and target_read_u8().

Referenced by mg_dsk_drv_info(), mg_dsk_io_cmd(), mg_mflash_do_read_sects(), mg_mflash_do_write_sects(), mg_mflash_rst(), and mg_set_feature().

static int mg_erase_nand ( void  )

static

Definition at line 1244 of file mflash.c.

References ERROR_OK, LOG_INFO, mg_feature_id_transmode, mg_feature_val_trans_default, mg_feature_val_trans_vcmd, mg_mflash_do_write_sects(), mg_set_feature(), mg_vcmd_purge_nand, and NULL.

Referenced by COMMAND_HANDLER().

static void mg_gen_ataid ( mg_io_type_drv_info *  pSegIdDrvInfo )

static

Definition at line 1056 of file mflash.c.

References _mg_io_type_drv_info::adv_pio_mode, _mg_io_type_drv_info::adv_pwr_mgm_lvl_val, _mg_io_type_drv_info::buffer_sector_size, _mg_io_type_drv_info::buffer_type, _mg_io_type_drv_info::capabilities, _mg_io_type_drv_info::cfa_pwr_mode, _mg_io_type_drv_info::current_sector_capacity_hi, _mg_io_type_drv_info::current_sector_capacity_lo, _mg_io_type_drv_info::current_sectors_per_track, _mg_io_type_drv_info::dma_cycle_timing_mode, _mg_io_type_drv_info::dword_io, _mg_io_type_drv_info::feature_cmd_set_en0, _mg_io_type_drv_info::feature_cmd_set_en1, _mg_io_type_drv_info::feature_cmd_set_en2, _mg_io_type_drv_info::feature_cmd_set_suprt0, _mg_io_type_drv_info::feature_cmd_set_suprt1, _mg_io_type_drv_info::feature_cmd_set_suprt2, _mg_io_type_drv_info::firmware_revision, g_strSEG_FWRev, g_strSEG_ModelNum, g_strSEG_SerialNum, _mg_io_type_drv_info::general_configuration, _mg_io_type_drv_info::major_ver_num, _mg_io_type_drv_info::maximum_block_transfer, _mg_io_type_drv_info::min_dma_cyc, _mg_io_type_drv_info::min_pio_cyc_no_iordy, _mg_io_type_drv_info::min_pio_cyc_with_iordy, _mg_io_type_drv_info::minor_ver_num, _mg_io_type_drv_info::model_number, _mg_io_type_drv_info::multi_dma_modes_supported, _mg_io_type_drv_info::multi_dma_transfer_active, _mg_io_type_drv_info::multi_sector_count, _mg_io_type_drv_info::multi_sector_setting_valid, _mg_io_type_drv_info::number_of_current_cylinders, _mg_io_type_drv_info::number_of_current_heads, _mg_io_type_drv_info::number_of_cylinders, _mg_io_type_drv_info::number_of_ecc_bytes, _mg_io_type_drv_info::number_of_heads, _mg_io_type_drv_info::pio_cycle_timing_mode, _mg_io_type_drv_info::recommend_dma_cyc, _mg_io_type_drv_info::req_time_for_enhan_security_er_done, _mg_io_type_drv_info::req_time_for_security_er_done, _mg_io_type_drv_info::reserved1, _mg_io_type_drv_info::reserved2, _mg_io_type_drv_info::reserved3, _mg_io_type_drv_info::reserved4, _mg_io_type_drv_info::reserved5, _mg_io_type_drv_info::reserved6, _mg_io_type_drv_info::reserved7, _mg_io_type_drv_info::sectors_per_track, _mg_io_type_drv_info::security_stas, _mg_io_type_drv_info::serial_number, _mg_io_type_drv_info::single_dma_modes_supported, _mg_io_type_drv_info::single_dma_transfer_active, _mg_io_type_drv_info::total_user_addressable_sectors_hi, _mg_io_type_drv_info::total_user_addressable_sectors_lo, _mg_io_type_drv_info::translation_fields_valid, _mg_io_type_drv_info::unformatted_bytes_per_sector, _mg_io_type_drv_info::unformatted_bytes_per_track, _mg_io_type_drv_info::vendor_uniq_bytes, _mg_io_type_drv_info::vendor_unique1, _mg_io_type_drv_info::vendor_unique2, _mg_io_type_drv_info::vendor_unique3, and _mg_io_type_drv_info::vendor_unique4.

Referenced by mg_storage_config().

static int mg_hdrst ( uint8_t  level )

static

Definition at line 192 of file mflash.c.

References mflash_bank::gpio_drv, mflash_bank::rst_pin, and mflash_gpio_drv::set_gpio_output_val.

Referenced by mg_mflash_rst().

static int mg_init_gpio ( void  )

static

Definition at line 197 of file mflash.c.

References ERROR_OK, mflash_bank::gpio_drv, mflash_bank::rst_pin, mflash_gpio_drv::set_gpio_output_val, and mflash_gpio_drv::set_gpio_to_output.

Referenced by mg_mflash_rst().

static int mg_is_valid_pll ( double  XIN, int  N, double  CLK_OUT, int  NO  )

static

Definition at line 905 of file mflash.c.

References ERROR_MG_INVALID_PLL, and ERROR_OK.

Referenced by mg_do_calc_pll().

static int mg_mflash_do_read_sects ( void *  buff, uint32_t  sect_num, uint32_t  sect_cnt  )

static

Definition at line 435 of file mflash.c.

References mflash_bank::base, duration_elapsed(), duration_measure(), duration_start(), ERROR_OK, LOG_DEBUG, LOG_INFO, MG_BUFFER_OFFSET, mg_dsk_io_cmd(), mg_dsk_wait(), mg_io_cmd_confirm_read, mg_io_cmd_read, mg_io_wait_drq, mg_io_wait_rdy, MG_MFLASH_SECTOR_SIZE, MG_OEM_DISK_WAIT_TIME_NORMAL, MG_REG_COMMAND, MG_REG_OFFSET, mflash_bank::target, target_read_memory(), and target_write_u8().

Referenced by mg_mflash_read_sects().

static int mg_mflash_do_write_sects ( void *  buff, uint32_t  sect_num, uint32_t  sect_cnt, uint8_t  cmd  )

static

Definition at line 510 of file mflash.c.

References mflash_bank::base, duration_elapsed(), duration_measure(), duration_start(), ERROR_OK, LOG_DEBUG, LOG_INFO, MG_BUFFER_OFFSET, mg_dsk_io_cmd(), mg_dsk_wait(), mg_io_cmd_confirm_write, mg_io_cmd_write, mg_io_wait_drq, mg_io_wait_rdy, MG_MFLASH_SECTOR_SIZE, MG_OEM_DISK_WAIT_TIME_LONG, MG_OEM_DISK_WAIT_TIME_NORMAL, MG_REG_COMMAND, MG_REG_OFFSET, mflash_bank::target, target_write_memory(), and target_write_u8().

Referenced by mg_boot_config(), mg_erase_nand(), mg_mflash_write_sects(), mg_set_pll(), and mg_storage_config().

static int mg_mflash_probe ( void  )

static

Definition at line 410 of file mflash.c.

References ERROR_OK, mg_dsk_drv_info(), and mg_mflash_rst().

Referenced by COMMAND_HANDLER().

static int mg_mflash_read ( uint32_t  addr, uint8_t *  buff, uint32_t  len  )

static

Definition at line 591 of file mflash.c.

References addr, ERROR_OK, LOG_DEBUG, mg_mflash_read_sects(), MG_MFLASH_SECTOR_SIZE, MG_MFLASH_SECTOR_SIZE_MASK, and MG_MFLASH_SECTOR_SIZE_SHIFT.

Referenced by COMMAND_HANDLER().

static int mg_mflash_read_sects ( void *  buff, uint32_t  sect_num, uint32_t  sect_cnt  )

static

Definition at line 481 of file mflash.c.

References ERROR_OK, LOG_DEBUG, mg_mflash_do_read_sects(), and MG_MFLASH_SECTOR_SIZE.

Referenced by mg_mflash_read(), and mg_mflash_write().

static int mg_mflash_rst ( void  )

static

Definition at line 365 of file mflash.c.

References ERROR_OK, LOG_INFO, mg_dsk_srst(), mg_dsk_wait(), mg_hdrst(), mg_init_gpio(), mg_io_wait_bsy, mg_io_wait_not_bsy, and MG_OEM_DISK_WAIT_TIME_LONG.

Referenced by COMMAND_HANDLER(), and mg_mflash_probe().

static int mg_mflash_write ( uint32_t  addr, uint8_t *  buff, uint32_t  len  )

static

Definition at line 666 of file mflash.c.

References addr, ERROR_OK, LOG_DEBUG, mg_mflash_read_sects(), MG_MFLASH_SECTOR_SIZE, MG_MFLASH_SECTOR_SIZE_MASK, MG_MFLASH_SECTOR_SIZE_SHIFT, and mg_mflash_write_sects().

Referenced by COMMAND_HANDLER().

static int mg_mflash_write_sects ( void *  buff, uint32_t  sect_num, uint32_t  sect_cnt  )

static

Definition at line 562 of file mflash.c.

References ERROR_OK, LOG_DEBUG, mg_io_cmd_write, mg_mflash_do_write_sects(), and MG_MFLASH_SECTOR_SIZE.

Referenced by mg_mflash_write().

static int mg_pll_get_M ( unsigned short  feedback_div )

static

Definition at line 916 of file mflash.c.

Referenced by mg_do_calc_pll().

static int mg_pll_get_N ( unsigned char  input_div )

static

Definition at line 926 of file mflash.c.

Referenced by mg_do_calc_pll().

static int mg_pll_get_NO ( unsigned char  output_div )

static

Definition at line 936 of file mflash.c.

Referenced by mg_do_calc_pll().

static int mg_set_feature ( mg_feature_id  feature, mg_feature_val  config  )

static

Definition at line 887 of file mflash.c.

References mflash_bank::base, ERROR_OK, mg_dsk_wait(), mg_io_cmd_set_feature, mg_io_wait_rdy_noerr, MG_OEM_DISK_WAIT_TIME_NORMAL, MG_REG_COMMAND, MG_REG_FEATURE, MG_REG_OFFSET, MG_REG_SECT_CNT, mflash_bank::target, and target_write_u8().

Referenced by mg_boot_config(), mg_erase_nand(), mg_set_pll(), and mg_storage_config().

static int mg_set_pll ( mg_pll_t *  pll )

static

Definition at line 1216 of file mflash.c.

References ERROR_OK, _mg_pll_t::feedback_div, _mg_pll_t::input_div, _mg_pll_t::lock_cyc, LOG_INFO, mg_feature_id_transmode, mg_feature_val_trans_default, mg_feature_val_trans_vcmd, mg_mflash_do_write_sects(), mg_set_feature(), mg_vcmd_wr_pll, and _mg_pll_t::output_div.

Referenced by COMMAND_HANDLER().

static int mg_storage_config ( void  )

static

Definition at line 1165 of file mflash.c.

References ERROR_OK, LOG_INFO, mg_feature_id_transmode, mg_feature_val_trans_default, mg_feature_val_trans_vcmd, mg_gen_ataid(), mg_mflash_do_write_sects(), mg_set_feature(), and mg_vcmd_update_stgdrvinfo.

Referenced by COMMAND_HANDLER().

static int mg_verify_interface ( void  )

static

Definition at line 1004 of file mflash.c.

References mflash_bank::base, ERROR_MG_INTERFACE, ERROR_OK, LOG_ERROR, LOG_INFO, MG_BUFFER_OFFSET, MG_MFLASH_SECTOR_SIZE, mflash_bank::target, target_read_memory(), and target_write_memory().

Referenced by COMMAND_HANDLER().

static int pxa270_set_gpio_output_val ( struct mflash_gpio_num  gpio, uint8_t  val  )

static

Definition at line 102 of file mflash.c.

References addr, ERROR_OK, mask, mflash_gpio_num::num, PXA270_GPCR0, PXA270_GPSR0, mflash_bank::target, target_read_u32(), and target_write_u32().

static int pxa270_set_gpio_to_output ( struct mflash_gpio_num  gpio )

static

Definition at line 62 of file mflash.c.

References addr, ERROR_OK, mask, mflash_gpio_num::num, PXA270_GAFR0_L, PXA270_GAFR3_U, PXA270_GAFR3_U_RESERVED_BITS, PXA270_GPDR0, PXA270_GPDR3, PXA270_GPDR3_RESERVED_BITS, mflash_bank::target, target_read_u32(), and target_write_u32().

static int s3c2440_set_gpio_output_val ( struct mflash_gpio_num  gpio, uint8_t  val  )

static

Definition at line 163 of file mflash.c.

References ERROR_COMMAND_SYNTAX_ERROR, ERROR_OK, LOG_ERROR, mask, mflash_gpio_num::num, mflash_gpio_num::port, S3C2440_GPADAT, S3C2440_GPJDAT, mflash_bank::target, target_read_u32(), and target_write_u32().

static int s3c2440_set_gpio_to_output ( struct mflash_gpio_num  gpio )

static

Definition at line 131 of file mflash.c.

References ERROR_COMMAND_SYNTAX_ERROR, ERROR_OK, LOG_ERROR, mask, mflash_gpio_num::num, mflash_gpio_num::port, S3C2440_GPACON, S3C2440_GPJCON, mflash_bank::target, target_read_u32(), and target_write_u32().

Variable Documentation

const char g_strSEG_FWRev[8]

static

Initial value:

= {
    'F', 'X', 'L', 'T', '2', 'v', '0', '.'
}

Definition at line 1045 of file mflash.c.

Referenced by mg_gen_ataid().

const char g_strSEG_ModelNum[40]

static

Initial value:

= {
    'F', 'X', 'A', 'L', 'H', 'S', '2', 0x20, '0', '0', 's', '7',
    0x20, 0x20, 0x20, 0x20, 0x20, 0x20, 0x20, 0x20, 0x20, 0x20,
    0x20, 0x20, 0x20, 0x20, 0x20, 0x20, 0x20, 0x20, 0x20, 0x20,
    0x20, 0x20, 0x20, 0x20, 0x20, 0x20, 0x20, 0x20
}

Definition at line 1049 of file mflash.c.

Referenced by mg_gen_ataid().

const char g_strSEG_SerialNum[20]

static

Initial value:

= {
    'G', 'm', 'n', 'i', '-', 'e', 'e', 'S', 'g', 'a', 'e', 'l',
    0x20, 0x20, 0x20, 0x20, 0x20, 0x20, 0x20, 0x20
}

Definition at line 1040 of file mflash.c.

Referenced by mg_gen_ataid().

struct mflash_bank* mflash_bank

static

Definition at line 33 of file mflash.c.

const struct command_registration mflash_command_handler[]

static

Initial value:

= {
    {
        .name = "mflash",
        .mode = COMMAND_ANY,
        .help = "mflash command group",
        .usage = "",
        .chain = mflash_config_command_handlers,
    },
    COMMAND_REGISTRATION_DONE
}

Definition at line 1436 of file mflash.c.

const struct command_registration mflash_config_command_handlers[]

static

Initial value:

= {
    {
        .name = "bank",
        .handler = mg_bank_cmd,
        .mode = COMMAND_CONFIG,
        .help = "configure a mflash device bank",
        .usage = "soc_type base_addr pin_id target",
    },
    {
        .name = "init",
        .mode = COMMAND_CONFIG,
        .handler = handle_mflash_init_command,
        .help = "initialize mflash devices",
        .usage = ""
    },
    COMMAND_REGISTRATION_DONE
}

Definition at line 1419 of file mflash.c.

const struct command_registration mflash_exec_command_handlers[]

static

Definition at line 1324 of file mflash.c.

struct mflash_gpio_drv* mflash_gpio[]

static

Initial value:

= {
    &pxa270_gpio,
    &s3c2440_gpio,
    NULL
}

Definition at line 47 of file mflash.c.

struct mflash_gpio_drv pxa270_gpio

static

Initial value:

= {
    .name = "pxa270",
    .set_gpio_to_output = pxa270_set_gpio_to_output,
    .set_gpio_output_val = pxa270_set_gpio_output_val
}

Definition at line 35 of file mflash.c.

struct mflash_gpio_drv s3c2440_gpio

static

Initial value:

= {
    .name = "s3c2440",
    .set_gpio_to_output = s3c2440_set_gpio_to_output,
    .set_gpio_output_val = s3c2440_set_gpio_output_val
}

Definition at line 41 of file mflash.c.
