arm_disassembler.h File Reference

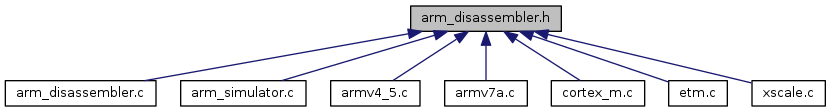

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures

struct  arm_b_bl_bx_blx_instr

struct  arm_data_proc_instr

struct  arm_instruction

struct  arm_load_store_instr

struct  arm_load_store_multiple_instr

union  arm_shifter_operand


Macros

#define COND(opcode)   (arm_condition_strings[(opcode & 0xf0000000) >> 28])


Enumerations

enum  arm_instruction_type {
  ARM_UNKNOWN_INSTRUCTION , ARM_B , ARM_BL , ARM_BX ,
  ARM_BLX , ARM_AND , ARM_EOR , ARM_SUB ,
  ARM_RSB , ARM_ADD , ARM_ADC , ARM_SBC ,
  ARM_RSC , ARM_TST , ARM_TEQ , ARM_CMP ,
  ARM_CMN , ARM_ORR , ARM_MOV , ARM_BIC ,
  ARM_MVN , ARM_LDR , ARM_LDRB , ARM_LDRT ,
  ARM_LDRBT , ARM_LDRH , ARM_LDRSB , ARM_LDRSH ,
  ARM_LDM , ARM_STR , ARM_STRB , ARM_STRT ,
  ARM_STRBT , ARM_STRH , ARM_STM , ARM_MRS ,
  ARM_MSR , ARM_MUL , ARM_MLA , ARM_SMULL ,
  ARM_SMLAL , ARM_UMULL , ARM_UMLAL , ARM_CLZ ,
  ARM_ERET , ARM_BKPT , ARM_SWI , ARM_HVC ,
  ARM_SMC , ARM_CDP , ARM_LDC , ARM_STC ,
  ARM_MCR , ARM_MRC , ARM_SWP , ARM_SWPB ,
  ARM_MCRR , ARM_MRRC , ARM_PLD , ARM_DSB ,
  ARM_ISB , ARM_QADD , ARM_QDADD , ARM_QSUB ,
  ARM_QDSUB , ARM_SMLAXY , ARM_SMLALXY , ARM_SMLAWY ,
  ARM_SMULXY , ARM_SMULWY , ARM_LDRD , ARM_STRD ,
  ARM_UNDEFINED_INSTRUCTION = 0xffffffff
}


Functions

int arm_access_size (struct arm_instruction *instruction)

int arm_evaluate_opcode (uint32_t opcode, uint32_t address, struct arm_instruction *instruction)

int thumb_evaluate_opcode (uint16_t opcode, uint32_t address, struct arm_instruction *instruction)


Macro Definition Documentation

◆ COND

#define COND (   opcode)    (arm_condition_strings[(opcode & 0xf0000000) >> 28])

Definition at line 195 of file arm_disassembler.h.

Enumeration Type Documentation

◆ arm_instruction_type

Enumerator
ARM_UNKNOWN_INSTRUCTION
ARM_B
ARM_BL
ARM_BX
ARM_BLX
ARM_AND
ARM_EOR
ARM_SUB
ARM_RSB
ARM_ADD
ARM_ADC
ARM_SBC
ARM_RSC
ARM_TST
ARM_TEQ
ARM_CMP
ARM_CMN
ARM_ORR
ARM_MOV
ARM_BIC
ARM_MVN
ARM_LDR
ARM_LDRB
ARM_LDRT
ARM_LDRBT
ARM_LDRH
ARM_LDRSB
ARM_LDRSH
ARM_LDM
ARM_STR
ARM_STRB
ARM_STRT
ARM_STRBT
ARM_STRH
ARM_STM
ARM_MRS
ARM_MSR
ARM_MUL
ARM_MLA
ARM_SMULL
ARM_SMLAL
ARM_UMULL
ARM_UMLAL
ARM_CLZ
ARM_ERET
ARM_BKPT
ARM_SWI
ARM_HVC
ARM_SMC
ARM_CDP
ARM_LDC
ARM_STC
ARM_MCR
ARM_MRC
ARM_SWP
ARM_SWPB
ARM_MCRR
ARM_MRRC
ARM_PLD
ARM_DSB
ARM_ISB
ARM_QADD
ARM_QDADD
ARM_QSUB
ARM_QDSUB
ARM_SMLAXY
ARM_SMLALXY
ARM_SMLAWY
ARM_SMULXY
ARM_SMULWY
ARM_LDRD
ARM_STRD
ARM_UNDEFINED_INSTRUCTION

Definition at line 11 of file arm_disassembler.h.

Function Documentation

◆ arm_access_size()

int arm_access_size ( struct arm_instruction instruction)

◆ arm_evaluate_opcode()

◆ thumb_evaluate_opcode()
