xscale.h File Reference

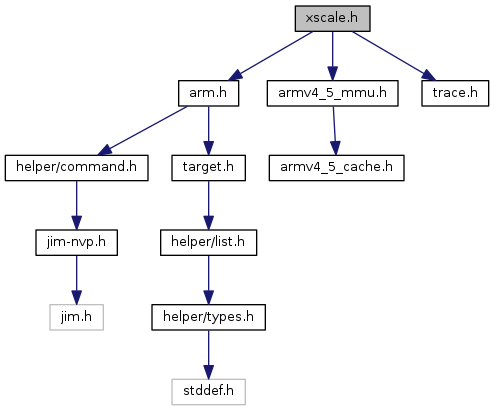

Include dependency graph for xscale.h:
This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures

struct  xscale_common

struct  xscale_reg

struct  xscale_trace

struct  xscale_trace_data

struct  xscale_trace_entry


Macros

#define DCSR_TA   (1 << 19)

#define DCSR_TD   (1 << 20)

#define DCSR_TF   (1 << 23)

#define DCSR_TI   (1 << 22)

#define DCSR_TR   (1 << 16)

#define DCSR_TRAP_MASK    (DCSR_TF | DCSR_TI | DCSR_TD | DCSR_TA | DCSR_TS | DCSR_TU | DCSR_TR)

#define DCSR_TS   (1 << 18)

#define DCSR_TU   (1 << 17)

#define ERROR_XSCALE_NO_TRACE_DATA   (-700)

#define XSCALE_COMMON_MAGIC   0x58534341U

#define XSCALE_DBGRX   0x02

#define XSCALE_DBGTX   0x10

#define XSCALE_IXP4XX_PXA2XX   0x0

#define XSCALE_LDIC   0x07

#define XSCALE_PXA3XX   0x4

#define XSCALE_SELDCSR   0x09


Enumerations

enum  {
  XSCALE_MAINID , XSCALE_CACHETYPE , XSCALE_CTRL , XSCALE_AUXCTRL ,
  XSCALE_TTB , XSCALE_DAC , XSCALE_FSR , XSCALE_FAR ,
  XSCALE_PID , XSCALE_CPACCESS , XSCALE_IBCR0 , XSCALE_IBCR1 ,
  XSCALE_DBR0 , XSCALE_DBR1 , XSCALE_DBCON , XSCALE_TBREG ,
  XSCALE_CHKPT0 , XSCALE_CHKPT1 , XSCALE_DCSR , XSCALE_TX ,
  XSCALE_RX , XSCALE_TXRXCTRL
}

enum  trace_mode { XSCALE_TRACE_DISABLED , XSCALE_TRACE_FILL , XSCALE_TRACE_WRAP }

enum  xscale_debug_reason { XSCALE_DBG_REASON_GENERIC , XSCALE_DBG_REASON_RESET , XSCALE_DBG_REASON_TB_FULL }

enum  xscale_trace_entry_type { XSCALE_TRACE_MESSAGE = 0x0 , XSCALE_TRACE_ADDRESS = 0x1 }


Functions

static struct xscale_commontarget_to_xscale (struct target *target)


Macro Definition Documentation

◆ DCSR_TA

#define DCSR_TA   (1 << 19)

Definition at line 170 of file xscale.h.

◆ DCSR_TD

#define DCSR_TD   (1 << 20)

Definition at line 171 of file xscale.h.

◆ DCSR_TF

#define DCSR_TF   (1 << 23)

Definition at line 173 of file xscale.h.

◆ DCSR_TI

#define DCSR_TI   (1 << 22)

Definition at line 172 of file xscale.h.

◆ DCSR_TR

#define DCSR_TR   (1 << 16)

Definition at line 167 of file xscale.h.

◆ DCSR_TRAP_MASK

#define DCSR_TRAP_MASK    (DCSR_TF | DCSR_TI | DCSR_TD | DCSR_TA | DCSR_TS | DCSR_TU | DCSR_TR)

Definition at line 174 of file xscale.h.

◆ DCSR_TS

#define DCSR_TS   (1 << 18)

Definition at line 169 of file xscale.h.

◆ DCSR_TU

#define DCSR_TU   (1 << 17)

Definition at line 168 of file xscale.h.

◆ ERROR_XSCALE_NO_TRACE_DATA

#define ERROR_XSCALE_NO_TRACE_DATA   (-700)

Definition at line 164 of file xscale.h.

◆ XSCALE_COMMON_MAGIC

#define XSCALE_COMMON_MAGIC   0x58534341U

Definition at line 18 of file xscale.h.

◆ XSCALE_DBGRX

#define XSCALE_DBGRX   0x02

Definition at line 23 of file xscale.h.

◆ XSCALE_DBGTX

#define XSCALE_DBGTX   0x10

Definition at line 24 of file xscale.h.

◆ XSCALE_IXP4XX_PXA2XX

#define XSCALE_IXP4XX_PXA2XX   0x0

Definition at line 29 of file xscale.h.

◆ XSCALE_LDIC

#define XSCALE_LDIC   0x07

Definition at line 25 of file xscale.h.

◆ XSCALE_PXA3XX

#define XSCALE_PXA3XX   0x4

Definition at line 30 of file xscale.h.

◆ XSCALE_SELDCSR

#define XSCALE_SELDCSR   0x09

Definition at line 26 of file xscale.h.

Enumeration Type Documentation

◆ anonymous enum

anonymous enum
Enumerator
XSCALE_MAINID
XSCALE_CACHETYPE
XSCALE_CTRL
XSCALE_AUXCTRL
XSCALE_TTB
XSCALE_DAC
XSCALE_FSR
XSCALE_FAR
XSCALE_PID
XSCALE_CPACCESS
XSCALE_IBCR0
XSCALE_IBCR1
XSCALE_DBR0
XSCALE_DBR1
XSCALE_DBCON
XSCALE_TBREG
XSCALE_CHKPT0
XSCALE_CHKPT1
XSCALE_DCSR
XSCALE_TX
XSCALE_RX
XSCALE_TXRXCTRL

Definition at line 139 of file xscale.h.

◆ trace_mode

enum trace_mode
Enumerator
XSCALE_TRACE_DISABLED
XSCALE_TRACE_FILL
XSCALE_TRACE_WRAP

Definition at line 58 of file xscale.h.

◆ xscale_debug_reason

Enumerator
XSCALE_DBG_REASON_GENERIC
XSCALE_DBG_REASON_RESET
XSCALE_DBG_REASON_TB_FULL

Definition at line 32 of file xscale.h.

◆ xscale_trace_entry_type

Enumerator
XSCALE_TRACE_MESSAGE
XSCALE_TRACE_ADDRESS

Definition at line 38 of file xscale.h.

Function Documentation
