stellaris.c File Reference

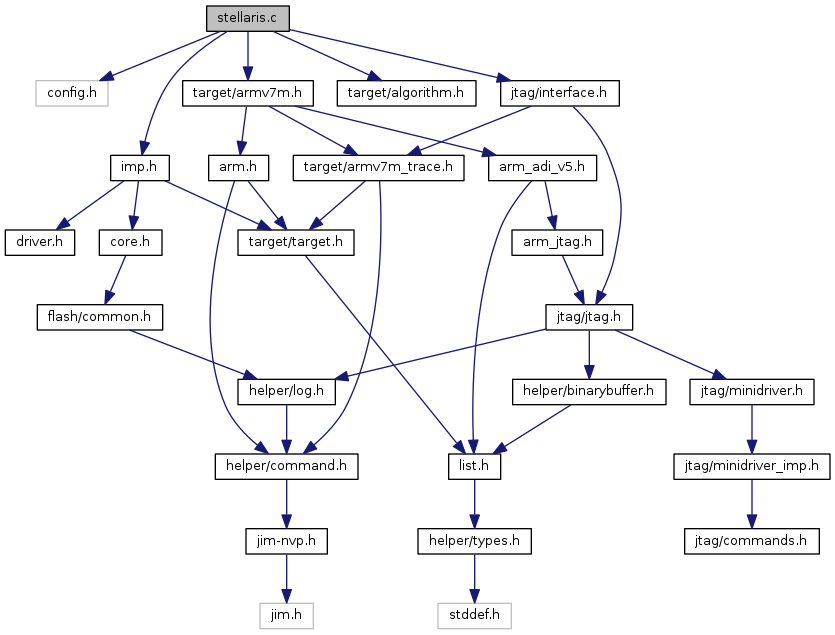

Include dependency graph for stellaris.c:

Go to the source code of this file.

Data Structures
struct	stellaris_flash_bank

Macros
#define	AMASK   1
#define	AMISC   1
#define	DC0   0x008
#define	DC1   0x010
#define	DC2   0x014
#define	DC3   0x018
#define	DC4   0x01C
#define	DID0   0x000
#define	DID0_VER(did0)   ((did0 >> 28)&0x07)
#define	DID1   0x004
#define	FLASH_CIM   (FLASH_CONTROL_BASE | 0x010)
#define	FLASH_CONTROL_BASE   0x400FD000
#define	FLASH_CRIS   (FLASH_CONTROL_BASE | 0x00C)
#define	FLASH_FMA   (FLASH_CONTROL_BASE | 0x000)
#define	FLASH_FMA_PPE(x)   (2 * (x) + 1) /* for FMPPPEx */
#define	FLASH_FMA_PRE(x)   (2 * (x)) /* for FMPPREx */
#define	FLASH_FMC   (FLASH_CONTROL_BASE | 0x008)
#define	FLASH_FMD   (FLASH_CONTROL_BASE | 0x004)
#define	FLASH_FSIZE   (FLASH_CONTROL_BASE | 0xFC0)
#define	FLASH_MISC   (FLASH_CONTROL_BASE | 0x014)
#define	FLASH_SSIZE   (FLASH_CONTROL_BASE | 0xFC4)
#define	FMC_COMT   (1 << 3)
#define	FMC_ERASE   (1 << 1)
#define	FMC_MERASE   (1 << 2)
#define	FMC_WRITE   (1 << 0)
#define	FMC_WRKEY   (0xA442 << 16)
#define	FMPPE   0x134
#define	FMPPE0   0x400 /* PPE1 = PPE0 + 4, etc */
#define	FMPRE   0x130
#define	FMPRE0   0x200 /* PRE1 = PRE0 + 4, etc */
#define	NVMSTAT   0x1a0
#define	PLLCFG   0x064
#define	PMASK   2
#define	PMISC   2
#define	RCC   0x060
#define	RCC2   0x070
#define	RIS   0x050
#define	SCB_BASE   0x400FE000
#define	USECRL   0x140

Functions
	COMMAND_HANDLER (stellaris_handle_mass_erase_command)
	COMMAND_HANDLER (stellaris_handle_recover_command)
	Perform the Stellaris "Recovering a 'Locked' Device procedure. More...
	FLASH_BANK_COMMAND_HANDLER (stellaris_flash_bank_command)
static int	get_stellaris_info (struct flash_bank *bank, struct command_invocation *cmd)
static int	stellaris_erase (struct flash_bank *bank, unsigned int first, unsigned int last)
static int	stellaris_mass_erase (struct flash_bank *bank)
static int	stellaris_probe (struct flash_bank *bank)
static int	stellaris_protect (struct flash_bank *bank, int set, unsigned int first, unsigned int last)
static int	stellaris_protect_check (struct flash_bank *bank)
static void	stellaris_read_clock_info (struct flash_bank *bank)
	Read clock configuration and set stellaris_info->usec_clocks. More...
static int	stellaris_read_part_info (struct flash_bank *bank)
static void	stellaris_set_flash_timing (struct flash_bank *bank)
static int	stellaris_write (struct flash_bank *bank, const uint8_t *buffer, uint32_t offset, uint32_t count)
static int	stellaris_write_block (struct flash_bank *bank, const uint8_t *buffer, uint32_t offset, uint32_t wcount)

Variables
static const unsigned	rcc_xtal [32]
static const char *const	stellaris_classname []
static const struct command_registration	stellaris_command_handlers []
static const struct command_registration	stellaris_exec_command_handlers []
const struct flash_driver	stellaris_flash
struct {
uint8_t   class
const char *   partname
uint8_t   partno
}	stellaris_parts []
static const uint8_t	stellaris_write_code []

Macro Definition Documentation

AMASK

#define AMASK   1

Definition at line 66 of file stellaris.c.

AMISC

#define AMISC   1

Definition at line 63 of file stellaris.c.

DC0

#define DC0   0x008

Definition at line 31 of file stellaris.c.

DC1

#define DC1   0x010

Definition at line 32 of file stellaris.c.

DC2

#define DC2   0x014

Definition at line 33 of file stellaris.c.

DC3

#define DC3   0x018

Definition at line 34 of file stellaris.c.

DC4

#define DC4   0x01C

Definition at line 35 of file stellaris.c.

DID0

#define DID0   0x000

Definition at line 29 of file stellaris.c.

DID0_VER

#define DID0_VER

(

did0

)

((did0 >> 28)&0x07)

Definition at line 25 of file stellaris.c.

DID1

#define DID1   0x004

Definition at line 30 of file stellaris.c.

FLASH_CIM

#define FLASH_CIM   (FLASH_CONTROL_BASE | 0x010)

Definition at line 58 of file stellaris.c.

FLASH_CONTROL_BASE

#define FLASH_CONTROL_BASE   0x400FD000

Definition at line 53 of file stellaris.c.

FLASH_CRIS

#define FLASH_CRIS   (FLASH_CONTROL_BASE | 0x00C)

Definition at line 57 of file stellaris.c.

FLASH_FMA

#define FLASH_FMA   (FLASH_CONTROL_BASE | 0x000)

Definition at line 54 of file stellaris.c.

FLASH_FMA_PPE

#define FLASH_FMA_PPE

(

x

)

(2 * (x) + 1) /* for FMPPPEx */

Definition at line 80 of file stellaris.c.

FLASH_FMA_PRE

#define FLASH_FMA_PRE

(

x

)

(2 * (x)) /* for FMPPREx */

Definition at line 79 of file stellaris.c.

FLASH_FMC

#define FLASH_FMC   (FLASH_CONTROL_BASE | 0x008)

Definition at line 56 of file stellaris.c.

FLASH_FMD

#define FLASH_FMD   (FLASH_CONTROL_BASE | 0x004)

Definition at line 55 of file stellaris.c.

FLASH_FSIZE

#define FLASH_FSIZE   (FLASH_CONTROL_BASE | 0xFC0)

Definition at line 60 of file stellaris.c.

FLASH_MISC

#define FLASH_MISC   (FLASH_CONTROL_BASE | 0x014)

Definition at line 59 of file stellaris.c.

FLASH_SSIZE

#define FLASH_SSIZE   (FLASH_CONTROL_BASE | 0xFC4)

Definition at line 61 of file stellaris.c.

FMC_COMT

#define FMC_COMT   (1 << 3)

Definition at line 71 of file stellaris.c.

FMC_ERASE

#define FMC_ERASE   (1 << 1)

Definition at line 73 of file stellaris.c.

FMC_MERASE

#define FMC_MERASE   (1 << 2)

Definition at line 72 of file stellaris.c.

FMC_WRITE

#define FMC_WRITE   (1 << 0)

Definition at line 74 of file stellaris.c.

FMC_WRKEY

#define FMC_WRKEY   (0xA442 << 16)

Definition at line 70 of file stellaris.c.

FMPPE

#define FMPPE   0x134

Definition at line 45 of file stellaris.c.

FMPPE0

#define FMPPE0   0x400 /* PPE1 = PPE0 + 4, etc */

Definition at line 49 of file stellaris.c.

FMPRE

#define FMPRE   0x130

Definition at line 44 of file stellaris.c.

FMPRE0

#define FMPRE0   0x200 /* PRE1 = PRE0 + 4, etc */

Definition at line 48 of file stellaris.c.

NVMSTAT

#define NVMSTAT   0x1a0

Definition at line 41 of file stellaris.c.

PLLCFG

#define PLLCFG   0x064

Definition at line 39 of file stellaris.c.

PMASK

#define PMASK   2

Definition at line 67 of file stellaris.c.

PMISC

#define PMISC   2

Definition at line 64 of file stellaris.c.

RCC

#define RCC   0x060

Definition at line 38 of file stellaris.c.

RCC2

#define RCC2   0x070

Definition at line 40 of file stellaris.c.

RIS

#define RIS   0x050

Definition at line 37 of file stellaris.c.

SCB_BASE

#define SCB_BASE   0x400FE000

Definition at line 28 of file stellaris.c.

USECRL

#define USECRL   0x140

Definition at line 51 of file stellaris.c.

Function Documentation

COMMAND_HANDLER() [1/2]

COMMAND_HANDLER

(

stellaris_handle_mass_erase_command

)

Definition at line 1299 of file stellaris.c.

References bank, CALL_COMMAND_HANDLER, CMD, CMD_ARGC, command_print(), ERROR_COMMAND_SYNTAX_ERROR, ERROR_OK, and stellaris_mass_erase().

COMMAND_HANDLER() [2/2]

COMMAND_HANDLER

(

stellaris_handle_recover_command

)

Perform the Stellaris "Recovering a 'Locked' Device procedure.

This performs a mass erase and then restores all nonvolatile registers (including USER_* registers and flash lock bits) to their defaults. Accordingly, flash can be reprogrammed, and JTAG can be used.

NOTE that DustDevil parts (at least rev A0 silicon) have errata which can affect this operation if flash protection has been enabled.

Definition at line 1326 of file stellaris.c.

References adapter_assert_reset(), adapter_deassert_reset(), bank, CMD_ARGC, CMD_CTX, arm::dap, dap_to_jtag(), dap_to_swd(), ERROR_COMMAND_SYNTAX_ERROR, ERROR_FAIL, ERROR_OK, get_flash_bank_by_num_noprobe(), jtag_execute_queue(), jtag_get_reset_config(), LOG_ERROR, LOG_INFO, NULL, RESET_HAS_SRST, and target_to_arm().

FLASH_BANK_COMMAND_HANDLER()

FLASH_BANK_COMMAND_HANDLER

(

stellaris_flash_bank_command

)

Definition at line 449 of file stellaris.c.

References bank, CMD_ARGC, stellaris_flash_bank::did1, ERROR_COMMAND_SYNTAX_ERROR, ERROR_OK, and stellaris_flash_bank::target_name.

get_stellaris_info()

static int get_stellaris_info ( struct flash_bank *  bank, struct command_invocation *  cmd  )

static

Definition at line 472 of file stellaris.c.

References bank, cmd, command_print_sameline(), stellaris_flash_bank::did0, stellaris_flash_bank::did1, ERROR_FLASH_BANK_NOT_PROBED, ERROR_OK, stellaris_flash_bank::mck_desc, stellaris_flash_bank::mck_freq, stellaris_flash_bank::num_pages, stellaris_flash_bank::pagesize, stellaris_flash_bank::rcc, stellaris_flash_bank::rcc2, stellaris_flash_bank::sramsiz, stellaris_classname, stellaris_read_clock_info(), stellaris_flash_bank::target_class, and stellaris_flash_bank::target_name.

stellaris_erase()

static int stellaris_erase ( struct flash_bank *  bank, unsigned int  first, unsigned int  last  )

static

Definition at line 828 of file stellaris.c.

References AMASK, AMISC, bank, stellaris_flash_bank::did1, ERROR_FLASH_BANK_NOT_PROBED, ERROR_FLASH_OPERATION_FAILED, ERROR_FLASH_SECTOR_INVALID, ERROR_OK, ERROR_TARGET_NOT_HALTED, FLASH_CIM, FLASH_CRIS, FLASH_FMA, FLASH_FMC, FLASH_MISC, FMC_ERASE, FMC_WRKEY, LOG_ERROR, LOG_WARNING, stellaris_flash_bank::num_pages, stellaris_flash_bank::pagesize, PMISC, stellaris_mass_erase(), stellaris_read_clock_info(), stellaris_set_flash_timing(), TARGET_HALTED, target_read_u32(), and target_write_u32().

stellaris_mass_erase()

static int stellaris_mass_erase ( struct flash_bank *  bank )

static

Definition at line 1249 of file stellaris.c.

References AMISC, bank, stellaris_flash_bank::did1, ERROR_FLASH_BANK_NOT_PROBED, ERROR_OK, ERROR_TARGET_NOT_HALTED, FLASH_CIM, FLASH_FMA, FLASH_FMC, FLASH_MISC, FMC_MERASE, FMC_WRKEY, LOG_ERROR, NULL, stellaris_flash_bank::num_pages, stellaris_flash_bank::pagesize, PMISC, target::state, stellaris_read_clock_info(), stellaris_set_flash_timing(), TARGET_HALTED, target_read_u32(), and target_write_u32().

Referenced by COMMAND_HANDLER(), and stellaris_erase().

stellaris_probe()

static int stellaris_probe ( struct flash_bank *  bank )

static

Definition at line 1214 of file stellaris.c.

References bank, stellaris_flash_bank::did1, ERROR_OK, stellaris_flash_bank::num_pages, stellaris_flash_bank::pagesize, and stellaris_read_part_info().

stellaris_protect()

static int stellaris_protect ( struct flash_bank *  bank, int  set, unsigned int  first, unsigned int  last  )

static

Definition at line 884 of file stellaris.c.

References AMASK, AMISC, bank, stellaris_flash_bank::did0, stellaris_flash_bank::did1, ERROR_COMMAND_SYNTAX_ERROR, ERROR_FLASH_BANK_NOT_PROBED, ERROR_FLASH_OPERATION_FAILED, ERROR_FLASH_SECTOR_INVALID, ERROR_OK, ERROR_TARGET_NOT_HALTED, FLASH_CIM, FLASH_CRIS, FLASH_FMA, FLASH_FMC, FLASH_MISC, FMC_COMT, FMC_WRKEY, FMPPE, FMPPE0, LOG_ERROR, LOG_WARNING, stellaris_flash_bank::num_pages, stellaris_flash_bank::pagesize, PMISC, SCB_BASE, target::state, stellaris_read_clock_info(), stellaris_set_flash_timing(), stellaris_flash_bank::target_class, TARGET_HALTED, target_read_u32(), and target_write_u32().

stellaris_protect_check()

static int stellaris_protect_check ( struct flash_bank *  bank )

static

Definition at line 780 of file stellaris.c.

References bank, stellaris_flash_bank::did1, ERROR_FLASH_BANK_NOT_PROBED, ERROR_OK, FMPPE, FMPPE0, stellaris_flash_bank::num_pages, stellaris_flash_bank::pagesize, SCB_BASE, status, stellaris_flash_bank::target_class, and target_read_u32().

stellaris_read_clock_info()

static void stellaris_read_clock_info ( struct flash_bank *  bank )

static

Read clock configuration and set stellaris_info->usec_clocks.

Definition at line 567 of file stellaris.c.

References bank, stellaris_flash_bank::iosc_desc, stellaris_flash_bank::iosc_freq, LOG_DEBUG, stellaris_flash_bank::mck_desc, stellaris_flash_bank::mck_freq, PLLCFG, RCC, stellaris_flash_bank::rcc, RCC2, stellaris_flash_bank::rcc2, rcc_xtal, SCB_BASE, target_read_u32(), and stellaris_flash_bank::xtal_mask.

Referenced by get_stellaris_info(), stellaris_erase(), stellaris_mass_erase(), stellaris_protect(), and stellaris_write().

stellaris_read_part_info()

static int stellaris_read_part_info ( struct flash_bank *  bank )

static

Definition at line 650 of file stellaris.c.

References bank, DC0, stellaris_flash_bank::dc0, DC1, stellaris_flash_bank::dc1, DID0, stellaris_flash_bank::did0, DID0_VER, DID1, stellaris_flash_bank::did1, ERROR_FLASH_OPERATION_FAILED, ERROR_OK, FLASH_FSIZE, FLASH_SSIZE, stellaris_flash_bank::fsize, stellaris_flash_bank::iosc_desc, stellaris_flash_bank::iosc_freq, LOG_DEBUG, LOG_WARNING, stellaris_flash_bank::num_pages, stellaris_flash_bank::pagesize, partno, SCB_BASE, stellaris_flash_bank::sramsiz, stellaris_flash_bank::ssize, stellaris_parts, stellaris_flash_bank::target_class, stellaris_flash_bank::target_name, target_read_u32(), and stellaris_flash_bank::xtal_mask.

Referenced by stellaris_probe().

stellaris_set_flash_timing()

static void stellaris_set_flash_timing ( struct flash_bank *  bank )

static

Definition at line 519 of file stellaris.c.

References bank, LOG_DEBUG, stellaris_flash_bank::mck_freq, SCB_BASE, stellaris_flash_bank::target_class, target_write_u32(), and USECRL.

Referenced by stellaris_erase(), stellaris_mass_erase(), stellaris_protect(), and stellaris_write().

stellaris_write()

static int stellaris_write ( struct flash_bank *  bank, const uint8_t *  buffer, uint32_t  offset, uint32_t  count  )

static

Definition at line 1101 of file stellaris.c.

References AMASK, AMISC, bank, buffer, count, stellaris_flash_bank::did1, ERROR_FLASH_BANK_NOT_PROBED, ERROR_FLASH_DST_BREAKS_ALIGNMENT, ERROR_FLASH_DST_OUT_OF_BANK, ERROR_FLASH_OPERATION_FAILED, ERROR_OK, ERROR_TARGET_NOT_HALTED, ERROR_TARGET_RESOURCE_NOT_AVAILABLE, FLASH_CIM, FLASH_CRIS, FLASH_FMA, FLASH_FMC, FLASH_FMD, FLASH_MISC, FMC_WRITE, FMC_WRKEY, LOG_DEBUG, LOG_ERROR, LOG_WARNING, offset, PMISC, stellaris_read_clock_info(), stellaris_set_flash_timing(), stellaris_write_block(), TARGET_HALTED, target_read_u32(), target_write_buffer(), and target_write_u32().

stellaris_write_block()

static int stellaris_write_block ( struct flash_bank *  bank, const uint8_t *  buffer, uint32_t  offset, uint32_t  wcount  )

static

Definition at line 1019 of file stellaris.c.

References working_area::address, ARM_MODE_THREAD, ARMV7M_COMMON_MAGIC, bank, buf_set_u32(), buffer, armv7m_algorithm::common_magic, armv7m_algorithm::core_mode, destroy_reg_param(), ERROR_FLASH_OPERATION_FAILED, ERROR_OK, ERROR_TARGET_RESOURCE_NOT_AVAILABLE, init_reg_param(), LOG_DEBUG, LOG_ERROR, NULL, offset, PARAM_OUT, source, stellaris_write_code, target_alloc_working_area(), target_alloc_working_area_try(), target_free_working_area(), target_name(), target_run_flash_async_algorithm(), and target_write_buffer().

Referenced by stellaris_write().

Variable Documentation

class

uint8_t class

Definition at line 116 of file stellaris.c.

partname

const char* partname

Definition at line 118 of file stellaris.c.

partno

uint8_t partno

Definition at line 117 of file stellaris.c.

Referenced by stellaris_read_part_info().

rcc_xtal

const unsigned rcc_xtal[32]

static

Definition at line 533 of file stellaris.c.

Referenced by stellaris_read_clock_info().

stellaris_classname

const char* const stellaris_classname[]

static

Initial value:

= {
    "Sandstorm",
    "Fury",
    "Unknown",
    "DustDevil",
    "Tempest",
    "Blizzard/TM4C123x",
    "Firestorm",
    "",
    "",
    "",
    "Snowflake",
}

Definition at line 429 of file stellaris.c.

Referenced by get_stellaris_info().

stellaris_command_handlers

const struct command_registration stellaris_command_handlers[]

static

Initial value:

= {
    {
        .name = "stellaris",
        .mode = COMMAND_EXEC,
        .help = "Stellaris flash command group",
        .usage = "",
        .chain = stellaris_exec_command_handlers,
    },
    COMMAND_REGISTRATION_DONE
}

Definition at line 1326 of file stellaris.c.

stellaris_exec_command_handlers

const struct command_registration stellaris_exec_command_handlers[]

static

Initial value:

= {
    {
        .name = "mass_erase",
        .usage = "<bank>",
        .handler = stellaris_handle_mass_erase_command,
        .mode = COMMAND_EXEC,
        .help = "erase entire device",
    },
    {
        .name = "recover",
        .handler = stellaris_handle_recover_command,
        .mode = COMMAND_EXEC,
        .usage = "",
        .help = "recover (and erase) locked device",
    },
    COMMAND_REGISTRATION_DONE
}

Definition at line 1326 of file stellaris.c.

stellaris_flash

const struct flash_driver stellaris_flash

Initial value:

= {
    .name = "stellaris",
    .commands = stellaris_command_handlers,
    .flash_bank_command = stellaris_flash_bank_command,
    .erase = stellaris_erase,
    .protect = stellaris_protect,
    .write = stellaris_write,
    .read = default_flash_read,
    .probe = stellaris_probe,
    .auto_probe = stellaris_probe,
    .erase_check = default_flash_blank_check,
    .protect_check = stellaris_protect_check,
    .info = get_stellaris_info,
    .free_driver_priv = default_flash_free_driver_priv,
}

Definition at line 1326 of file stellaris.c.

const { ... } stellaris_parts[]

Referenced by stellaris_read_part_info().

stellaris_write_code

const uint8_t stellaris_write_code[]

static

Definition at line 983 of file stellaris.c.

Referenced by stellaris_write_block().
