or1k.h File Reference

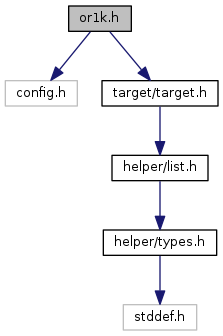

Include dependency graph for or1k.h:

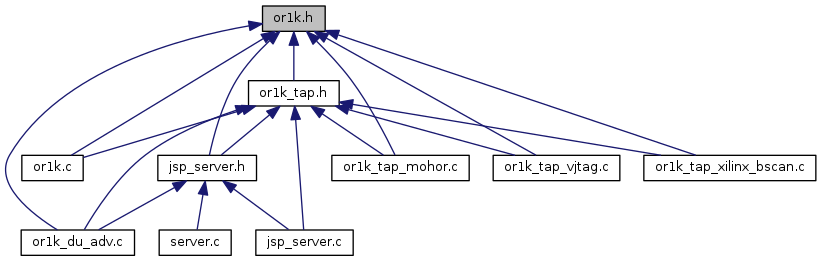

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures

struct  or1k_common

struct  or1k_core_reg

struct  or1k_core_reg_init

struct  or1k_jtag


Macros

#define GROUP0   (0 << 11)

#define GROUP1   (1 << 11)

#define GROUP10   (10 << 11)

#define GROUP2   (2 << 11)

#define GROUP3   (3 << 11)

#define GROUP4   (4 << 11)

#define GROUP5   (5 << 11)

#define GROUP6   (6 << 11)

#define GROUP7   (7 << 11)

#define GROUP8   (8 << 11)

#define GROUP9   (9 << 11)

#define NO_SINGLE_STEP   0

#define OR1K_DEBUG_REG_BASE   GROUP6 /* Debug registers Base address */

#define OR1K_DMR1_BT   0x00800000 /* Branch trace */

#define OR1K_DMR1_CPU_REG_ADD   (OR1K_DEBUG_REG_BASE + 16) /* Debug Mode Register 1 0x3010 */

#define OR1K_DMR1_ST   0x00400000 /* Single-step trace */

#define OR1K_DMR2_WGB   0x003ff000 /* Watchpoints generating breakpoint */

#define OR1K_DSR_TE   0x00002000 /* Trap exception */

#define OR1K_ICBIR_CPU_REG_ADD   ((4 << 11) + 2) /* IC Block Invalidate Register 0x2002 */

#define OR1K_TRAP_INSTR   0x21000001

#define SINGLE_STEP   1


Enumerations

enum  or1k_debug_reg_nums {
  OR1K_DEBUG_REG_DMR1 = 0 , OR1K_DEBUG_REG_DMR2 , OR1K_DEBUG_REG_DCWR0 , OR1K_DEBUG_REG_DCWR1 ,
  OR1K_DEBUG_REG_DSR , OR1K_DEBUG_REG_DRR , OR1K_DEBUG_REG_NUM
}

enum  or1k_reg_nums {
  OR1K_REG_R0 = 0 , OR1K_REG_R1 , OR1K_REG_R2 , OR1K_REG_R3 ,
  OR1K_REG_R4 , OR1K_REG_R5 , OR1K_REG_R6 , OR1K_REG_R7 ,
  OR1K_REG_R8 , OR1K_REG_R9 , OR1K_REG_R10 , OR1K_REG_R11 ,
  OR1K_REG_R12 , OR1K_REG_R13 , OR1K_REG_R14 , OR1K_REG_R15 ,
  OR1K_REG_R16 , OR1K_REG_R17 , OR1K_REG_R18 , OR1K_REG_R19 ,
  OR1K_REG_R20 , OR1K_REG_R21 , OR1K_REG_R22 , OR1K_REG_R23 ,
  OR1K_REG_R24 , OR1K_REG_R25 , OR1K_REG_R26 , OR1K_REG_R27 ,
  OR1K_REG_R28 , OR1K_REG_R29 , OR1K_REG_R30 , OR1K_REG_R31 ,
  OR1K_REG_PPC , OR1K_REG_NPC , OR1K_REG_SR , OR1KNUMCOREREGS
}


Functions

static struct or1k_commontarget_to_or1k (struct target *target)


Macro Definition Documentation

◆ GROUP0

#define GROUP0   (0 << 11)

Definition at line 25 of file or1k.h.

◆ GROUP1

#define GROUP1   (1 << 11)

Definition at line 26 of file or1k.h.

◆ GROUP10

#define GROUP10   (10 << 11)

Definition at line 35 of file or1k.h.

◆ GROUP2

#define GROUP2   (2 << 11)

Definition at line 27 of file or1k.h.

◆ GROUP3

#define GROUP3   (3 << 11)

Definition at line 28 of file or1k.h.

◆ GROUP4

#define GROUP4   (4 << 11)

Definition at line 29 of file or1k.h.

◆ GROUP5

#define GROUP5   (5 << 11)

Definition at line 30 of file or1k.h.

◆ GROUP6

#define GROUP6   (6 << 11)

Definition at line 31 of file or1k.h.

◆ GROUP7

#define GROUP7   (7 << 11)

Definition at line 32 of file or1k.h.

◆ GROUP8

#define GROUP8   (8 << 11)

Definition at line 33 of file or1k.h.

◆ GROUP9

#define GROUP9   (9 << 11)

Definition at line 34 of file or1k.h.

◆ NO_SINGLE_STEP

#define NO_SINGLE_STEP   0

Definition at line 131 of file or1k.h.

◆ OR1K_DEBUG_REG_BASE

#define OR1K_DEBUG_REG_BASE   GROUP6 /* Debug registers Base address */

Definition at line 135 of file or1k.h.

◆ OR1K_DMR1_BT

#define OR1K_DMR1_BT   0x00800000 /* Branch trace */

Definition at line 138 of file or1k.h.

◆ OR1K_DMR1_CPU_REG_ADD

#define OR1K_DMR1_CPU_REG_ADD   (OR1K_DEBUG_REG_BASE + 16) /* Debug Mode Register 1 0x3010 */

Definition at line 136 of file or1k.h.

◆ OR1K_DMR1_ST

#define OR1K_DMR1_ST   0x00400000 /* Single-step trace */

Definition at line 137 of file or1k.h.

◆ OR1K_DMR2_WGB

#define OR1K_DMR2_WGB   0x003ff000 /* Watchpoints generating breakpoint */

Definition at line 139 of file or1k.h.

◆ OR1K_DSR_TE

#define OR1K_DSR_TE   0x00002000 /* Trap exception */

Definition at line 140 of file or1k.h.

◆ OR1K_ICBIR_CPU_REG_ADD

#define OR1K_ICBIR_CPU_REG_ADD   ((4 << 11) + 2) /* IC Block Invalidate Register 0x2002 */

Definition at line 145 of file or1k.h.

◆ OR1K_TRAP_INSTR

#define OR1K_TRAP_INSTR   0x21000001

Definition at line 119 of file or1k.h.

◆ SINGLE_STEP

#define SINGLE_STEP   1

Definition at line 132 of file or1k.h.

Enumeration Type Documentation

◆ or1k_debug_reg_nums

Enumerator
OR1K_DEBUG_REG_DMR1
OR1K_DEBUG_REG_DMR2
OR1K_DEBUG_REG_DCWR0
OR1K_DEBUG_REG_DCWR1
OR1K_DEBUG_REG_DSR
OR1K_DEBUG_REG_DRR
OR1K_DEBUG_REG_NUM

Definition at line 121 of file or1k.h.

◆ or1k_reg_nums

Enumerator
OR1K_REG_R0
OR1K_REG_R1
OR1K_REG_R2
OR1K_REG_R3
OR1K_REG_R4
OR1K_REG_R5
OR1K_REG_R6
OR1K_REG_R7
OR1K_REG_R8
OR1K_REG_R9
OR1K_REG_R10
OR1K_REG_R11
OR1K_REG_R12
OR1K_REG_R13
OR1K_REG_R14
OR1K_REG_R15
OR1K_REG_R16
OR1K_REG_R17
OR1K_REG_R18
OR1K_REG_R19
OR1K_REG_R20
OR1K_REG_R21
OR1K_REG_R22
OR1K_REG_R23
OR1K_REG_R24
OR1K_REG_R25
OR1K_REG_R26
OR1K_REG_R27
OR1K_REG_R28
OR1K_REG_R29
OR1K_REG_R30
OR1K_REG_R31
OR1K_REG_PPC
OR1K_REG_NPC
OR1K_REG_SR
OR1KNUMCOREREGS

Definition at line 38 of file or1k.h.

Function Documentation

◆ target_to_or1k()
