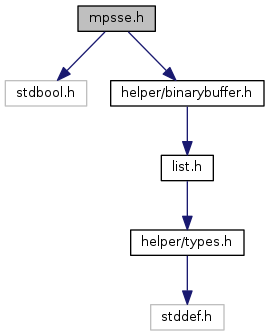

Include dependency graph for mpsse.h:

This graph shows which files directly or indirectly include this file:

Macros
#define	LSB_FIRST 0x08

#define	MSB_FIRST 0x00

#define	NEG_EDGE_IN 0x04

#define	NEG_EDGE_OUT 0x01

#define	POS_EDGE_IN 0x00

#define	POS_EDGE_OUT 0x00

Enumerations
enum	ftdi_chip_type { TYPE_FT2232C , TYPE_FT2232H , TYPE_FT4232H , TYPE_FT232H }

Functions
void	mpsse_clock_data (struct mpsse_ctx ctx, const uint8_t out, unsigned out_offset, uint8_t *in, unsigned in_offset, unsigned length, uint8_t mode)

void	mpsse_clock_data_in (struct mpsse_ctx ctx, uint8_t in, unsigned in_offset, unsigned length, uint8_t mode)

void	mpsse_clock_data_out (struct mpsse_ctx ctx, const uint8_t out, unsigned out_offset, unsigned length, uint8_t mode)

void	mpsse_clock_tms_cs (struct mpsse_ctx ctx, const uint8_t out, unsigned out_offset, uint8_t *in, unsigned in_offset, unsigned length, bool tdi, uint8_t mode)

void	mpsse_clock_tms_cs_out (struct mpsse_ctx ctx, const uint8_t out, unsigned out_offset, unsigned length, bool tdi, uint8_t mode)

void	mpsse_close (struct mpsse_ctx *ctx)

int	mpsse_divide_by_5_config (struct mpsse_ctx *ctx, bool enable)

int	mpsse_flush (struct mpsse_ctx *ctx)

bool	mpsse_is_high_speed (struct mpsse_ctx *ctx)

void	mpsse_loopback_config (struct mpsse_ctx *ctx, bool enable)

struct mpsse_ctx *	mpsse_open (const uint16_t vid, const uint16_t pid, const char description, const char serial, const char *location, int channel)

void	mpsse_purge (struct mpsse_ctx *ctx)

void	mpsse_read_data_bits_high_byte (struct mpsse_ctx ctx, uint8_t data)

void	mpsse_read_data_bits_low_byte (struct mpsse_ctx ctx, uint8_t data)

int	mpsse_rtck_config (struct mpsse_ctx *ctx, bool enable)

void	mpsse_set_data_bits_high_byte (struct mpsse_ctx *ctx, uint8_t data, uint8_t dir)

void	mpsse_set_data_bits_low_byte (struct mpsse_ctx *ctx, uint8_t data, uint8_t dir)

void	mpsse_set_divisor (struct mpsse_ctx *ctx, uint16_t divisor)

int	mpsse_set_frequency (struct mpsse_ctx *ctx, int frequency)

Macro Definition Documentation

◆ LSB_FIRST

#define LSB_FIRST 0x08

Definition at line 20 of file mpsse.h.

◆ MSB_FIRST

#define MSB_FIRST 0x00

Definition at line 19 of file mpsse.h.

◆ NEG_EDGE_IN

#define NEG_EDGE_IN 0x04

Definition at line 18 of file mpsse.h.

◆ NEG_EDGE_OUT

#define NEG_EDGE_OUT 0x01

Definition at line 16 of file mpsse.h.

◆ POS_EDGE_IN

#define POS_EDGE_IN 0x00

Definition at line 17 of file mpsse.h.

◆ POS_EDGE_OUT

#define POS_EDGE_OUT 0x00

Definition at line 15 of file mpsse.h.

Enumeration Type Documentation

◆ ftdi_chip_type

enum ftdi_chip_type

Enumerator
TYPE_FT2232C
TYPE_FT2232H
TYPE_FT4232H
TYPE_FT232H

Definition at line 22 of file mpsse.h.

Function Documentation

◆ mpsse_clock_data()

void mpsse_clock_data	(	struct mpsse_ctx *	ctx,
		const uint8_t *	out,
		unsigned	out_offset,
		uint8_t *	in,
		unsigned	in_offset,
		unsigned	length,
		uint8_t	mode
	)

Definition at line 483 of file mpsse.c.

References buffer_add_read(), buffer_read_space(), buffer_write(), buffer_write_byte(), buffer_write_space(), ERROR_OK, length, LOG_DEBUG_IO, mode, mpsse_flush(), and mpsse_ctx::retval.

Referenced by ftdi_execute_scan(), mpsse_clock_data_in(), and mpsse_clock_data_out().

◆ mpsse_clock_data_in()

void mpsse_clock_data_in	(	struct mpsse_ctx *	ctx,
		uint8_t *	in,
		unsigned	in_offset,
		unsigned	length,
		uint8_t	mode
	)

Definition at line 477 of file mpsse.c.

References length, mode, and mpsse_clock_data().

Referenced by ftdi_swd_queue_cmd().

◆ mpsse_clock_data_out()

void mpsse_clock_data_out	(	struct mpsse_ctx *	ctx,
		const uint8_t *	out,
		unsigned	out_offset,
		unsigned	length,
		uint8_t	mode
	)

Definition at line 471 of file mpsse.c.

References length, mode, and mpsse_clock_data().

Referenced by ftdi_swd_queue_cmd(), and ftdi_swd_run_queue().

◆ mpsse_clock_tms_cs()

void mpsse_clock_tms_cs	(	struct mpsse_ctx *	ctx,
		const uint8_t *	out,
		unsigned	out_offset,
		uint8_t *	in,
		unsigned	in_offset,
		unsigned	length,
		bool	tdi,
		uint8_t	mode
	)

Definition at line 560 of file mpsse.c.

References bit_copy(), buffer_add_read(), buffer_read_space(), buffer_write_byte(), buffer_write_space(), ERROR_OK, length, LOG_DEBUG_IO, mode, mpsse_flush(), and mpsse_ctx::retval.

Referenced by ftdi_execute_scan(), and mpsse_clock_tms_cs_out().

◆ mpsse_clock_tms_cs_out()

void mpsse_clock_tms_cs_out	(	struct mpsse_ctx *	ctx,
		const uint8_t *	out,
		unsigned	out_offset,
		unsigned	length,
		bool	tdi,
		uint8_t	mode
	)

Definition at line 554 of file mpsse.c.

References length, mode, and mpsse_clock_tms_cs().

Referenced by ftdi_execute_pathmove(), ftdi_execute_runtest(), ftdi_execute_scan(), ftdi_execute_stableclocks(), ftdi_execute_tms(), and move_to_state().

◆ mpsse_close()

void mpsse_close ( struct mpsse_ctx * ctx )

Definition at line 390 of file mpsse.c.

References bit_copy_discard(), mpsse_ctx::read_buffer, mpsse_ctx::read_chunk, mpsse_ctx::read_queue, mpsse_ctx::usb_ctx, mpsse_ctx::usb_dev, and mpsse_ctx::write_buffer.

Referenced by ftdi_quit(), and mpsse_open().

◆ mpsse_divide_by_5_config()

int mpsse_divide_by_5_config	(	struct mpsse_ctx *	ctx,
		bool	enable
	)

Definition at line 714 of file mpsse.c.

References ERROR_FAIL, ERROR_OK, LOG_DEBUG, mpsse_is_high_speed(), and single_byte_boolean_helper().

Referenced by mpsse_set_frequency().

◆ mpsse_flush()

int mpsse_flush ( struct mpsse_ctx * ctx )

Definition at line 833 of file mpsse.c.

References bit_copy_discard(), bit_copy_execute(), buffer_write_byte(), transfer_result::ctx, transfer_result::done, ERROR_FAIL, ERROR_OK, mpsse_ctx::in_ep, keep_alive(), LOG_DEBUG_IO, LOG_ERROR, LOG_WARNING, mpsse_purge(), NULL, mpsse_ctx::out_ep, read_cb(), mpsse_ctx::read_chunk, mpsse_ctx::read_chunk_size, mpsse_ctx::read_count, mpsse_ctx::read_queue, mpsse_ctx::retval, start, timeval_ms(), transfer_result::transferred, timeval::tv_sec, timeval::tv_usec, mpsse_ctx::usb_ctx, mpsse_ctx::usb_dev, mpsse_ctx::usb_read_timeout, mpsse_ctx::usb_write_timeout, mpsse_ctx::write_buffer, write_cb(), and mpsse_ctx::write_count.

Referenced by COMMAND_HANDLER(), ftdi_execute_queue(), ftdi_execute_sleep(), ftdi_get_signal(), ftdi_initialize(), ftdi_reset(), ftdi_swd_run_queue(), mpsse_clock_data(), mpsse_clock_tms_cs(), mpsse_read_data_bits_high_byte(), mpsse_read_data_bits_low_byte(), mpsse_set_data_bits_high_byte(), mpsse_set_data_bits_low_byte(), mpsse_set_divisor(), and single_byte_boolean_helper().

◆ mpsse_is_high_speed()

bool mpsse_is_high_speed ( struct mpsse_ctx * ctx )

Definition at line 404 of file mpsse.c.

References mpsse_ctx::type, and TYPE_FT2232C.

Referenced by ftdi_khz(), mpsse_divide_by_5_config(), and mpsse_rtck_config().

◆ mpsse_loopback_config()

void mpsse_loopback_config	(	struct mpsse_ctx *	ctx,
		bool	enable
	)

Definition at line 691 of file mpsse.c.

References LOG_DEBUG, and single_byte_boolean_helper().

Referenced by ftdi_initialize().

◆ mpsse_open()

struct mpsse_ctx* mpsse_open	(	const uint16_t *	vid,
		const uint16_t *	pid,
		const char *	description,
		const char *	serial,
		const char *	location,
		int	channel
	)
