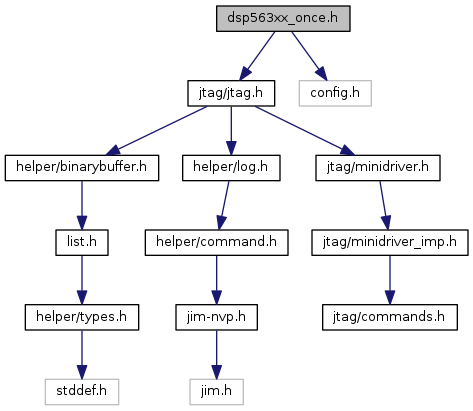

Include dependency graph for dsp563xx_once.h:

This graph shows which files directly or indirectly include this file:

Data Structures
struct	once_reg

Macros
#define	DSP563XX_ONCE_NOREG 0x01F /* no register selected */

#define	DSP563XX_ONCE_OBCR 0x002 /* breakp. ctrl reg */

#define	DSP563XX_ONCE_OCR_EX (1<<5)

#define	DSP563XX_ONCE_OCR_GO (1<<6)

#define	DSP563XX_ONCE_OCR_RW (1<<7)

#define	DSP563XX_ONCE_OGDBR 0x009 /* gdb reg */

#define	DSP563XX_ONCE_OMBC 0x001 /* memory breakp. reg. */

#define	DSP563XX_ONCE_OMLR0 0x005 /* memory limit reg */

#define	DSP563XX_ONCE_OMLR1 0x006 /* memory limit reg */

#define	DSP563XX_ONCE_OPABDR 0x010 /* pab decode reg */

#define	DSP563XX_ONCE_OPABEX 0x011 /* pab exec reg */

#define	DSP563XX_ONCE_OPABF11 0x012 /* trace buffer/inc ptr */

#define	DSP563XX_ONCE_OPABFR 0x00F /* pab fetch reg */

#define	DSP563XX_ONCE_OPDBR 0x00A /* pdb reg */

#define	DSP563XX_ONCE_OPILR 0x00B /* pil reg */

#define	DSP563XX_ONCE_OSCR 0x000 /* status/ctrl reg. */

#define	DSP563XX_ONCE_OSCR_BUSY_M (DSP563XX_ONCE_OSCR_OS1)

#define	DSP563XX_ONCE_OSCR_DEBUG_M (DSP563XX_ONCE_OSCR_OS0\|DSP563XX_ONCE_OSCR_OS1)

#define	DSP563XX_ONCE_OSCR_HIT (1<<5)

#define	DSP563XX_ONCE_OSCR_IME (1<<1)

#define	DSP563XX_ONCE_OSCR_MBO (1<<3)

#define	DSP563XX_ONCE_OSCR_NORMAL_M (0)

#define	DSP563XX_ONCE_OSCR_OS0 (1<<6)

#define	DSP563XX_ONCE_OSCR_OS1 (1<<7)

#define	DSP563XX_ONCE_OSCR_STOPWAIT_M (DSP563XX_ONCE_OSCR_OS0)

#define	DSP563XX_ONCE_OSCR_SWO (1<<2)

#define	DSP563XX_ONCE_OSCR_TME (1<<0)

#define	DSP563XX_ONCE_OSCR_TO (1<<4)

#define	DSP563XX_ONCE_OTC 0x00D /* trace cnt */

#define	DSP563XX_ONCE_PDBGOTO 0x00C /* pdb to go reg */

#define	DSP563XX_ONCE_TAGB 0x00E /* tags buffer */

Functions
int	dsp563xx_once_execute_dw_ir (struct jtag_tap *tap, int flush, uint32_t opcode, uint32_t operand)
	double word instruction More...

int	dsp563xx_once_execute_sw_ir (struct jtag_tap *tap, int flush, uint32_t opcode)
	single word instruction More...

int	dsp563xx_once_read_register (struct jtag_tap tap, int flush, struct once_reg regs, int len)
	once read registers More...

int	dsp563xx_once_reg_read (struct jtag_tap tap, int flush, uint8_t reg, uint32_t data)
	once read register More...

int	dsp563xx_once_reg_read_ex (struct jtag_tap tap, int flush, uint8_t reg, uint8_t len, uint32_t data)
	once read register More...

int	dsp563xx_once_reg_write (struct jtag_tap *tap, int flush, uint8_t reg, uint32_t data)
	once write register More...

int	dsp563xx_once_request_debug (struct jtag_tap *tap, int reset_state)

int	dsp563xx_once_target_status (struct jtag_tap *tap)

Macro Definition Documentation

◆ DSP563XX_ONCE_NOREG

#define DSP563XX_ONCE_NOREG 0x01F /* no register selected */

Definition at line 50 of file dsp563xx_once.h.

◆ DSP563XX_ONCE_OBCR

#define DSP563XX_ONCE_OBCR 0x002 /* breakp. ctrl reg */

Definition at line 37 of file dsp563xx_once.h.

◆ DSP563XX_ONCE_OCR_EX

#define DSP563XX_ONCE_OCR_EX (1<<5)

Definition at line 17 of file dsp563xx_once.h.

◆ DSP563XX_ONCE_OCR_GO

#define DSP563XX_ONCE_OCR_GO (1<<6)

Definition at line 18 of file dsp563xx_once.h.

◆ DSP563XX_ONCE_OCR_RW

#define DSP563XX_ONCE_OCR_RW (1<<7)

Definition at line 19 of file dsp563xx_once.h.

◆ DSP563XX_ONCE_OGDBR

#define DSP563XX_ONCE_OGDBR 0x009 /* gdb reg */

Definition at line 40 of file dsp563xx_once.h.

◆ DSP563XX_ONCE_OMBC

#define DSP563XX_ONCE_OMBC 0x001 /* memory breakp. reg. */

Definition at line 36 of file dsp563xx_once.h.

◆ DSP563XX_ONCE_OMLR0

#define DSP563XX_ONCE_OMLR0 0x005 /* memory limit reg */

Definition at line 38 of file dsp563xx_once.h.

◆ DSP563XX_ONCE_OMLR1

#define DSP563XX_ONCE_OMLR1 0x006 /* memory limit reg */

Definition at line 39 of file dsp563xx_once.h.

◆ DSP563XX_ONCE_OPABDR

#define DSP563XX_ONCE_OPABDR 0x010 /* pab decode reg */

Definition at line 47 of file dsp563xx_once.h.

◆ DSP563XX_ONCE_OPABEX

#define DSP563XX_ONCE_OPABEX 0x011 /* pab exec reg */

Definition at line 48 of file dsp563xx_once.h.

◆ DSP563XX_ONCE_OPABF11

#define DSP563XX_ONCE_OPABF11 0x012 /* trace buffer/inc ptr */

Definition at line 49 of file dsp563xx_once.h.

◆ DSP563XX_ONCE_OPABFR

#define DSP563XX_ONCE_OPABFR 0x00F /* pab fetch reg */

Definition at line 46 of file dsp563xx_once.h.

◆ DSP563XX_ONCE_OPDBR

#define DSP563XX_ONCE_OPDBR 0x00A /* pdb reg */

Definition at line 41 of file dsp563xx_once.h.

◆ DSP563XX_ONCE_OPILR

#define DSP563XX_ONCE_OPILR 0x00B /* pil reg */

Definition at line 42 of file dsp563xx_once.h.

◆ DSP563XX_ONCE_OSCR

#define DSP563XX_ONCE_OSCR 0x000 /* status/ctrl reg. */

Definition at line 35 of file dsp563xx_once.h.

◆ DSP563XX_ONCE_OSCR_BUSY_M

#define DSP563XX_ONCE_OSCR_BUSY_M (DSP563XX_ONCE_OSCR_OS1)

Definition at line 32 of file dsp563xx_once.h.

◆ DSP563XX_ONCE_OSCR_DEBUG_M

#define DSP563XX_ONCE_OSCR_DEBUG_M (DSP563XX_ONCE_OSCR_OS0|DSP563XX_ONCE_OSCR_OS1)

Definition at line 33 of file dsp563xx_once.h.

◆ DSP563XX_ONCE_OSCR_HIT

#define DSP563XX_ONCE_OSCR_HIT (1<<5)

Definition at line 23 of file dsp563xx_once.h.

◆ DSP563XX_ONCE_OSCR_IME

#define DSP563XX_ONCE_OSCR_IME (1<<1)

Definition at line 27 of file dsp563xx_once.h.

◆ DSP563XX_ONCE_OSCR_MBO

#define DSP563XX_ONCE_OSCR_MBO (1<<3)

Definition at line 25 of file dsp563xx_once.h.

◆ DSP563XX_ONCE_OSCR_NORMAL_M

#define DSP563XX_ONCE_OSCR_NORMAL_M (0)

Definition at line 30 of file dsp563xx_once.h.

◆ DSP563XX_ONCE_OSCR_OS0

#define DSP563XX_ONCE_OSCR_OS0 (1<<6)

Definition at line 22 of file dsp563xx_once.h.

◆ DSP563XX_ONCE_OSCR_OS1

#define DSP563XX_ONCE_OSCR_OS1 (1<<7)

Definition at line 21 of file dsp563xx_once.h.

◆ DSP563XX_ONCE_OSCR_STOPWAIT_M

#define DSP563XX_ONCE_OSCR_STOPWAIT_M (DSP563XX_ONCE_OSCR_OS0)

Definition at line 31 of file dsp563xx_once.h.

◆ DSP563XX_ONCE_OSCR_SWO

#define DSP563XX_ONCE_OSCR_SWO (1<<2)

Definition at line 26 of file dsp563xx_once.h.

◆ DSP563XX_ONCE_OSCR_TME

#define DSP563XX_ONCE_OSCR_TME (1<<0)

Definition at line 28 of file dsp563xx_once.h.

◆ DSP563XX_ONCE_OSCR_TO

#define DSP563XX_ONCE_OSCR_TO (1<<4)

Definition at line 24 of file dsp563xx_once.h.

◆ DSP563XX_ONCE_OTC

#define DSP563XX_ONCE_OTC 0x00D /* trace cnt */

Definition at line 44 of file dsp563xx_once.h.

◆ DSP563XX_ONCE_PDBGOTO

#define DSP563XX_ONCE_PDBGOTO 0x00C /* pdb to go reg */

Definition at line 43 of file dsp563xx_once.h.

◆ DSP563XX_ONCE_TAGB

#define DSP563XX_ONCE_TAGB 0x00E /* tags buffer */

Definition at line 45 of file dsp563xx_once.h.

Function Documentation

◆ dsp563xx_once_execute_dw_ir()

int dsp563xx_once_execute_dw_ir	(	struct jtag_tap *	tap,
		int	flush,
		uint32_t	opcode,
		uint32_t	operand
	)

double word instruction

Definition at line 254 of file dsp563xx_once.c.

References dsp563xx_once_ir_exec(), DSP563XX_ONCE_OPDBR, dsp563xx_write_dr_u32(), ERROR_OK, and jtag_execute_queue().

Referenced by dsp563xx_debug_init(), dsp563xx_read_memory_core(), dsp563xx_reg_write(), dsp563xx_reg_write_high_io(), and dsp563xx_write_memory_core().

◆ dsp563xx_once_execute_sw_ir()

int dsp563xx_once_execute_sw_ir	(	struct jtag_tap *	tap,
		int	flush,
		uint32_t	opcode
	)

single word instruction

Definition at line 238 of file dsp563xx_once.c.

References dsp563xx_once_ir_exec(), DSP563XX_ONCE_OPDBR, dsp563xx_write_dr_u32(), ERROR_OK, and jtag_execute_queue().

Referenced by dsp563xx_read_memory_core(), dsp563xx_reg_read(), dsp563xx_reg_read_high_io(), dsp563xx_reg_write(), dsp563xx_reg_write_high_io(), and dsp563xx_write_memory_core().

◆ dsp563xx_once_read_register()

int dsp563xx_once_read_register	(	struct jtag_tap *	tap,
		int	flush,
		struct once_reg *	regs,
		int	len
	)

once read registers

Definition at line 171 of file dsp563xx_once.c.

References addr, dsp563xx_once_reg_read_ex(), ERROR_OK, jtag_execute_queue(), and regs.

Referenced by dsp563xx_debug_once_init().

◆ dsp563xx_once_reg_read()

int dsp563xx_once_reg_read	(	struct jtag_tap *	tap,
		int	flush,
		uint8_t	reg,
		uint32_t *	data
	)

once read register

Definition at line 205 of file dsp563xx_once.c.

References dsp563xx_once_ir_exec(), dsp563xx_write_dr_u32(), ERROR_OK, and jtag_execute_queue().

Referenced by dsp563xx_poll(), dsp563xx_read_memory_core(), dsp563xx_reg_read(), dsp563xx_reg_read_high_io(), and dsp563xx_step_ex().

◆ dsp563xx_once_reg_read_ex()

int dsp563xx_once_reg_read_ex	(	struct jtag_tap *	tap,
		int	flush,
		uint8_t	reg,
		uint8_t	len,
		uint32_t *	data
	)

once read register

Definition at line 188 of file dsp563xx_once.c.

References dsp563xx_once_ir_exec(), dsp563xx_write_dr_u32(), ERROR_OK, and jtag_execute_queue().

Referenced by dsp563xx_once_read_register().

◆ dsp563xx_once_reg_write()

int dsp563xx_once_reg_write	(	struct jtag_tap *	tap,
		int	flush,
		uint8_t	reg,
		uint32_t	data
	)

once write register

Definition at line 222 of file dsp563xx_once.c.

References dsp563xx_once_ir_exec(), dsp563xx_write_dr_u32(), ERROR_OK, and jtag_execute_queue().

Referenced by dsp563xx_add_custom_watchpoint(), dsp563xx_examine(), dsp563xx_poll(), dsp563xx_remove_custom_watchpoint(), dsp563xx_resume(), and dsp563xx_step_ex().

◆ dsp563xx_once_request_debug()

int dsp563xx_once_request_debug	(	struct jtag_tap *	tap,
		int	reset_state
	)

Definition at line 113 of file dsp563xx_once.c.

References dsp563xx_jtag_sendinstr(), ERROR_OK, ERROR_TARGET_FAILURE, jtag_execute_queue(), JTAG_INSTR_DEBUG_REQUEST, JTAG_INSTR_ENABLE_ONCE, JTAG_STATUS_DEBUG, and LOG_DEBUG.

Referenced by dsp563xx_jtag_debug_request().

◆ dsp563xx_once_target_status()

int dsp563xx_once_target_status ( struct jtag_tap * tap )

Definition at line 90 of file dsp563xx_once.c.

References dsp563xx_jtag_sendinstr(), ERROR_OK, jtag_execute_queue(), JTAG_INSTR_ENABLE_ONCE, JTAG_STATUS_DEBUG, JTAG_STATUS_STATIC_MASK, JTAG_STATUS_STATIC_VALUE, TARGET_HALTED, TARGET_RUNNING, and TARGET_UNKNOWN.

Referenced by dsp563xx_poll().
