arm_opcodes.h File Reference

Macros used to generate various ARM or Thumb opcodes. More...

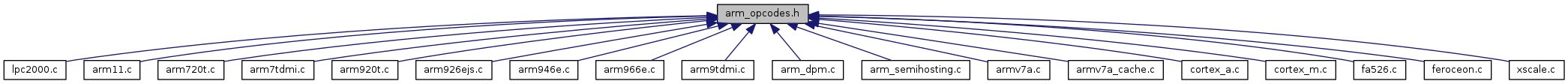

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros

#define A_FLAG   4

#define ARM_T2_CPSID(_if)

#define ARM_T2_CPSIE(_if)

#define ARM_T2_MRS(rd, sysm)    ((0xF3EF) | ((0x8000 | (rd << 8) | sysm) << 16))

#define ARM_T2_MSR(sysm, rn)    ((0xF380 | (rn << 8)) | ((0x8800 | sysm) << 16))

#define ARMV4_5_B(im, l)   (0xea000000 | (im) | ((l) << 24))

#define ARMV4_5_BX(rm)   (0xe12fff10 | (rm))

#define ARMV4_5_LDC(p, u, d, w, cp, crd, rn, imm)

#define ARMV4_5_LDMIA(rn, list, s, w)    (0xe8900000 | ((s) << 22) | ((w) << 21) | ((rn) << 16) | (list))

#define ARMV4_5_LDR(rd, rn)   (0xe5900000 | ((rd) << 12) | ((rn) << 16))

#define ARMV4_5_LDRB_IP(rd, rn)   (0xe4d00001 | ((rd) << 12) | ((rn) << 16))

#define ARMV4_5_LDRH_IP(rd, rn)   (0xe0d000b2 | ((rd) << 12) | ((rn) << 16))

#define ARMV4_5_LDRW_IP(rd, rn)   (0xe4900004 | ((rd) << 12) | ((rn) << 16))

#define ARMV4_5_MCR(cp, op1, rd, crn, crm, op2)

#define ARMV4_5_MRC(cp, op1, rd, crn, crm, op2)

#define ARMV4_5_MRS(rn, r)   (0xe10f0000 | ((r) << 22) | ((rn) << 12))

#define ARMV4_5_MSR_GP(rm, field, r)    (0xe120f000 | (rm) | ((field) << 16) | ((r) << 22))

#define ARMV4_5_MSR_IM(im, rotate, field, r)    (0xe320f000 | (im) | ((rotate) << 8) | ((field) << 16) | ((r) << 22))

#define ARMV4_5_NOP   (0xe1a08008)

#define ARMV4_5_STC(p, u, d, w, cp, crd, rn, imm)

#define ARMV4_5_STMIA(rn, list, s, w)    (0xe8800000 | ((s) << 22) | ((w) << 21) | ((rn) << 16) | (list))

#define ARMV4_5_STR(rd, rn)   (0xe5800000 | ((rd) << 12) | ((rn) << 16))

#define ARMV4_5_STRB_IP(rd, rn)   (0xe4c00001 | ((rd) << 12) | ((rn) << 16))

#define ARMV4_5_STRH_IP(rd, rn)   (0xe0c000b2 | ((rd) << 12) | ((rn) << 16))

#define ARMV4_5_STRW_IP(rd, rn)   (0xe4800004 | ((rd) << 12) | ((rn) << 16))

#define ARMV4_5_T_B(imm)

#define ARMV4_5_T_BX(rm)

#define ARMV4_5_T_LDMIA(rn, list)

#define ARMV4_5_T_LDR(rd, rn)

#define ARMV4_5_T_LDR_PCREL(rd)

#define ARMV4_5_T_MOV(rd, rm)

#define ARMV4_5_T_MOV_IM(rd, im)

#define ARMV4_5_T_NOP   (0x46c0 | (0x46c0 << 16))

#define ARMV4_5_T_STR(rd, rn)

#define ARMV4_5_VMOV(op, rt2, rt, m, vm)

#define ARMV4_5_VMRS(rt)   (0xeef10a10 | ((rt) << 12))

#define ARMV4_5_VMSR(rt)   (0xeee10a10 | ((rt) << 12))

#define ARMV5_BKPT(im)   (0xe1200070 | ((im & 0xfff0) << 4) | (im & 0xf))

#define ARMV5_T_BKPT(im)

#define F_FLAG   1

#define I_FLAG   2


Detailed Description

Macros used to generate various ARM or Thumb opcodes.

Definition in file arm_opcodes.h.

Macro Definition Documentation

◆ A_FLAG

#define A_FLAG   4

Definition at line 316 of file arm_opcodes.h.

◆ ARM_T2_CPSID

#define ARM_T2_CPSID (   _if)
Value:
((0xB660 | (1 << 8) | ((_if)&0x3)) \
| ((0xB660 | (1 << 8) | ((_if)&0x3)) << 16))

Definition at line 319 of file arm_opcodes.h.

◆ ARM_T2_CPSIE

#define ARM_T2_CPSIE (   _if)
Value:
((0xB660 | (0 << 8) | ((_if)&0x3)) \
| ((0xB660 | (0 << 8) | ((_if)&0x3)) << 16))

Definition at line 322 of file arm_opcodes.h.

◆ ARM_T2_MRS

#define ARM_T2_MRS (   rd,
  sysm
)     ((0xF3EF) | ((0x8000 | (rd << 8) | sysm) << 16))

Definition at line 300 of file arm_opcodes.h.

◆ ARM_T2_MSR

#define ARM_T2_MSR (   sysm,
  rn
)     ((0xF380 | (rn << 8)) | ((0x8800 | sysm) << 16))

Definition at line 308 of file arm_opcodes.h.

◆ ARMV4_5_B

#define ARMV4_5_B (   im,

)    (0xea000000 | (im) | ((l) << 24))

Definition at line 117 of file arm_opcodes.h.

◆ ARMV4_5_BX

#define ARMV4_5_BX (   rm)    (0xe12fff10 | (rm))

Definition at line 122 of file arm_opcodes.h.

◆ ARMV4_5_LDC

#define ARMV4_5_LDC (   p,
  u,
  d,
  w,
  cp,
  crd,
  rn,
  imm
)
Value:
(0xec100000 | ((p) << 24) | ((u) << 23) | ((d) << 22) | \
((w) << 21) | ((rn) << 16) | ((crd) << 12) | ((cp) << 8) | ((imm) >> 2))

Definition at line 174 of file arm_opcodes.h.

◆ ARMV4_5_LDMIA

#define ARMV4_5_LDMIA (   rn,
  list,
  s,

)     (0xe8900000 | ((s) << 22) | ((w) << 21) | ((rn) << 16) | (list))

Definition at line 42 of file arm_opcodes.h.

◆ ARMV4_5_LDR

#define ARMV4_5_LDR (   rd,
  rn
)    (0xe5900000 | ((rd) << 12) | ((rn) << 16))

Definition at line 64 of file arm_opcodes.h.

◆ ARMV4_5_LDRB_IP

#define ARMV4_5_LDRB_IP (   rd,
  rn
)    (0xe4d00001 | ((rd) << 12) | ((rn) << 16))

Definition at line 93 of file arm_opcodes.h.

◆ ARMV4_5_LDRH_IP

#define ARMV4_5_LDRH_IP (   rd,
  rn
)    (0xe0d000b2 | ((rd) << 12) | ((rn) << 16))

Definition at line 87 of file arm_opcodes.h.

◆ ARMV4_5_LDRW_IP

#define ARMV4_5_LDRW_IP (   rd,
  rn
)    (0xe4900004 | ((rd) << 12) | ((rn) << 16))

Definition at line 81 of file arm_opcodes.h.

◆ ARMV4_5_MCR

#define ARMV4_5_MCR (   cp,
  op1,
  rd,
  crn,
  crm,
  op2
)
Value:
(0xee000010 | (crm) | ((op2) << 5) | ((cp) << 8) \
| ((rd) << 12) | ((crn) << 16) | ((op1) << 21))

Definition at line 198 of file arm_opcodes.h.

◆ ARMV4_5_MRC

#define ARMV4_5_MRC (   cp,
  op1,
  rd,
  crn,
  crm,
  op2
)
Value:
(0xee100010 | (crm) | ((op2) << 5) | ((cp) << 8) \
| ((rd) << 12) | ((crn) << 16) | ((op1) << 21))

Definition at line 186 of file arm_opcodes.h.

◆ ARMV4_5_MRS

#define ARMV4_5_MRS (   rn,

)    (0xe10f0000 | ((r) << 22) | ((rn) << 12))

Definition at line 52 of file arm_opcodes.h.

◆ ARMV4_5_MSR_GP

#define ARMV4_5_MSR_GP (   rm,
  field,

)     (0xe120f000 | (rm) | ((field) << 16) | ((r) << 22))

Definition at line 72 of file arm_opcodes.h.

◆ ARMV4_5_MSR_IM

#define ARMV4_5_MSR_IM (   im,
  rotate,
  field,

)     (0xe320f000 | (im) | ((rotate) << 8) | ((field) << 16) | ((r) << 22))

Definition at line 74 of file arm_opcodes.h.

◆ ARMV4_5_NOP

#define ARMV4_5_NOP   (0xe1a08008)

Definition at line 46 of file arm_opcodes.h.

◆ ARMV4_5_STC

#define ARMV4_5_STC (   p,
  u,
  d,
  w,
  cp,
  crd,
  rn,
  imm
)
Value:
(0xec000000 | ((p) << 24) | ((u) << 23) | ((d) << 22) | \
((w) << 21) | ((rn) << 16) | ((crd) << 12) | ((cp) << 8) | ((imm)>>2))

Definition at line 159 of file arm_opcodes.h.

◆ ARMV4_5_STMIA

#define ARMV4_5_STMIA (   rn,
  list,
  s,

)     (0xe8800000 | ((s) << 22) | ((w) << 21) | ((rn) << 16) | (list))

Definition at line 33 of file arm_opcodes.h.

◆ ARMV4_5_STR

#define ARMV4_5_STR (   rd,
  rn
)    (0xe5800000 | ((rd) << 12) | ((rn) << 16))

Definition at line 58 of file arm_opcodes.h.

◆ ARMV4_5_STRB_IP

#define ARMV4_5_STRB_IP (   rd,
  rn
)    (0xe4c00001 | ((rd) << 12) | ((rn) << 16))

Definition at line 111 of file arm_opcodes.h.

◆ ARMV4_5_STRH_IP

#define ARMV4_5_STRH_IP (   rd,
  rn
)    (0xe0c000b2 | ((rd) << 12) | ((rn) << 16))

Definition at line 105 of file arm_opcodes.h.

◆ ARMV4_5_STRW_IP

#define ARMV4_5_STRW_IP (   rd,
  rn
)    (0xe4800004 | ((rd) << 12) | ((rn) << 16))

Definition at line 99 of file arm_opcodes.h.

◆ ARMV4_5_T_B

#define ARMV4_5_T_B (   imm)
Value:
((0xe000 | (imm)) \
| ((0xe000 | (imm)) << 16))

Definition at line 284 of file arm_opcodes.h.

◆ ARMV4_5_T_BX

#define ARMV4_5_T_BX (   rm)
Value:
((0x4700 | ((rm) << 3)) \
| ((0x4700 | ((rm) << 3)) << 16))

Definition at line 277 of file arm_opcodes.h.

◆ ARMV4_5_T_LDMIA

#define ARMV4_5_T_LDMIA (   rn,
  list
)
Value:
((0xc800 | ((rn) << 8) | (list)) \
| ((0xc800 | ((rn) << 8) | (list)) << 16))

Definition at line 239 of file arm_opcodes.h.

◆ ARMV4_5_T_LDR

#define ARMV4_5_T_LDR (   rd,
  rn
)
Value:
((0x6800 | ((rn) << 3) | (rd)) \
| ((0x6800 | ((rn) << 3) | (rd)) << 16))

Definition at line 231 of file arm_opcodes.h.

◆ ARMV4_5_T_LDR_PCREL

#define ARMV4_5_T_LDR_PCREL (   rd)
Value:
((0x4800 | ((rd) << 8)) \
| ((0x4800 | ((rd) << 8)) << 16))

Definition at line 246 of file arm_opcodes.h.

◆ ARMV4_5_T_MOV

#define ARMV4_5_T_MOV (   rd,
  rm
)
Value:
((0x4600 | ((rd) & 0x7) | (((rd) & 0x8) << 4) | \
(((rm) & 0x7) << 3) | (((rm) & 0x8) << 3)) \
| ((0x4600 | ((rd) & 0x7) | (((rd) & 0x8) << 4) | \
(((rm) & 0x7) << 3) | (((rm) & 0x8) << 3)) << 16))

Definition at line 254 of file arm_opcodes.h.

◆ ARMV4_5_T_MOV_IM

#define ARMV4_5_T_MOV_IM (   rd,
  im
)
Value:
((0x2000 | ((rd) << 8) | (im)) \
| ((0x2000 | ((rd) << 8) | (im)) << 16))

Definition at line 270 of file arm_opcodes.h.

◆ ARMV4_5_T_NOP

#define ARMV4_5_T_NOP   (0x46c0 | (0x46c0 << 16))

Definition at line 264 of file arm_opcodes.h.

◆ ARMV4_5_T_STR

#define ARMV4_5_T_STR (   rd,
  rn
)
Value:
((0x6000 | (rd) | ((rn) << 3)) | \
((0x6000 | (rd) | ((rn) << 3)) << 16))

Definition at line 223 of file arm_opcodes.h.

◆ ARMV4_5_VMOV

#define ARMV4_5_VMOV (   op,
  rt2,
  rt,
  m,
  vm
)
Value:
(0xec400b10 | ((op) << 20) | ((rt2) << 16) | \
((rt) << 12) | ((m) << 5) | (vm))
uint64_t op
Definition: lakemont.c:68

Definition at line 134 of file arm_opcodes.h.

◆ ARMV4_5_VMRS

#define ARMV4_5_VMRS (   rt)    (0xeef10a10 | ((rt) << 12))

Definition at line 141 of file arm_opcodes.h.

◆ ARMV4_5_VMSR

#define ARMV4_5_VMSR (   rt)    (0xeee10a10 | ((rt) << 12))

Definition at line 146 of file arm_opcodes.h.

◆ ARMV5_BKPT

#define ARMV5_BKPT (   im)    (0xe1200070 | ((im & 0xfff0) << 4) | (im & 0xf))

Definition at line 205 of file arm_opcodes.h.

◆ ARMV5_T_BKPT

#define ARMV5_T_BKPT (   im)
Value:
((0xbe00 | (im)) \
| ((0xbe00 | (im)) << 16))

Definition at line 291 of file arm_opcodes.h.

◆ F_FLAG

#define F_FLAG   1

Definition at line 318 of file arm_opcodes.h.

◆ I_FLAG

#define I_FLAG   2

Definition at line 317 of file arm_opcodes.h.
