nds32.c File Reference

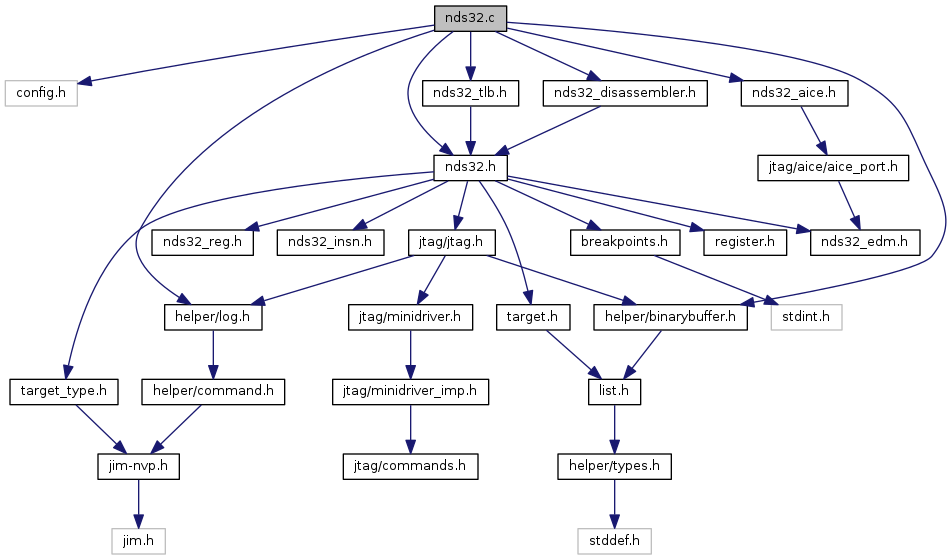

Include dependency graph for nds32.c:

Go to the source code of this file.

Functions
int	nds32_add_software_breakpoint (struct target *target, struct breakpoint *breakpoint)
int	nds32_arch_state (struct target *target)
int	nds32_assert_reset (struct target *target)
static struct reg_cache *	nds32_build_reg_cache (struct target *target, struct nds32 *nds32)
int	nds32_cache_sync (struct target *target, target_addr_t address, uint32_t length)
static int	nds32_callback_event_handler (struct target *target, enum target_event event, void *priv)
static int	nds32_check_extension (struct nds32 *nds32)
	If fpu/audio is disabled, to access fpu/audio registers will cause exceptions. More...
int	nds32_config (struct nds32 *nds32)
int	nds32_edm_config (struct nds32 *nds32)
int	nds32_examine_debug_reason (struct nds32 *nds32)
int	nds32_full_context (struct nds32 *nds32)
static int	nds32_gdb_attach (struct nds32 *nds32)
static int	nds32_gdb_detach (struct nds32 *nds32)
int	nds32_gdb_fileio_end (struct target *target, int retcode, int fileio_errno, bool ctrl_c)
int	nds32_gdb_fileio_write_memory (struct nds32 *nds32, uint32_t address, uint32_t size, const uint8_t *buffer)
static int	nds32_get_all_reg_list (struct nds32 *nds32, struct reg **reg_list[], int *reg_list_size)
	get all register list More...
static int	nds32_get_core_reg (struct reg *reg)
static int	nds32_get_core_reg_64 (struct reg *reg)
int	nds32_get_gdb_fileio_info (struct target *target, struct gdb_fileio_info *fileio_info)
int	nds32_get_gdb_reg_list (struct target *target, struct reg **reg_list[], int *reg_list_size, enum target_register_class reg_class)
	get all register list More...
static int	nds32_get_general_reg_list (struct nds32 *nds32, struct reg **reg_list[], int *reg_list_size)
	get general register list More...
int	nds32_get_mapped_reg (struct nds32 *nds32, unsigned regnum, uint32_t *value)
int	nds32_halt (struct target *target)
int	nds32_init (struct nds32 *nds32)
int	nds32_init_arch_info (struct target *target, struct nds32 *nds32)
static void	nds32_init_config (struct nds32 *nds32)
static int	nds32_init_memory_config (struct nds32 *nds32)
static void	nds32_init_must_have_registers (struct nds32 *nds32)
static int	nds32_init_option_registers (struct nds32 *nds32)
int	nds32_init_register_table (struct nds32 *nds32)
int	nds32_login (struct nds32 *nds32)
int	nds32_mmu (struct target *target, int *enabled)
uint32_t	nds32_nextpc (struct nds32 *nds32, int current, uint32_t address)
int	nds32_poll (struct target *target)
int	nds32_profiling (struct target *target, uint32_t *samples, uint32_t max_num_samples, uint32_t *num_samples, uint32_t seconds)
int	nds32_read_buffer (struct target *target, uint32_t address, uint32_t size, uint8_t *buffer)
int	nds32_read_memory (struct target *target, uint32_t address, uint32_t size, uint32_t count, uint8_t *buffer)
int	nds32_read_phys_memory (struct target *target, target_addr_t address, uint32_t size, uint32_t count, uint8_t *buffer)
static int	nds32_reg_cache_init (struct target *target, struct nds32 *nds32)
static struct reg *	nds32_reg_current (struct nds32 *nds32, unsigned regnum)
int	nds32_remove_software_breakpoint (struct target *target, struct breakpoint *breakpoint)
int	nds32_reset_halt (struct nds32 *nds32)
int	nds32_restore_context (struct target *target)
	Restore the processor context on an Andes target. More...
int	nds32_resume (struct target *target, int current, target_addr_t address, int handle_breakpoints, int debug_execution)
static int	nds32_select_memory_mode (struct target *target, uint32_t address, uint32_t length, uint32_t *end_address)
static int	nds32_set_core_reg (struct reg *reg, uint8_t *buf)
static int	nds32_set_core_reg_64 (struct reg *reg, uint8_t *buf)
int	nds32_set_mapped_reg (struct nds32 *nds32, unsigned regnum, uint32_t value)
	set register internally More...
static int	nds32_soft_reset_halt (struct target *target)
int	nds32_step (struct target *target, int current, target_addr_t address, int handle_breakpoints)
static int	nds32_step_without_watchpoint (struct nds32 *nds32)
int	nds32_target_state (struct nds32 *nds32, enum target_state *state)
static int	nds32_update_cache_info (struct nds32 *nds32)
static int	nds32_update_lm_info (struct nds32 *nds32)
static int	nds32_update_mmu_info (struct nds32 *nds32)
static int	nds32_update_psw (struct nds32 *nds32)
int	nds32_virtual_to_physical (struct target *target, target_addr_t address, target_addr_t *physical)
int	nds32_write_buffer (struct target *target, uint32_t address, uint32_t size, const uint8_t *buffer)
int	nds32_write_memory (struct target *target, uint32_t address, uint32_t size, uint32_t count, const uint8_t *buffer)
int	nds32_write_phys_memory (struct target *target, target_addr_t address, uint32_t size, uint32_t count, const uint8_t *buffer)

Variables
const char *	nds32_debug_type_name [11]
struct nds32_edm_operation	nds32_edm_ops [NDS32_EDM_OPERATION_MAX_NUM]
uint32_t	nds32_edm_ops_num
static const int	nds32_line_size_table [6]
static const int	nds32_lm_size_table [16]
static const struct reg_arch_type	nds32_reg_access_type
static const struct reg_arch_type	nds32_reg_access_type_64

Function Documentation

nds32_add_software_breakpoint()

int nds32_add_software_breakpoint	(	struct target *	target,
		struct breakpoint *	breakpoint
	)

Definition at line 1431 of file nds32.c.

References breakpoint::address, ERROR_FAIL, ERROR_OK, breakpoint::length, NDS32_BREAK_16, NDS32_BREAK_32, nds32_cache_sync(), breakpoint::orig_instr, target_type::read_buffer, target::type, and target_type::write_buffer.

Referenced by nds32_v2_add_breakpoint(), nds32_v3_add_breakpoint(), and nds32_v3m_add_breakpoint().

nds32_arch_state()

int nds32_arch_state

(

struct target *

target

)

Definition at line 964 of file nds32.c.

References buf_set_u32(), nds32::common_magic, debug_reason_name(), ERROR_FAIL, ERROR_OK, IR0, LOG_ERROR, LOG_USER, NDS32_COMMON_MAGIC, nds32_get_mapped_reg(), PC, target::reg_cache, register_get_by_name(), target_to_nds32(), reg::value, and nds32::virtual_hosting.

nds32_assert_reset()

int nds32_assert_reset

(

struct target *

target

)

Definition at line 2176 of file nds32.c.

References aice_assert_srst(), AICE_RESET_HOLD, AICE_SRST, alive_sleep(), nds32::boot_time, nds32::core_cache, nds32_cpu_version::cpu_id_family, nds32_cpu_version::cpu_id_version, nds32::cpu_version, nds32::edm, ERROR_OK, ERROR_TARGET_NOT_EXAMINED, LOG_WARNING, nds32_login(), nds32_soft_reset_halt(), register_cache_invalidate(), target::reset_halt, nds32_cpu_version::revision, nds32::soft_reset_halt, target::state, TARGET_RESET, target_to_aice(), target_to_nds32(), target_was_examined(), and nds32_edm::version.

nds32_build_reg_cache()

static struct reg_cache* nds32_build_reg_cache ( struct target *  target, struct nds32 *  nds32  )

static

Definition at line 381 of file nds32.c.

References reg::arch_info, reg::caller_save, CBE3, nds32::core_cache, CR0, D0L24, nds32_reg::enable, FD0, FD31, reg::feature, FPCFG, FPCSR, FS0, FS31, reg::group, reg_data_type::id, IFC_LP, reg_feature::name, reg::name, reg_cache::name, nds32_reg::nds32, nds32_reg_access_type, nds32_reg_access_type_64, nds32_reg_simple_name(), nds32_reg_size(), reg_cache::next, NULL, nds32_reg::num, reg_cache::num_regs, reg::number, PC, R0, R16, R25, R28, R29, R30, R31, reg::reg_data_type, reg_cache::reg_list, REG_TYPE_CODE_PTR, REG_TYPE_DATA_PTR, REG_TYPE_IEEE_DOUBLE, REG_TYPE_IEEE_SINGLE, REG_TYPE_UINT32, SECUR0, reg::size, target, nds32_reg::target, TOTAL_REG_NUM, reg_data_type::type, reg::type, nds32_reg::value, and reg::value.

Referenced by nds32_reg_cache_init().

nds32_cache_sync()

int nds32_cache_sync	(	struct target *	target,
		target_addr_t	address,
		uint32_t	length
	)

Definition at line 1680 of file nds32.c.

References aice_cache_ctl(), AICE_CACHE_CTL_L1D_VA_INVAL, AICE_CACHE_CTL_L1D_VA_WB, AICE_CACHE_CTL_L1I_VA_INVAL, nds32_memory::dcache, nds32_cache::enable, ERROR_FAIL, ERROR_OK, nds32_memory::icache, length, nds32_cache::line_size, nds32::memory, nds32_line_size_table, target_to_aice(), target_to_nds32(), target::type, and target_type::virt2phys.

Referenced by nds32_add_software_breakpoint(), and nds32_remove_software_breakpoint().

nds32_callback_event_handler()

static int nds32_callback_event_handler ( struct target *  target, enum target_event  event, void *  priv  )

static

Definition at line 2260 of file nds32.c.

References ERROR_OK, nds32_gdb_attach(), nds32_gdb_detach(), priv, TARGET_EVENT_GDB_ATTACH, TARGET_EVENT_GDB_DETACH, target::target_number, and target_to_nds32().

Referenced by nds32_init().

nds32_check_extension()

static int nds32_check_extension ( struct nds32 *  nds32 )

static

If fpu/audio is disabled, to access fpu/audio registers will cause exceptions.

So, we need to check if fpu/audio is enabled or not as target is halted. If fpu/audio is disabled, as users access fpu/audio registers, OpenOCD will return fake value 0 instead of accessing registers through DIM.

Definition at line 253 of file nds32.c.

References nds32::audio_enable, ERROR_OK, nds32::fpu_enable, FUCPR, nds32_get_mapped_reg(), and NDS32_REGISTER_DISABLE.

Referenced by nds32_full_context(), and nds32_set_core_reg().

nds32_config()

int nds32_config

(

struct nds32 *

nds32

)

Definition at line 1593 of file nds32.c.

References nds32_memory::dlm_size, ERROR_OK, nds32_memory::ilm_size, nds32_misc_config::interruption_level, nds32::max_interrupt_level, nds32::memory, nds32::misc_config, MR6, MR7, nds32_get_mapped_reg(), nds32_init_config(), nds32_init_option_registers(), and nds32_lm_size_table.

Referenced by nds32_v2_debug_entry(), and nds32_v3_debug_entry().

nds32_edm_config()

int nds32_edm_config

(

struct nds32 *

nds32

)

Definition at line 1554 of file nds32.c.

References nds32_edm::access_control, aice_read_debug_reg(), nds32_edm::breakpoint_num, nds32_edm::direct_access_local_memory, nds32::edm, ERROR_OK, LOG_INFO, nds32_login(), NDS_EDM_SR_EDM_CFG, NDS_EDM_SR_EDM_CTL, nds32_edm::support_max_stop, nds32::target, target_to_aice(), and nds32_edm::version.

Referenced by nds32_v2_examine(), nds32_v3_examine(), and nds32_v3m_examine().

nds32_examine_debug_reason()

int nds32_examine_debug_reason

(

struct nds32 *

nds32

)

Definition at line 1888 of file nds32.c.

References DBG_REASON_BREAKPOINT, DBG_REASON_DBGRQ, DBG_REASON_EXIT, DBG_REASON_SINGLESTEP, DBG_REASON_UNDEFINED, DBG_REASON_WATCHPOINT, target::debug_reason, ERROR_FAIL, ERROR_OK, nds32::get_debug_reason, nds32::get_watched_address, nds32::hit_syscall, nds32_instruction::imm, nds32_instruction::info, LOG_DEBUG, NDS32_DEBUG_BREAK, NDS32_DEBUG_BREAK_16, NDS32_DEBUG_DATA_ADDR_WATCHPOINT_NEXT_PRECISE, NDS32_DEBUG_DATA_ADDR_WATCHPOINT_PRECISE, NDS32_DEBUG_DATA_VALUE_WATCHPOINT_IMPRECISE, NDS32_DEBUG_DATA_VALUE_WATCHPOINT_NEXT_PRECISE, NDS32_DEBUG_DATA_VALUE_WATCHPOINT_PRECISE, NDS32_DEBUG_DEBUG_INTERRUPT, NDS32_DEBUG_HARDWARE_SINGLE_STEP, NDS32_DEBUG_INST_BREAK, NDS32_DEBUG_LOAD_STORE_GLOBAL_STOP, nds32_debug_type_name, nds32_evaluate_opcode(), nds32_get_mapped_reg(), nds32_read_opcode(), nds32_step_without_watchpoint(), nds32_instruction::opc_6, nds32_instruction::opcode, PC, nds32_instruction::sub_opc, nds32::target, and nds32::watched_address.

Referenced by nds32_v2_debug_entry(), and nds32_v3_debug_entry().

nds32_full_context()

int nds32_full_context

(

struct nds32 *

nds32

)

Definition at line 494 of file nds32.c.

References ERROR_OK, IR0, nds32_check_extension(), nds32_get_mapped_reg(), nds32_update_cache_info(), nds32_update_lm_info(), nds32_update_mmu_info(), nds32_update_psw(), PC, and reg::value.

Referenced by nds32_v2_debug_entry(), and nds32_v3_debug_entry().

nds32_gdb_attach()

static int nds32_gdb_attach ( struct nds32 *  nds32 )

static

Definition at line 2215 of file nds32.c.

References aice_read_debug_reg(), nds32::attached, nds32::backup_edm_ctl, target::coreid, ERROR_OK, nds32::keep_target_edm_ctl, LOG_DEBUG, NDS_EDM_SR_EDM_CTL, nds32::target, target_halt(), and target_to_aice().

Referenced by nds32_callback_event_handler().

nds32_gdb_detach()

static int nds32_gdb_detach ( struct nds32 *  nds32 )

static

Definition at line 2235 of file nds32.c.

References aice_write_debug_reg(), nds32::attached, nds32::backup_edm_ctl, ERROR_OK, nds32::keep_target_edm_ctl, LOG_DEBUG, NDS_EDM_SR_EDM_CTL, nds32::target, target_resume(), target_to_aice(), and nds32::virtual_hosting.

Referenced by nds32_callback_event_handler().

nds32_gdb_fileio_end()

int nds32_gdb_fileio_end	(	struct target *	target,
		int	retcode,
		int	fileio_errno,
		bool	ctrl_c
	)

Definition at line 2458 of file nds32.c.

References nds32::active_syscall_id, ERROR_OK, LOG_DEBUG, nds32_set_mapped_reg(), NDS32_SYSCALL_UNDEFINED, R0, target_to_nds32(), nds32::virtual_hosting_ctrl_c, and nds32::virtual_hosting_errno.

nds32_gdb_fileio_write_memory()

int nds32_gdb_fileio_write_memory	(	struct nds32 *	nds32,
		uint32_t	address,
		uint32_t	size,
		const uint8_t *	buffer
	)

Definition at line 2499 of file nds32.c.

References nds32::active_syscall_id, buffer, NDS32_STRUCT_STAT_SIZE, NDS32_STRUCT_TIMEVAL_SIZE, NDS32_SYSCALL_FSTAT, NDS32_SYSCALL_GETTIMEOFDAY, NDS32_SYSCALL_STAT, nds32_write_buffer(), size, and nds32::target.

Referenced by nds32_v3_write_buffer().

nds32_get_all_reg_list()

static int nds32_get_all_reg_list ( struct nds32 *  nds32, struct reg **  reg_list[], int *  reg_list_size  )

static

get all register list

freed in gdb_server.c

Definition at line 573 of file nds32.c.

References reg::arch_info, nds32::core_cache, ERROR_OK, reg::exist, nds32_reg_current(), and reg_cache::num_regs.

Referenced by nds32_get_gdb_reg_list().

nds32_get_core_reg()

static int nds32_get_core_reg ( struct reg *  reg )

static

Definition at line 59 of file nds32.c.

References aice_read_register(), reg::arch_info, nds32::audio_enable, buf_get_u32(), buf_set_u32(), reg::dirty, nds32_reg::enable, ERROR_FAIL, ERROR_OK, ERROR_TARGET_NOT_HALTED, nds32::fpu_enable, LOG_DEBUG, LOG_ERROR, reg::name, nds32_reg_type(), NDS32_REG_TYPE_AUMR, NDS32_REG_TYPE_FPU, NDS32_REGISTER_DISABLE, nds32_reg::num, nds32::register_map, target::state, nds32_reg::target, TARGET_HALTED, target_to_aice(), target_to_nds32(), reg::valid, and nds32_reg::value.

nds32_get_core_reg_64()

static int nds32_get_core_reg_64 ( struct reg *  reg )

static

Definition at line 109 of file nds32.c.

References aice_read_reg_64(), reg::arch_info, buf_set_u64(), reg::dirty, nds32_reg::enable, ERROR_FAIL, ERROR_OK, ERROR_TARGET_NOT_HALTED, FD0, FD31, nds32::fpu_enable, LOG_ERROR, NDS32_REGISTER_DISABLE, nds32_reg::num, target::state, nds32_reg::target, TARGET_HALTED, target_to_aice(), target_to_nds32(), reg::valid, and nds32_reg::value.

nds32_get_gdb_fileio_info()

int nds32_get_gdb_fileio_info	(	struct target *	target,
		struct gdb_fileio_info *	fileio_info
	)

Definition at line 2297 of file nds32.c.

References nds32::active_syscall_id, ERROR_FAIL, ERROR_OK, nds32::hit_syscall, gdb_fileio_info::identifier, IR6, LOG_DEBUG, LOG_ERROR, nds32_get_mapped_reg(), nds32_set_mapped_reg(), NDS32_SYSCALL_CLOSE, NDS32_SYSCALL_ERRNO, NDS32_SYSCALL_EXIT, NDS32_SYSCALL_FSTAT, NDS32_SYSCALL_GETTIMEOFDAY, NDS32_SYSCALL_ISATTY, NDS32_SYSCALL_LSEEK, NDS32_SYSCALL_OPEN, NDS32_SYSCALL_READ, NDS32_SYSCALL_RENAME, NDS32_SYSCALL_STAT, NDS32_SYSCALL_SYSTEM, NDS32_SYSCALL_UNLINK, NDS32_SYSCALL_WRITE, NULL, gdb_fileio_info::param_1, gdb_fileio_info::param_2, gdb_fileio_info::param_3, gdb_fileio_info::param_4, R0, R1, R2, target_type::read_buffer, target_to_nds32(), target::type, and nds32::virtual_hosting_errno.

nds32_get_gdb_reg_list()

int nds32_get_gdb_reg_list	(	struct target *	target,
		struct reg **	reg_list[],
		int *	reg_list_size,
		enum target_register_class	reg_class
	)

get all register list

Definition at line 596 of file nds32.c.

References ERROR_FAIL, nds32_get_all_reg_list(), nds32_get_general_reg_list(), REG_CLASS_ALL, REG_CLASS_GENERAL, and target_to_nds32().

nds32_get_general_reg_list()

static int nds32_get_general_reg_list ( struct nds32 *  nds32, struct reg **  reg_list[], int *  reg_list_size  )

static

get general register list

freed in gdb_server.c

Definition at line 549 of file nds32.c.

References reg::arch_info, ERROR_OK, IFC_LP, nds32_reg_current(), and R0.

Referenced by nds32_get_gdb_reg_list().

nds32_get_mapped_reg()

int nds32_get_mapped_reg	(	struct nds32 *	nds32,
		unsigned	regnum,
		uint32_t *	value
	)

Definition at line 513 of file nds32.c.

References buf_get_u32(), nds32::core_cache, ERROR_FAIL, ERROR_OK, reg_arch_type::get, nds32_reg_current(), reg_cache::num_regs, reg::type, and reg::value.

Referenced by COMMAND_HANDLER(), nds32_arch_state(), nds32_calculate_lsmw_access_range(), nds32_check_extension(), nds32_config(), nds32_examine_debug_reason(), nds32_full_context(), nds32_get_gdb_fileio_info(), nds32_init_config(), nds32_init_memory_config(), nds32_init_option_registers(), nds32_nextpc(), nds32_parse_group_0_insn(), nds32_parse_group_1_insn(), nds32_parse_group_1_insn_16(), nds32_parse_group_2_insn(), nds32_parse_group_3_insn_16(), nds32_parse_hwgp(), nds32_parse_mem(), nds32_parse_sbgp(), nds32_resume(), nds32_soft_reset_halt(), nds32_step(), nds32_step_without_watchpoint(), nds32_update_cache_info(), nds32_update_lm_info(), nds32_update_mmu_info(), nds32_update_psw(), nds32_v3_check_interrupt_stack(), nds32_v3_deassert_reset(), nds32_v3_debug_entry(), nds32_v3_get_exception_address(), nds32_v3_leave_debug_state(), nds32_v3_restore_interrupt_stack(), nds32_v3m_check_interrupt_stack(), nds32_v3m_restore_interrupt_stack(), and nds32_walk_page_table().

nds32_halt()

int nds32_halt

(

struct target *

target

)

Definition at line 2031 of file nds32.c.

References aice_halt(), CHECK_RETVAL, nds32::enter_debug_state, ERROR_FAIL, ERROR_OK, LOG_DEBUG, nds32_target_state(), state, target::state, target_call_event_callbacks(), TARGET_EVENT_HALTED, TARGET_HALTED, target_state_name(), target_to_aice(), and target_to_nds32().

nds32_init()

int nds32_init

(

struct nds32 *

nds32

)

Definition at line 2285 of file nds32.c.

References nds32_memory::access_channel, ERROR_OK, nds32::memory, nds32_callback_event_handler(), NDS_MEMORY_ACC_CPU, nds32::target, target::target_number, and target_register_event_callback().

Referenced by nds32_v2_init_target(), and nds32_v3_init_target().

nds32_init_arch_info()

int nds32_init_arch_info	(	struct target *	target,
		struct nds32 *	nds32
	)

Definition at line 1620 of file nds32.c.

References nds32::active_syscall_id, target::arch_info, breakpoint::asid, nds32::attached, nds32::auto_convert_hw_bp, nds32::boot_time, nds32::common_magic, nds32::edm_passcode, ERROR_FAIL, ERROR_OK, nds32::global_stop, nds32::hit_syscall, nds32::init_arch_info_after_halted, breakpoint::is_set, nds32::keep_target_edm_ctl, breakpoint::length, breakpoint::linked_brp, NDS32_COMMON_MAGIC, nds32_init_register_table(), nds32_reg_cache_init(), nds32_reg_init(), NDS32_SYSCALL_UNDEFINED, breakpoint::next, NULL, breakpoint::orig_instr, nds32::privilege_level, nds32::reset_halt_as_examine, nds32::soft_reset_halt, nds32::syscall_break, target, nds32::target, target::target_number, breakpoint::unique_id, nds32::virtual_hosting, nds32::virtual_hosting_ctrl_c, nds32::virtual_hosting_errno, and nds32::word_access_mem.

Referenced by nds32_v2_target_create(), and nds32_v3_target_create_common().

nds32_init_config()

static void nds32_init_config ( struct nds32 *  nds32 )

static

Definition at line 1070 of file nds32.c.

References nds32_cpu_version::_16bit_extension, nds32_mmu_config::_8k_page_support, nds32_misc_config::addr_24, nds32_misc_config::audio_isa, nds32_misc_config::baseline_instruction, nds32_cpu_version::cop_fpu_extension, nds32_cpu_version::cpu_id_family, nds32_cpu_version::cpu_id_version, nds32::cpu_version, CR0, CR3, CR4, nds32_misc_config::debug_tracer, nds32_mmu_config::default_endian, nds32_misc_config::div_instruction, nds32_mmu_config::drde, nds32_misc_config::edm, nds32_misc_config::ex9, nds32_mmu_config::extra_page_size_support, nds32_mmu_config::fully_associative_tlb, nds32_mmu_config::hardware_page_table_walker, nds32_misc_config::high_speed_memory_port, nds32_misc_config::ifc, nds32_misc_config::implement_dependant_register, nds32_misc_config::implement_dependant_sr_encoding, nds32_misc_config::interruption_level, nds32_mmu_config::invisible_tlb, nds32_misc_config::l2_cache, nds32_misc_config::local_memory_dma, nds32_misc_config::mac_instruction, nds32_misc_config::mcu, nds32_mmu_config::memory_protection, nds32_mmu_config::memory_protection_version, nds32::misc_config, nds32::mmu_config, nds32_get_mapped_reg(), nds32_init_memory_config(), nds32_misc_config::no_dx_register, nds32_mmu_config::ntme, nds32_mmu_config::partition_num, nds32_cpu_version::performance_extension, nds32_cpu_version::performance_extension_2, nds32_misc_config::performance_monitor, nds32_misc_config::reduce_register, nds32_cpu_version::revision, nds32_misc_config::shadow, nds32_cpu_version::string_extension, nds32_mmu_config::tlb_lock, nds32_mmu_config::tlb_sets, nds32_mmu_config::tlb_size, nds32_mmu_config::tlb_ways, and nds32_mmu_config::vlpt.

Referenced by nds32_config().

nds32_init_memory_config()

static int nds32_init_memory_config ( struct nds32 *  nds32 )

static

Definition at line 1041 of file nds32.c.

References CR1, CR2, nds32_memory::dcache, nds32_memory::dlm_align_ver, nds32_memory::dlm_base, ERROR_OK, nds32_memory::icache, nds32_memory::ilm_align_ver, nds32_memory::ilm_base, nds32_cache::line_size, nds32_cache::lock_support, nds32::memory, nds32_get_mapped_reg(), nds32_cache::set, and nds32_cache::way.

Referenced by nds32_init_config().

nds32_init_must_have_registers()

static void nds32_init_must_have_registers ( struct nds32 *  nds32 )

static

MUST have general registers

MUST have configuration system registers

MUST have interrupt system registers

MUST have MMU system registers

MUST have EDM system registers

Definition at line 992 of file nds32.c.

References reg::arch_info, nds32::core_cache, CR0, CR1, CR2, CR3, CR4, DR40, DR42, IR0, IR1, IR11, IR14, IR15, IR3, IR4, IR6, IR9, MR0, PC, R0, R1, R10, R15, R2, R28, R29, R3, R30, R31, R4, R5, R6, R7, R8, R9, and reg_cache::reg_list.

Referenced by nds32_init_register_table().

nds32_init_option_registers()

static int nds32_init_option_registers ( struct nds32 *  nds32 )

static

Definition at line 1139 of file nds32.c.

References ADM_VBASE, reg::arch_info, nds32_misc_config::audio_isa, nds32_edm::breakpoint_num, CB_CTL, CBB0, CBB1, CBB2, CBB3, CBE0, CBE1, CBE2, CBE3, nds32_cpu_version::cop_fpu_extension, nds32::core_cache, nds32_cpu_version::cpu_id_family, nds32::cpu_version, CR5, CR6, D0HI, D0L24, D0LO, D1HI, D1L24, D1LO, nds32_memory::dcache, nds32_misc_config::debug_tracer, nds32_memory::dlm_base, DMAR0, DMAR1, DMAR10, DMAR2, DMAR3, DMAR4, DMAR5, DMAR6, DMAR7, DMAR8, DMAR9, DR0, DR41, DR43, DR44, DR45, DR46, DR47, nds32_misc_config::edm, nds32::edm, nds32_reg::enable, ERROR_OK, nds32_misc_config::ex9, FPCFG, FPCSR, FUCPR, nds32_misc_config::high_speed_memory_port, I0, I1, I2, I3, I4, I5, I6, I7, nds32_memory::icache, IDR0, IDR1, nds32_misc_config::ifc, IFC_LP, nds32_memory::ilm_base, nds32_misc_config::interruption_level, IR1, IR10, IR12, IR13, IR16, IR17, IR18, IR19, IR2, IR20, IR21, IR22, IR23, IR24, IR25, IR26, IR27, IR28, IR29, IR3, IR30, IR4, IR5, IR7, IR8, IR9, ITB, LBE, LC, LE, nds32_cache::line_size, nds32_misc_config::local_memory_dma, M1, M2, M3, M5, M6, M7, nds32_misc_config::mcu, nds32::memory, nds32_mmu_config::memory_protection, nds32_mmu_config::memory_protection_version, nds32::misc_config, nds32::mmu_config, MOD, MR0, MR1, MR10, MR11, MR2, MR3, MR4, MR5, MR6, MR7, MR8, MR9, nds32_get_mapped_reg(), nds32_set_mapped_reg(), nds32_misc_config::no_dx_register, nds32_misc_config::performance_monitor, PFR0, PFR1, PFR2, PFR3, nds32::privilege_level, R11, R12, R13, R14, R16, R17, R18, R19, R20, R21, R22, R23, R24, R25, R26, R27, RACR, nds32_misc_config::reduce_register, reg_cache::reg_list, nds32_cpu_version::revision, SECUR0, nds32_misc_config::shadow, SHFT_CTL0, and SHFT_CTL1.

Referenced by nds32_config().

nds32_init_register_table()

int nds32_init_register_table

(

struct nds32 *

nds32

)

Definition at line 1424 of file nds32.c.

References ERROR_OK, and nds32_init_must_have_registers().

Referenced by nds32_init_arch_info().

nds32_login()

int nds32_login

(

struct nds32 *

nds32

)

Definition at line 1969 of file nds32.c.

References aice_program_edm(), aice_read_debug_reg(), nds32::edm_passcode, ERROR_FAIL, ERROR_OK, LOG_DEBUG, LOG_INFO, nds32_edm_ops, nds32_edm_ops_num, NDS_EDM_SR_EDMSW, NULL, nds32::privilege_level, nds32::target, target_to_aice(), and nds32_edm_operation::value.

Referenced by nds32_assert_reset(), and nds32_edm_config().

nds32_mmu()

int nds32_mmu	(	struct target *	target,
		int *	enabled
	)

Definition at line 945 of file nds32.c.

References nds32_memory::address_translation, ERROR_OK, ERROR_TARGET_INVALID, LOG_ERROR, nds32::memory, nds32_mmu_config::memory_protection, nds32::mmu_config, target::state, TARGET_HALTED, and target_to_nds32().

nds32_nextpc()

uint32_t nds32_nextpc	(	struct nds32 *	nds32,
		int	current,
		uint32_t	address
	)

Definition at line 1740 of file nds32.c.

References nds32_get_mapped_reg(), nds32_set_mapped_reg(), and PC.

Referenced by nds32_resume(), and nds32_step().

nds32_poll()

int nds32_poll

(

struct target *

target

)

Definition at line 2061 of file nds32.c.

References aice_run(), nds32::core_cache, DBG_REASON_NOTHALTED, target::debug_reason, nds32::enter_debug_state, ERROR_FAIL, ERROR_OK, LOG_DEBUG, LOG_WARNING, nds32_target_state(), register_cache_invalidate(), state, target::state, target_call_event_callbacks(), TARGET_DEBUG_RUNNING, TARGET_EVENT_HALTED, TARGET_HALTED, TARGET_RESET, TARGET_RUNNING, target_to_aice(), and target_to_nds32().

Referenced by nds32_v2_deassert_reset(), nds32_v3_deassert_reset(), and nds32_v3m_deassert_reset().

nds32_profiling()

int nds32_profiling	(	struct target *	target,
		uint32_t *	samples,
		uint32_t	max_num_samples,
		uint32_t *	num_samples,
		uint32_t	seconds
	)

Definition at line 2474 of file nds32.c.

References aice_profiling(), target::cmd_name, nds32::core_cache, ERROR_OK, ERROR_TARGET_NOT_HALTED, LOG_WARNING, PC, register_cache_invalidate(), nds32::register_map, target::state, TARGET_HALTED, target_to_aice(), and target_to_nds32().

nds32_read_buffer()

int nds32_read_buffer	(	struct target *	target,
		uint32_t	address,
		uint32_t	size,
		uint8_t *	buffer
	)

Definition at line 713 of file nds32.c.

References nds32_memory::access_channel, aice_read_mem_bulk(), aice_read_mem_unit(), buffer, ERROR_OK, ERROR_TARGET_NOT_HALTED, LOG_DEBUG, LOG_WARNING, nds32::memory, nds32_select_memory_mode(), NDS_MEMORY_ACC_CPU, size, target::state, TARGET_HALTED, target_to_aice(), and target_to_nds32().

Referenced by nds32_v2_read_buffer(), nds32_v3_read_buffer(), and nds32_walk_page_table().

nds32_read_memory()

int nds32_read_memory	(	struct target *	target,
		uint32_t	address,
		uint32_t	size,
		uint32_t	count,
		uint8_t *	buffer
	)

Definition at line 804 of file nds32.c.

References aice_read_mem_unit(), buffer, count, size, and target_to_aice().

Referenced by nds32_v2_read_memory(), and nds32_v3_read_memory().

nds32_read_phys_memory()

int nds32_read_phys_memory	(	struct target *	target,
		target_addr_t	address,
		uint32_t	size,
		uint32_t	count,
		uint8_t *	buffer
	)

Definition at line 812 of file nds32.c.

References nds32_memory::access_channel, aice_memory_access(), aice_read_mem_unit(), buffer, count, nds32::memory, NDS_MEMORY_ACC_BUS, size, target_to_aice(), and target_to_nds32().

nds32_reg_cache_init()

static int nds32_reg_cache_init ( struct target *  target, struct nds32 *  nds32  )

static

Definition at line 472 of file nds32.c.

References ERROR_FAIL, ERROR_OK, nds32_build_reg_cache(), target::reg_cache, and register_get_last_cache_p().

Referenced by nds32_init_arch_info().

nds32_reg_current()

static struct reg* nds32_reg_current ( struct nds32 *  nds32, unsigned  regnum  )

static

Definition at line 485 of file nds32.c.

References nds32::core_cache, and reg_cache::reg_list.

Referenced by nds32_get_all_reg_list(), nds32_get_general_reg_list(), nds32_get_mapped_reg(), and nds32_set_mapped_reg().

nds32_remove_software_breakpoint()

int nds32_remove_software_breakpoint	(	struct target *	target,
		struct breakpoint *	breakpoint
	)

Definition at line 1469 of file nds32.c.

References breakpoint::address, ERROR_FAIL, ERROR_OK, breakpoint::length, NDS32_BREAK_16, NDS32_BREAK_32, nds32_cache_sync(), breakpoint::orig_instr, target_type::read_buffer, target::type, and target_type::write_buffer.

Referenced by nds32_v2_remove_breakpoint(), nds32_v3_remove_breakpoint(), and nds32_v3m_remove_breakpoint().

nds32_reset_halt()

int nds32_reset_halt

(

struct nds32 *

nds32

)

Definition at line 2605 of file nds32.c.

References aice_assert_srst(), AICE_RESET_HOLD, ERROR_OK, LOG_INFO, nds32::target, and target_to_aice().

Referenced by nds32_v2_examine(), nds32_v3_examine(), and nds32_v3m_examine().

nds32_restore_context()

int nds32_restore_context

(

struct target *

target

)

Restore the processor context on an Andes target.

The full processor context is analyzed to see if any of the registers are dirty on this end, but have a valid new value. If this is the case, the processor is changed to the appropriate mode and the new register values are written out to the processor. If there happens to be a dirty register with an invalid value, an error will be logged.

Parameters

target

Pointer to the Andes target to have its context restored

Returns

Error status if the target is not halted.

Definition at line 1510 of file nds32.c.

References aice_write_reg_64(), aice_write_register(), reg::arch_info, buf_get_u32(), buf_get_u64(), nds32::core_cache, reg::dirty, ERROR_OK, ERROR_TARGET_NOT_HALTED, FD0, FD31, LOG_DEBUG, LOG_WARNING, reg::name, nds32_reg::num, reg_cache::num_regs, reg_cache::reg_list, target::state, TARGET_HALTED, target_to_aice(), target_to_nds32(), reg::valid, nds32_reg::value, and reg::value.

Referenced by nds32_v2_leave_debug_state(), and nds32_v3_leave_debug_state().

nds32_resume()

int nds32_resume	(	struct target *	target,
		int	current,
		target_addr_t	address,
		int	handle_breakpoints,
		int	debug_execution
	)

Definition at line 2104 of file nds32.c.

References aice_run(), CHECK_RETVAL, DBG_REASON_NOTHALTED, target::debug_reason, ERROR_OK, ERROR_TARGET_NOT_HALTED, IR0, nds32::leave_debug_state, LOG_DEBUG, LOG_ERROR, nds32_get_mapped_reg(), nds32_nextpc(), nds32_reach_max_interrupt_level(), nds32_set_mapped_reg(), target::state, target_call_event_callbacks(), TARGET_DEBUG_RUNNING, TARGET_EVENT_RESUMED, target_free_all_working_areas(), TARGET_HALTED, TARGET_PRIxADDR, TARGET_RUNNING, target_state_name(), target_to_aice(), target_to_nds32(), and nds32::virtual_hosting_ctrl_c.

nds32_select_memory_mode()

static int nds32_select_memory_mode ( struct target *  target, uint32_t  address, uint32_t  length, uint32_t *  end_address  )

static

Definition at line 614 of file nds32.c.

References nds32_memory::access_channel, nds32_edm::access_control, aice_memory_mode(), nds32_edm::direct_access_local_memory, nds32_memory::dlm_base, nds32_memory::dlm_enable, nds32_memory::dlm_end, nds32_memory::dlm_start, nds32::edm, ERROR_OK, nds32_memory::ilm_base, nds32_memory::ilm_enable, nds32_memory::ilm_end, nds32_memory::ilm_start, length, LOG_DEBUG, nds32::memory, nds32_memory::mode, NDS_MEMORY_ACC_CPU, NDS_MEMORY_SELECT_AUTO, NDS_MEMORY_SELECT_DLM, NDS_MEMORY_SELECT_ILM, NDS_MEMORY_SELECT_MEM, target_to_aice(), and target_to_nds32().

Referenced by nds32_read_buffer(), and nds32_write_buffer().

nds32_set_core_reg()

static int nds32_set_core_reg ( struct reg *  reg, uint8_t *  buf  )

static

Definition at line 277 of file nds32.c.

References aice_read_register(), aice_write_register(), reg::arch_info, nds32::audio_enable, buf_get_u32(), buf_set_u32(), reg::dirty, ERROR_OK, ERROR_TARGET_NOT_HALTED, nds32::fpu_enable, FUCPR, IR0, LOG_DEBUG, LOG_ERROR, MR0, MR6, MR7, MR8, reg::name, nds32_check_extension(), nds32_reg_exception(), nds32_reg_type(), NDS32_REG_TYPE_AUMR, NDS32_REG_TYPE_FPU, nds32_update_cache_info(), nds32_update_lm_info(), nds32_update_mmu_info(), nds32_update_psw(), nds32_reg::num, nds32::register_map, target::state, nds32_reg::target, TARGET_HALTED, target_to_aice(), target_to_nds32(), reg::valid, nds32_reg::value, and reg::value.

nds32_set_core_reg_64()

static int nds32_set_core_reg_64 ( struct reg *  reg, uint8_t *  buf  )

static

Definition at line 339 of file nds32.c.

nds32_set_mapped_reg()

int nds32_set_mapped_reg	(	struct nds32 *	nds32,
		unsigned	regnum,
		uint32_t	value
	)

set register internally

Definition at line 532 of file nds32.c.

References buf_set_u32(), nds32::core_cache, ERROR_FAIL, nds32_reg_current(), reg_cache::num_regs, reg_arch_type::set, reg::type, and reg::value.

Referenced by COMMAND_HANDLER(), nds32_gdb_fileio_end(), nds32_get_gdb_fileio_info(), nds32_init_option_registers(), nds32_nextpc(), nds32_resume(), nds32_soft_reset_halt(), nds32_step(), nds32_step_without_watchpoint(), nds32_v3_deassert_reset(), nds32_v3_restore_interrupt_stack(), and nds32_v3m_restore_interrupt_stack().

nds32_soft_reset_halt()

static int nds32_soft_reset_halt ( struct target *  target )

static

Definition at line 2155 of file nds32.c.

References aice_assert_srst(), AICE_SRST, ERROR_OK, IR3, nds32_get_mapped_reg(), nds32_set_mapped_reg(), PC, target_halt(), target_to_aice(), and target_to_nds32().

Referenced by nds32_assert_reset().

nds32_step()

int nds32_step	(	struct target *	target,
		int	current,
		target_addr_t	address,
		int	handle_breakpoints
	)

set DSSIM

Definition at line 1750 of file nds32.c.

References aice_step(), CHECK_RETVAL, nds32::enter_debug_state, ERROR_FAIL, ERROR_OK, ERROR_TARGET_NOT_HALTED, nds32::hit_syscall, IR14, nds32::leave_debug_state, LOG_DEBUG, LOG_WARNING, nds32_get_mapped_reg(), nds32_nextpc(), nds32_set_mapped_reg(), target::state, nds32::step_isr_enable, target_call_event_callbacks(), TARGET_EVENT_HALTED, TARGET_EVENT_RESUMED, TARGET_HALTED, TARGET_PRIxADDR, target_state_name(), target_to_aice(), and target_to_nds32().

nds32_step_without_watchpoint()

static int nds32_step_without_watchpoint ( struct nds32 *  nds32 )

static

set DSSIM

Definition at line 1811 of file nds32.c.

References aice_step(), CHECK_RETVAL, nds32::enter_debug_state, ERROR_FAIL, ERROR_OK, ERROR_TARGET_NOT_HALTED, IR14, nds32::leave_debug_state, LOG_WARNING, nds32_get_mapped_reg(), nds32_set_mapped_reg(), target::state, nds32::step_isr_enable, nds32::target, TARGET_HALTED, and target_to_aice().

Referenced by nds32_examine_debug_reason().

nds32_target_state()

int nds32_target_state	(	struct nds32 *	nds32,
		enum target_state *	state
	)

Definition at line 1851 of file nds32.c.

References AICE_DISCONNECT, aice_state(), AICE_TARGET_DEBUG_RUNNING, AICE_TARGET_DETACH, AICE_TARGET_HALTED, AICE_TARGET_RESET, AICE_TARGET_RUNNING, AICE_TARGET_UNKNOWN, ERROR_FAIL, ERROR_OK, LOG_INFO, state, nds32::target, TARGET_DEBUG_RUNNING, TARGET_HALTED, TARGET_RESET, TARGET_RUNNING, target_to_aice(), and TARGET_UNKNOWN.

Referenced by nds32_halt(), and nds32_poll().

nds32_update_cache_info()

static int nds32_update_cache_info ( struct nds32 *  nds32 )

static

Definition at line 181 of file nds32.c.

References nds32_memory::dcache, nds32_cache::enable, ERROR_OK, nds32_memory::icache, nds32::memory, MR8, and nds32_get_mapped_reg().

Referenced by nds32_full_context(), and nds32_set_core_reg().

nds32_update_lm_info()

static int nds32_update_lm_info ( struct nds32 *  nds32 )

static

Definition at line 203 of file nds32.c.

References nds32_memory::dlm_align_ver, nds32_memory::dlm_enable, nds32_memory::dlm_end, nds32_memory::dlm_size, nds32_memory::dlm_start, ERROR_OK, nds32_memory::ilm_align_ver, nds32_memory::ilm_enable, nds32_memory::ilm_end, nds32_memory::ilm_size, nds32_memory::ilm_start, nds32::memory, MR6, MR7, and nds32_get_mapped_reg().

Referenced by nds32_full_context(), and nds32_set_core_reg().

nds32_update_mmu_info()

static int nds32_update_mmu_info ( struct nds32 *  nds32 )

static

Definition at line 169 of file nds32.c.

References nds32_mmu_config::default_min_page_size, ERROR_OK, nds32::mmu_config, MR0, nds32_mmu_config::multiple_page_size_in_use, and nds32_get_mapped_reg().

Referenced by nds32_full_context(), and nds32_set_core_reg().

nds32_update_psw()

static int nds32_update_psw ( struct nds32 *  nds32 )

static

Definition at line 147 of file nds32.c.

References nds32_memory::address_translation, AICE_BIG_ENDIAN, AICE_LITTLE_ENDIAN, aice_set_data_endian(), nds32::data_endian, ERROR_OK, IR0, nds32::memory, nds32_get_mapped_reg(), nds32::target, TARGET_BIG_ENDIAN, TARGET_LITTLE_ENDIAN, target_to_aice(), and true.

Referenced by nds32_full_context(), and nds32_set_core_reg().

nds32_virtual_to_physical()

int nds32_virtual_to_physical	(	struct target *	target,
		target_addr_t	address,
		target_addr_t *	physical
	)

Definition at line 1662 of file nds32.c.

References nds32_memory::address_translation, ERROR_FAIL, ERROR_OK, nds32::memory, nds32_probe_tlb(), nds32_walk_page_table(), and target_to_nds32().

nds32_write_buffer()

int nds32_write_buffer	(	struct target *	target,
		uint32_t	address,
		uint32_t	size,
		const uint8_t *	buffer
	)

Definition at line 836 of file nds32.c.

References nds32_memory::access_channel, aice_write_mem_bulk(), aice_write_mem_unit(), buffer, ERROR_OK, ERROR_TARGET_NOT_HALTED, LOG_DEBUG, LOG_WARNING, nds32::memory, nds32_select_memory_mode(), NDS_MEMORY_ACC_CPU, size, target::state, TARGET_HALTED, target_to_aice(), and target_to_nds32().

Referenced by nds32_gdb_fileio_write_memory(), nds32_v2_write_buffer(), and nds32_v3_write_buffer().

nds32_write_memory()

int nds32_write_memory	(	struct target *	target,
		uint32_t	address,
		uint32_t	size,
		uint32_t	count,
		const uint8_t *	buffer
	)

Definition at line 913 of file nds32.c.

References aice_write_mem_unit(), buffer, count, size, and target_to_aice().

Referenced by nds32_v3_write_memory().

nds32_write_phys_memory()

int nds32_write_phys_memory	(	struct target *	target,
		target_addr_t	address,
		uint32_t	size,
		uint32_t	count,
		const uint8_t *	buffer
	)

Definition at line 921 of file nds32.c.

References nds32_memory::access_channel, aice_memory_access(), aice_write_mem_unit(), buffer, count, nds32::memory, NDS_MEMORY_ACC_BUS, size, target_to_aice(), and target_to_nds32().

Variable Documentation

nds32_debug_type_name

const char* nds32_debug_type_name[11]

Initial value:

= {
    "SOFTWARE BREAK",
    "SOFTWARE BREAK_16",
    "HARDWARE BREAKPOINT",
    "DATA ADDR WATCHPOINT PRECISE",
    "DATA VALUE WATCHPOINT PRECISE",
    "DATA VALUE WATCHPOINT IMPRECISE",
    "DEBUG INTERRUPT",
    "HARDWARE SINGLE STEP",
    "DATA ADDR WATCHPOINT NEXT PRECISE",
    "DATA VALUE WATCHPOINT NEXT PRECISE",
    "LOAD STORE GLOBAL STOP",
}

Definition at line 22 of file nds32.c.

Referenced by nds32_examine_debug_reason().

nds32_edm_ops

struct nds32_edm_operation nds32_edm_ops[NDS32_EDM_OPERATION_MAX_NUM]

Definition at line 1 of file nds32.c.

Referenced by COMMAND_HANDLER(), and nds32_login().

nds32_edm_ops_num

uint32_t nds32_edm_ops_num

Definition at line 20 of file nds32.c.

Referenced by COMMAND_HANDLER(), and nds32_login().

nds32_line_size_table

const int nds32_line_size_table[6]

static

Initial value:

= {
    0,
    8,
    16,
    32,
    64,
    128,
}

Definition at line 50 of file nds32.c.

Referenced by nds32_cache_sync().

nds32_lm_size_table

const int nds32_lm_size_table[16]

static

Initial value:

= {
    4 * 1024,
    8 * 1024,
    16 * 1024,
    32 * 1024,
    64 * 1024,
    128 * 1024,
    256 * 1024,
    512 * 1024,
    1024 * 1024,
    1 * 1024,
    2 * 1024,
}

Definition at line 36 of file nds32.c.

Referenced by nds32_config().

nds32_reg_access_type

const struct reg_arch_type nds32_reg_access_type

static

Initial value:

= {
    .get = nds32_get_core_reg,
    .set = nds32_set_core_reg,
}

Definition at line 339 of file nds32.c.

Referenced by nds32_build_reg_cache().

nds32_reg_access_type_64

const struct reg_arch_type nds32_reg_access_type_64

static

Initial value:

= {
    .get = nds32_get_core_reg_64,
    .set = nds32_set_core_reg_64,
}

Definition at line 339 of file nds32.c.

Referenced by nds32_build_reg_cache().
