OpenOCD
rtos_ucos_iii_stackings.c File Reference

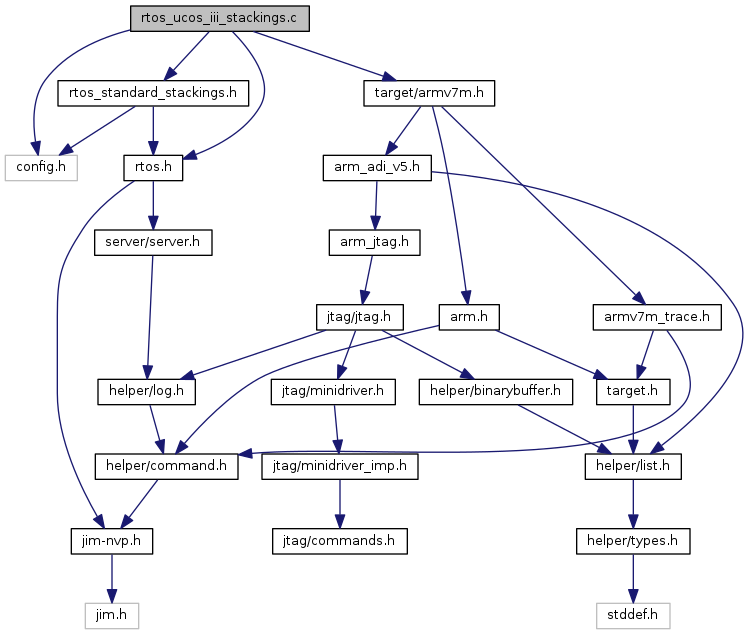

Include dependency graph for rtos_ucos_iii_stackings.c:

Go to the source code of this file.

Variables

static const struct stack_register_offset rtos_ucos_iii_cortex_m_stack_offsets []

const struct rtos_register_stacking rtos_ucos_iii_cortex_m_stacking

static const struct stack_register_offset rtos_ucos_iii_esi_risc_stack_offsets []

const struct rtos_register_stacking rtos_ucos_iii_esi_risc_stacking


Variable Documentation

◆ rtos_ucos_iii_cortex_m_stack_offsets

const struct stack_register_offset rtos_ucos_iii_cortex_m_stack_offsets[]
static
Initial value:
= {
{ ARMV7M_R0, 0x20, 32 },
{ ARMV7M_R1, 0x24, 32 },
{ ARMV7M_R2, 0x28, 32 },
{ ARMV7M_R3, 0x2c, 32 },
{ ARMV7M_R4, 0x00, 32 },
{ ARMV7M_R5, 0x04, 32 },
{ ARMV7M_R6, 0x08, 32 },
{ ARMV7M_R7, 0x0c, 32 },
{ ARMV7M_R8, 0x10, 32 },
{ ARMV7M_R9, 0x14, 32 },
{ ARMV7M_R10, 0x18, 32 },
{ ARMV7M_R11, 0x1c, 32 },
{ ARMV7M_R12, 0x30, 32 },
{ ARMV7M_R13, -2, 32 },
{ ARMV7M_R14, 0x34, 32 },
{ ARMV7M_PC, 0x38, 32 },
{ ARMV7M_XPSR, 0x3c, 32 },
}
@ ARMV7M_R1
Definition: armv7m.h:108
@ ARMV7M_R6
Definition: armv7m.h:114
@ ARMV7M_R2
Definition: armv7m.h:109
@ ARMV7M_R3
Definition: armv7m.h:110
@ ARMV7M_R14
Definition: armv7m.h:124
@ ARMV7M_R9
Definition: armv7m.h:118
@ ARMV7M_R12
Definition: armv7m.h:122
@ ARMV7M_R0
Definition: armv7m.h:107
@ ARMV7M_R13
Definition: armv7m.h:123
@ ARMV7M_PC
Definition: armv7m.h:125
@ ARMV7M_R7
Definition: armv7m.h:115
@ ARMV7M_R4
Definition: armv7m.h:112
@ ARMV7M_XPSR
Definition: armv7m.h:127
@ ARMV7M_R8
Definition: armv7m.h:117
@ ARMV7M_R11
Definition: armv7m.h:120
@ ARMV7M_R10
Definition: armv7m.h:119
@ ARMV7M_R5
Definition: armv7m.h:113

Definition at line 1 of file rtos_ucos_iii_stackings.c.

◆ rtos_ucos_iii_cortex_m_stacking

const struct rtos_register_stacking rtos_ucos_iii_cortex_m_stacking
Initial value:
= {
.stack_registers_size = 0x40,
.stack_growth_direction = -1,
.calculate_process_stack = rtos_generic_stack_align8,
}
target_addr_t rtos_generic_stack_align8(struct target *target, const uint8_t *stack_data, const struct rtos_register_stacking *stacking, target_addr_t stack_ptr)
static const struct stack_register_offset rtos_ucos_iii_cortex_m_stack_offsets[]
#define ARRAY_SIZE(x)
Compute the number of elements of a variable length array.
Definition: types.h:57

Definition at line 1 of file rtos_ucos_iii_stackings.c.

◆ rtos_ucos_iii_esi_risc_stack_offsets

const struct stack_register_offset rtos_ucos_iii_esi_risc_stack_offsets[]
static
Initial value:
= {
{ ESIRISC_SP, -2, 32 },
{ ESIRISC_RA, 0x48, 32 },
{ ESIRISC_R2, 0x44, 32 },
{ ESIRISC_R3, 0x40, 32 },
{ ESIRISC_R4, 0x3c, 32 },
{ ESIRISC_R5, 0x38, 32 },
{ ESIRISC_R6, 0x34, 32 },
{ ESIRISC_R7, 0x30, 32 },
{ ESIRISC_R8, 0x2c, 32 },
{ ESIRISC_R9, 0x28, 32 },
{ ESIRISC_R10, 0x24, 32 },
{ ESIRISC_R11, 0x20, 32 },
{ ESIRISC_R12, 0x1c, 32 },
{ ESIRISC_R13, 0x18, 32 },
{ ESIRISC_R14, 0x14, 32 },
{ ESIRISC_R15, 0x10, 32 },
{ ESIRISC_PC, 0x04, 32 },
{ ESIRISC_CAS, 0x08, 32 },
}
@ ESIRISC_R4
Definition: esirisc_regs.h:17
@ ESIRISC_R13
Definition: esirisc_regs.h:26
@ ESIRISC_R7
Definition: esirisc_regs.h:20
@ ESIRISC_SP
Definition: esirisc_regs.h:13
@ ESIRISC_R11
Definition: esirisc_regs.h:24
@ ESIRISC_R14
Definition: esirisc_regs.h:27
@ ESIRISC_CAS
Definition: esirisc_regs.h:89
@ ESIRISC_PC
Definition: esirisc_regs.h:88
@ ESIRISC_R10
Definition: esirisc_regs.h:23
@ ESIRISC_R9
Definition: esirisc_regs.h:22
@ ESIRISC_RA
Definition: esirisc_regs.h:14
@ ESIRISC_R12
Definition: esirisc_regs.h:25
@ ESIRISC_R15
Definition: esirisc_regs.h:28
@ ESIRISC_R3
Definition: esirisc_regs.h:16
@ ESIRISC_R8
Definition: esirisc_regs.h:21
@ ESIRISC_R2
Definition: esirisc_regs.h:15
@ ESIRISC_R6
Definition: esirisc_regs.h:19
@ ESIRISC_R5
Definition: esirisc_regs.h:18

Definition at line 1 of file rtos_ucos_iii_stackings.c.

◆ rtos_ucos_iii_esi_risc_stacking

const struct rtos_register_stacking rtos_ucos_iii_esi_risc_stacking
Initial value:
= {
.stack_registers_size = 0x4c,
.stack_growth_direction = -1,
}
static const struct stack_register_offset rtos_ucos_iii_esi_risc_stack_offsets[]

Definition at line 1 of file rtos_ucos_iii_stackings.c.
