rtos_mqx_stackings.c File Reference

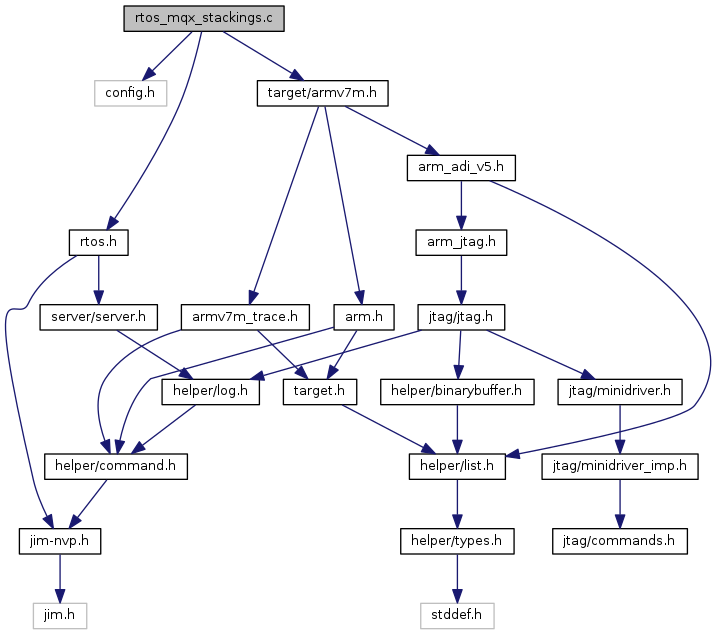

Include dependency graph for rtos_mqx_stackings.c:

Go to the source code of this file.

Variables

static const struct stack_register_offset rtos_mqx_arm_v7m_stack_offsets [ARMV7M_NUM_CORE_REGS]

const struct rtos_register_stacking rtos_mqx_arm_v7m_stacking


Variable Documentation

◆ rtos_mqx_arm_v7m_stack_offsets

const struct stack_register_offset rtos_mqx_arm_v7m_stack_offsets[ARMV7M_NUM_CORE_REGS]
static
Initial value:
= {
{ ARMV7M_R0, 0x2C, 32 },
{ ARMV7M_R1, 0x30, 32 },
{ ARMV7M_R2, 0x34, 32 },
{ ARMV7M_R3, 0x38, 32 },
{ ARMV7M_R4, 0x08, 32 },
{ ARMV7M_R5, 0x0C, 32 },
{ ARMV7M_R6, 0x10, 32 },
{ ARMV7M_R7, 0x14, 32 },
{ ARMV7M_R8, 0x18, 32 },
{ ARMV7M_R9, 0x1C, 32 },
{ ARMV7M_R10, 0x20, 32 },
{ ARMV7M_R11, 0x24, 32 },
{ ARMV7M_R12, 0x3C, 32 },
{ ARMV7M_R13, -2, 32 },
{ ARMV7M_R14, 0x28, 32 },
{ ARMV7M_PC, 0x44, 32 },
{ ARMV7M_XPSR, 0x48, 32 },
}
@ ARMV7M_R1
Definition: armv7m.h:108
@ ARMV7M_R6
Definition: armv7m.h:114
@ ARMV7M_R2
Definition: armv7m.h:109
@ ARMV7M_R3
Definition: armv7m.h:110
@ ARMV7M_R14
Definition: armv7m.h:124
@ ARMV7M_R9
Definition: armv7m.h:118
@ ARMV7M_R12
Definition: armv7m.h:122
@ ARMV7M_R0
Definition: armv7m.h:107
@ ARMV7M_R13
Definition: armv7m.h:123
@ ARMV7M_PC
Definition: armv7m.h:125
@ ARMV7M_R7
Definition: armv7m.h:115
@ ARMV7M_R4
Definition: armv7m.h:112
@ ARMV7M_XPSR
Definition: armv7m.h:127
@ ARMV7M_R8
Definition: armv7m.h:117
@ ARMV7M_R11
Definition: armv7m.h:120
@ ARMV7M_R10
Definition: armv7m.h:119
@ ARMV7M_R5
Definition: armv7m.h:113

Definition at line 1 of file rtos_mqx_stackings.c.

◆ rtos_mqx_arm_v7m_stacking

const struct rtos_register_stacking rtos_mqx_arm_v7m_stacking
Initial value:
= {
.stack_registers_size = 0x4C,
.stack_growth_direction = -1,
.num_output_registers = ARMV7M_NUM_CORE_REGS,
.register_offsets = rtos_mqx_arm_v7m_stack_offsets
}
#define ARMV7M_NUM_CORE_REGS
Definition: armv7m.h:216
static const struct stack_register_offset rtos_mqx_arm_v7m_stack_offsets[ARMV7M_NUM_CORE_REGS]

Definition at line 1 of file rtos_mqx_stackings.c.
