nds32_insn.h File Reference

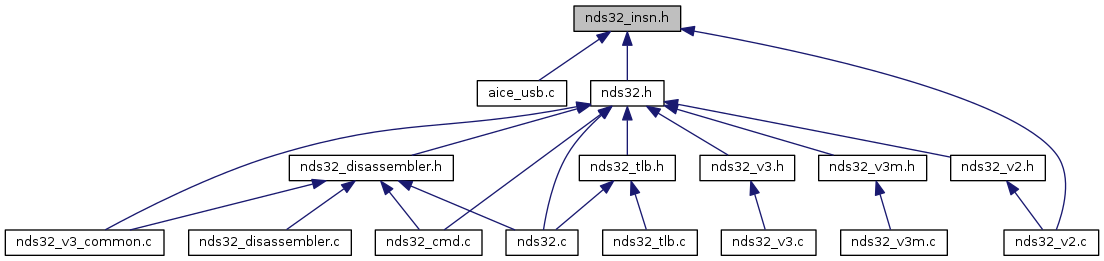

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros

#define AMFAR(a, b)   (0x60300060 | (a << 15) | b)

#define AMFAR2(a, b)   (0x60300260 | (a << 15) | b)

#define AMTAR(a, b)   (0x60300040 | (a << 15) | b)

#define AMTAR2(a, b)   (0x60300240 | (a << 15) | b)

#define BEQ_MINUS_12   (0x4C000000 | 0x3FFA)

#define DSB   (0x64000008)

#define FMFCFG   (0x6A000301)

#define FMFCSR   (0x6A000701)

#define FMFDR(a, b)   (0x6A000041 | ((a) << 20) | ((b) << 15))

#define FMFSR(a, b)   (0x6A000001 | ((a) << 20) | ((b) << 15))

#define FMTCSR   (0x6A000709)

#define FMTDR(a, b)   (0x6A000049 | ((a) << 20) | ((b) << 15))

#define FMTSR(a, b)   (0x6A000009 | ((a) << 20) | ((b) << 15))

#define IRET   (0x64000004)

#define ISB   (0x64000009)

#define ISYNC(a)   (0x6400000d | ((a) << 20))

#define L1D_IX_INVAL(a)   (0x64000001 | ((a) << 15))

#define L1D_IX_RTAG(a)   (0x64000061 | ((a) << 15))

#define L1D_IX_RWD(a)   (0x64000081 | ((a) << 15))

#define L1D_IX_WB(a)   (0x64000021 | ((a) << 15))

#define L1D_VA_INVAL(a)   (0x64000101 | ((a) << 15))

#define L1D_VA_WB(a)   (0x64000121 | ((a) << 15))

#define L1I_IX_INVAL(a)   (0x64000201 | ((a) << 15))

#define L1I_IX_RTAG(a)   (0x64000261 | ((a) << 15))

#define L1I_IX_RWD(a)   (0x64000281 | ((a) << 15))

#define L1I_VA_FILLCK(a)   (0x64000361 | ((a) << 15))

#define L1I_VA_INVAL(a)   (0x64000301 | ((a) << 15))

#define LBI_BI(a, b)   (0x08000001 | (a << 20) | (b << 15))

#define LHI_BI(a, b)   (0x0A000001 | (a << 20) | (b << 15))

#define LWI_BI(a, b)   (0x0C000001 | (a << 20) | (b << 15))

#define MFCPD(a, b, c)   (0x6A000041 | (a << 20) | (b << 8) | (c << 4))

#define MFCPW(a, b, c)   (0x6A000001 | (a << 20) | (b << 8) | (c << 4))

#define MFSR(a, b)   (0x64000002 | (b << 10) | (a << 20))

#define MFSR_DTR(a)   (0x64000002 | (((0x03 << 7) | (0x08 << 3) | (0x00 << 0)) << 10) | (((a) & 0x1F) << 20))

#define MFUSR_G0(a, b)   (0x42000020 | (a << 20) | (b << 15))

#define MOVI_(a, b)   (0x44000000 | (a << 20) | (b & 0xFFFFF))

#define MSYNC_ALL   (0x6400000c)

#define MSYNC_STORE   (0x6400002c)

#define MTCPD(a, b, c)   (0x6A000049 | (a << 20) | (b << 8) | (c << 4))

#define MTCPW(a, b, c)   (0x6A000009 | (a << 20) | (b << 8) | (c << 4))

#define MTSR(a, b)   (0x64000003 | (b << 10) | (a << 20))

#define MTSR_DTR(a)   (0x64000003 | (((0x03 << 7) | (0x08 << 3) | (0x00 << 0)) << 10) | (((a) & 0x1F) << 20))

#define MTUSR_G0(a, b)   (0x42000021 | (a << 20) | (b << 15))

#define NDS32_BREAK_16   (0x00EA)

#define NDS32_BREAK_32   (0x0A000064)

#define NOP   (0x40000009)

#define ORI(a, b, c)   (0x58000000 | ((a) << 20) | ((b) << 15) | (c))

#define SBI_BI(a, b)   (0x18000001 | (a << 20) | (b << 15))

#define SETHI(a, b)   (0x46000000 | ((a) << 20) | (b))

#define SHI_BI(a, b)   (0x1A000001 | (a << 20) | (b << 15))

#define SWI_BI(a, b)   (0x1C000001 | (a << 20) | (b << 15))

#define TLBOP_TARGET_PROBE(a, b)   (0x640000AE | ((a) << 20) | ((b) << 15))

#define TLBOP_TARGET_READ(a)   (0x6400000e | ((a) << 15))


Macro Definition Documentation

◆ AMFAR

#define AMFAR (   a,

)    (0x60300060 | (a << 15) | b)

Definition at line 51 of file nds32_insn.h.

◆ AMFAR2

#define AMFAR2 (   a,

)    (0x60300260 | (a << 15) | b)

Definition at line 53 of file nds32_insn.h.

◆ AMTAR

#define AMTAR (   a,

)    (0x60300040 | (a << 15) | b)

Definition at line 52 of file nds32_insn.h.

◆ AMTAR2

#define AMTAR2 (   a,

)    (0x60300240 | (a << 15) | b)

Definition at line 54 of file nds32_insn.h.

◆ BEQ_MINUS_12

#define BEQ_MINUS_12   (0x4C000000 | 0x3FFA)

Definition at line 14 of file nds32_insn.h.

◆ DSB

#define DSB   (0x64000008)

Definition at line 12 of file nds32_insn.h.

◆ FMFCFG

#define FMFCFG   (0x6A000301)

Definition at line 57 of file nds32_insn.h.

◆ FMFCSR

#define FMFCSR   (0x6A000701)

Definition at line 55 of file nds32_insn.h.

◆ FMFDR

#define FMFDR (   a,

)    (0x6A000041 | ((a) << 20) | ((b) << 15))

Definition at line 60 of file nds32_insn.h.

◆ FMFSR

#define FMFSR (   a,

)    (0x6A000001 | ((a) << 20) | ((b) << 15))

Definition at line 58 of file nds32_insn.h.

◆ FMTCSR

#define FMTCSR   (0x6A000709)

Definition at line 56 of file nds32_insn.h.

◆ FMTDR

#define FMTDR (   a,

)    (0x6A000049 | ((a) << 20) | ((b) << 15))

Definition at line 61 of file nds32_insn.h.

◆ FMTSR

#define FMTSR (   a,

)    (0x6A000009 | ((a) << 20) | ((b) << 15))

Definition at line 59 of file nds32_insn.h.

◆ IRET

#define IRET   (0x64000004)

Definition at line 25 of file nds32_insn.h.

◆ ISB

#define ISB   (0x64000009)

Definition at line 13 of file nds32_insn.h.

◆ ISYNC

#define ISYNC (   a)    (0x6400000d | ((a) << 20))

Definition at line 37 of file nds32_insn.h.

◆ L1D_IX_INVAL

#define L1D_IX_INVAL (   a)    (0x64000001 | ((a) << 15))

Definition at line 27 of file nds32_insn.h.

◆ L1D_IX_RTAG

#define L1D_IX_RTAG (   a)    (0x64000061 | ((a) << 15))

Definition at line 30 of file nds32_insn.h.

◆ L1D_IX_RWD

#define L1D_IX_RWD (   a)    (0x64000081 | ((a) << 15))

Definition at line 31 of file nds32_insn.h.

◆ L1D_IX_WB

#define L1D_IX_WB (   a)    (0x64000021 | ((a) << 15))

Definition at line 26 of file nds32_insn.h.

◆ L1D_VA_INVAL

#define L1D_VA_INVAL (   a)    (0x64000101 | ((a) << 15))

Definition at line 28 of file nds32_insn.h.

◆ L1D_VA_WB

#define L1D_VA_WB (   a)    (0x64000121 | ((a) << 15))

Definition at line 29 of file nds32_insn.h.

◆ L1I_IX_INVAL

#define L1I_IX_INVAL (   a)    (0x64000201 | ((a) << 15))

Definition at line 32 of file nds32_insn.h.

◆ L1I_IX_RTAG

#define L1I_IX_RTAG (   a)    (0x64000261 | ((a) << 15))

Definition at line 34 of file nds32_insn.h.

◆ L1I_IX_RWD

#define L1I_IX_RWD (   a)    (0x64000281 | ((a) << 15))

Definition at line 35 of file nds32_insn.h.

◆ L1I_VA_FILLCK

#define L1I_VA_FILLCK (   a)    (0x64000361 | ((a) << 15))

Definition at line 36 of file nds32_insn.h.

◆ L1I_VA_INVAL

#define L1I_VA_INVAL (   a)    (0x64000301 | ((a) << 15))

Definition at line 33 of file nds32_insn.h.

◆ LBI_BI

#define LBI_BI (   a,

)    (0x08000001 | (a << 20) | (b << 15))

Definition at line 21 of file nds32_insn.h.

◆ LHI_BI

#define LHI_BI (   a,

)    (0x0A000001 | (a << 20) | (b << 15))

Definition at line 20 of file nds32_insn.h.

◆ LWI_BI

#define LWI_BI (   a,

)    (0x0C000001 | (a << 20) | (b << 15))

Definition at line 19 of file nds32_insn.h.

◆ MFCPD

#define MFCPD (   a,
  b,

)    (0x6A000041 | (a << 20) | (b << 8) | (c << 4))

Definition at line 42 of file nds32_insn.h.

◆ MFCPW

#define MFCPW (   a,
  b,

)    (0x6A000001 | (a << 20) | (b << 8) | (c << 4))

Definition at line 43 of file nds32_insn.h.

◆ MFSR

#define MFSR (   a,

)    (0x64000002 | (b << 10) | (a << 20))

Definition at line 49 of file nds32_insn.h.

◆ MFSR_DTR

#define MFSR_DTR (   a)    (0x64000002 | (((0x03 << 7) | (0x08 << 3) | (0x00 << 0)) << 10) | (((a) & 0x1F) << 20))

Definition at line 16 of file nds32_insn.h.

◆ MFUSR_G0

#define MFUSR_G0 (   a,

)    (0x42000020 | (a << 20) | (b << 15))

Definition at line 47 of file nds32_insn.h.

◆ MOVI_

#define MOVI_ (   a,

)    (0x44000000 | (a << 20) | (b & 0xFFFFF))

Definition at line 46 of file nds32_insn.h.

◆ MSYNC_ALL

#define MSYNC_ALL   (0x6400000c)

Definition at line 39 of file nds32_insn.h.

◆ MSYNC_STORE

#define MSYNC_STORE   (0x6400002c)

Definition at line 38 of file nds32_insn.h.

◆ MTCPD

#define MTCPD (   a,
  b,

)    (0x6A000049 | (a << 20) | (b << 8) | (c << 4))

Definition at line 44 of file nds32_insn.h.

◆ MTCPW

#define MTCPW (   a,
  b,

)    (0x6A000009 | (a << 20) | (b << 8) | (c << 4))

Definition at line 45 of file nds32_insn.h.

◆ MTSR

#define MTSR (   a,

)    (0x64000003 | (b << 10) | (a << 20))

Definition at line 50 of file nds32_insn.h.

◆ MTSR_DTR

#define MTSR_DTR (   a)    (0x64000003 | (((0x03 << 7) | (0x08 << 3) | (0x00 << 0)) << 10) | (((a) & 0x1F) << 20))

Definition at line 15 of file nds32_insn.h.

◆ MTUSR_G0

#define MTUSR_G0 (   a,

)    (0x42000021 | (a << 20) | (b << 15))

Definition at line 48 of file nds32_insn.h.

◆ NDS32_BREAK_16

#define NDS32_BREAK_16   (0x00EA)

Definition at line 64 of file nds32_insn.h.

◆ NDS32_BREAK_32

#define NDS32_BREAK_32   (0x0A000064)

Definition at line 65 of file nds32_insn.h.

◆ NOP

#define NOP   (0x40000009)

Definition at line 11 of file nds32_insn.h.

◆ ORI

#define ORI (   a,
  b,

)    (0x58000000 | ((a) << 20) | ((b) << 15) | (c))

Definition at line 18 of file nds32_insn.h.

◆ SBI_BI

#define SBI_BI (   a,

)    (0x18000001 | (a << 20) | (b << 15))

Definition at line 24 of file nds32_insn.h.

◆ SETHI

#define SETHI (   a,

)    (0x46000000 | ((a) << 20) | (b))

Definition at line 17 of file nds32_insn.h.

◆ SHI_BI

#define SHI_BI (   a,

)    (0x1A000001 | (a << 20) | (b << 15))

Definition at line 23 of file nds32_insn.h.

◆ SWI_BI

#define SWI_BI (   a,

)    (0x1C000001 | (a << 20) | (b << 15))

Definition at line 22 of file nds32_insn.h.

◆ TLBOP_TARGET_PROBE

#define TLBOP_TARGET_PROBE (   a,

)    (0x640000AE | ((a) << 20) | ((b) << 15))

Definition at line 41 of file nds32_insn.h.

◆ TLBOP_TARGET_READ

#define TLBOP_TARGET_READ (   a)    (0x6400000e | ((a) << 15))

Definition at line 40 of file nds32_insn.h.
