nds32_edm.h File Reference

This is the interface to the Embedded Debug Module for Andes cores. More...

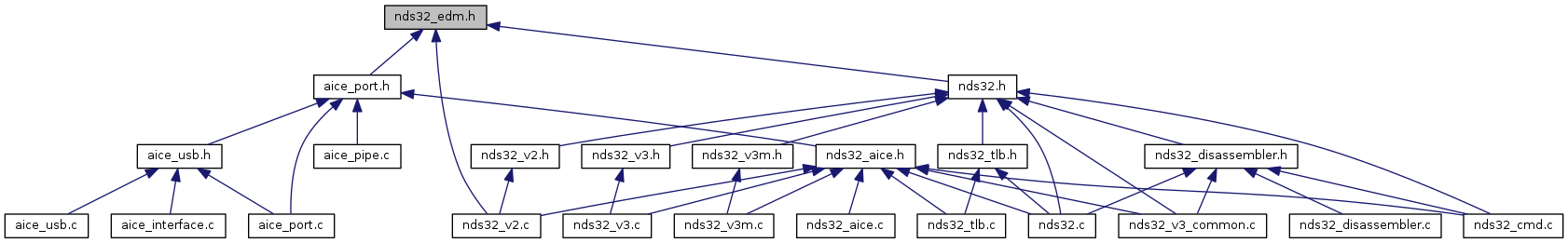

Include dependency graph for nds32_edm.h:
This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros

#define NDS_DBGER_ALL_SUPRS_EX   (0x40000000)

#define NDS_DBGER_AT_MAX   (0x8)

#define NDS_DBGER_CLEAR_ALL   (0x1F)

#define NDS_DBGER_CRST   (0x4)

#define NDS_DBGER_DEX   (0x1)

#define NDS_DBGER_DPED   (0x2)

#define NDS_DBGER_ILL_SEC_ACC   (0x10)

#define NDS_DBGER_RESACC   (0x80000000)

#define NDS_EDMSW_RDV   (1 << 1)

#define NDS_EDMSW_WDV   (1 << 0)


Enumerations

enum  nds_edm_misc_reg {
  NDS_EDM_MISC_DIMIR = 0x0 , NDS_EDM_MISC_SBAR , NDS_EDM_MISC_EDM_CMDR , NDS_EDM_MISC_DBGER ,
  NDS_EDM_MISC_ACC_CTL , NDS_EDM_MISC_EDM_PROBE , NDS_EDM_MISC_GEN_PORT0 , NDS_EDM_MISC_GEN_PORT1
}

enum  nds_edm_system_reg {
  NDS_EDM_SR_BPC0 = 0x00 , NDS_EDM_SR_BPC1 , NDS_EDM_SR_BPC2 , NDS_EDM_SR_BPC3 ,
  NDS_EDM_SR_BPC4 , NDS_EDM_SR_BPC5 , NDS_EDM_SR_BPC6 , NDS_EDM_SR_BPC7 ,
  NDS_EDM_SR_BPA0 = 0x08 , NDS_EDM_SR_BPA1 , NDS_EDM_SR_BPA2 , NDS_EDM_SR_BPA3 ,
  NDS_EDM_SR_BPA4 , NDS_EDM_SR_BPA5 , NDS_EDM_SR_BPA6 , NDS_EDM_SR_BPA7 ,
  NDS_EDM_SR_BPAM0 = 0x10 , NDS_EDM_SR_BPAM1 , NDS_EDM_SR_BPAM2 , NDS_EDM_SR_BPAM3 ,
  NDS_EDM_SR_BPAM4 , NDS_EDM_SR_BPAM5 , NDS_EDM_SR_BPAM6 , NDS_EDM_SR_BPAM7 ,
  NDS_EDM_SR_BPV0 = 0x18 , NDS_EDM_SR_BPV1 , NDS_EDM_SR_BPV2 , NDS_EDM_SR_BPV3 ,
  NDS_EDM_SR_BPV4 , NDS_EDM_SR_BPV5 , NDS_EDM_SR_BPV6 , NDS_EDM_SR_BPV7 ,
  NDS_EDM_SR_BPCID0 = 0x20 , NDS_EDM_SR_BPCID1 , NDS_EDM_SR_BPCID2 , NDS_EDM_SR_BPCID3 ,
  NDS_EDM_SR_BPCID4 , NDS_EDM_SR_BPCID5 , NDS_EDM_SR_BPCID6 , NDS_EDM_SR_BPCID7 ,
  NDS_EDM_SR_EDM_CFG = 0x28 , NDS_EDM_SR_EDMSW = 0x30 , NDS_EDM_SR_EDM_CTL = 0x38 , NDS_EDM_SR_EDM_DTR = 0x40 ,
  NDS_EDM_SR_BPMTV = 0x48 , NDS_EDM_SR_DIMBR = 0x50 , NDS_EDM_SR_TECR0 = 0x70 , NDS_EDM_SR_TECR1 = 0x71
}

enum  nds_memory_access { NDS_MEMORY_ACC_BUS = 0 , NDS_MEMORY_ACC_CPU }

enum  nds_memory_select { NDS_MEMORY_SELECT_AUTO = 0 , NDS_MEMORY_SELECT_MEM = 1 , NDS_MEMORY_SELECT_ILM = 2 , NDS_MEMORY_SELECT_DLM = 3 }


Detailed Description

This is the interface to the Embedded Debug Module for Andes cores.

Definition in file nds32_edm.h.

Macro Definition Documentation

◆ NDS_DBGER_ALL_SUPRS_EX

#define NDS_DBGER_ALL_SUPRS_EX   (0x40000000)

Definition at line 99 of file nds32_edm.h.

◆ NDS_DBGER_AT_MAX

#define NDS_DBGER_AT_MAX   (0x8)

Definition at line 97 of file nds32_edm.h.

◆ NDS_DBGER_CLEAR_ALL

#define NDS_DBGER_CLEAR_ALL   (0x1F)

Definition at line 101 of file nds32_edm.h.

◆ NDS_DBGER_CRST

#define NDS_DBGER_CRST   (0x4)

Definition at line 96 of file nds32_edm.h.

◆ NDS_DBGER_DEX

#define NDS_DBGER_DEX   (0x1)

Definition at line 94 of file nds32_edm.h.

◆ NDS_DBGER_DPED

#define NDS_DBGER_DPED   (0x2)

Definition at line 95 of file nds32_edm.h.

◆ NDS_DBGER_ILL_SEC_ACC

#define NDS_DBGER_ILL_SEC_ACC   (0x10)

Definition at line 98 of file nds32_edm.h.

◆ NDS_DBGER_RESACC

#define NDS_DBGER_RESACC   (0x80000000)

Definition at line 100 of file nds32_edm.h.

◆ NDS_EDMSW_RDV

#define NDS_EDMSW_RDV   (1 << 1)

Definition at line 104 of file nds32_edm.h.

◆ NDS_EDMSW_WDV

#define NDS_EDMSW_WDV   (1 << 0)

Definition at line 103 of file nds32_edm.h.

Enumeration Type Documentation

◆ nds_edm_misc_reg

Enumerator
NDS_EDM_MISC_DIMIR
NDS_EDM_MISC_SBAR
NDS_EDM_MISC_EDM_CMDR
NDS_EDM_MISC_DBGER
NDS_EDM_MISC_ACC_CTL
NDS_EDM_MISC_EDM_PROBE
NDS_EDM_MISC_GEN_PORT0
NDS_EDM_MISC_GEN_PORT1

Definition at line 19 of file nds32_edm.h.

◆ nds_edm_system_reg

Enumerator
NDS_EDM_SR_BPC0
NDS_EDM_SR_BPC1
NDS_EDM_SR_BPC2
NDS_EDM_SR_BPC3
NDS_EDM_SR_BPC4
NDS_EDM_SR_BPC5
NDS_EDM_SR_BPC6
NDS_EDM_SR_BPC7
NDS_EDM_SR_BPA0
NDS_EDM_SR_BPA1
NDS_EDM_SR_BPA2
NDS_EDM_SR_BPA3
NDS_EDM_SR_BPA4
NDS_EDM_SR_BPA5
NDS_EDM_SR_BPA6
NDS_EDM_SR_BPA7
NDS_EDM_SR_BPAM0
NDS_EDM_SR_BPAM1
NDS_EDM_SR_BPAM2
NDS_EDM_SR_BPAM3
NDS_EDM_SR_BPAM4
NDS_EDM_SR_BPAM5
NDS_EDM_SR_BPAM6
NDS_EDM_SR_BPAM7
NDS_EDM_SR_BPV0
NDS_EDM_SR_BPV1
NDS_EDM_SR_BPV2
NDS_EDM_SR_BPV3
NDS_EDM_SR_BPV4
NDS_EDM_SR_BPV5
NDS_EDM_SR_BPV6
NDS_EDM_SR_BPV7
NDS_EDM_SR_BPCID0
NDS_EDM_SR_BPCID1
NDS_EDM_SR_BPCID2
NDS_EDM_SR_BPCID3
NDS_EDM_SR_BPCID4
NDS_EDM_SR_BPCID5
NDS_EDM_SR_BPCID6
NDS_EDM_SR_BPCID7
NDS_EDM_SR_EDM_CFG
NDS_EDM_SR_EDMSW
NDS_EDM_SR_EDM_CTL
NDS_EDM_SR_EDM_DTR
NDS_EDM_SR_BPMTV
NDS_EDM_SR_DIMBR
NDS_EDM_SR_TECR0
NDS_EDM_SR_TECR1

Definition at line 31 of file nds32_edm.h.

◆ nds_memory_access

Enumerator
NDS_MEMORY_ACC_BUS
NDS_MEMORY_ACC_CPU

Definition at line 82 of file nds32_edm.h.

◆ nds_memory_select

Enumerator
NDS_MEMORY_SELECT_AUTO
NDS_MEMORY_SELECT_MEM
NDS_MEMORY_SELECT_ILM
NDS_MEMORY_SELECT_DLM

Definition at line 87 of file nds32_edm.h.
