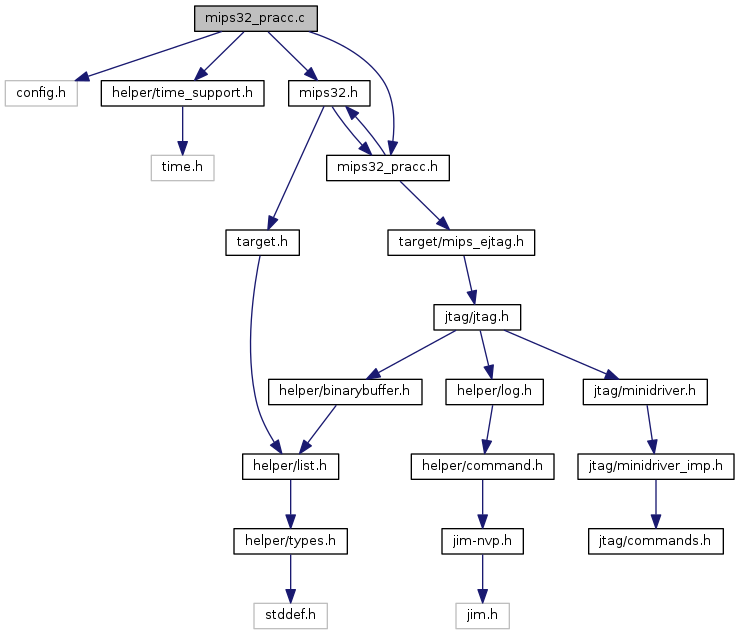

Include dependency graph for mips32_pracc.c:

Functions
int	mips32_cp0_read (struct mips_ejtag ejtag_info, uint32_t val, uint32_t cp0_reg, uint32_t cp0_sel)
	mips32_cp0_read More...

int	mips32_cp0_write (struct mips_ejtag *ejtag_info, uint32_t val, uint32_t cp0_reg, uint32_t cp0_sel)
	mips32_cp0_write More...

static int	mips32_pracc_clean_text_jump (struct mips_ejtag *ejtag_info)

static int	mips32_pracc_exec (struct mips_ejtag ejtag_info, struct pracc_queue_info ctx, uint32_t *param_out, bool check_last)

int	mips32_pracc_fastdata_xfer (struct mips_ejtag ejtag_info, struct working_area source, int write_t, uint32_t addr, int count, uint32_t *buf)

static void	mips32_pracc_finish (struct mips_ejtag *ejtag_info)

int	mips32_pracc_queue_exec (struct mips_ejtag ejtag_info, struct pracc_queue_info ctx, uint32_t *buf, bool check_last)

static int	mips32_pracc_read_ctrl_addr (struct mips_ejtag *ejtag_info)

int	mips32_pracc_read_mem (struct mips_ejtag ejtag_info, uint32_t addr, int size, int count, void buf)

int	mips32_pracc_read_regs (struct mips_ejtag ejtag_info, uint32_t regs)

static int	mips32_pracc_read_u32 (struct mips_ejtag ejtag_info, uint32_t addr, uint32_t buf)

static int	mips32_pracc_synchronize_cache (struct mips_ejtag *ejtag_info, uint32_t start_addr, uint32_t end_addr, int cached, int rel)
	mips32_pracc_sync_cache More...

int	mips32_pracc_write_mem (struct mips_ejtag ejtag_info, uint32_t addr, int size, int count, const void buf)

static int	mips32_pracc_write_mem_generic (struct mips_ejtag ejtag_info, uint32_t addr, int size, int count, const void buf)

int	mips32_pracc_write_regs (struct mips_ejtag ejtag_info, uint32_t regs)

void	pracc_add (struct pracc_queue_info *ctx, uint32_t addr, uint32_t instr)

static void	pracc_add_li32 (struct pracc_queue_info *ctx, uint32_t reg_num, uint32_t data, bool optimize)

void	pracc_queue_free (struct pracc_queue_info *ctx)

void	pracc_queue_init (struct pracc_queue_info *ctx)

static int	wait_for_pracc_rw (struct mips_ejtag *ejtag_info)

Function Documentation

◆ mips32_cp0_read()

int mips32_cp0_read	(	struct mips_ejtag *	ejtag_info,
		uint32_t *	val,
		uint32_t	cp0_reg,
		uint32_t	cp0_sel
	)

mips32_cp0_read

Simulates mfc0 ASM instruction (Move From C0), i.e. implements copro C0 Register read.

Parameters

[in]	ejtag_info
[in]	val	Storage to hold read value
[in]	cp0_reg	Number of copro C0 register we want to read
[in]	cp0_sel	Select for the given C0 register

Returns: ERROR_OK on Success, ERROR_FAIL otherwise

Definition at line 547 of file mips32_pracc.c.

References pracc_queue_info::code_count, pracc_queue_info::ejtag_info, pracc_queue_info::isa, LOWER16, MIPS32_B, MIPS32_LUI, MIPS32_MFC0, MIPS32_ORI, MIPS32_PRACC_PARAM_OUT, mips32_pracc_queue_exec(), MIPS32_SW, NEG16, pracc_add(), PRACC_OUT_OFFSET, pracc_queue_free(), pracc_queue_init(), PRACC_UPPER_BASE_ADDR, mips_ejtag::reg8, pracc_queue_info::retval, and UPPER16.

Referenced by COMMAND_HANDLER(), mips32_pracc_synchronize_cache(), mips32_pracc_write_mem(), and mips32_read_config_regs().

◆ mips32_cp0_write()

int mips32_cp0_write	(	struct mips_ejtag *	ejtag_info,
		uint32_t	val,
		uint32_t	cp0_reg,
		uint32_t	cp0_sel
	)

mips32_cp0_write

Simulates mtc0 ASM instruction (Move To C0), i.e. implements copro C0 Register read.

Parameters

[in]	ejtag_info
[in]	val	Value to be written
[in]	cp0_reg	Number of copro C0 register we want to write to
[in]	cp0_sel	Select for the given C0 register

Returns: ERROR_OK on Success, ERROR_FAIL otherwise

Definition at line 566 of file mips32_pracc.c.

References pracc_queue_info::code_count, pracc_queue_info::ejtag_info, pracc_queue_info::isa, MIPS32_B, MIPS32_MFC0, MIPS32_MTC0, mips32_pracc_queue_exec(), NEG16, NULL, pracc_add(), pracc_add_li32(), pracc_queue_free(), pracc_queue_init(), and pracc_queue_info::retval.

Referenced by COMMAND_HANDLER().

◆ mips32_pracc_clean_text_jump()

static int mips32_pracc_clean_text_jump ( struct mips_ejtag * ejtag_info )

static

Definition at line 114 of file mips32_pracc.c.

References EJTAG_INST_DATA, ERROR_OK, mips_ejtag::isa, MIPS32_J, MIPS32_NOP, mips32_pracc_finish(), mips32_pracc_read_ctrl_addr(), MIPS32_PRACC_TEXT, mips_ejtag_drscan_32_out(), mips_ejtag_set_instr(), mips_ejtag::mode, mips_ejtag::pa_addr, pracc_swap16_array(), and wait_for_pracc_rw().

Referenced by mips32_pracc_exec().

◆ mips32_pracc_exec()

static int mips32_pracc_exec	(	struct mips_ejtag *	ejtag_info,
		struct pracc_queue_info *	ctx,
		uint32_t *	param_out,
		bool	check_last
	)

static

◆ mips32_pracc_fastdata_xfer()

int mips32_pracc_fastdata_xfer	(	struct mips_ejtag *	ejtag_info,
		struct working_area *	source,
		int	write_t,
		uint32_t	addr,
		int	count,
		uint32_t *	buf
	)

Definition at line 910 of file mips32_pracc.c.

References adapter_get_speed_khz(), addr, ARRAY_SIZE, count, pracc_queue_info::ejtag_info, EJTAG_INST_DATA, EJTAG_INST_FASTDATA, ERROR_FAIL, ERROR_OK, ERROR_TARGET_RESOURCE_NOT_AVAILABLE, mips_ejtag::fast_access_save, pracc_queue_info::isa, mips_ejtag::isa, jtag_add_clocks(), jtag_execute_queue(), LOG_DEBUG, LOG_ERROR, LOWER16, MIPS32_ADDI, MIPS32_BNE, MIPS32_FASTDATA_HANDLER_SIZE, MIPS32_JR, MIPS32_LUI, MIPS32_LW, MIPS32_MFC0, MIPS32_NOP, MIPS32_ORI, MIPS32_PRACC_FASTDATA_AREA, mips32_pracc_finish(), mips32_pracc_read_ctrl_addr(), MIPS32_PRACC_TEXT, mips32_pracc_write_mem(), MIPS32_SW, MIPS32_XORI, mips_ejtag_drscan_32_out(), mips_ejtag_fastdata_scan(), mips_ejtag_set_instr(), mips_ejtag::mode, NEG16, mips_ejtag::pa_addr, pracc_swap16_array(), pracc_queue_info::retval, mips_ejtag::scan_delay, source, TARGET_PRIxADDR, UPPER16, and wait_for_pracc_rw().

Referenced by mips_m4k_bulk_write_memory().

◆ mips32_pracc_finish()

static void mips32_pracc_finish ( struct mips_ejtag * ejtag_info )

static

Definition at line 107 of file mips32_pracc.c.

References ctrl, mips_ejtag::ejtag_ctrl, EJTAG_CTRL_PRACC, EJTAG_INST_CONTROL, mips_ejtag_drscan_32_out(), and mips_ejtag_set_instr().

Referenced by mips32_pracc_clean_text_jump(), mips32_pracc_exec(), and mips32_pracc_fastdata_xfer().

◆ mips32_pracc_queue_exec()

int mips32_pracc_queue_exec	(	struct mips_ejtag *	ejtag_info,
		struct pracc_queue_info *	ctx,
		uint32_t *	buf,
		bool	check_last
	)

Definition at line 343 of file mips32_pracc.c.

References adapter_get_speed_khz(), addr, pa_list::addr, buf_get_u32(), pracc_queue_info::code_count, ctrl, mips_ejtag::ejtag_ctrl, EJTAG_CTRL_PRACC, EJTAG_CTRL_PRNW, EJTAG_INST_ALL, mips_ejtag::endianness, ERROR_FAIL, ERROR_OK, pa_list::instr, mips_ejtag::isa, jtag_add_clocks(), jtag_execute_queue(), LOG_ERROR, mips32_pracc_exec(), MIPS32_PRACC_PARAM_OUT, MIPS32_PRACC_TEXT, mips_ejtag_add_scan_96(), mips_ejtag_set_instr(), mips_ejtag::mode, pracc_queue_info::pracc_list, pracc_queue_info::retval, mips_ejtag::scan_delay, pracc_queue_info::store_count, and SWAP16.

Referenced by ath79_spi_bitbang_chunk(), mips32_cp0_read(), mips32_cp0_write(), mips32_pracc_read_mem(), mips32_pracc_read_regs(), mips32_pracc_read_u32(), mips32_pracc_synchronize_cache(), mips32_pracc_write_mem_generic(), mips32_pracc_write_regs(), mips_ejtag_config_step(), and mips_ejtag_exit_debug().

◆ mips32_pracc_read_ctrl_addr()

static int mips32_pracc_read_ctrl_addr ( struct mips_ejtag * ejtag_info )

static

Definition at line 94 of file mips32_pracc.c.

References EJTAG_INST_ADDRESS, ERROR_OK, mips_ejtag_drscan_32(), mips_ejtag_set_instr(), mips_ejtag::pa_addr, and wait_for_pracc_rw().

Referenced by mips32_pracc_clean_text_jump(), mips32_pracc_exec(), and mips32_pracc_fastdata_xfer().

◆ mips32_pracc_read_mem()

int mips32_pracc_read_mem	(	struct mips_ejtag *	ejtag_info,
		uint32_t	addr,
		int	size,
		int	count,
		void *	buf
	)

Definition at line 466 of file mips32_pracc.c.

References addr, pracc_queue_info::code_count, count, pracc_queue_info::ejtag_info, ERROR_OK, pracc_queue_info::isa, LOG_ERROR, LOWER16, MIPS32_B, MIPS32_LBU, MIPS32_LHU, MIPS32_LUI, MIPS32_LW, MIPS32_MFC0, MIPS32_PRACC_PARAM_OUT, mips32_pracc_queue_exec(), mips32_pracc_read_u32(), MIPS32_SW, NEG16, NULL, pracc_add(), pracc_add_li32(), PRACC_OUT_OFFSET, pracc_queue_free(), pracc_queue_init(), PRACC_UPPER_BASE_ADDR, mips_ejtag::reg8, mips_ejtag::reg9, pracc_queue_info::retval, size, pracc_queue_info::store_count, and UPPER16.

Referenced by mips_m4k_read_memory().

◆ mips32_pracc_read_regs()

int mips32_pracc_read_regs	(	struct mips_ejtag *	ejtag_info,
		uint32_t *	regs
	)

Definition at line 861 of file mips32_pracc.c.

References pracc_queue_info::code_count, pracc_queue_info::ejtag_info, pracc_queue_info::isa, MIPS32_B, MIPS32_LUI, MIPS32_MFC0, MIPS32_MFHI, MIPS32_MFLO, MIPS32_MTC0, MIPS32_PRACC_PARAM_OUT, mips32_pracc_queue_exec(), MIPS32_SW, NEG16, pracc_add(), PRACC_OUT_OFFSET, pracc_queue_free(), pracc_queue_init(), PRACC_UPPER_BASE_ADDR, mips_ejtag::reg8, mips_ejtag::reg9, regs, and pracc_queue_info::retval.

Referenced by mips32_save_context().

◆ mips32_pracc_read_u32()

static int mips32_pracc_read_u32	(	struct mips_ejtag *	ejtag_info,
		uint32_t	addr,
		uint32_t *	buf
	)

static

Definition at line 447 of file mips32_pracc.c.

References addr, pracc_queue_info::code_count, pracc_queue_info::ejtag_info, pracc_queue_info::isa, LOWER16, MIPS32_B, MIPS32_LUI, MIPS32_LW, MIPS32_MFC0, MIPS32_PRACC_PARAM_OUT, mips32_pracc_queue_exec(), MIPS32_SW, NEG16, pracc_add(), pracc_add_li32(), PRACC_OUT_OFFSET, pracc_queue_free(), pracc_queue_init(), PRACC_UPPER_BASE_ADDR, mips_ejtag::reg8, pracc_queue_info::retval, and UPPER16.

Referenced by mips32_pracc_read_mem().

◆ mips32_pracc_synchronize_cache()

static int mips32_pracc_synchronize_cache	(	struct mips_ejtag *	ejtag_info,
		uint32_t	start_addr,
		uint32_t	end_addr,
		int	cached,
		int	rel
	)

static

mips32_pracc_sync_cache

Synchronize Caches to Make Instruction Writes Effective (ref. doc. MIPS32 Architecture For Programmers Volume II: The MIPS32 Instruction Set, Document Number: MD00086, Revision 2.00, June 9, 2003)

When the instruction stream is written, the SYNCI instruction should be used in conjunction with other instructions to make the newly-written instructions effective.

Explanation : A program that loads another program into memory is actually writing the D- side cache. The instructions it has loaded can't be executed until they reach the I-cache.

After the instructions have been written, the loader should arrange to write back any containing D-cache line and invalidate any locations already in the I-cache.

If the cache coherency attribute (CCA) is set to zero, it's a write through cache, there is no need to write back.

In the latest MIPS32/64 CPUs, MIPS provides the synci instruction, which does the whole job for a cache-line-sized chunk of the memory you just loaded: That is, it arranges a D-cache write-back (if CCA = 3) and an I-cache invalidate.

The line size is obtained with the rdhwr SYNCI_Step in release 2 or from cp0 config 1 register in release 1.

Find cache line size in bytes

Definition at line 609 of file mips32_pracc.c.

References pracc_queue_info::code_count, count, pracc_queue_info::ejtag_info, ERROR_FAIL, ERROR_OK, IS_PWR_OF_2, pracc_queue_info::isa, LOG_DEBUG, LOWER16, MIPS32_B, MIPS32_CACHE, MIPS32_CACHE_D_HIT_WRITEBACK, MIPS32_CACHE_I_HIT_INVALIDATE, MIPS32_CONFIG1_DL_MASK, MIPS32_CONFIG1_DL_SHIFT, mips32_cp0_read(), MIPS32_LUI, MIPS32_MFC0, MIPS32_NOP, MIPS32_PRACC_PARAM_OUT, mips32_pracc_queue_exec(), MIPS32_RDHWR, MIPS32_SW, MIPS32_SYNC, MIPS32_SYNCI, MIPS32_SYNCI_STEP, NEG16, NULL, pracc_add(), pracc_add_li32(), PRACC_OUT_OFFSET, pracc_queue_free(), pracc_queue_init(), PRACC_UPPER_BASE_ADDR, mips_ejtag::reg8, pracc_queue_info::retval, pracc_queue_info::store_count, and UPPER16.

Referenced by mips32_pracc_write_mem().

◆ mips32_pracc_write_mem()

int mips32_pracc_write_mem	(	struct mips_ejtag *	ejtag_info,
		uint32_t	addr,
		int	size,
		int	count,
		const void *	buf
	)

If we are in the cacheable region and cache is activated, we must clean D$ (if Cache Coherency Attribute is set to 3) + invalidate I$ after we did the write, so that changes do not continue to live only in D$ (if CCA = 3), but to be replicated in I$ also (maybe we wrote the instructions)

Check cacheability bits coherency algorithm is the region cacheable or uncached. If cacheable we have to synchronize the cache

Definition at line 771 of file mips32_pracc.c.

References addr, count, pracc_queue_info::ejtag_info, ERROR_FAIL, ERROR_OK, KSEG0, KSEG1, KSEG2, KSEG3, KSEGX, KUSEG, LOG_DEBUG, MIPS32_CONFIG0_AR_MASK, MIPS32_CONFIG0_AR_SHIFT, MIPS32_CONFIG0_K0_MASK, MIPS32_CONFIG0_K0_SHIFT, MIPS32_CONFIG0_K23_MASK, MIPS32_CONFIG0_K23_SHIFT, MIPS32_CONFIG0_KU_MASK, MIPS32_CONFIG0_KU_SHIFT, mips32_cp0_read(), mips32_pracc_synchronize_cache(), mips32_pracc_write_mem_generic(), pracc_queue_info::retval, and size.
