lpc2000.c File Reference

flash programming support for NXP LPC8xx,LPC1xxx,LPC4xxx,LP5410x,LPC2xxx and NHS31xx devices. More...

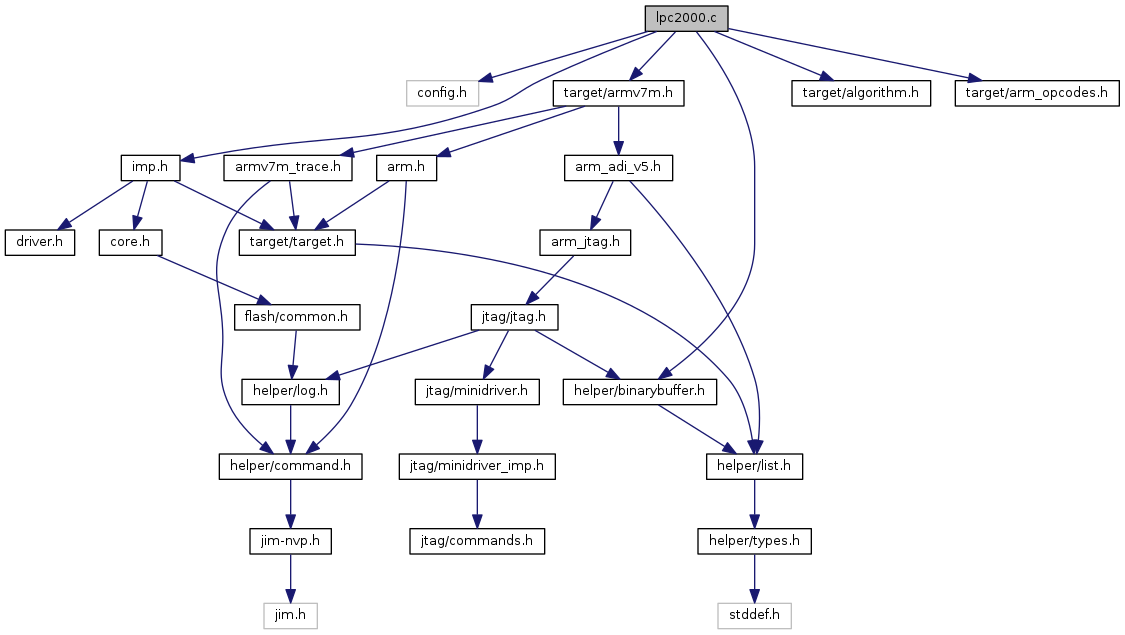

Include dependency graph for lpc2000.c:

Go to the source code of this file.

Data Structures

struct  lpc2000_flash_bank


Macros

#define IAP_CODE_LEN   0x34

#define LPC1110_1   0x0A07102B

#define LPC1110_2   0x1A07102B

#define LPC1111_002_1   0x0A16D02B

#define LPC1111_002_2   0x1A16D02B

#define LPC1111_101_1   0x041E502B

#define LPC1111_101_2   0x2516D02B

#define LPC1111_103_1   0x00010013

#define LPC1111_201_1   0x0416502B

#define LPC1111_201_2   0x2516902B

#define LPC1111_203_1   0x00010012

#define LPC1112_101_1   0x042D502B

#define LPC1112_101_2   0x2524D02B

#define LPC1112_102_1   0x0A24902B

#define LPC1112_102_2   0x1A24902B

#define LPC1112_103_1   0x00020023

#define LPC1112_201_1   0x0425502B

#define LPC1112_201_2   0x2524902B

#define LPC1112_203_1   0x00020022

#define LPC1113_201_1   0x0434502B

#define LPC1113_201_2   0x2532902B

#define LPC1113_203_1   0x00030032

#define LPC1113_301_1   0x0434102B

#define LPC1113_301_2   0x2532102B

#define LPC1113_303_1   0x00030030

#define LPC1114_102_1   0x0A40902B

#define LPC1114_102_2   0x1A40902B

#define LPC1114_201_1   0x0444502B

#define LPC1114_201_2   0x2540902B

#define LPC1114_203_1   0x00040042

#define LPC1114_301_1   0x0444102B

#define LPC1114_301_2   0x2540102B

#define LPC1114_303_1   0x00040040

#define LPC1114_323_1   0x00040060

#define LPC1114_333_1   0x00040070

#define LPC1115_303_1   0x00050080

#define LPC11A02_1   0x4D4C802B

#define LPC11A04_1   0x4D80002B

#define LPC11A11_001_1   0x455EC02B

#define LPC11A12_101_1   0x4574802B

#define LPC11A13_201_1   0x458A402B

#define LPC11A14_301_1   0x35A0002B

#define LPC11A14_301_2   0x45A0002B

#define LPC11C12_301_1   0x1421102B

#define LPC11C14_301_1   0x1440102B

#define LPC11C22_301_1   0x1431102B

#define LPC11C24_301_1   0x1430102B

#define LPC11E11_101   0x293E902B

#define LPC11E12_201   0x2954502B

#define LPC11E13_301   0x296A102B

#define LPC11E14_401   0x2980102B

#define LPC11E36_501   0x00009C41

#define LPC11E37_401   0x00007C45

#define LPC11E37_501   0x00007C41

#define LPC11E66   0x0000DCC1

#define LPC11E67   0x0000BC81

#define LPC11E68   0x00007C01

#define LPC11U12_201_1   0x095C802B

#define LPC11U12_201_2   0x295C802B

#define LPC11U13_201_1   0x097A802B

#define LPC11U13_201_2   0x297A802B

#define LPC11U14_201_1   0x0998802B

#define LPC11U14_201_2   0x2998802B

#define LPC11U23_301   0x2972402B

#define LPC11U24_301   0x2988402B

#define LPC11U24_401   0x2980002B

#define LPC11U34_311   0x0003D440

#define LPC11U34_421   0x0001CC40

#define LPC11U35_401   0x0001BC40

#define LPC11U35_501   0x0000BC40

#define LPC11U36_401   0x00019C40

#define LPC11U37_401   0x00017C40

#define LPC11U37_501   0x00007C40

#define LPC11U37H_401   0x00007C44

#define LPC11U66   0x0000DCC8

#define LPC11U67_1   0x0000BC88

#define LPC11U67_2   0x0000BC80

#define LPC11U68_1   0x00007C08

#define LPC11U68_2   0x00007C00

#define LPC11XX_REG_SECTORS   24

#define LPC1311   0x2C42502B

#define LPC1311_1   0x1816902B

#define LPC1313   0x2C40102B

#define LPC1313_1   0x1830102B

#define LPC1315   0x3A010523

#define LPC1316   0x1A018524

#define LPC1317   0x1A020525

#define LPC1342   0x3D01402B

#define LPC1343   0x3D00002B

#define LPC1343_1   0x3000002B

#define LPC1345   0x28010541

#define LPC1346   0x08018542

#define LPC1347   0x08020543

#define LPC1751_1   0x25001110

#define LPC1751_2   0x25001118

#define LPC1752   0x25001121

#define LPC1754   0x25011722

#define LPC1756   0x25011723

#define LPC1758   0x25013F37

#define LPC1759   0x25113737

#define LPC1763   0x26012033

#define LPC1764   0x26011922

#define LPC1765   0x26013733

#define LPC1766   0x26013F33

#define LPC1767   0x26012837

#define LPC1768   0x26013F37

#define LPC1769   0x26113F37

#define LPC1774   0x27011132

#define LPC1776   0x27191F43

#define LPC1777   0x27193747

#define LPC1778   0x27193F47

#define LPC1785   0x281D1743

#define LPC1786   0x281D1F43

#define LPC1787   0x281D3747

#define LPC1788   0x281D3F47

#define LPC4072   0x47011121

#define LPC4074   0x47011132

#define LPC4076   0x47191F43

#define LPC4078   0x47193F47

#define LPC4088   0x481D3F47

#define LPC810_021   0x00008100

#define LPC811_001   0x00008110

#define LPC812_101   0x00008120

#define LPC812_101_1   0x00008121

#define LPC812_101_2   0x00008122

#define LPC812_101_3   0x00008123

#define LPC822_101   0x00008221

#define LPC822_101_1   0x00008222

#define LPC824_201   0x00008241

#define LPC824_201_1   0x00008242

#define LPC844_201   0x00008441

#define LPC844_201_1   0x00008442

#define LPC844_201_2   0x00008444

#define LPC845_301   0x00008451

#define LPC845_301_1   0x00008452

#define LPC845_301_2   0x00008453

#define LPC845_301_3   0x00008454

#define LPC8N04   0x00008A04

#define NHS3100   0x4e310020

#define NHS3152   0x4e315220

#define NHS3153   0x4e315320 /* Only specified in Rev.1 of the datasheet */


Enumerations

enum  lpc2000_status_codes {
  LPC2000_CMD_SUCCESS = 0 , LPC2000_INVALID_COMMAND = 1 , LPC2000_SRC_ADDR_ERROR = 2 , LPC2000_DST_ADDR_ERROR = 3 ,
  LPC2000_SRC_ADDR_NOT_MAPPED = 4 , LPC2000_DST_ADDR_NOT_MAPPED = 5 , LPC2000_COUNT_ERROR = 6 , LPC2000_INVALID_SECTOR = 7 ,
  LPC2000_SECTOR_NOT_BLANK = 8 , LPC2000_SECTOR_NOT_PREPARED = 9 , LPC2000_COMPARE_ERROR = 10 , LPC2000_BUSY = 11 ,
  LPC2000_PARAM_ERROR = 12 , LPC2000_ADDR_ERROR = 13 , LPC2000_ADDR_NOT_MAPPED = 14 , LPC2000_CMD_NOT_LOCKED = 15 ,
  LPC2000_INVALID_CODE = 16 , LPC2000_INVALID_BAUD_RATE = 17 , LPC2000_INVALID_STOP_BIT = 18 , LPC2000_CRP_ENABLED = 19 ,
  LPC2000_INVALID_FLASH_UNIT = 20 , LPC2000_USER_CODE_CHECKSUM = 21 , LCP2000_ERROR_SETTING_ACTIVE_PARTITION = 22
}

enum  lpc2000_variant {
  LPC2000_V1 , LPC2000_V2 , LPC1700 , LPC4300 ,
  LPC800 , LPC1100 , LPC1500 , LPC54100 ,
  LPC_AUTO
}


Functions

 COMMAND_HANDLER (lpc2000_handle_part_id_command)

 FLASH_BANK_COMMAND_HANDLER (lpc2000_flash_bank_command)

static int get_lpc2000_info (struct flash_bank *bank, struct command_invocation *cmd)

static int get_lpc2000_part_id (struct flash_bank *bank, uint32_t *part_id)

static int lpc2000_auto_probe_flash (struct flash_bank *bank)

static int lpc2000_build_sector_list (struct flash_bank *bank)

static int lpc2000_erase (struct flash_bank *bank, unsigned int first, unsigned int last)

static int lpc2000_erase_check (struct flash_bank *bank)

static int lpc2000_iap_blank_check (struct flash_bank *bank, unsigned int first, unsigned int last)

static int lpc2000_iap_call (struct flash_bank *bank, struct working_area *iap_working_area, int code, uint32_t param_table[5], uint32_t result_table[4])

static int lpc2000_iap_working_area_init (struct flash_bank *bank, struct working_area **iap_working_area)

static int lpc2000_probe (struct flash_bank *bank)

static int lpc2000_write (struct flash_bank *bank, const uint8_t *buffer, uint32_t offset, uint32_t count)


Variables

static const struct command_registration lpc2000_command_handlers []

static const struct command_registration lpc2000_exec_command_handlers []

const struct flash_driver lpc2000_flash


Detailed Description

flash programming support for NXP LPC8xx,LPC1xxx,LPC4xxx,LP5410x,LPC2xxx and NHS31xx devices.

Todo:
Provide a way to update CCLK after declaring the flash bank. The value which is correct after chip reset will rarely still work right after the clocks switch to use the PLL (e.g. 4MHz --> 100 MHz).

Definition in file lpc2000.c.

Macro Definition Documentation

◆ IAP_CODE_LEN

#define IAP_CODE_LEN   0x34

Definition at line 271 of file lpc2000.c.
