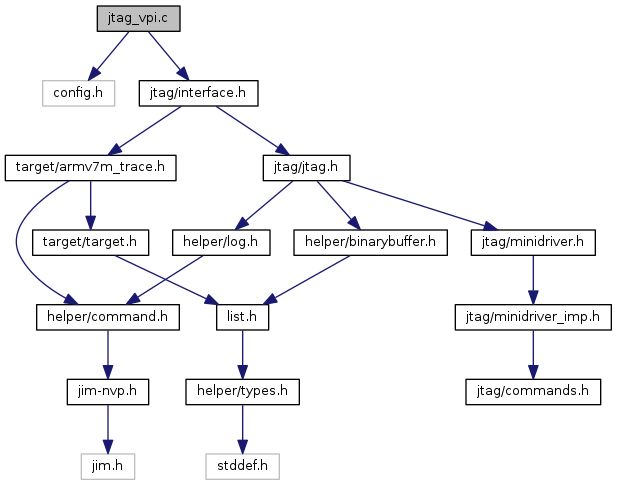

Include dependency graph for jtag_vpi.c:

Data Structures
struct	vpi_cmd

Macros
#define	CMD_RESET 0

#define	CMD_SCAN_CHAIN 2

#define	CMD_SCAN_CHAIN_FLIP_TMS 3

#define	CMD_STOP_SIMU 4

#define	CMD_TMS_SEQ 1

#define	DEFAULT_SERVER_ADDRESS "127.0.0.1"

#define	DEFAULT_SERVER_PORT 5555

#define	NO_TAP_SHIFT 0

#define	TAP_SHIFT 1

#define	XFERT_MAX_SIZE 512

Functions
	COMMAND_HANDLER (jtag_vpi_set_address)

	COMMAND_HANDLER (jtag_vpi_set_port)

	COMMAND_HANDLER (jtag_vpi_stop_sim_on_exit_handler)

static int	jtag_vpi_clock_tms (int tms)
	jtag_vpi_clock_tms - clock a TMS transition More...

static char *	jtag_vpi_cmd_to_str (int cmd_num)

static int	jtag_vpi_execute_queue (void)

static int	jtag_vpi_init (void)

static int	jtag_vpi_path_move (struct pathmove_command *cmd)
	jtag_vpi_path_move - ask a TMS sequence transition to JTAG More...

static int	jtag_vpi_queue_tdi (uint8_t *bits, int nb_bits, int tap_shift)
	jtag_vpi_queue_tdi - short description More...

static int	jtag_vpi_queue_tdi_xfer (uint8_t *bits, int nb_bits, int tap_shift)

static int	jtag_vpi_quit (void)

static int	jtag_vpi_receive_cmd (struct vpi_cmd *vpi)

static int	jtag_vpi_reset (int trst, int srst)
	jtag_vpi_reset - ask to reset the JTAG device More...

static int	jtag_vpi_runtest (int cycles, tap_state_t state)

static int	jtag_vpi_scan (struct scan_command *cmd)
	jtag_vpi_scan - launches a DR-scan or IR-scan More...

static int	jtag_vpi_send_cmd (struct vpi_cmd *vpi)

static int	jtag_vpi_stableclocks (int cycles)

static int	jtag_vpi_state_move (tap_state_t state)

static int	jtag_vpi_stop_simulation (void)

static int	jtag_vpi_tms (struct tms_command *cmd)
	jtag_vpi_tms - ask a tms command More...

static int	jtag_vpi_tms_seq (const uint8_t *bits, int nb_bits)
	jtag_vpi_tms_seq - ask a TMS sequence transition to JTAG More...

Variables
struct adapter_driver	jtag_vpi_adapter_driver

static const struct command_registration	jtag_vpi_command_handlers []

static struct jtag_interface	jtag_vpi_interface

static const struct command_registration	jtag_vpi_subcommand_handlers []

static struct sockaddr_in	serv_addr

static char *	server_address

static int	server_port = DEFAULT_SERVER_PORT

static int	sockfd

static bool	stop_sim_on_exit

Macro Definition Documentation

◆ CMD_RESET

#define CMD_RESET 0

Definition at line 35 of file jtag_vpi.c.

◆ CMD_SCAN_CHAIN

#define CMD_SCAN_CHAIN 2

Definition at line 37 of file jtag_vpi.c.

◆ CMD_SCAN_CHAIN_FLIP_TMS

#define CMD_SCAN_CHAIN_FLIP_TMS 3

Definition at line 38 of file jtag_vpi.c.

◆ CMD_STOP_SIMU

#define CMD_STOP_SIMU 4

Definition at line 39 of file jtag_vpi.c.

◆ CMD_TMS_SEQ

#define CMD_TMS_SEQ 1

Definition at line 36 of file jtag_vpi.c.

◆ DEFAULT_SERVER_ADDRESS

#define DEFAULT_SERVER_ADDRESS "127.0.0.1"

Definition at line 30 of file jtag_vpi.c.

◆ DEFAULT_SERVER_PORT

#define DEFAULT_SERVER_PORT 5555

Definition at line 31 of file jtag_vpi.c.

◆ NO_TAP_SHIFT

#define NO_TAP_SHIFT 0

Definition at line 27 of file jtag_vpi.c.

◆ TAP_SHIFT

#define TAP_SHIFT 1

Definition at line 28 of file jtag_vpi.c.

◆ XFERT_MAX_SIZE

#define XFERT_MAX_SIZE 512

Definition at line 33 of file jtag_vpi.c.

Function Documentation

◆ COMMAND_HANDLER() [1/3]

COMMAND_HANDLER ( jtag_vpi_set_address )

Definition at line 607 of file jtag_vpi.c.

References CMD_ARGC, CMD_ARGV, ERROR_COMMAND_SYNTAX_ERROR, ERROR_OK, LOG_ERROR, LOG_INFO, and server_address.

◆ COMMAND_HANDLER() [2/3]

COMMAND_HANDLER ( jtag_vpi_set_port )

Definition at line 594 of file jtag_vpi.c.

References CMD_ARGC, CMD_ARGV, COMMAND_PARSE_NUMBER, ERROR_COMMAND_SYNTAX_ERROR, ERROR_OK, LOG_ERROR, LOG_INFO, and server_port.

◆ COMMAND_HANDLER() [3/3]

COMMAND_HANDLER ( jtag_vpi_stop_sim_on_exit_handler )

Definition at line 622 of file jtag_vpi.c.

References CMD_ARGC, CMD_ARGV, COMMAND_PARSE_ON_OFF, ERROR_COMMAND_SYNTAX_ERROR, ERROR_OK, LOG_ERROR, and stop_sim_on_exit.

◆ jtag_vpi_clock_tms()

static int jtag_vpi_clock_tms ( int tms )

static

jtag_vpi_clock_tms - clock a TMS transition

Parameters

tms	the TMS to be sent

Triggers a TMS transition (ie. one JTAG TAP state move).

Definition at line 369 of file jtag_vpi.c.

References jtag_vpi_tms_seq().

Referenced by jtag_vpi_scan().

◆ jtag_vpi_cmd_to_str()

static char* jtag_vpi_cmd_to_str ( int cmd_num )

static

Definition at line 69 of file jtag_vpi.c.

References CMD_RESET, CMD_SCAN_CHAIN, CMD_SCAN_CHAIN_FLIP_TMS, CMD_STOP_SIMU, and CMD_TMS_SEQ.

Referenced by jtag_vpi_send_cmd().

◆ jtag_vpi_execute_queue()

static int jtag_vpi_execute_queue ( void )

static

Definition at line 483 of file jtag_vpi.c.

References cmd, ERROR_FAIL, ERROR_OK, jtag_command_queue, JTAG_PATHMOVE, JTAG_RESET, JTAG_RUNTEST, JTAG_SCAN, JTAG_SLEEP, jtag_sleep(), JTAG_STABLECLOCKS, JTAG_TLR_RESET, JTAG_TMS, jtag_vpi_path_move(), jtag_vpi_reset(), jtag_vpi_runtest(), jtag_vpi_scan(), jtag_vpi_stableclocks(), jtag_vpi_state_move(), jtag_vpi_tms(), and LOG_ERROR.

◆ jtag_vpi_init()

static int jtag_vpi_init ( void )

static

Definition at line 527 of file jtag_vpi.c.

References DEFAULT_SERVER_ADDRESS, ERROR_COMMAND_CLOSE_CONNECTION, ERROR_FAIL, ERROR_OK, flag, LOG_ERROR, LOG_INFO, serv_addr, server_address, server_port, and sockfd.

◆ jtag_vpi_path_move()

static int jtag_vpi_path_move ( struct pathmove_command * cmd )

static

jtag_vpi_path_move - ask a TMS sequence transition to JTAG

Parameters

cmd	path transition

Write a series of TMS transitions, where each transition consists in :

writing out TCK=0, TMS=<new_state>, TDI=<???>
writing out TCK=1, TMS=<new_state>, TDI=<???> which triggers the transition The function ensures that at the end of the sequence, the clock (TCK) is put low.

Definition at line 251 of file jtag_vpi.c.

References buf_set_u32(), cmd, DIV_ROUND_UP, jtag_vpi_tms_seq(), tap_get_state(), tap_set_state, and tap_state_transition().

Referenced by jtag_vpi_execute_queue().

◆ jtag_vpi_queue_tdi()

static int jtag_vpi_queue_tdi	(	uint8_t *	bits,
		int	nb_bits,
		int	tap_shift
	)

static

jtag_vpi_queue_tdi - short description

Parameters

bits	bits to be queued on TDI (or NULL if 0 are to be queued)
nb_bits	number of bits
tap_shift

Definition at line 338 of file jtag_vpi.c.

References bits, DIV_ROUND_UP, ERROR_OK, jtag_vpi_queue_tdi_xfer(), vpi_cmd::nb_bits, NO_TAP_SHIFT, and XFERT_MAX_SIZE.

Referenced by jtag_vpi_runtest(), and jtag_vpi_scan().

◆ jtag_vpi_queue_tdi_xfer()

static int jtag_vpi_queue_tdi_xfer	(	uint8_t *	bits,
		int	nb_bits,
		int	tap_shift
	)

static

Definition at line 292 of file jtag_vpi.c.

References bits, buf_to_hex_str(), vpi_cmd::buffer_in, vpi_cmd::buffer_out, vpi_cmd::cmd, CMD_SCAN_CHAIN, CMD_SCAN_CHAIN_FLIP_TMS, DEBUG_JTAG_IOZ, DIV_ROUND_UP, ERROR_OK, jtag_vpi_receive_cmd(), jtag_vpi_send_cmd(), vpi_cmd::length, LOG_DEBUG_IO, LOG_LEVEL_IS, LOG_LVL_DEBUG_IO, and vpi_cmd::nb_bits.

Referenced by jtag_vpi_queue_tdi().

◆ jtag_vpi_quit()

static int jtag_vpi_quit ( void )

static

Definition at line 580 of file jtag_vpi.c.

References close_socket(), ERROR_OK, jtag_vpi_stop_simulation(), log_socket_error(), LOG_WARNING, server_address, sockfd, and stop_sim_on_exit.

◆ jtag_vpi_receive_cmd()

static int jtag_vpi_receive_cmd ( struct vpi_cmd * vpi )

static

Definition at line 159 of file jtag_vpi.c.

References vpi_cmd::cmd, vpi_cmd::cmd_buf, ERROR_OK, le_to_h_u32(), vpi_cmd::length, vpi_cmd::length_buf, LOG_ERROR, log_socket_error(), vpi_cmd::nb_bits, vpi_cmd::nb_bits_buf, read_socket(), and sockfd.

Referenced by jtag_vpi_queue_tdi_xfer().

◆ jtag_vpi_reset()

static int jtag_vpi_reset	(	int	trst,
		int	srst
	)

static

jtag_vpi_reset - ask to reset the JTAG device

Parameters

trst	1 if TRST is to be asserted
srst	1 if SRST is to be asserted

Definition at line 203 of file jtag_vpi.c.

References vpi_cmd::cmd, CMD_RESET, jtag_vpi_send_cmd(), and vpi_cmd::length.

Referenced by jtag_vpi_execute_queue().

◆ jtag_vpi_runtest()

static int jtag_vpi_runtest	(	int	cycles,
		tap_state_t	state
	)

static

Definition at line 443 of file jtag_vpi.c.

References ERROR_OK, jtag_vpi_queue_tdi(), jtag_vpi_state_move(), NO_TAP_SHIFT, NULL, state, and TAP_IDLE.

Referenced by jtag_vpi_execute_queue().

◆ jtag_vpi_scan()

static int jtag_vpi_scan ( struct scan_command * cmd )

static

jtag_vpi_scan - launches a DR-scan or IR-scan

Parameters

cmd	the command to launch

Launch a JTAG IR-scan or DR-scan

Returns ERROR_OK if OK, ERROR_xxx if a read/write error occurred.

Definition at line 385 of file jtag_vpi.c.

References cmd, ERROR_OK, jtag_build_buffer(), jtag_read_buffer(), jtag_vpi_clock_tms(), jtag_vpi_queue_tdi(), jtag_vpi_state_move(), NO_TAP_SHIFT, NULL, TAP_DRPAUSE, TAP_DRSHIFT, TAP_IRPAUSE, TAP_IRSHIFT, tap_set_state, and TAP_SHIFT.

Referenced by jtag_vpi_execute_queue().

◆ jtag_vpi_send_cmd()

static int jtag_vpi_send_cmd ( struct vpi_cmd * vpi )

static

Definition at line 87 of file jtag_vpi.c.

References buf_to_hex_str(), vpi_cmd::buffer_out, vpi_cmd::cmd, vpi_cmd::cmd_buf, DEBUG_JTAG_IOZ, ERROR_OK, h_u32_to_le(), jtag_vpi_cmd_to_str(), vpi_cmd::length, vpi_cmd::length_buf, LOG_DEBUG_IO, LOG_ERROR, LOG_LEVEL_IS, LOG_LVL_DEBUG_IO, log_socket_error(), vpi_cmd::nb_bits, vpi_cmd::nb_bits_buf, sockfd, and write_socket().

Referenced by jtag_vpi_queue_tdi_xfer(), jtag_vpi_reset(), jtag_vpi_stop_simulation(), and jtag_vpi_tms_seq().

◆ jtag_vpi_stableclocks()

static int jtag_vpi_stableclocks ( int cycles )

static

Definition at line 458 of file jtag_vpi.c.

References ERROR_OK, jtag_vpi_tms_seq(), vpi_cmd::nb_bits, tap_get_state(), and TAP_RESET.

Referenced by jtag_vpi_execute_queue().

◆ jtag_vpi_state_move()

static int jtag_vpi_state_move ( tap_state_t state )

static

Definition at line 275 of file jtag_vpi.c.

References ERROR_OK, jtag_vpi_tms_seq(), state, tap_get_state(), tap_get_tms_path(), tap_get_tms_path_len(), and tap_set_state.

Referenced by jtag_vpi_execute_queue(), jtag_vpi_runtest(), and jtag_vpi_scan().

◆ jtag_vpi_stop_simulation()

static int jtag_vpi_stop_simulation ( void )

static

Definition at line 570 of file jtag_vpi.c.

References cmd, CMD_STOP_SIMU, and jtag_vpi_send_cmd().

Referenced by jtag_vpi_quit().

◆ jtag_vpi_tms()

static int jtag_vpi_tms ( struct tms_command * cmd )

static

jtag_vpi_tms - ask a tms command

Parameters

cmd	tms command

Definition at line 270 of file jtag_vpi.c.

References cmd, and jtag_vpi_tms_seq().

Referenced by jtag_vpi_execute_queue().

◆ jtag_vpi_tms_seq()

static int jtag_vpi_tms_seq	(	const uint8_t *	bits,
		int	nb_bits
	)

static

jtag_vpi_tms_seq - ask a TMS sequence transition to JTAG

Parameters

bits	TMS bits to be written (bit0, bit1 .. bitN)
nb_bits	number of TMS bits (between 1 and 8)

Write a series of TMS transitions, where each transition consists in :

writing out TCK=0, TMS=<new_state>, TDI=<???>
writing out TCK=1, TMS=<new_state>, TDI=<???> which triggers the transition The function ensures that at the end of the sequence, the clock (TCK) is put low.

Definition at line 224 of file jtag_vpi.c.

References bits, vpi_cmd::buffer_out, vpi_cmd::cmd, CMD_TMS_SEQ, DIV_ROUND_UP, jtag_vpi_send_cmd(), vpi_cmd::length, and vpi_cmd::nb_bits.

Referenced by jtag_vpi_clock_tms(), jtag_vpi_path_move(), jtag_vpi_stableclocks(), jtag_vpi_state_move(), and jtag_vpi_tms().

Variable Documentation

◆ jtag_vpi_adapter_driver

struct adapter_driver jtag_vpi_adapter_driver

Initial value:

= {
    .name = "jtag_vpi",
    .transports = jtag_only,
    .commands = jtag_vpi_command_handlers,

    .init = jtag_vpi_init,
    .quit = jtag_vpi_quit,

    .jtag_ops = &jtag_vpi_interface,
}

Definition at line 622 of file jtag_vpi.c.

◆ jtag_vpi_command_handlers

const struct command_registration jtag_vpi_command_handlers[]

static

Initial value:

= {
    {
        .name = "jtag_vpi",
        .mode = COMMAND_ANY,
        .help = "perform jtag_vpi management",
        .chain = jtag_vpi_subcommand_handlers,
        .usage = "",
    },
    COMMAND_REGISTRATION_DONE
}

Definition at line 622 of file jtag_vpi.c.

◆ jtag_vpi_interface

struct jtag_interface jtag_vpi_interface

static

Initial value:

= {
    .supported = DEBUG_CAP_TMS_SEQ,
    .execute_queue = jtag_vpi_execute_queue,
}

Definition at line 622 of file jtag_vpi.c.

◆ jtag_vpi_subcommand_handlers

const struct command_registration jtag_vpi_subcommand_handlers[]

static

Initial value:

= {
    {
        .name = "set_port",
        .handler = &jtag_vpi_set_port,
        .mode = COMMAND_CONFIG,
        .help = "set the TCP port number of the jtag_vpi server (default: 5555)",
        .usage = "tcp_port_num",
    },
    {
        .name = "set_address",
        .handler = &jtag_vpi_set_address,
        .mode = COMMAND_CONFIG,
        .help = "set the IP address of the jtag_vpi server (default: 127.0.0.1)",
        .usage = "ipv4_addr",
    },
    {
        .name = "stop_sim_on_exit",
        .handler = &jtag_vpi_stop_sim_on_exit_handler,
        .mode = COMMAND_CONFIG,
        .help = "Configure if simulation stop command shall be sent "
            "before OpenOCD exits (default: off)",
        .usage = "<on|off>",
    },
    COMMAND_REGISTRATION_DONE
}

Definition at line 622 of file jtag_vpi.c.

◆ serv_addr

struct sockaddr_in serv_addr

static

Definition at line 48 of file jtag_vpi.c.

Referenced by jtag_vpi_init().

◆ server_address

char* server_address

static

Definition at line 43 of file jtag_vpi.c.

Referenced by COMMAND_HANDLER(), jtag_vpi_init(), and jtag_vpi_quit().

◆ server_port

int server_port = DEFAULT_SERVER_PORT

static

Definition at line 42 of file jtag_vpi.c.

Referenced by COMMAND_HANDLER(), and jtag_vpi_init().

◆ sockfd

int sockfd

static

Definition at line 48 of file jtag_vpi.c.

Referenced by jtag_vpi_init(), jtag_vpi_quit(), jtag_vpi_receive_cmd(), and jtag_vpi_send_cmd().

◆ stop_sim_on_exit

bool stop_sim_on_exit

static

Definition at line 46 of file jtag_vpi.c.

Referenced by COMMAND_HANDLER(), and jtag_vpi_quit().

Data Structures

Macros

Functions

Variables

Macro Definition Documentation

◆ CMD_RESET

◆ CMD_SCAN_CHAIN

◆ CMD_SCAN_CHAIN_FLIP_TMS

◆ CMD_STOP_SIMU

◆ CMD_TMS_SEQ

◆ DEFAULT_SERVER_ADDRESS

◆ DEFAULT_SERVER_PORT

◆ NO_TAP_SHIFT

◆ TAP_SHIFT

◆ XFERT_MAX_SIZE

Function Documentation

◆ COMMAND_HANDLER() [1/3]

◆ COMMAND_HANDLER() [2/3]

◆ COMMAND_HANDLER() [3/3]

◆ jtag_vpi_clock_tms()

◆ jtag_vpi_cmd_to_str()

◆ jtag_vpi_execute_queue()

◆ jtag_vpi_init()

◆ jtag_vpi_path_move()

◆ jtag_vpi_queue_tdi()

◆ jtag_vpi_queue_tdi_xfer()

◆ jtag_vpi_quit()

◆ jtag_vpi_receive_cmd()

◆ jtag_vpi_reset()

◆ jtag_vpi_runtest()

◆ jtag_vpi_scan()

◆ jtag_vpi_send_cmd()

◆ jtag_vpi_stableclocks()

◆ jtag_vpi_state_move()

◆ jtag_vpi_stop_simulation()

◆ jtag_vpi_tms()

◆ jtag_vpi_tms_seq()

Variable Documentation

◆ jtag_vpi_adapter_driver

◆ jtag_vpi_command_handlers

◆ jtag_vpi_interface

◆ jtag_vpi_subcommand_handlers

◆ serv_addr

◆ server_address

◆ server_port

◆ sockfd

◆ stop_sim_on_exit
