nds32_disassembler.h File Reference

Include dependency graph for nds32_disassembler.h:

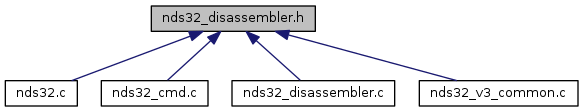

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	nds32_instruction

Enumerations
enum	nds32_instruction_type {   NDS32_INSN_DATA_PROC = 0 , NDS32_INSN_LOAD_STORE , NDS32_INSN_JUMP_BRANCH , NDS32_INSN_RESOURCE_ACCESS ,   NDS32_INSN_MISC }

Functions
int	nds32_evaluate_opcode (struct nds32 *nds32, uint32_t opcode, uint32_t address, struct nds32_instruction *instruction)
int	nds32_read_opcode (struct nds32 *nds32, uint32_t address, uint32_t *value)

Enumeration Type Documentation

nds32_instruction_type

enum nds32_instruction_type

Enumerator
NDS32_INSN_DATA_PROC
NDS32_INSN_LOAD_STORE
NDS32_INSN_JUMP_BRANCH
NDS32_INSN_RESOURCE_ACCESS
NDS32_INSN_MISC

Definition at line 13 of file nds32_disassembler.h.

Function Documentation

nds32_evaluate_opcode()

int nds32_evaluate_opcode	(	struct nds32 *	nds32,
		uint32_t	opcode,
		uint32_t	address,
		struct nds32_instruction *	instruction
	)

Definition at line 3770 of file nds32_disassembler.c.

References ERROR_FAIL, ERROR_OK, nds32_instruction::info, nds32_instruction::instruction_size, nds32_parse_group_0_insn(), nds32_parse_group_0_insn_16(), nds32_parse_group_1_insn(), nds32_parse_group_1_insn_16(), nds32_parse_group_2_insn(), nds32_parse_group_2_insn_16(), nds32_parse_group_3_insn(), nds32_parse_group_3_insn_16(), nds32_parse_group_4_insn(), nds32_parse_group_5_insn(), nds32_parse_group_6_insn(), nds32_instruction::opc_6, nds32_instruction::opcode, and nds32_instruction::text.

Referenced by COMMAND_HANDLER(), nds32_examine_debug_reason(), and nds32_v3_get_exception_address().

nds32_read_opcode()

int nds32_read_opcode	(	struct nds32 *	nds32,
		uint32_t	address,
		uint32_t *	value
	)

Definition at line 18 of file nds32_disassembler.c.

References be_to_h_u32(), ERROR_FAIL, ERROR_OK, LOG_DEBUG, LOG_ERROR, nds32::target, target_read_buffer(), and target_was_examined().

Referenced by COMMAND_HANDLER(), nds32_examine_debug_reason(), and nds32_v3_get_exception_address().
