nds32_aice.h File Reference

Include dependency graph for nds32_aice.h:

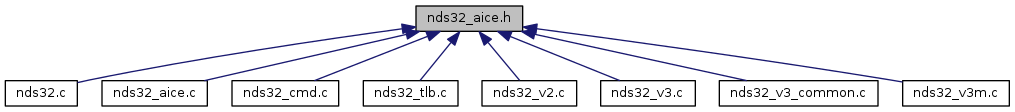

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
static int	aice_assert_srst (struct aice_port_s *aice, enum aice_srst_type_s srst)
int	aice_cache_ctl (struct aice_port_s *aice, uint32_t subtype, uint32_t address)
static int	aice_close (struct aice_port_s *aice)
int	aice_execute (struct aice_port_s *aice, uint32_t *instructions, uint32_t instruction_num)
static int	aice_halt (struct aice_port_s *aice)
static int	aice_idcode (struct aice_port_s *aice, uint32_t *idcode, uint8_t *num_of_idcode)
static int	aice_memory_access (struct aice_port_s *aice, enum nds_memory_access a_access)
static int	aice_memory_mode (struct aice_port_s *aice, enum nds_memory_select mem_select)
static int	aice_open (struct aice_port_s *aice, struct aice_port_param_s *param)
int	aice_profiling (struct aice_port_s *aice, uint32_t interval, uint32_t iteration, uint32_t reg_no, uint32_t *samples, uint32_t *num_samples)
int	aice_program_edm (struct aice_port_s *aice, char *command_sequence)
static int	aice_read_debug_reg (struct aice_port_s *aice, uint32_t addr, uint32_t *val)
static int	aice_read_mem_bulk (struct aice_port_s *aice, uint32_t addr, uint32_t length, uint8_t *buffer)
static int	aice_read_mem_unit (struct aice_port_s *aice, uint32_t addr, uint32_t size, uint32_t count, uint8_t *buffer)
int	aice_read_reg_64 (struct aice_port_s *aice, uint32_t num, uint64_t *val)
static int	aice_read_register (struct aice_port_s *aice, uint32_t num, uint32_t *val)
int	aice_read_tlb (struct aice_port_s *aice, target_addr_t virtual_address, target_addr_t *physical_address)
static int	aice_reset (struct aice_port_s *aice)
static int	aice_run (struct aice_port_s *aice)
int	aice_set_command_mode (struct aice_port_s *aice, enum aice_command_mode command_mode)
int	aice_set_count_to_check_dbger (struct aice_port_s *aice, uint32_t count_to_check)
int	aice_set_custom_restart_script (struct aice_port_s *aice, const char *script)
int	aice_set_custom_srst_script (struct aice_port_s *aice, const char *script)
int	aice_set_custom_trst_script (struct aice_port_s *aice, const char *script)
static int	aice_set_data_endian (struct aice_port_s *aice, enum aice_target_endian target_data_endian)
static int	aice_set_jtag_clock (struct aice_port_s *aice, uint32_t a_clock)
int	aice_set_retry_times (struct aice_port_s *aice, uint32_t a_retry_times)
static int	aice_state (struct aice_port_s *aice, enum aice_target_state_s *state)
static int	aice_step (struct aice_port_s *aice)
static int	aice_write_debug_reg (struct aice_port_s *aice, uint32_t addr, const uint32_t val)
static int	aice_write_mem_bulk (struct aice_port_s *aice, uint32_t addr, uint32_t length, const uint8_t *buffer)
static int	aice_write_mem_unit (struct aice_port_s *aice, uint32_t addr, uint32_t size, uint32_t count, const uint8_t *buffer)
int	aice_write_reg_64 (struct aice_port_s *aice, uint32_t num, uint64_t val)
static int	aice_write_register (struct aice_port_s *aice, uint32_t num, uint32_t val)

Function Documentation

aice_assert_srst()

static int aice_assert_srst ( struct aice_port_s *  aice, enum aice_srst_type_s  srst  )

inlinestatic

Definition at line 46 of file nds32_aice.h.

References aice_port::api, aice_port_api_s::assert_srst, aice_port_s::coreid, and aice_port_s::port.

Referenced by nds32_assert_reset(), nds32_reset_halt(), and nds32_soft_reset_halt().

aice_cache_ctl()

int aice_cache_ctl	(	struct aice_port_s *	aice,
		uint32_t	subtype,
		uint32_t	address
	)

Definition at line 45 of file nds32_aice.c.

References aice_port::api, aice_port_api_s::cache_ctl, aice_port_s::coreid, ERROR_FAIL, LOG_WARNING, and aice_port_s::port.

Referenced by COMMAND_HANDLER(), and nds32_cache_sync().

aice_close()

static int aice_close ( struct aice_port_s *  aice )

inlinestatic

Definition at line 36 of file nds32_aice.h.

References aice_port::api, aice_port_api_s::close, and aice_port_s::port.

aice_execute()

int aice_execute	(	struct aice_port_s *	aice,
		uint32_t *	instructions,
		uint32_t	instruction_num
	)

Definition at line 86 of file nds32_aice.c.

References aice_port::api, aice_port_s::coreid, ERROR_FAIL, aice_port_api_s::execute, instructions, LOG_WARNING, and aice_port_s::port.

Referenced by nds32_v3_leave_debug_state().

aice_halt()

static int aice_halt ( struct aice_port_s *  aice )

inlinestatic

Definition at line 57 of file nds32_aice.h.

References aice_port::api, aice_port_s::coreid, aice_port_api_s::halt, and aice_port_s::port.

Referenced by nds32_halt().

aice_idcode()

static int aice_idcode ( struct aice_port_s *  aice, uint32_t *  idcode, uint8_t *  num_of_idcode  )

inlinestatic

Definition at line 115 of file nds32_aice.h.

References aice_port::api, aice_port_api_s::idcode, and aice_port_s::port.

aice_memory_access()

static int aice_memory_access ( struct aice_port_s *  aice, enum nds_memory_access  a_access  )

inlinestatic

Definition at line 132 of file nds32_aice.h.

References aice_port::api, aice_port_s::coreid, aice_port_api_s::memory_access, and aice_port_s::port.

Referenced by COMMAND_HANDLER(), nds32_read_phys_memory(), nds32_v3_read_buffer(), nds32_v3_read_memory(), nds32_v3_write_buffer(), and nds32_write_phys_memory().

aice_memory_mode()

static int aice_memory_mode ( struct aice_port_s *  aice, enum nds_memory_select  mem_select  )

inlinestatic

Definition at line 138 of file nds32_aice.h.

References aice_port::api, aice_port_s::coreid, aice_port_api_s::memory_mode, and aice_port_s::port.

Referenced by COMMAND_HANDLER(), and nds32_select_memory_mode().

aice_open()

static int aice_open ( struct aice_port_s *  aice, struct aice_port_param_s *  param  )

inlinestatic

Definition at line 31 of file nds32_aice.h.

References aice_port::api, aice_port_api_s::open, param, and aice_port_s::port.

aice_profiling()

int aice_profiling	(	struct aice_port_s *	aice,
		uint32_t	interval,
		uint32_t	iteration,
		uint32_t	reg_no,
		uint32_t *	samples,
		uint32_t *	num_samples
	)

Definition at line 137 of file nds32_aice.c.

References aice_port::api, aice_port_s::coreid, ERROR_FAIL, LOG_WARNING, aice_port_s::port, and aice_port_api_s::profiling.

Referenced by nds32_profiling().

aice_program_edm()

int aice_program_edm	(	struct aice_port_s *	aice,
		char *	command_sequence
	)

Definition at line 65 of file nds32_aice.c.

References aice_port::api, aice_port_s::coreid, ERROR_FAIL, LOG_WARNING, aice_port_s::port, and aice_port_api_s::program_edm.

Referenced by nds32_login().

aice_read_debug_reg()

static int aice_read_debug_reg ( struct aice_port_s *  aice, uint32_t  addr, uint32_t *  val  )

inlinestatic

Definition at line 79 of file nds32_aice.h.

References addr, aice_port::api, aice_port_s::coreid, aice_port_s::port, and aice_port_api_s::read_debug_reg.

Referenced by jim_nds32_read_edm_sr(), nds32_edm_config(), nds32_gdb_attach(), nds32_login(), nds32_v2_examine(), nds32_v3_activate_hardware_watchpoint(), nds32_v3_deactivate_hardware_watchpoint(), nds32_v3_deassert_reset(), nds32_v3_examine(), nds32_v3_get_debug_reason(), nds32_v3_get_exception_address(), nds32_v3_leave_debug_state(), nds32_v3m_activate_hardware_watchpoint(), nds32_v3m_deactivate_hardware_watchpoint(), and nds32_v3m_examine().

aice_read_mem_bulk()

static int aice_read_mem_bulk ( struct aice_port_s *  aice, uint32_t  addr, uint32_t  length, uint8_t *  buffer  )

inlinestatic

Definition at line 103 of file nds32_aice.h.

References addr, aice_port::api, buffer, aice_port_s::coreid, length, aice_port_s::port, and aice_port_api_s::read_mem_bulk.

Referenced by nds32_read_buffer().

aice_read_mem_unit()

static int aice_read_mem_unit ( struct aice_port_s *  aice, uint32_t  addr, uint32_t  size, uint32_t  count, uint8_t *  buffer  )

inlinestatic

Definition at line 91 of file nds32_aice.h.

References addr, aice_port::api, buffer, aice_port_s::coreid, count, aice_port_s::port, aice_port_api_s::read_mem_unit, and size.

Referenced by nds32_read_buffer(), nds32_read_memory(), and nds32_read_phys_memory().

aice_read_reg_64()

int aice_read_reg_64	(	struct aice_port_s *	aice,
		uint32_t	num,
		uint64_t *	val
	)

Definition at line 14 of file nds32_aice.c.

References aice_port::api, aice_port_s::coreid, ERROR_FAIL, LOG_WARNING, aice_port_s::port, and aice_port_api_s::read_reg_64.

Referenced by nds32_get_core_reg_64().

aice_read_register()

static int aice_read_register ( struct aice_port_s *  aice, uint32_t  num, uint32_t *  val  )

inlinestatic

Definition at line 67 of file nds32_aice.h.

References aice_port::api, aice_port_s::coreid, aice_port_s::port, and aice_port_api_s::read_reg.

Referenced by nds32_get_core_reg(), nds32_set_core_reg(), nds32_v2_check_interrupt_stack(), nds32_v2_get_debug_reason(), nds32_v2_get_exception_address(), and nds32_v3_leave_debug_state().

aice_read_tlb()

int aice_read_tlb	(	struct aice_port_s *	aice,
		target_addr_t	virtual_address,
		target_addr_t *	physical_address
	)

Definition at line 34 of file nds32_aice.c.

References aice_port::api, aice_port_s::coreid, ERROR_FAIL, LOG_WARNING, aice_port_s::port, and aice_port_api_s::read_tlb.

Referenced by nds32_probe_tlb().

aice_reset()

static int aice_reset ( struct aice_port_s *  aice )

inlinestatic

Definition at line 41 of file nds32_aice.h.

References aice_port::api, aice_port_s::port, and aice_port_api_s::reset.

aice_run()

static int aice_run ( struct aice_port_s *  aice )

inlinestatic

Definition at line 52 of file nds32_aice.h.

References aice_port::api, aice_port_s::coreid, aice_port_s::port, and aice_port_api_s::run.

Referenced by nds32_poll(), and nds32_resume().

aice_set_command_mode()

int aice_set_command_mode	(	struct aice_port_s *	aice,
		enum aice_command_mode	command_mode
	)

Definition at line 75 of file nds32_aice.c.

References aice_port::api, ERROR_FAIL, LOG_WARNING, aice_port_s::port, and aice_port_api_s::set_command_mode.

Referenced by jim_nds32_multi_write().

aice_set_count_to_check_dbger()

int aice_set_count_to_check_dbger	(	struct aice_port_s *	aice,
		uint32_t	count_to_check
	)

Definition at line 127 of file nds32_aice.c.

References aice_port::api, ERROR_FAIL, LOG_WARNING, aice_port_s::port, and aice_port_api_s::set_count_to_check_dbger.

aice_set_custom_restart_script()

int aice_set_custom_restart_script	(	struct aice_port_s *	aice,
		const char *	script
	)

Definition at line 117 of file nds32_aice.c.

References aice_port::api, ERROR_FAIL, LOG_WARNING, aice_port_s::port, and aice_port_api_s::set_custom_restart_script.

aice_set_custom_srst_script()

int aice_set_custom_srst_script	(	struct aice_port_s *	aice,
		const char *	script
	)

Definition at line 97 of file nds32_aice.c.

References aice_port::api, ERROR_FAIL, LOG_WARNING, aice_port_s::port, and aice_port_api_s::set_custom_srst_script.

aice_set_custom_trst_script()

int aice_set_custom_trst_script	(	struct aice_port_s *	aice,
		const char *	script
	)

Definition at line 107 of file nds32_aice.c.

References aice_port::api, ERROR_FAIL, LOG_WARNING, aice_port_s::port, and aice_port_api_s::set_custom_trst_script.

aice_set_data_endian()

static int aice_set_data_endian ( struct aice_port_s *  aice, enum aice_target_endian  target_data_endian  )

inlinestatic

Definition at line 144 of file nds32_aice.h.

References aice_port::api, aice_port_s::coreid, aice_port_s::port, and aice_port_api_s::set_data_endian.

Referenced by nds32_update_psw().

aice_set_jtag_clock()

static int aice_set_jtag_clock ( struct aice_port_s *  aice, uint32_t  a_clock  )

inlinestatic

Definition at line 127 of file nds32_aice.h.

References aice_port::api, aice_port_s::port, and aice_port_api_s::set_jtag_clock.

aice_set_retry_times()

int aice_set_retry_times	(	struct aice_port_s *	aice,
		uint32_t	a_retry_times
	)

Definition at line 55 of file nds32_aice.c.

References aice_port::api, ERROR_FAIL, LOG_WARNING, aice_port_s::port, and aice_port_api_s::set_retry_times.

aice_state()

static int aice_state ( struct aice_port_s *  aice, enum aice_target_state_s *  state  )

inlinestatic

Definition at line 121 of file nds32_aice.h.

References aice_port::api, aice_port_s::coreid, aice_port_s::port, aice_port_api_s::state, and state.

Referenced by nds32_target_state().

aice_step()

static int aice_step ( struct aice_port_s *  aice )

inlinestatic

Definition at line 62 of file nds32_aice.h.

References aice_port::api, aice_port_s::coreid, aice_port_s::port, and aice_port_api_s::step.

Referenced by nds32_step(), nds32_step_without_watchpoint(), and nds32_v3_leave_debug_state().

aice_write_debug_reg()

static int aice_write_debug_reg ( struct aice_port_s *  aice, uint32_t  addr, const uint32_t  val  )

inlinestatic

Definition at line 85 of file nds32_aice.h.

References addr, aice_port::api, aice_port_s::coreid, aice_port_s::port, and aice_port_api_s::write_debug_reg.

Referenced by jim_nds32_write_edm_sr(), nds32_gdb_detach(), nds32_v2_activate_hardware_breakpoint(), nds32_v2_activate_hardware_watchpoint(), nds32_v2_deactivate_hardware_breakpoint(), nds32_v2_deactivate_hardware_watchpoint(), nds32_v3_activate_hardware_breakpoint(), nds32_v3_activate_hardware_watchpoint(), nds32_v3_deactivate_hardware_breakpoint(), nds32_v3_deactivate_hardware_watchpoint(), nds32_v3_deassert_reset(), nds32_v3_get_exception_address(), nds32_v3_leave_debug_state(), nds32_v3m_activate_hardware_breakpoint(), nds32_v3m_activate_hardware_watchpoint(), nds32_v3m_deactivate_hardware_breakpoint(), nds32_v3m_deactivate_hardware_watchpoint(), and nds32_v3m_examine().

aice_write_mem_bulk()

static int aice_write_mem_bulk ( struct aice_port_s *  aice, uint32_t  addr, uint32_t  length, const uint8_t *  buffer  )

inlinestatic

Definition at line 109 of file nds32_aice.h.

References addr, aice_port::api, buffer, aice_port_s::coreid, length, aice_port_s::port, and aice_port_api_s::write_mem_bulk.

Referenced by nds32_write_buffer().

aice_write_mem_unit()

static int aice_write_mem_unit ( struct aice_port_s *  aice, uint32_t  addr, uint32_t  size, uint32_t  count, const uint8_t *  buffer  )

inlinestatic

Definition at line 97 of file nds32_aice.h.

References addr, aice_port::api, buffer, aice_port_s::coreid, count, aice_port_s::port, size, and aice_port_api_s::write_mem_unit.

Referenced by nds32_write_buffer(), nds32_write_memory(), and nds32_write_phys_memory().

aice_write_reg_64()

int aice_write_reg_64	(	struct aice_port_s *	aice,
		uint32_t	num,
		uint64_t	val
	)

Definition at line 24 of file nds32_aice.c.

References aice_port::api, aice_port_s::coreid, ERROR_FAIL, LOG_WARNING, aice_port_s::port, and aice_port_api_s::write_reg_64.

Referenced by nds32_restore_context().

aice_write_register()

static int aice_write_register ( struct aice_port_s *  aice, uint32_t  num, uint32_t  val  )

inlinestatic

Definition at line 73 of file nds32_aice.h.

References aice_port::api, aice_port_s::coreid, aice_port_s::port, and aice_port_api_s::write_reg.

Referenced by nds32_restore_context(), nds32_set_core_reg(), nds32_v2_check_interrupt_stack(), nds32_v2_restore_interrupt_stack(), and nds32_v3_leave_debug_state().
