aice_port.h File Reference

Include dependency graph for aice_port.h:

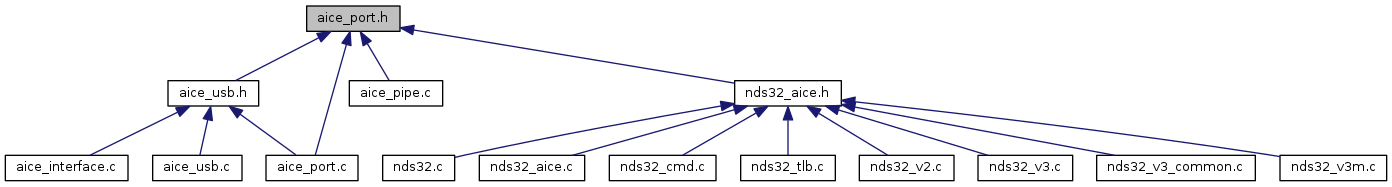

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	aice_port
struct	aice_port_api_s
struct	aice_port_param_s
struct	aice_port_s

Macros
#define	AICE_MAX_NUM_CORE   (0x10)
#define	AICE_PORT_AICE_PIPE   2
#define	AICE_PORT_AICE_USB   1
#define	AICE_PORT_UNKNOWN   0
#define	ERROR_AICE_DISCONNECT   (-200)
#define	ERROR_AICE_TIMEOUT   (-201)

Enumerations
enum	aice_api_s {   AICE_OPEN = 0x0 , AICE_CLOSE , AICE_RESET , AICE_IDCODE ,   AICE_SET_JTAG_CLOCK , AICE_ASSERT_SRST , AICE_RUN , AICE_HALT ,   AICE_STEP , AICE_READ_REG , AICE_WRITE_REG , AICE_READ_REG_64 ,   AICE_WRITE_REG_64 , AICE_READ_MEM_UNIT , AICE_WRITE_MEM_UNIT , AICE_READ_MEM_BULK ,   AICE_WRITE_MEM_BULK , AICE_READ_DEBUG_REG , AICE_WRITE_DEBUG_REG , AICE_STATE ,   AICE_MEMORY_ACCESS , AICE_MEMORY_MODE , AICE_READ_TLB , AICE_CACHE_CTL ,   AICE_SET_RETRY_TIMES , AICE_PROGRAM_EDM , AICE_SET_COMMAND_MODE , AICE_EXECUTE ,   AICE_SET_CUSTOM_SRST_SCRIPT , AICE_SET_CUSTOM_TRST_SCRIPT , AICE_SET_CUSTOM_RESTART_SCRIPT , AICE_SET_COUNT_TO_CHECK_DBGER ,   AICE_SET_DATA_ENDIAN }
enum	aice_cache_ctl_type {   AICE_CACHE_CTL_L1D_INVALALL = 0 , AICE_CACHE_CTL_L1D_VA_INVAL , AICE_CACHE_CTL_L1D_WBALL , AICE_CACHE_CTL_L1D_VA_WB ,   AICE_CACHE_CTL_L1I_INVALALL , AICE_CACHE_CTL_L1I_VA_INVAL }
enum	aice_command_mode { AICE_COMMAND_MODE_NORMAL , AICE_COMMAND_MODE_PACK , AICE_COMMAND_MODE_BATCH }
enum	aice_error_s { AICE_OK , AICE_ACK , AICE_ERROR }
enum	aice_srst_type_s { AICE_SRST = 0x1 , AICE_RESET_HOLD = 0x8 }
enum	aice_target_endian { AICE_LITTLE_ENDIAN = 0 , AICE_BIG_ENDIAN }
enum	aice_target_state_s {   AICE_DISCONNECT = 0 , AICE_TARGET_DETACH , AICE_TARGET_UNKNOWN , AICE_TARGET_RUNNING ,   AICE_TARGET_HALTED , AICE_TARGET_RESET , AICE_TARGET_DEBUG_RUNNING }

Functions
const struct aice_port *	aice_port_get_list (void)

Variables
struct aice_port_api_s	aice_usb_layout_api

Macro Definition Documentation

AICE_MAX_NUM_CORE

#define AICE_MAX_NUM_CORE   (0x10)

Definition at line 13 of file aice_port.h.

AICE_PORT_AICE_PIPE

#define AICE_PORT_AICE_PIPE   2

Definition at line 209 of file aice_port.h.

AICE_PORT_AICE_USB

#define AICE_PORT_AICE_USB   1

Definition at line 208 of file aice_port.h.

AICE_PORT_UNKNOWN

#define AICE_PORT_UNKNOWN   0

Definition at line 207 of file aice_port.h.

ERROR_AICE_DISCONNECT

#define ERROR_AICE_DISCONNECT   (-200)

Definition at line 15 of file aice_port.h.

ERROR_AICE_TIMEOUT

#define ERROR_AICE_TIMEOUT   (-201)

Definition at line 16 of file aice_port.h.

Enumeration Type Documentation

aice_api_s

enum aice_api_s

Enumerator
AICE_OPEN
AICE_CLOSE
AICE_RESET
AICE_IDCODE
AICE_SET_JTAG_CLOCK
AICE_ASSERT_SRST
AICE_RUN
AICE_HALT
AICE_STEP
AICE_READ_REG
AICE_WRITE_REG
AICE_READ_REG_64
AICE_WRITE_REG_64
AICE_READ_MEM_UNIT
AICE_WRITE_MEM_UNIT
AICE_READ_MEM_BULK
AICE_WRITE_MEM_BULK
AICE_READ_DEBUG_REG
AICE_WRITE_DEBUG_REG
AICE_STATE
AICE_MEMORY_ACCESS
AICE_MEMORY_MODE
AICE_READ_TLB
AICE_CACHE_CTL
AICE_SET_RETRY_TIMES
AICE_PROGRAM_EDM
AICE_SET_COMMAND_MODE
AICE_EXECUTE
AICE_SET_CUSTOM_SRST_SCRIPT
AICE_SET_CUSTOM_TRST_SCRIPT
AICE_SET_CUSTOM_RESTART_SCRIPT
AICE_SET_COUNT_TO_CHECK_DBGER
AICE_SET_DATA_ENDIAN

Definition at line 38 of file aice_port.h.

aice_cache_ctl_type

enum aice_cache_ctl_type

Enumerator
AICE_CACHE_CTL_L1D_INVALALL
AICE_CACHE_CTL_L1D_VA_INVAL
AICE_CACHE_CTL_L1D_WBALL
AICE_CACHE_CTL_L1D_VA_WB
AICE_CACHE_CTL_L1I_INVALALL
AICE_CACHE_CTL_L1I_VA_INVAL

Definition at line 80 of file aice_port.h.

aice_command_mode

enum aice_command_mode

Enumerator
AICE_COMMAND_MODE_NORMAL
AICE_COMMAND_MODE_PACK
AICE_COMMAND_MODE_BATCH

Definition at line 89 of file aice_port.h.

aice_error_s

enum aice_error_s

Enumerator
AICE_OK
AICE_ACK
AICE_ERROR

Definition at line 74 of file aice_port.h.

aice_srst_type_s

enum aice_srst_type_s

Enumerator
AICE_SRST
AICE_RESET_HOLD

Definition at line 28 of file aice_port.h.

aice_target_endian

enum aice_target_endian

Enumerator
AICE_LITTLE_ENDIAN
AICE_BIG_ENDIAN

Definition at line 33 of file aice_port.h.

aice_target_state_s

enum aice_target_state_s

Enumerator
AICE_DISCONNECT
AICE_TARGET_DETACH
AICE_TARGET_UNKNOWN
AICE_TARGET_RUNNING
AICE_TARGET_HALTED
AICE_TARGET_RESET
AICE_TARGET_DEBUG_RUNNING

Definition at line 18 of file aice_port.h.

Function Documentation

aice_port_get_list()

const struct aice_port* aice_port_get_list

(

void

)

Definition at line 31 of file aice_port.c.

References aice_ports.

Referenced by COMMAND_HANDLER().

Variable Documentation

aice_usb_layout_api

struct aice_port_api_s aice_usb_layout_api

extern
