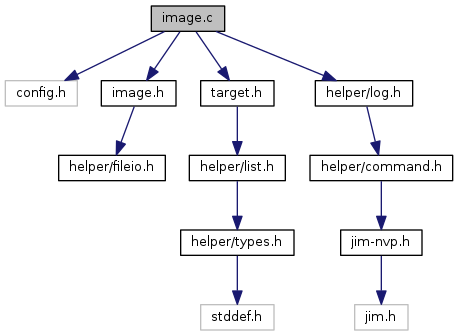

Include dependency graph for image.c:

Macros
#define	field16(elf, field)

#define	field32(elf, field)

#define	field64(elf, field)

Functions
static int	autodetect_image_type (struct image image, const char url)

static int	identify_image_type (struct image image, const char type_string, const char *url)

int	image_add_section (struct image image, target_addr_t base, uint32_t size, uint64_t flags, uint8_t const data)

int	image_calculate_checksum (const uint8_t buffer, uint32_t nbytes, uint32_t checksum)

void	image_close (struct image *image)

static int	image_elf32_read_headers (struct image *image)

static int	image_elf32_read_section (struct image image, int section, target_addr_t offset, uint32_t size, uint8_t buffer, size_t *size_read)

static int	image_elf64_read_headers (struct image *image)

static int	image_elf64_read_section (struct image image, int section, target_addr_t offset, uint32_t size, uint8_t buffer, size_t *size_read)

static int	image_elf_read_headers (struct image *image)

static int	image_elf_read_section (struct image image, int section, target_addr_t offset, uint32_t size, uint8_t buffer, size_t *size_read)

static int	image_ihex_buffer_complete (struct image *image)
	Allocate memory dynamically instead of on the stack. More...

static int	image_ihex_buffer_complete_inner (struct image image, char lpsz_line, struct imagesection *section)

static int	image_mot_buffer_complete (struct image *image)
	Allocate memory dynamically instead of on the stack. More...

static int	image_mot_buffer_complete_inner (struct image image, char lpsz_line, struct imagesection *section)

int	image_open (struct image image, const char url, const char *type_string)

int	image_read_section (struct image image, int section, target_addr_t offset, uint32_t size, uint8_t buffer, size_t *size_read)

Macro Definition Documentation

◆ field16

#define field16	(	elf,
		field
	)

Value:

((elf->endianness == ELFDATA2LSB) ? \

le_to_h_u16((uint8_t *)&field) : be_to_h_u16((uint8_t *)&field))

ELFDATA2LSB

#define ELFDATA2LSB

Definition: replacements.h:264

le_to_h_u16

static uint16_t le_to_h_u16(const uint8_t *buf)

Definition: types.h:122

be_to_h_u16

static uint16_t be_to_h_u16(const uint8_t *buf)

Definition: types.h:149

Definition at line 29 of file image.c.

◆ field32

#define field32	(	elf,
		field
	)

Value:

((elf->endianness == ELFDATA2LSB) ? \

le_to_h_u32((uint8_t *)&field) : be_to_h_u32((uint8_t *)&field))

be_to_h_u32

static uint32_t be_to_h_u32(const uint8_t *buf)

Definition: types.h:139

le_to_h_u32

static uint32_t le_to_h_u32(const uint8_t *buf)

Definition: types.h:112

Definition at line 33 of file image.c.

◆ field64

#define field64	(	elf,
		field
	)

Value:

((elf->endianness == ELFDATA2LSB) ? \

le_to_h_u64((uint8_t *)&field) : be_to_h_u64((uint8_t *)&field))

le_to_h_u64

static uint64_t le_to_h_u64(const uint8_t *buf)

Definition: types.h:100

be_to_h_u64

static uint64_t be_to_h_u64(const uint8_t *buf)

Definition: types.h:127

Definition at line 37 of file image.c.

Function Documentation

◆ autodetect_image_type()

static int autodetect_image_type	(	struct image *	image,
		const char *	url
	)

static

Definition at line 41 of file image.c.

References buffer, ELFMAG, ERROR_FILEIO_OPERATION_FAILED, ERROR_OK, FILEIO_BINARY, fileio_close(), fileio_open(), fileio_read(), FILEIO_READ, IMAGE_BINARY, IMAGE_ELF, IMAGE_IHEX, IMAGE_SRECORD, LOG_DEBUG, SELFMAG, image::type, and fileio::url.

Referenced by identify_image_type().

◆ identify_image_type()

static int identify_image_type	(	struct image *	image,
		const char *	type_string,
		const char *	url
	)

static

Definition at line 91 of file image.c.

References autodetect_image_type(), ERROR_IMAGE_TYPE_UNKNOWN, ERROR_OK, IMAGE_BINARY, IMAGE_BUILDER, IMAGE_ELF, IMAGE_IHEX, IMAGE_MEMORY, IMAGE_SRECORD, image::type, and fileio::url.

Referenced by image_open().

◆ image_add_section()

int image_add_section	(	struct image *	image,
		target_addr_t	base,
		uint32_t	size,
		uint64_t	flags,
		uint8_t const *	data
	)

Definition at line 1160 of file image.c.

References imagesection::base_address, ERROR_COMMAND_SYNTAX_ERROR, ERROR_OK, imagesection::flags, IMAGE_BUILDER, image::num_sections, imagesection::private, image::sections, size, imagesection::size, and image::type.

Referenced by gdb_v_packet().

◆ image_calculate_checksum()

int image_calculate_checksum	(	const uint8_t *	buffer,
		uint32_t	nbytes,
		uint32_t *	checksum
	)

Definition at line 1254 of file image.c.

References buffer, ERROR_OK, keep_alive(), and LOG_DEBUG.

Referenced by COMMAND_HELPER(), default_flash_verify(), qspi_verify(), and target_checksum_memory().

◆ image_close()

void image_close ( struct image * image )

◆ image_elf32_read_headers()

static int image_elf32_read_headers ( struct image * image )

static

some ELF linkers produce binaries with all the program header p_paddr fields zero (there can be however one loadable segment that has valid physical address 0x0). If we have such a binary with more than one PT_LOAD header, then use p_vaddr instead of p_paddr (ARM ELF standard demands p_paddr = 0 anyway, and BFD library uses this approach to workaround zero-initialized p_paddrs when obtaining lma - look at elf.c of BDF)

Definition at line 349 of file image.c.

References imagesection::base_address, Elf32_Ehdr::e_entry, Elf32_Ehdr::e_phnum, Elf32_Ehdr::e_phoff, ERROR_FILEIO_OPERATION_FAILED, ERROR_IMAGE_FORMAT_ERROR, ERROR_OK, field16, field32, image_elf::fileio, fileio_read(), fileio_seek(), imagesection::flags, image_elf::header32, LOG_ERROR, image::num_sections, Elf32_Phdr::p_filesz, Elf32_Phdr::p_flags, Elf32_Phdr::p_memsz, Elf32_Phdr::p_paddr, Elf32_Phdr::p_type, Elf32_Phdr::p_vaddr, imagesection::private, PT_LOAD, image::sections, image_elf::segment_count, image_elf::segments32, imagesection::size, image::start_address, image::start_address_set, and image::type_private.

Referenced by image_elf_read_headers().

◆ image_elf32_read_section()

static int image_elf32_read_section	(	struct image *	image,
		int	section,
		target_addr_t	offset,
		uint32_t	size,
		uint8_t *	buffer,
		size_t *	size_read
	)

static

Definition at line 645 of file image.c.

References buffer, ERROR_OK, field32, image_elf::fileio, fileio_read(), fileio_seek(), LOG_DEBUG, LOG_ERROR, MIN, offset, Elf32_Phdr::p_filesz, Elf32_Phdr::p_offset, imagesection::private, image::sections, size, TARGET_PRIxADDR, and image::type_private.

Referenced by image_elf_read_section().

◆ image_elf64_read_headers()

static int image_elf64_read_headers ( struct image * image )

static

some ELF linkers produce binaries with all the program header p_paddr fields zero (there can be however one loadable segment that has valid physical address 0x0). If we have such a binary with more than one PT_LOAD header, then use p_vaddr instead of p_paddr (ARM ELF standard demands p_paddr = 0 anyway, and BFD library uses this approach to workaround zero-initialized p_paddrs when obtaining lma - look at elf.c of BDF)

Definition at line 474 of file image.c.

References imagesection::base_address, Elf64_Ehdr::e_entry, Elf64_Ehdr::e_phnum, Elf64_Ehdr::e_phoff, ERROR_FILEIO_OPERATION_FAILED, ERROR_IMAGE_FORMAT_ERROR, ERROR_OK, field16, field32, field64, image_elf::fileio, fileio_read(), fileio_seek(), imagesection::flags, image_elf::header64, LOG_ERROR, image::num_sections, Elf64_Phdr::p_filesz, Elf64_Phdr::p_flags, Elf64_Phdr::p_memsz, Elf64_Phdr::p_paddr, Elf64_Phdr::p_type, Elf64_Phdr::p_vaddr, imagesection::private, PT_LOAD, image::sections, image_elf::segment_count, image_elf::segments64, imagesection::size, image::start_address, image::start_address_set, and image::type_private.
