Defines USB descriptors, interrupt routines and helper functions. More...

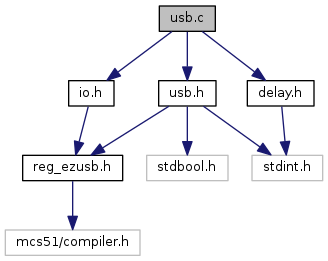

Include dependency graph for usb.c:

Macros
#define	NUM_ENDPOINTS 2

Functions
void	ep0in_isr (void)

void	ep0out_isr (void)

void	ep1in_isr (void)

void	ep1out_isr (void)

void	ep2in_isr (void)
	EP2 IN: called after the transfer from uC->Host has finished: we sent data. More...

void	ep2out_isr (void)
	EP2 OUT: called after the transfer from Host->uC has finished: we got data. More...

void	ep3in_isr (void)

void	ep3out_isr (void)

void	ep4in_isr (void)

void	ep4out_isr (void)

void	ep5in_isr (void)

void	ep5out_isr (void)

void	ep6in_isr (void)

void	ep6out_isr (void)

void	ep7in_isr (void)

void	ep7out_isr (void)

void	ibn_isr (void)

void	sof_isr (void)

void	sudav_isr (void)

void	suspend_isr (void)

void	sutok_isr (void)

__xdata uint8_t *	usb_get_endpoint_cs_reg (uint8_t ep)
	Return the control/status register for an endpoint. More...

bool	usb_handle_clear_feature (void)
	Handle CLEAR_FEATURE request. More...

bool	usb_handle_get_descriptor (void)
	Handle GET_DESCRIPTOR request. More...

bool	usb_handle_get_status (void)
	Handle GET_STATUS request. More...

bool	usb_handle_set_feature (void)
	Handle SET_FEATURE request. More...

void	usb_handle_set_interface (void)
	Handle SET_INTERFACE request. More...

void	usb_handle_setup_data (void)
	Handle the arrival of a USB Control Setup Packet. More...

void	usb_init (void)
	USB initialization. More...

void	usb_reset_data_toggle (uint8_t ep)

void	usbreset_isr (void)

Variables
__code struct usb_endpoint_descriptor	Bulk_EP2_IN_Endpoint_Descriptor

__code struct usb_endpoint_descriptor	Bulk_EP2_OUT_Endpoint_Descriptor

__code struct usb_config_descriptor	config_descriptor

__code struct usb_device_descriptor	device_descriptor

__code struct usb_string_descriptor *__code	en_string_descriptors [4]

volatile bool	EP2_in

volatile bool	EP2_out

__code struct usb_interface_descriptor	interface_descriptor00

__code struct usb_language_descriptor	language_descriptor

volatile __xdata __at struct setup_data	setup_data

__code struct usb_string_descriptor	strConfigDescr

__code struct usb_string_descriptor	strManufacturer

__code struct usb_string_descriptor	strProduct

__code struct usb_string_descriptor	strSerialNumber

Detailed Description

Defines USB descriptors, interrupt routines and helper functions.

To minimize code size, we make the following assumptions:

The OpenULINK has exactly one configuration
and exactly one alternate setting

Therefore, we do not have to support the Set Configuration USB request.

Definition in file usb.c.

Macro Definition Documentation

◆ NUM_ENDPOINTS

#define NUM_ENDPOINTS 2

Definition at line 31 of file usb.c.

Function Documentation

◆ ep0in_isr()

void ep0in_isr ( void )

Definition at line 147 of file usb.c.

◆ ep0out_isr()

void ep0out_isr ( void )

Definition at line 150 of file usb.c.

◆ ep1in_isr()

void ep1in_isr ( void )

Definition at line 153 of file usb.c.

◆ ep1out_isr()

void ep1out_isr ( void )

Definition at line 156 of file usb.c.

◆ ep2in_isr()

void ep2in_isr ( void )

EP2 IN: called after the transfer from uC->Host has finished: we sent data.

Definition at line 163 of file usb.c.

References CLEAR_IRQ, EP2_in, and IN2IR.

◆ ep2out_isr()

void ep2out_isr ( void )

EP2 OUT: called after the transfer from Host->uC has finished: we got data.

Definition at line 174 of file usb.c.

References CLEAR_IRQ, EP2_out, and OUT2IR.

◆ ep3in_isr()

void ep3in_isr ( void )

Definition at line 182 of file usb.c.

◆ ep3out_isr()

void ep3out_isr ( void )

Definition at line 185 of file usb.c.

◆ ep4in_isr()

void ep4in_isr ( void )

Definition at line 188 of file usb.c.

◆ ep4out_isr()

void ep4out_isr ( void )

Definition at line 191 of file usb.c.

◆ ep5in_isr()

void ep5in_isr ( void )

Definition at line 194 of file usb.c.

◆ ep5out_isr()

void ep5out_isr ( void )

Definition at line 197 of file usb.c.

◆ ep6in_isr()

void ep6in_isr ( void )

Definition at line 200 of file usb.c.

◆ ep6out_isr()

void ep6out_isr ( void )

Definition at line 203 of file usb.c.

◆ ep7in_isr()

void ep7in_isr ( void )

Definition at line 206 of file usb.c.

◆ ep7out_isr()

void ep7out_isr ( void )

Definition at line 209 of file usb.c.

◆ ibn_isr()

void ibn_isr ( void )

Definition at line 143 of file usb.c.

◆ sof_isr()

void sof_isr ( void )

Definition at line 131 of file usb.c.

◆ sudav_isr()

void sudav_isr ( void )

Definition at line 121 of file usb.c.

References CLEAR_IRQ, HSNAK, SUDAVIR, and usb_handle_setup_data().

◆ suspend_isr()

void suspend_isr ( void )

Definition at line 137 of file usb.c.

◆ sutok_isr()

void sutok_isr ( void )

Definition at line 134 of file usb.c.

◆ usb_get_endpoint_cs_reg()

__xdata uint8_t* usb_get_endpoint_cs_reg ( uint8_t ep )

Return the control/status register for an endpoint.

Parameters

ep	endpoint address

Returns: on success: pointer to Control & Status register for endpoint specified in ep; on failure: NULL

Definition at line 221 of file usb.c.

References NULL.

Referenced by usb_handle_clear_feature(), usb_handle_get_status(), and usb_handle_set_feature().

◆ usb_handle_clear_feature()

bool usb_handle_clear_feature ( void )

Handle CLEAR_FEATURE request.

Returns: on success: true; on failure: false

Definition at line 334 of file usb.c.

References setup_data::bmRequestType, CF_DEVICE, CF_ENDPOINT, EPSTALL, STALL_EP0, usb_get_endpoint_cs_reg(), setup_data::wIndex, and setup_data::wValue.

Referenced by usb_handle_setup_data().

◆ usb_handle_get_descriptor()

bool usb_handle_get_descriptor ( void )

Handle GET_DESCRIPTOR request.

Returns: on success: true; on failure: false

Definition at line 403 of file usb.c.

References config_descriptor, DESCRIPTOR_TYPE_CONFIGURATION, DESCRIPTOR_TYPE_DEVICE, DESCRIPTOR_TYPE_STRING, device_descriptor, en_string_descriptors, HI8, language_descriptor, LO8, setup_data::wIndex, and setup_data::wValue.

Referenced by usb_handle_setup_data().

◆ usb_handle_get_status()

bool usb_handle_get_status ( void )

Handle GET_STATUS request.

Returns: on success: true; on failure: false

Definition at line 283 of file usb.c.

References setup_data::bmRequestType, EPSTALL, GS_DEVICE, GS_ENDPOINT, GS_INTERFACE, usb_get_endpoint_cs_reg(), and setup_data::wIndex.

Referenced by usb_handle_setup_data().

◆ usb_handle_set_feature()

bool usb_handle_set_feature ( void )

Handle SET_FEATURE request.

Returns: on success: true; on failure: false

Definition at line 368 of file usb.c.

References setup_data::bmRequestType, EPSTALL, SF_DEVICE, SF_ENDPOINT, usb_get_endpoint_cs_reg(), setup_data::wIndex, and setup_data::wValue.

Referenced by usb_handle_setup_data().

◆ usb_handle_set_interface()

void usb_handle_set_interface ( void )

Handle SET_INTERFACE request.

Definition at line 444 of file usb.c.

References EPBSY, USB_DIR_IN, USB_DIR_OUT, and usb_reset_data_toggle().

Referenced by usb_handle_setup_data().

◆ usb_handle_setup_data()

void usb_handle_setup_data ( void )

Handle the arrival of a USB Control Setup Packet.

Definition at line 461 of file usb.c.

References usb_config_descriptor::bConfigurationValue, usb_interface_descriptor::bInterfaceNumber, setup_data::bRequest, CLEAR_FEATURE, config_descriptor, GET_CONFIGURATION, GET_DESCRIPTOR, GET_INTERFACE, GET_STATUS, interface_descriptor00, SET_ADDRESS, SET_CONFIGURATION, SET_DESCRIPTOR, SET_FEATURE, SET_INTERFACE, STALL_EP0, SYNCH_FRAME, usb_handle_clear_feature(), usb_handle_get_descriptor(), usb_handle_get_status(), usb_handle_set_feature(), and usb_handle_set_interface().

Referenced by sudav_isr().

◆ usb_init()

void usb_init ( void )

USB initialization.

Configures USB interrupts, endpoints and performs ReNumeration.

Definition at line 520 of file usb.c.

References AVEN, delay_ms(), DISCOE, DISCON, IN2IEN, IN2VAL, ISODISAB, OUT2IEN, OUT2VAL, RENUM, and SUDAVIE.

Referenced by main().

◆ usb_reset_data_toggle()

void usb_reset_data_toggle ( uint8_t ep )

Definition at line 256 of file usb.c.

References TOG_R.

Referenced by usb_handle_set_interface().

◆ usbreset_isr()

void usbreset_isr ( void )

Definition at line 140 of file usb.c.

Variable Documentation

◆ Bulk_EP2_IN_Endpoint_Descriptor

__code struct usb_endpoint_descriptor Bulk_EP2_IN_Endpoint_Descriptor

Initial value:

= {
    .bLength =      sizeof(struct usb_endpoint_descriptor),
    .bDescriptorType =  0x05,
    .bEndpointAddress = (2 | USB_DIR_IN),
    .bmAttributes =     0x02,
    .wMaxPacketSize =   64,
    .bInterval =        0
}

Definition at line 77 of file usb.c.

◆ Bulk_EP2_OUT_Endpoint_Descriptor

__code struct usb_endpoint_descriptor Bulk_EP2_OUT_Endpoint_Descriptor

Initial value:

= {
    .bLength =      sizeof(struct usb_endpoint_descriptor),
    .bDescriptorType =  0x05,
    .bEndpointAddress = (2 | USB_DIR_OUT),
    .bmAttributes =     0x02,
    .wMaxPacketSize =   64,
    .bInterval =        0
}

Definition at line 86 of file usb.c.

◆ config_descriptor

__code struct usb_config_descriptor config_descriptor

Initial value:

= {
    .bLength =      sizeof(struct usb_config_descriptor),
    .bDescriptorType =  DESCRIPTOR_TYPE_CONFIGURATION,
    .wTotalLength =     sizeof(struct usb_config_descriptor) +
        sizeof(struct usb_interface_descriptor) +
        (NUM_ENDPOINTS * sizeof(struct usb_endpoint_descriptor)),
    .bNumInterfaces =   1,
    .bConfigurationValue =  1,
    .iConfiguration =   4,
    .bmAttributes =     0x80,
    .MaxPower =     50
}

Definition at line 52 of file usb.c.

Referenced by usb_handle_get_descriptor(), and usb_handle_setup_data().

◆ device_descriptor

__code struct usb_device_descriptor device_descriptor

Initial value:

= {
    .bLength =      sizeof(struct usb_device_descriptor),
    .bDescriptorType =  DESCRIPTOR_TYPE_DEVICE,
    .bcdUSB =       0x0110,
    .bDeviceClass =     0xFF,
    .bDeviceSubClass =  0xFF,
    .bDeviceProtocol =  0xFF,
    .bMaxPacketSize0 =  64,
    .idVendor =     0xC251,
    .idProduct =        0x2710,
    .bcdDevice =        0x0100,
    .iManufacturer =    1,
    .iProduct =     2,
    .iSerialNumber =    3,
    .bNumConfigurations =   1
}

Definition at line 33 of file usb.c.

Referenced by usb_handle_get_descriptor().

◆ en_string_descriptors

__code struct usb_string_descriptor* __code en_string_descriptors[4]

Initial value:

= {
    &strManufacturer,
    &strProduct,
    &strSerialNumber,
    &strConfigDescr
}

Definition at line 114 of file usb.c.

Referenced by usb_handle_get_descriptor().

◆ EP2_in

volatile bool EP2_in

Definition at line 25 of file usb.c.

Referenced by command_loop(), and ep2in_isr().

◆ EP2_out

volatile bool EP2_out

Definition at line 24 of file usb.c.

Referenced by command_loop(), and ep2out_isr().

◆ interface_descriptor00

__code struct usb_interface_descriptor interface_descriptor00

Initial value:

= {
    .bLength = sizeof(struct usb_interface_descriptor),
    .bDescriptorType =  DESCRIPTOR_TYPE_INTERFACE,
    .bInterfaceNumber = 0,
    .bAlternateSetting =    0,
    .bNumEndpoints =    NUM_ENDPOINTS,
    .bInterfaceClass =  0xFF,
    .bInterfaceSubclass =   0xFF,
    .bInterfaceProtocol =   0xFF,
    .iInterface =       0
}

Definition at line 65 of file usb.c.

Referenced by usb_handle_setup_data().

◆ language_descriptor

__code struct usb_language_descriptor language_descriptor

Initial value:

= {
    .bLength =      4,
    .bDescriptorType =  DESCRIPTOR_TYPE_STRING,
    .wLANGID =      {0x0409 }
}

Definition at line 95 of file usb.c.

Referenced by usb_handle_get_descriptor().

◆ setup_data

volatile __xdata __at struct setup_data setup_data

Definition at line 27 of file usb.c.

◆ strConfigDescr

__code struct usb_string_descriptor strConfigDescr

Initial value:

=

STR_DESCR(12, 'J', 'T', 'A', 'G', ' ', 'A', 'd', 'a', 'p', 't', 'e', 'r')

STR_DESCR

#define STR_DESCR(len,...)

Definition: usb.h:35

Definition at line 110 of file usb.c.

◆ strManufacturer

__code struct usb_string_descriptor strManufacturer

Initial value:

=

STR_DESCR(9, 'O', 'p', 'e', 'n', 'U', 'L', 'I', 'N', 'K')

Definition at line 101 of file usb.c.

◆ strProduct

__code struct usb_string_descriptor strProduct

Initial value:

=

STR_DESCR(9, 'O', 'p', 'e', 'n', 'U', 'L', 'I', 'N', 'K')

Definition at line 104 of file usb.c.

◆ strSerialNumber

__code struct usb_string_descriptor strSerialNumber

Initial value:

=

STR_DESCR(6, '0', '0', '0', '0', '0', '1')

Definition at line 107 of file usb.c.

Macros

Functions

Variables

Detailed Description

Macro Definition Documentation

◆ NUM_ENDPOINTS

Function Documentation

◆ ep0in_isr()

◆ ep0out_isr()

◆ ep1in_isr()

◆ ep1out_isr()

◆ ep2in_isr()

◆ ep2out_isr()

◆ ep3in_isr()

◆ ep3out_isr()

◆ ep4in_isr()

◆ ep4out_isr()

◆ ep5in_isr()

◆ ep5out_isr()

◆ ep6in_isr()

◆ ep6out_isr()

◆ ep7in_isr()

◆ ep7out_isr()

◆ ibn_isr()

◆ sof_isr()

◆ sudav_isr()

◆ suspend_isr()

◆ sutok_isr()

◆ usb_get_endpoint_cs_reg()

◆ usb_handle_clear_feature()

◆ usb_handle_get_descriptor()

◆ usb_handle_get_status()

◆ usb_handle_set_feature()

◆ usb_handle_set_interface()

◆ usb_handle_setup_data()

◆ usb_init()

◆ usb_reset_data_toggle()

◆ usbreset_isr()

Variable Documentation

◆ Bulk_EP2_IN_Endpoint_Descriptor

◆ Bulk_EP2_OUT_Endpoint_Descriptor

◆ config_descriptor

◆ device_descriptor

◆ en_string_descriptors

◆ EP2_in

◆ EP2_out

◆ interface_descriptor00

◆ language_descriptor

◆ setup_data

◆ strConfigDescr

◆ strManufacturer

◆ strProduct

◆ strSerialNumber
