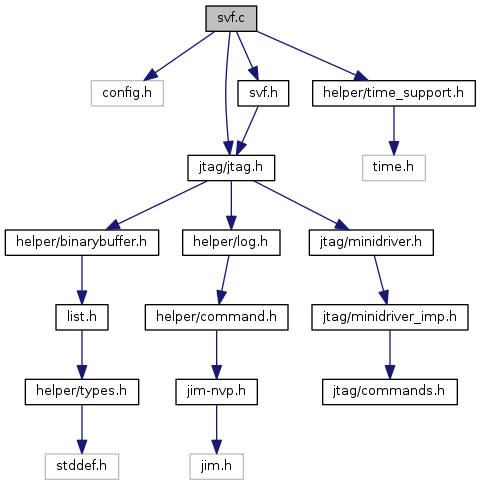

Include dependency graph for svf.c:

Data Structures
struct	svf_check_tdo_para

struct	svf_para

struct	svf_statemove

struct	svf_xxr_para

Macros
#define	MIN_CHUNK 16 /* Buffer is increased by this size each time as required */

#define	SVF_BUF_LOG(_lvl, _buf, _nbits, _desc) svf_hexbuf_print(LOG_LVL_##_lvl, __FILE__, __LINE__, __func__, _buf, _nbits, _desc)

#define	SVF_CHECK_TDO_PARA_SIZE 1024

#define	SVF_MAX_BUFFER_SIZE_TO_COMMIT (1024 * 1024)

#define	SVF_MAX_NUM_OF_OPTIONS 5

#define	SVF_MIN_NUM_OF_OPTIONS 1

#define	SVFP_CMD_INC_CNT 1024

#define	XXR_MASK (1 << 2)

#define	XXR_SMASK (1 << 3)

#define	XXR_TDI (1 << 0)

#define	XXR_TDO (1 << 1)

Enumerations
enum	svf_command { ENDDR , ENDIR , FREQUENCY , HDR , HIR , PIO , PIOMAP , RUNTEST , SDR , SIR , STATE , TDR , TIR , TRST }

enum	trst_mode { TRST_ON , TRST_OFF , TRST_Z , TRST_ABSENT }

Functions
	COMMAND_HANDLER (handle_svf_command)

static int	svf_add_check_para (uint8_t enabled, int buffer_offset, int bit_len)

int	svf_add_statemove (tap_state_t state_to)
	svf_add_statemove() moves from the current state to goal_state. More...

static int	svf_adjust_array_length (uint8_t **arr, int orig_bit_len, int new_bit_len)

static int	svf_check_tdo (void)

static int	svf_copy_hexstring_to_binary (char str, uint8_t *bin, int orig_bit_len, int bit_len)

static int	svf_execute_tap (void)

static int	svf_find_string_in_array (char str, char *strs, int num_of_element)

static void	svf_free_xxd_para (struct svf_xxr_para *para)

static int	svf_getline (char *lineptr, size_t n, FILE *stream)

static void	svf_hexbuf_print (int dbg_lvl, const char file, unsigned line, const char function, const uint8_t buf, int bit_len, const char desc)

static int	svf_parse_cmd_string (char str, int len, char argus, int num_of_argu)

static int	svf_read_command_from_file (FILE *fd)

static int	svf_realloc_buffers (size_t len)

int	svf_register_commands (struct command_context *cmd_ctx)

static int	svf_run_command (struct command_context cmd_ctx, char cmd_str)

static int	svf_set_padding (struct svf_xxr_para *para, int len, unsigned char tdi)

bool	svf_tap_state_is_stable (tap_state_t state)
	svf_tap_state_is_stable() returns true for stable non-SHIFT states More...

Variables
static int	svf_buffer_index

static int	svf_buffer_size

static struct svf_check_tdo_para *	svf_check_tdo_para

static int	svf_check_tdo_para_index

static char *	svf_command_buffer

static size_t	svf_command_buffer_size

static const struct command_registration	svf_command_handlers []

static const char *	svf_command_name [14]

static FILE *	svf_fd

static int	svf_ignore_error

static int	svf_last_printed_percentage = -1

static int	svf_line_number

static uint8_t *	svf_mask_buffer

static int	svf_nil

static struct svf_para	svf_para

static const struct svf_para	svf_para_init

static int	svf_percentage

static int	svf_progress_enabled

static int	svf_quiet

static char *	svf_read_line

static size_t	svf_read_line_size

static const struct svf_statemove	svf_statemoves []

static int	svf_tap_is_specified

static uint8_t *	svf_tdi_buffer

static uint8_t *	svf_tdo_buffer

static long	svf_total_lines

static const char *	svf_trst_mode_name [4]

Macro Definition Documentation

◆ MIN_CHUNK

#define MIN_CHUNK 16 /* Buffer is increased by this size each time as required */

◆ SVF_BUF_LOG

#define SVF_BUF_LOG	(	_lvl,
		_buf,
		_nbits,
		_desc
	)	svf_hexbuf_print(LOG_LVL_##_lvl, __FILE__, __LINE__, __func__, _buf, _nbits, _desc)

Definition at line 238 of file svf.c.

◆ SVF_CHECK_TDO_PARA_SIZE

#define SVF_CHECK_TDO_PARA_SIZE 1024

Definition at line 199 of file svf.c.

◆ SVF_MAX_BUFFER_SIZE_TO_COMMIT

#define SVF_MAX_BUFFER_SIZE_TO_COMMIT (1024 * 1024)

Definition at line 217 of file svf.c.

◆ SVF_MAX_NUM_OF_OPTIONS

#define SVF_MAX_NUM_OF_OPTIONS 5

◆ SVF_MIN_NUM_OF_OPTIONS

#define SVF_MIN_NUM_OF_OPTIONS 1

◆ SVFP_CMD_INC_CNT

#define SVFP_CMD_INC_CNT 1024

Definition at line 604 of file svf.c.

◆ XXR_MASK

#define XXR_MASK (1 << 2)

Definition at line 140 of file svf.c.

◆ XXR_SMASK

#define XXR_SMASK (1 << 3)

Definition at line 141 of file svf.c.

◆ XXR_TDI

#define XXR_TDI (1 << 0)

Definition at line 138 of file svf.c.

◆ XXR_TDO

#define XXR_TDO (1 << 1)

Definition at line 139 of file svf.c.

Enumeration Type Documentation

◆ svf_command

enum svf_command

Enumerator
ENDDR
ENDIR
FREQUENCY
HDR
HIR
PIO
PIOMAP
RUNTEST
SDR
SIR
STATE
TDR
TIR
TRST

Definition at line 27 of file svf.c.

◆ trst_mode

enum trst_mode

Enumerator
TRST_ON
TRST_OFF
TRST_Z
TRST_ABSENT

Definition at line 61 of file svf.c.

Function Documentation

◆ COMMAND_HANDLER()

COMMAND_HANDLER ( handle_svf_command )

Definition at line 343 of file svf.c.

References jtag_tap::abs_chain_position, CMD, CMD_ARGC, CMD_ARGV, CMD_CTX, command_print(), ERROR_COMMAND_SYNTAX_ERROR, ERROR_FAIL, ERROR_OK, svf_para::hdr_para, svf_para::hir_para, jtag_tap::ir_length, jtag_add_tlr(), jtag_all_taps(), jtag_execute_queue(), jtag_tap_by_string(), LOG_ERROR, LOG_USER, LOG_USER_N, jtag_tap::next_tap, NULL, svf_para::sdr_para, svf_para::sir_para, svf_buffer_index, svf_buffer_size, svf_check_tdo(), svf_check_tdo_para_index, SVF_CHECK_TDO_PARA_SIZE, svf_command_buffer, svf_command_buffer_size, svf_fd, svf_free_xxd_para(), svf_getline(), svf_ignore_error, svf_last_printed_percentage, svf_line_number, svf_mask_buffer, SVF_MAX_BUFFER_SIZE_TO_COMMIT, SVF_MAX_NUM_OF_OPTIONS, SVF_MIN_NUM_OF_OPTIONS, svf_nil, svf_para_init, svf_percentage, svf_progress_enabled, svf_quiet, svf_read_command_from_file(), svf_read_line, svf_realloc_buffers(), svf_run_command(), svf_set_padding(), svf_tap_is_specified, svf_tdi_buffer, svf_tdo_buffer, svf_total_lines, svf_para::tdr_para, timeval_ms(), and svf_para::tir_para.

◆ svf_add_check_para()

static int svf_add_check_para	(	uint8_t	enabled,
		int	buffer_offset,
		int	bit_len
	)

static

Definition at line 867 of file svf.c.

References svf_check_tdo_para::bit_len, svf_check_tdo_para::buffer_offset, jtag_tap::enabled, svf_check_tdo_para::enabled, ERROR_FAIL, ERROR_OK, svf_check_tdo_para::line_num, LOG_ERROR, svf_check_tdo_para_index, SVF_CHECK_TDO_PARA_SIZE, and svf_line_number.

◆ svf_add_statemove()

int svf_add_statemove ( tap_state_t goal_state )

svf_add_statemove() moves from the current state to goal_state.

Parameters

goal_state The final TAP state.

Returns: ERROR_OK on success, or an error code on failure.

The current and goal states must satisfy svf_tap_state_is_stable(). State transition paths used by this routine are those given in the SVF specification for single-argument STATE commands (and also used for various other state transitions).

Definition at line 309 of file svf.c.

References ARRAY_SIZE, cmd_queue_cur_state, ERROR_FAIL, ERROR_OK, jtag_add_pathmove(), jtag_add_tlr(), LOG_ERROR, svf_nil, svf_statemoves, TAP_RESET, tap_state_name(), and svf_statemove::to.

Referenced by COMMAND_HANDLER().

◆ svf_adjust_array_length()

static int svf_adjust_array_length	(	uint8_t **	arr,
		int	orig_bit_len,
		int	new_bit_len
	)

static

Definition at line 749 of file svf.c.

References ERROR_FAIL, ERROR_OK, and LOG_ERROR.

Referenced by svf_copy_hexstring_to_binary(), and svf_set_padding().

◆ svf_check_tdo()

static int svf_check_tdo ( void )

static

Definition at line 840 of file svf.c.

References svf_check_tdo_para::bit_len, buf_cmp_mask(), svf_check_tdo_para::buffer_offset, jtag_tap::enabled, ERROR_FAIL, ERROR_OK, LOG_ERROR, SVF_BUF_LOG, svf_check_tdo_para_index, svf_ignore_error, svf_mask_buffer, svf_tdi_buffer, and svf_tdo_buffer.

Referenced by COMMAND_HANDLER(), and svf_execute_tap().

◆ svf_copy_hexstring_to_binary()

static int svf_copy_hexstring_to_binary	(	char *	str,
		uint8_t **	bin,
		int	orig_bit_len,
		int	bit_len
	)

static

Definition at line 777 of file svf.c.

References ERROR_FAIL, ERROR_OK, LOG_ERROR, and svf_adjust_array_length().

◆ svf_execute_tap()

static int svf_execute_tap ( void )

static

Definition at line 883 of file svf.c.

References ERROR_FAIL, ERROR_OK, jtag_execute_queue(), svf_buffer_index, svf_check_tdo(), and svf_nil.

Referenced by svf_realloc_buffers().

◆ svf_find_string_in_array()

static int svf_find_string_in_array	(	char *	str,
		char **	strs,
		int	num_of_element
	)

static

Definition at line 738 of file svf.c.

◆ svf_free_xxd_para()

static void svf_free_xxd_para ( struct svf_xxr_para * para )

static

Definition at line 292 of file svf.c.

References svf_xxr_para::mask, NULL, svf_xxr_para::smask, svf_xxr_para::tdi, and svf_xxr_para::tdo.

Referenced by COMMAND_HANDLER().

◆ svf_getline()

static int svf_getline	(	char **	lineptr,
		size_t *	n,
		FILE *	stream
	)

static

Definition at line 574 of file svf.c.

References MIN_CHUNK.

Referenced by COMMAND_HANDLER(), and svf_read_command_from_file().

◆ svf_hexbuf_print()

static void svf_hexbuf_print	(	int	dbg_lvl,
		const char *	file,
		unsigned	line,
		const char *	function,
		const uint8_t *	buf,
		int	bit_len,
		const char *	desc
	)

static

Definition at line 241 of file svf.c.

References svf_check_tdo_para::bit_len, DIV_ROUND_UP, and log_printf_lf().

◆ svf_parse_cmd_string()

static int svf_parse_cmd_string	(	char *	str,
		int	len,
		char **	argus,
		int *	num_of_argu
	)

static

Definition at line 694 of file svf.c.

References ERROR_FAIL, ERROR_OK, and LOG_ERROR.

◆ svf_read_command_from_file()

static int svf_read_command_from_file ( FILE * fd )

static

Definition at line 605 of file svf.c.

References ERROR_FAIL, ERROR_OK, LOG_ERROR, svf_command_buffer, svf_command_buffer_size, svf_fd, svf_getline(), svf_line_number, svf_read_line, and svf_read_line_size.

Referenced by COMMAND_HANDLER().

◆ svf_realloc_buffers()

static int svf_realloc_buffers ( size_t len )

static

Definition at line 265 of file svf.c.

References ERROR_FAIL, ERROR_OK, svf_buffer_size, svf_execute_tap(), svf_mask_buffer, svf_tdi_buffer, and svf_tdo_buffer.

Referenced by COMMAND_HANDLER().

◆ svf_register_commands()

int svf_register_commands ( struct command_context * cmd_ctx )

Definition at line 1553 of file svf.c.

References NULL, register_commands(), and svf_command_handlers.

Referenced by jtag_select().

◆ svf_run_command()

static int svf_run_command	(	struct command_context *	cmd_ctx,
		char *	cmd_str
	)

static

Definition at line 895 of file svf.c.

Referenced by COMMAND_HANDLER().

◆ svf_set_padding()

static int svf_set_padding	(	struct svf_xxr_para *	para,
		int	len,
		unsigned char	tdi
	)

static

Definition at line 764 of file svf.c.

References svf_xxr_para::data_mask, ERROR_OK, svf_xxr_para::len, svf_xxr_para::mask, svf_adjust_array_length(), svf_xxr_para::tdi, svf_xxr_para::tdo, and XXR_TDI.

Referenced by COMMAND_HANDLER().

◆ svf_tap_state_is_stable()

bool svf_tap_state_is_stable ( tap_state_t state )

svf_tap_state_is_stable() returns true for stable non-SHIFT states

Parameters

state The TAP state in question

Returns: true iff the state is stable and not a SHIFT state.

Definition at line 732 of file svf.c.

References state, TAP_DRPAUSE, TAP_IDLE, TAP_IRPAUSE, and TAP_RESET.

Referenced by COMMAND_HANDLER().

Variable Documentation

◆ svf_buffer_index

int svf_buffer_index

static

Definition at line 219 of file svf.c.

Referenced by COMMAND_HANDLER(), and svf_execute_tap().

◆ svf_buffer_size

int svf_buffer_size

static

Definition at line 219 of file svf.c.

Referenced by COMMAND_HANDLER(), and svf_realloc_buffers().

◆ svf_check_tdo_para

struct svf_check_tdo_para* svf_check_tdo_para

static

Definition at line 200 of file svf.c.

◆ svf_check_tdo_para_index

int svf_check_tdo_para_index

static

Definition at line 201 of file svf.c.

Referenced by COMMAND_HANDLER(), svf_add_check_para(), and svf_check_tdo().

◆ svf_command_buffer

char* svf_command_buffer

static

Definition at line 212 of file svf.c.

Referenced by COMMAND_HANDLER(), and svf_read_command_from_file().

◆ svf_command_buffer_size

size_t svf_command_buffer_size

static

Definition at line 213 of file svf.c.

Referenced by COMMAND_HANDLER(), and svf_read_command_from_file().

◆ svf_command_handlers

const struct command_registration svf_command_handlers[]

static

Initial value:

= {
    {
        .name = "svf",
        .handler = handle_svf_command,
        .mode = COMMAND_EXEC,
        .help = "Runs a SVF file.",
        .usage = "[-tap device.tap] <file> [quiet] [nil] [progress] [ignore_error]",
    },
    COMMAND_REGISTRATION_DONE
}

Definition at line 895 of file svf.c.

Referenced by svf_register_commands().

◆ svf_command_name

const char* svf_command_name[14]

static

Initial value:

= {
    "ENDDR",
    "ENDIR",
    "FREQUENCY",
    "HDR",
    "HIR",
    "PIO",
    "PIOMAP",
    "RUNTEST",
    "SDR",
    "SIR",
    "STATE",
    "TDR",
    "TIR",
    "TRST"
}

Definition at line 44 of file svf.c.

◆ svf_fd

FILE* svf_fd

static

Definition at line 209 of file svf.c.

Referenced by COMMAND_HANDLER(), and svf_read_command_from_file().

◆ svf_ignore_error

int svf_ignore_error

static

Definition at line 222 of file svf.c.

Referenced by COMMAND_HANDLER(), and svf_check_tdo().

◆ svf_last_printed_percentage

int svf_last_printed_percentage = -1

static

Definition at line 232 of file svf.c.

Referenced by COMMAND_HANDLER().

◆ svf_line_number

int svf_line_number

static

Definition at line 214 of file svf.c.

Referenced by COMMAND_HANDLER(), svf_add_check_para(), and svf_read_command_from_file().

◆ svf_mask_buffer

uint8_t * svf_mask_buffer

static

Definition at line 218 of file svf.c.

Referenced by COMMAND_HANDLER(), svf_check_tdo(), and svf_realloc_buffers().

◆ svf_nil

int svf_nil

static

Definition at line 221 of file svf.c.

Referenced by COMMAND_HANDLER(), svf_add_statemove(), and svf_execute_tap().

◆ svf_para

struct svf_para svf_para

static

Definition at line 68 of file svf.c.

◆ svf_para_init

const struct svf_para svf_para_init

static

Initial value:

= {

    0,          TAP_IDLE,       TAP_IDLE,   TAP_IDLE,       TAP_IDLE,       TRST_Z,

    {0,         0,      NULL,   NULL,   NULL,   NULL},

    {0,         0,      NULL,   NULL,   NULL,   NULL},

    {0,         0,      NULL,   NULL,   NULL,   NULL},

    {0,         0,      NULL,   NULL,   NULL,   NULL},

    {0,         0,      NULL,   NULL,   NULL,   NULL},

    {0,         0,      NULL,   NULL,   NULL,   NULL},
}

Definition at line 68 of file svf.c.

Referenced by COMMAND_HANDLER().

◆ svf_percentage

int svf_percentage

static

Definition at line 231 of file svf.c.

Referenced by COMMAND_HANDLER().

◆ svf_progress_enabled

int svf_progress_enabled

static

Definition at line 229 of file svf.c.

Referenced by COMMAND_HANDLER().

◆ svf_quiet

int svf_quiet

static

Definition at line 220 of file svf.c.

Referenced by COMMAND_HANDLER().

◆ svf_read_line

char* svf_read_line

static

Definition at line 210 of file svf.c.

Referenced by COMMAND_HANDLER(), and svf_read_command_from_file().

◆ svf_read_line_size

size_t svf_read_line_size

static

Definition at line 211 of file svf.c.

Referenced by svf_read_command_from_file().

◆ svf_statemoves

const struct svf_statemove svf_statemoves[]

static

Definition at line 68 of file svf.c.

Referenced by svf_add_statemove().

◆ svf_tap_is_specified

int svf_tap_is_specified

static

Definition at line 225 of file svf.c.

Referenced by COMMAND_HANDLER().

◆ svf_tdi_buffer

uint8_t* svf_tdi_buffer

static

Definition at line 218 of file svf.c.

Referenced by COMMAND_HANDLER(), svf_check_tdo(), and svf_realloc_buffers().

◆ svf_tdo_buffer

uint8_t * svf_tdo_buffer

static

Definition at line 218 of file svf.c.

Referenced by COMMAND_HANDLER(), svf_check_tdo(), and svf_realloc_buffers().

◆ svf_total_lines

long svf_total_lines

static

Definition at line 230 of file svf.c.

Referenced by COMMAND_HANDLER().

◆ svf_trst_mode_name

const char* svf_trst_mode_name[4]

static

Initial value:

= {
    "ON",
    "OFF",
    "Z",
    "ABSENT"
}

Definition at line 68 of file svf.c.

Data Structures

Macros

Enumerations

Functions

Variables

Macro Definition Documentation

◆ MIN_CHUNK

◆ SVF_BUF_LOG

◆ SVF_CHECK_TDO_PARA_SIZE

◆ SVF_MAX_BUFFER_SIZE_TO_COMMIT

◆ SVF_MAX_NUM_OF_OPTIONS

◆ SVF_MIN_NUM_OF_OPTIONS

◆ SVFP_CMD_INC_CNT

◆ XXR_MASK

◆ XXR_SMASK

◆ XXR_TDI

◆ XXR_TDO

Enumeration Type Documentation

◆ svf_command

◆ trst_mode

Function Documentation

◆ COMMAND_HANDLER()

◆ svf_add_check_para()

◆ svf_add_statemove()

◆ svf_adjust_array_length()

◆ svf_check_tdo()

◆ svf_copy_hexstring_to_binary()

◆ svf_execute_tap()

◆ svf_find_string_in_array()

◆ svf_free_xxd_para()

◆ svf_getline()

◆ svf_hexbuf_print()

◆ svf_parse_cmd_string()

◆ svf_read_command_from_file()

◆ svf_realloc_buffers()

◆ svf_register_commands()

◆ svf_run_command()

◆ svf_set_padding()

◆ svf_tap_state_is_stable()

Variable Documentation

◆ svf_buffer_index

◆ svf_buffer_size

◆ svf_check_tdo_para

◆ svf_check_tdo_para_index

◆ svf_command_buffer

◆ svf_command_buffer_size

◆ svf_command_handlers

◆ svf_command_name

◆ svf_fd

◆ svf_ignore_error

◆ svf_last_printed_percentage

◆ svf_line_number

◆ svf_mask_buffer

◆ svf_nil

◆ svf_para

◆ svf_para_init

◆ svf_percentage

◆ svf_progress_enabled

◆ svf_quiet

◆ svf_read_line

◆ svf_read_line_size

◆ svf_statemoves

◆ svf_tap_is_specified

◆ svf_tdi_buffer

◆ svf_tdo_buffer

◆ svf_total_lines

◆ svf_trst_mode_name
