rtos_embkernel_stackings.c File Reference

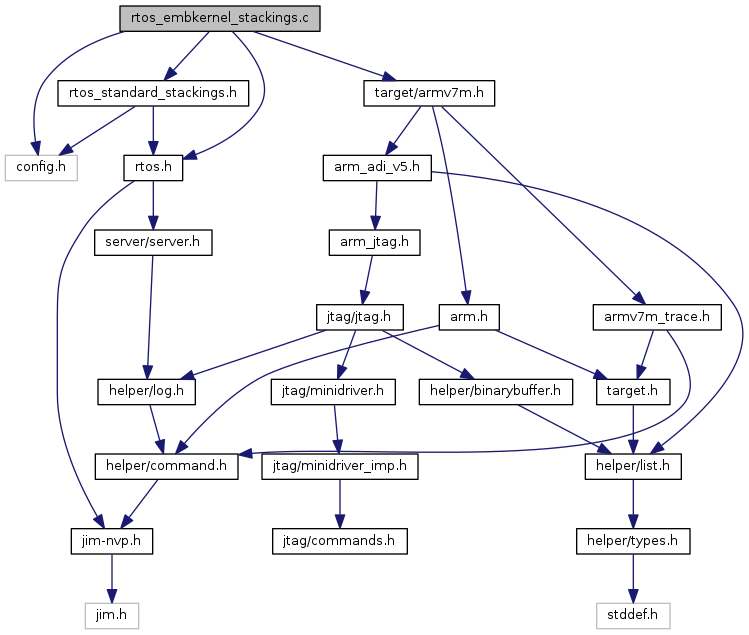

Include dependency graph for rtos_embkernel_stackings.c:
Go to the source code of this file.
Variables | |
| static const struct stack_register_offset | rtos_embkernel_cortex_m_stack_offsets [ARMV7M_NUM_CORE_REGS] |
| const struct rtos_register_stacking | rtos_embkernel_cortex_m_stacking |
Variable Documentation
◆ rtos_embkernel_cortex_m_stack_offsets
|
static |
Initial value:
= {
{ ARMV7M_R0, 0x24, 32 },
{ ARMV7M_R1, 0x28, 32 },
{ ARMV7M_R2, 0x2c, 32 },
{ ARMV7M_R3, 0x30, 32 },
{ ARMV7M_R4, 0x00, 32 },
{ ARMV7M_R5, 0x04, 32 },
{ ARMV7M_R6, 0x08, 32 },
{ ARMV7M_R7, 0x0c, 32 },
{ ARMV7M_R8, 0x10, 32 },
{ ARMV7M_R9, 0x14, 32 },
{ ARMV7M_R10, 0x18, 32 },
{ ARMV7M_R11, 0x1c, 32 },
{ ARMV7M_R12, 0x34, 32 },
{ ARMV7M_R13, -2, 32 },
{ ARMV7M_R14, 0x38, 32 },
{ ARMV7M_PC, 0x3c, 32 },
{ ARMV7M_XPSR, 0x40, 32 },
}
Definition at line 1 of file rtos_embkernel_stackings.c.
◆ rtos_embkernel_cortex_m_stacking
| const struct rtos_register_stacking rtos_embkernel_cortex_m_stacking |
Initial value:
= {
.stack_registers_size = 0x40,
.stack_growth_direction = -1,
.num_output_registers = ARMV7M_NUM_CORE_REGS,
.calculate_process_stack = rtos_generic_stack_align8,
.register_offsets = rtos_embkernel_cortex_m_stack_offsets
}
static const struct stack_register_offset rtos_embkernel_cortex_m_stack_offsets[ARMV7M_NUM_CORE_REGS]
Definition: rtos_embkernel_stackings.c:16
target_addr_t rtos_generic_stack_align8(struct target *target, const uint8_t *stack_data, const struct rtos_register_stacking *stacking, target_addr_t stack_ptr)
Definition: rtos_standard_stackings.c:164
Definition at line 1 of file rtos_embkernel_stackings.c.
