OpenOCD
rtos_ecos_stackings.c File Reference

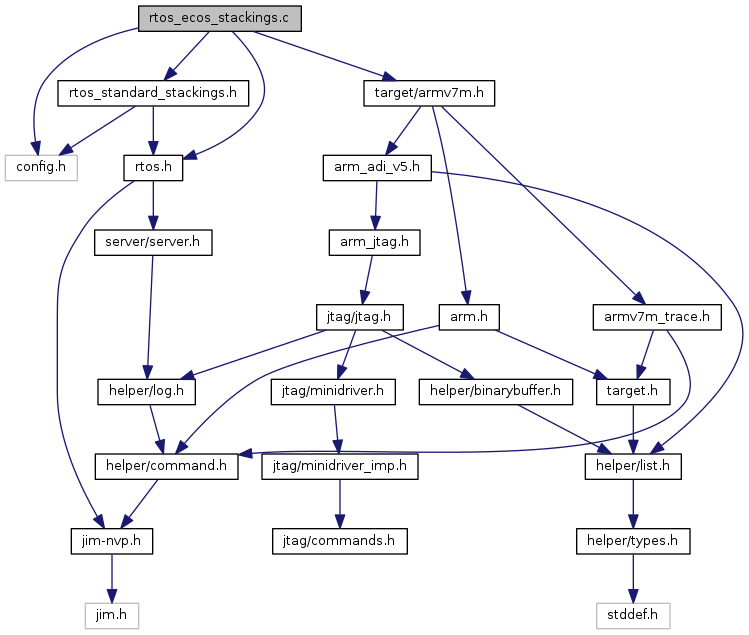

Include dependency graph for rtos_ecos_stackings.c:

Go to the source code of this file.

Variables

static const struct stack_register_offset rtos_ecos_cortex_m3_stack_offsets [ARMV7M_NUM_CORE_REGS]

const struct rtos_register_stacking rtos_ecos_cortex_m3_stacking


Variable Documentation

◆ rtos_ecos_cortex_m3_stack_offsets

const struct stack_register_offset rtos_ecos_cortex_m3_stack_offsets[ARMV7M_NUM_CORE_REGS]
static
Initial value:
= {
{ ARMV7M_R0, 0x0c, 32 },
{ ARMV7M_R1, 0x10, 32 },
{ ARMV7M_R2, 0x14, 32 },
{ ARMV7M_R3, 0x18, 32 },
{ ARMV7M_R4, 0x1c, 32 },
{ ARMV7M_R5, 0x20, 32 },
{ ARMV7M_R6, 0x24, 32 },
{ ARMV7M_R7, 0x28, 32 },
{ ARMV7M_R8, 0x2c, 32 },
{ ARMV7M_R9, 0x30, 32 },
{ ARMV7M_R10, 0x34, 32 },
{ ARMV7M_R11, 0x38, 32 },
{ ARMV7M_R12, 0x3c, 32 },
{ ARMV7M_R13, -2, 32 },
{ ARMV7M_R14, -1, 32 },
{ ARMV7M_PC, 0x40, 32 },
{ ARMV7M_XPSR, -1, 32 },
}
@ ARMV7M_R1
Definition: armv7m.h:108
@ ARMV7M_R6
Definition: armv7m.h:114
@ ARMV7M_R2
Definition: armv7m.h:109
@ ARMV7M_R3
Definition: armv7m.h:110
@ ARMV7M_R14
Definition: armv7m.h:124
@ ARMV7M_R9
Definition: armv7m.h:118
@ ARMV7M_R12
Definition: armv7m.h:122
@ ARMV7M_R0
Definition: armv7m.h:107
@ ARMV7M_R13
Definition: armv7m.h:123
@ ARMV7M_PC
Definition: armv7m.h:125
@ ARMV7M_R7
Definition: armv7m.h:115
@ ARMV7M_R4
Definition: armv7m.h:112
@ ARMV7M_XPSR
Definition: armv7m.h:127
@ ARMV7M_R8
Definition: armv7m.h:117
@ ARMV7M_R11
Definition: armv7m.h:120
@ ARMV7M_R10
Definition: armv7m.h:119
@ ARMV7M_R5
Definition: armv7m.h:113

Definition at line 1 of file rtos_ecos_stackings.c.

◆ rtos_ecos_cortex_m3_stacking

const struct rtos_register_stacking rtos_ecos_cortex_m3_stacking
Initial value:
= {
.stack_registers_size = 0x44,
.stack_growth_direction = -1,
.num_output_registers = ARMV7M_NUM_CORE_REGS,
.calculate_process_stack = rtos_generic_stack_align8,
}
#define ARMV7M_NUM_CORE_REGS
Definition: armv7m.h:216
static const struct stack_register_offset rtos_ecos_cortex_m3_stack_offsets[ARMV7M_NUM_CORE_REGS]
target_addr_t rtos_generic_stack_align8(struct target *target, const uint8_t *stack_data, const struct rtos_register_stacking *stacking, target_addr_t stack_ptr)

Definition at line 1 of file rtos_ecos_stackings.c.
