rtos_chibios_stackings.c File Reference

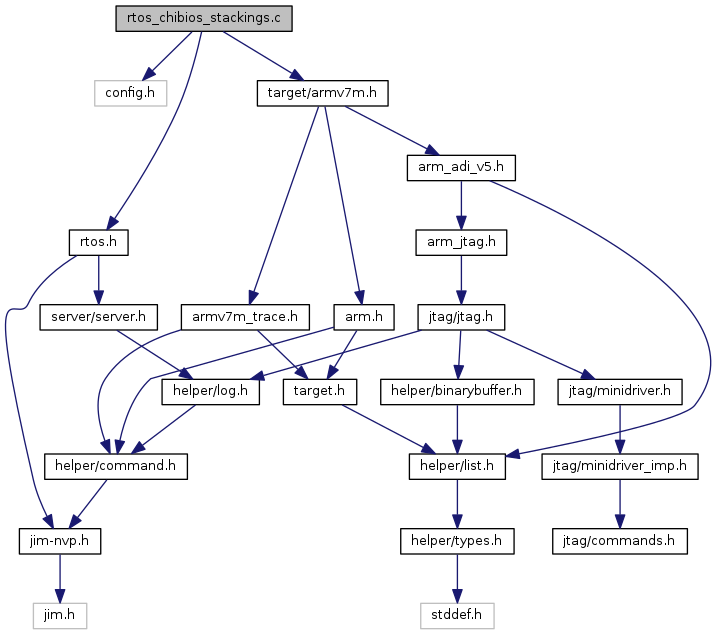

Include dependency graph for rtos_chibios_stackings.c:

Go to the source code of this file.

Variables

static const struct stack_register_offset rtos_chibios_arm_v7m_stack_offsets [ARMV7M_NUM_CORE_REGS]

static const struct stack_register_offset rtos_chibios_arm_v7m_stack_offsets_w_fpu [ARMV7M_NUM_CORE_REGS]

const struct rtos_register_stacking rtos_chibios_arm_v7m_stacking

const struct rtos_register_stacking rtos_chibios_arm_v7m_stacking_w_fpu


Variable Documentation

◆ rtos_chibios_arm_v7m_stack_offsets

const struct stack_register_offset rtos_chibios_arm_v7m_stack_offsets[ARMV7M_NUM_CORE_REGS]
static
Initial value:
= {
{ ARMV7M_R0, -1, 32 },
{ ARMV7M_R1, -1, 32 },
{ ARMV7M_R2, -1, 32 },
{ ARMV7M_R3, -1, 32 },
{ ARMV7M_R4, 0x00, 32 },
{ ARMV7M_R5, 0x04, 32 },
{ ARMV7M_R6, 0x08, 32 },
{ ARMV7M_R7, 0x0c, 32 },
{ ARMV7M_R8, 0x10, 32 },
{ ARMV7M_R9, 0x14, 32 },
{ ARMV7M_R10, 0x18, 32 },
{ ARMV7M_R11, 0x1c, 32 },
{ ARMV7M_R12, -1, 32 },
{ ARMV7M_R13, -2, 32 },
{ ARMV7M_R14, -1, 32 },
{ ARMV7M_PC, 0x20, 32 },
{ ARMV7M_XPSR, -1, 32 },
}
@ ARMV7M_R1
Definition: armv7m.h:108
@ ARMV7M_R6
Definition: armv7m.h:114
@ ARMV7M_R2
Definition: armv7m.h:109
@ ARMV7M_R3
Definition: armv7m.h:110
@ ARMV7M_R14
Definition: armv7m.h:124
@ ARMV7M_R9
Definition: armv7m.h:118
@ ARMV7M_R12
Definition: armv7m.h:122
@ ARMV7M_R0
Definition: armv7m.h:107
@ ARMV7M_R13
Definition: armv7m.h:123
@ ARMV7M_PC
Definition: armv7m.h:125
@ ARMV7M_R7
Definition: armv7m.h:115
@ ARMV7M_R4
Definition: armv7m.h:112
@ ARMV7M_XPSR
Definition: armv7m.h:127
@ ARMV7M_R8
Definition: armv7m.h:117
@ ARMV7M_R11
Definition: armv7m.h:120
@ ARMV7M_R10
Definition: armv7m.h:119
@ ARMV7M_R5
Definition: armv7m.h:113

Definition at line 1 of file rtos_chibios_stackings.c.

◆ rtos_chibios_arm_v7m_stack_offsets_w_fpu

const struct stack_register_offset rtos_chibios_arm_v7m_stack_offsets_w_fpu[ARMV7M_NUM_CORE_REGS]
static
Initial value:
= {
{ ARMV7M_R0, -1, 32 },
{ ARMV7M_R1, -1, 32 },
{ ARMV7M_R2, -1, 32 },
{ ARMV7M_R3, -1, 32 },
{ ARMV7M_R4, 0x40, 32 },
{ ARMV7M_R5, 0x44, 32 },
{ ARMV7M_R6, 0x48, 32 },
{ ARMV7M_R7, 0x4c, 32 },
{ ARMV7M_R8, 0x50, 32 },
{ ARMV7M_R9, 0x54, 32 },
{ ARMV7M_R10, 0x58, 32 },
{ ARMV7M_R11, 0x5c, 32 },
{ ARMV7M_R12, -1, 32 },
{ ARMV7M_R13, -2, 32 },
{ ARMV7M_R14, -1, 32 },
{ ARMV7M_PC, 0x60, 32 },
{ ARMV7M_XPSR, -1, 32 },
}

Definition at line 1 of file rtos_chibios_stackings.c.

◆ rtos_chibios_arm_v7m_stacking

const struct rtos_register_stacking rtos_chibios_arm_v7m_stacking
Initial value:
= {
.stack_registers_size = 0x24,
.stack_growth_direction = -1,
.num_output_registers = ARMV7M_NUM_CORE_REGS,
}
#define ARMV7M_NUM_CORE_REGS
Definition: armv7m.h:216
static const struct stack_register_offset rtos_chibios_arm_v7m_stack_offsets[ARMV7M_NUM_CORE_REGS]

Definition at line 1 of file rtos_chibios_stackings.c.

Referenced by chibios_update_stacking().

◆ rtos_chibios_arm_v7m_stacking_w_fpu

const struct rtos_register_stacking rtos_chibios_arm_v7m_stacking_w_fpu
Initial value:
= {
.stack_registers_size = 0x64,
.stack_growth_direction = -1,
.num_output_registers = ARMV7M_NUM_CORE_REGS,
}
static const struct stack_register_offset rtos_chibios_arm_v7m_stack_offsets_w_fpu[ARMV7M_NUM_CORE_REGS]

Definition at line 1 of file rtos_chibios_stackings.c.

Referenced by chibios_update_stacking().
