psoc4.c File Reference

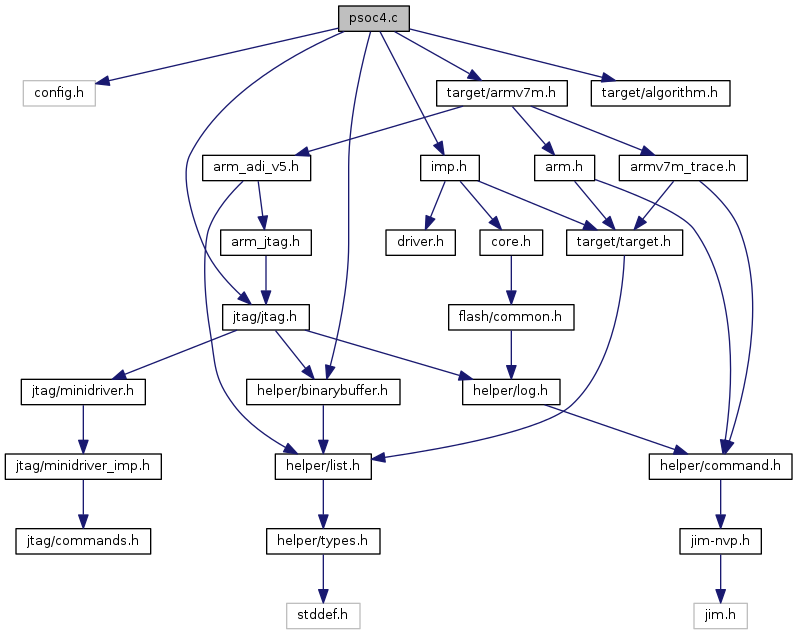

Include dependency graph for psoc4.c:

Go to the source code of this file.

Data Structures
struct	psoc4_chip_family
struct	psoc4_flash_bank

Macros
#define	PSOC4_CHIP_PROT_KILL   0x4
#define	PSOC4_CHIP_PROT_OPEN   0x1
#define	PSOC4_CHIP_PROT_PROTECTED   0x2
#define	PSOC4_CHIP_PROT_VIRGIN   0x0
#define	PSOC4_CMD_CHECKSUM   0xb
#define	PSOC4_CMD_ERASE_ALL   0xa
#define	PSOC4_CMD_GET_SILICON_ID   0
#define	PSOC4_CMD_LOAD_LATCH   4
#define	PSOC4_CMD_PROGRAM_ROW   6
#define	PSOC4_CMD_SET_IMO48   0x15
#define	PSOC4_CMD_WRITE_PROTECTION   0xd
#define	PSOC4_CMD_WRITE_ROW   5
#define	PSOC4_CMD_WRITE_SFLASH_ROW   0x18
#define	PSOC4_CPUSS_SYSARG_LEGACY   0x40000008
#define	PSOC4_CPUSS_SYSARG_NEW   0x40100008
#define	PSOC4_CPUSS_SYSREQ_LEGACY   0x40000004
#define	PSOC4_CPUSS_SYSREQ_NEW   0x40100004
#define	PSOC4_FAMILY_FLAG_LEGACY   1
#define	PSOC4_ROMTABLE_DESIGNER_CHECK   0xb4
#define	PSOC4_ROMTABLE_PID0   0xF0000FE0
#define	PSOC4_ROWS_PER_MACRO   512
#define	PSOC4_SFLASH_MACRO0   0x0FFFF000
#define	PSOC4_SFLASH_MACRO_SIZE   0x800
#define	PSOC4_SPCIF_GEOMETRY_LEGACY   0x400E0000
#define	PSOC4_SPCIF_GEOMETRY_NEW   0x40110000
#define	PSOC4_SROM_ERR_IMO_NOT_IMPLEM   0xf0000013
#define	PSOC4_SROM_HMASTER_BIT   (1<<30)
#define	PSOC4_SROM_KEY1   0xb6
#define	PSOC4_SROM_KEY2   0xd3
#define	PSOC4_SROM_PRIVILEGED_BIT   (1<<28)
#define	PSOC4_SROM_STATUS_FAILED   0xf0000000
#define	PSOC4_SROM_STATUS_MASK   0xf0000000
#define	PSOC4_SROM_STATUS_SUCCEEDED   0xa0000000
#define	PSOC4_SROM_SYSREQ_BIT   (1<<31)
#define	PSOC4_TEST_MODE   0x40030014

Functions
	COMMAND_HANDLER (psoc4_handle_flash_autoerase_command)
	COMMAND_HANDLER (psoc4_handle_mass_erase_command)
	FLASH_BANK_COMMAND_HANDLER (psoc4_flash_bank_command)
static int	get_psoc4_info (struct flash_bank *bank, struct command_invocation *cmd)
static int	psoc4_auto_probe (struct flash_bank *bank)
static const char *	psoc4_decode_chip_protection (uint8_t protection)
static int	psoc4_erase (struct flash_bank *bank, unsigned int first, unsigned int last)
static const struct psoc4_chip_family *	psoc4_family_by_id (uint16_t family_id)
static int	psoc4_flash_prepare (struct flash_bank *bank)
static int	psoc4_get_family (struct target *target, uint16_t *family_id)
static int	psoc4_get_silicon_id (struct flash_bank *bank, uint32_t *silicon_id, uint16_t *family_id, uint8_t *protection)
static int	psoc4_mass_erase (struct flash_bank *bank)
static int	psoc4_probe (struct flash_bank *bank)
static int	psoc4_protect (struct flash_bank *bank, int set, unsigned int first, unsigned int last)
static int	psoc4_protect_check (struct flash_bank *bank)
static int	psoc4_sysreq (struct flash_bank *bank, uint8_t cmd, uint16_t cmd_param, uint32_t *sysreq_params, uint32_t sysreq_params_size, uint32_t *sysarg_out)
static int	psoc4_test_flash_wounding (struct target *target, uint32_t flash_size)
static int	psoc4_write (struct flash_bank *bank, const uint8_t *buffer, uint32_t offset, uint32_t count)

Variables
static const struct command_registration	psoc4_command_handlers []
static const struct command_registration	psoc4_exec_command_handlers []
static const struct psoc4_chip_family	psoc4_families []
const struct flash_driver	psoc4_flash

Macro Definition Documentation

PSOC4_CHIP_PROT_KILL

#define PSOC4_CHIP_PROT_KILL   0x4

Definition at line 119 of file psoc4.c.

PSOC4_CHIP_PROT_OPEN

#define PSOC4_CHIP_PROT_OPEN   0x1

Definition at line 117 of file psoc4.c.

PSOC4_CHIP_PROT_PROTECTED

#define PSOC4_CHIP_PROT_PROTECTED   0x2

Definition at line 118 of file psoc4.c.

PSOC4_CHIP_PROT_VIRGIN

#define PSOC4_CHIP_PROT_VIRGIN   0x0

Definition at line 116 of file psoc4.c.

PSOC4_CMD_CHECKSUM

#define PSOC4_CMD_CHECKSUM   0xb

Definition at line 111 of file psoc4.c.

PSOC4_CMD_ERASE_ALL

#define PSOC4_CMD_ERASE_ALL   0xa

Definition at line 110 of file psoc4.c.

PSOC4_CMD_GET_SILICON_ID

#define PSOC4_CMD_GET_SILICON_ID   0

Definition at line 106 of file psoc4.c.

PSOC4_CMD_LOAD_LATCH

#define PSOC4_CMD_LOAD_LATCH   4

Definition at line 107 of file psoc4.c.

PSOC4_CMD_PROGRAM_ROW

#define PSOC4_CMD_PROGRAM_ROW   6

Definition at line 109 of file psoc4.c.

PSOC4_CMD_SET_IMO48

#define PSOC4_CMD_SET_IMO48   0x15

Definition at line 113 of file psoc4.c.

PSOC4_CMD_WRITE_PROTECTION

#define PSOC4_CMD_WRITE_PROTECTION   0xd

Definition at line 112 of file psoc4.c.

PSOC4_CMD_WRITE_ROW

#define PSOC4_CMD_WRITE_ROW   5

Definition at line 108 of file psoc4.c.

PSOC4_CMD_WRITE_SFLASH_ROW

#define PSOC4_CMD_WRITE_SFLASH_ROW   0x18

Definition at line 114 of file psoc4.c.

PSOC4_CPUSS_SYSARG_LEGACY

#define PSOC4_CPUSS_SYSARG_LEGACY   0x40000008

Definition at line 78 of file psoc4.c.

PSOC4_CPUSS_SYSARG_NEW

#define PSOC4_CPUSS_SYSARG_NEW   0x40100008

Definition at line 82 of file psoc4.c.

PSOC4_CPUSS_SYSREQ_LEGACY

#define PSOC4_CPUSS_SYSREQ_LEGACY   0x40000004

Definition at line 77 of file psoc4.c.

PSOC4_CPUSS_SYSREQ_NEW

#define PSOC4_CPUSS_SYSREQ_NEW   0x40100004

Definition at line 81 of file psoc4.c.

PSOC4_FAMILY_FLAG_LEGACY

#define PSOC4_FAMILY_FLAG_LEGACY   1

Definition at line 123 of file psoc4.c.

PSOC4_ROMTABLE_DESIGNER_CHECK

#define PSOC4_ROMTABLE_DESIGNER_CHECK   0xb4

Definition at line 121 of file psoc4.c.

PSOC4_ROMTABLE_PID0

#define PSOC4_ROMTABLE_PID0   0xF0000FE0

Definition at line 87 of file psoc4.c.

PSOC4_ROWS_PER_MACRO

#define PSOC4_ROWS_PER_MACRO   512

Definition at line 92 of file psoc4.c.

PSOC4_SFLASH_MACRO0

#define PSOC4_SFLASH_MACRO0   0x0FFFF000

Definition at line 75 of file psoc4.c.

PSOC4_SFLASH_MACRO_SIZE

#define PSOC4_SFLASH_MACRO_SIZE   0x800

Definition at line 91 of file psoc4.c.

PSOC4_SPCIF_GEOMETRY_LEGACY

#define PSOC4_SPCIF_GEOMETRY_LEGACY   0x400E0000

Definition at line 79 of file psoc4.c.

PSOC4_SPCIF_GEOMETRY_NEW

#define PSOC4_SPCIF_GEOMETRY_NEW   0x40110000

Definition at line 83 of file psoc4.c.

PSOC4_SROM_ERR_IMO_NOT_IMPLEM

#define PSOC4_SROM_ERR_IMO_NOT_IMPLEM   0xf0000013

Definition at line 104 of file psoc4.c.

PSOC4_SROM_HMASTER_BIT

#define PSOC4_SROM_HMASTER_BIT   (1<<30)

Definition at line 97 of file psoc4.c.

PSOC4_SROM_KEY1

#define PSOC4_SROM_KEY1   0xb6

Definition at line 94 of file psoc4.c.

PSOC4_SROM_KEY2

#define PSOC4_SROM_KEY2   0xd3

Definition at line 95 of file psoc4.c.

PSOC4_SROM_PRIVILEGED_BIT

#define PSOC4_SROM_PRIVILEGED_BIT   (1<<28)

Definition at line 98 of file psoc4.c.

PSOC4_SROM_STATUS_FAILED

#define PSOC4_SROM_STATUS_FAILED   0xf0000000

Definition at line 100 of file psoc4.c.

PSOC4_SROM_STATUS_MASK

#define PSOC4_SROM_STATUS_MASK   0xf0000000

Definition at line 101 of file psoc4.c.

PSOC4_SROM_STATUS_SUCCEEDED

#define PSOC4_SROM_STATUS_SUCCEEDED   0xa0000000

Definition at line 99 of file psoc4.c.

PSOC4_SROM_SYSREQ_BIT

#define PSOC4_SROM_SYSREQ_BIT   (1<<31)

Definition at line 96 of file psoc4.c.

PSOC4_TEST_MODE

#define PSOC4_TEST_MODE   0x40030014

Definition at line 85 of file psoc4.c.

Function Documentation

COMMAND_HANDLER() [1/2]

COMMAND_HANDLER

(

psoc4_handle_flash_autoerase_command

)

Definition at line 602 of file psoc4.c.

References bank, CALL_COMMAND_HANDLER, CMD_ARGC, CMD_ARGV, psoc4_flash_bank::cmd_program_row, COMMAND_PARSE_ON_OFF, ERROR_COMMAND_SYNTAX_ERROR, ERROR_OK, LOG_INFO, PSOC4_CMD_PROGRAM_ROW, and PSOC4_CMD_WRITE_ROW.

COMMAND_HANDLER() [2/2]

COMMAND_HANDLER

(

psoc4_handle_mass_erase_command

)

Definition at line 876 of file psoc4.c.

References bank, CALL_COMMAND_HANDLER, CMD, CMD_ARGC, command_print(), ERROR_COMMAND_SYNTAX_ERROR, ERROR_OK, and psoc4_mass_erase().

FLASH_BANK_COMMAND_HANDLER()

FLASH_BANK_COMMAND_HANDLER

(

psoc4_flash_bank_command

)

Definition at line 189 of file psoc4.c.

References bank, CMD_ARGC, psoc4_flash_bank::cmd_program_row, ERROR_COMMAND_SYNTAX_ERROR, ERROR_OK, PSOC4_CMD_WRITE_ROW, and psoc4_flash_bank::user_bank_size.

get_psoc4_info()

static int get_psoc4_info ( struct flash_bank *  bank, struct command_invocation *  cmd  )

static

Definition at line 836 of file psoc4.c.

References bank, cmd, command_print_sameline(), ERROR_FAIL, ERROR_OK, psoc4_flash_bank::family_id, psoc4_chip_family::name, psoc4_flash_bank::probed, psoc4_decode_chip_protection(), psoc4_family_by_id(), psoc4_get_silicon_id(), target::state, and TARGET_HALTED.

psoc4_auto_probe()

static int psoc4_auto_probe ( struct flash_bank *  bank )

static

Definition at line 827 of file psoc4.c.

References bank, ERROR_OK, psoc4_flash_bank::probed, and psoc4_probe().

psoc4_decode_chip_protection()

static const char* psoc4_decode_chip_protection ( uint8_t  protection )

static

Definition at line 169 of file psoc4.c.

References LOG_WARNING, PSOC4_CHIP_PROT_KILL, PSOC4_CHIP_PROT_OPEN, PSOC4_CHIP_PROT_PROTECTED, and PSOC4_CHIP_PROT_VIRGIN.

Referenced by get_psoc4_info().

psoc4_erase()

static int psoc4_erase ( struct flash_bank *  bank, unsigned int  first, unsigned int  last  )

static

Definition at line 518 of file psoc4.c.

References bank, psoc4_flash_bank::cmd_program_row, ERROR_FAIL, ERROR_OK, LOG_ERROR, LOG_INFO, PSOC4_CMD_WRITE_ROW, and psoc4_mass_erase().

psoc4_family_by_id()

static const struct psoc4_chip_family* psoc4_family_by_id ( uint16_t  family_id )

static

Definition at line 160 of file psoc4.c.

References psoc4_chip_family::id, and psoc4_families.

Referenced by get_psoc4_info(), and psoc4_probe().

psoc4_flash_prepare()

static int psoc4_flash_prepare ( struct flash_bank *  bank )

static

Definition at line 433 of file psoc4.c.

References bank, ERROR_FAIL, ERROR_OK, ERROR_TARGET_NOT_HALTED, psoc4_flash_bank::family_id, psoc4_flash_bank::legacy_family, LOG_ERROR, LOG_INFO, NULL, PSOC4_CMD_SET_IMO48, psoc4_get_silicon_id(), PSOC4_SROM_ERR_IMO_NOT_IMPLEM, PSOC4_SROM_STATUS_MASK, PSOC4_SROM_STATUS_SUCCEEDED, psoc4_sysreq(), target::state, and TARGET_HALTED.

Referenced by psoc4_mass_erase(), psoc4_protect(), and psoc4_write().

psoc4_get_family()

static int psoc4_get_family ( struct target *  target, uint16_t *  family_id  )

static

Definition at line 401 of file psoc4.c.

References ERROR_FAIL, ERROR_OK, psoc4_flash_bank::family_id, LOG_ERROR, PSOC4_ROMTABLE_DESIGNER_CHECK, PSOC4_ROMTABLE_PID0, target_buffer_get_u32(), and target_read_memory().

Referenced by psoc4_probe().

psoc4_get_silicon_id()

static int psoc4_get_silicon_id ( struct flash_bank *  bank, uint32_t *  silicon_id, uint16_t *  family_id, uint8_t *  protection  )

static

Definition at line 361 of file psoc4.c.

References bank, psoc4_flash_bank::cpuss_sysreq_addr, ERROR_FAIL, ERROR_OK, psoc4_flash_bank::family_id, LOG_ERROR, NULL, PSOC4_CMD_GET_SILICON_ID, PSOC4_SROM_STATUS_MASK, PSOC4_SROM_STATUS_SUCCEEDED, psoc4_sysreq(), and target_read_u32().

Referenced by get_psoc4_info(), and psoc4_flash_prepare().

psoc4_mass_erase()

static int psoc4_mass_erase ( struct flash_bank *  bank )

static

Definition at line 504 of file psoc4.c.

References bank, ERROR_OK, NULL, param, PSOC4_CMD_ERASE_ALL, psoc4_flash_prepare(), and psoc4_sysreq().

Referenced by COMMAND_HANDLER(), and psoc4_erase().

psoc4_probe()

static int psoc4_probe ( struct flash_bank *  bank )

static

Definition at line 719 of file psoc4.c.

References alloc_block_array(), bank, psoc4_flash_bank::cpuss_sysarg_addr, psoc4_flash_bank::cpuss_sysreq_addr, ERROR_FAIL, ERROR_OK, psoc4_flash_bank::family_id, psoc4_chip_family::flags, psoc4_chip_family::id, psoc4_flash_bank::legacy_family, LOG_DEBUG, LOG_ERROR, LOG_INFO, LOG_WARNING, psoc4_chip_family::name, psoc4_flash_bank::num_macros, psoc4_flash_bank::probed, PSOC4_CPUSS_SYSARG_LEGACY, PSOC4_CPUSS_SYSARG_NEW, PSOC4_CPUSS_SYSREQ_LEGACY, PSOC4_CPUSS_SYSREQ_NEW, psoc4_family_by_id(), PSOC4_FAMILY_FLAG_LEGACY, psoc4_get_family(), PSOC4_ROWS_PER_MACRO, PSOC4_SPCIF_GEOMETRY_LEGACY, PSOC4_SPCIF_GEOMETRY_NEW, psoc4_test_flash_wounding(), psoc4_flash_bank::row_size, psoc4_flash_bank::spcif_geometry_addr, target_read_u32(), and psoc4_flash_bank::user_bank_size.

Referenced by psoc4_auto_probe().

psoc4_protect()

static int psoc4_protect ( struct flash_bank *  bank, int  set, unsigned int  first, unsigned int  last  )

static

Definition at line 536 of file psoc4.c.

References bank, ERROR_FAIL, ERROR_OK, LOG_ERROR, NULL, psoc4_flash_bank::num_macros, psoc4_flash_bank::probed, PSOC4_CHIP_PROT_OPEN, PSOC4_CMD_LOAD_LATCH, PSOC4_CMD_WRITE_PROTECTION, psoc4_flash_prepare(), psoc4_protect_check(), PSOC4_ROWS_PER_MACRO, psoc4_sysreq(), and target_buffer_set_u32().

psoc4_protect_check()

static int psoc4_protect_check ( struct flash_bank *  bank )

static

Definition at line 481 of file psoc4.c.

References bank, ERROR_OK, psoc4_flash_bank::num_macros, PSOC4_ROWS_PER_MACRO, PSOC4_SFLASH_MACRO0, PSOC4_SFLASH_MACRO_SIZE, and target_read_memory().

Referenced by psoc4_protect().

psoc4_sysreq()

static int psoc4_sysreq ( struct flash_bank *  bank, uint8_t  cmd, uint16_t  cmd_param, uint32_t *  sysreq_params, uint32_t  sysreq_params_size, uint32_t *  sysarg_out  )

static

Definition at line 214 of file psoc4.c.

References working_area::address, ARM_MODE_THREAD, ARMV7M_COMMON_MAGIC, ARRAY_SIZE, bank, buf_set_u32(), cmd, armv7m_algorithm::common_magic, armv7m_algorithm::core_mode, psoc4_flash_bank::cpuss_sysarg_addr, psoc4_flash_bank::cpuss_sysreq_addr, destroy_reg_param(), ERROR_FAIL, ERROR_OK, ERROR_TARGET_RESOURCE_NOT_AVAILABLE, init_reg_param(), LOG_DEBUG, LOG_ERROR, LOG_WARNING, NULL, PARAM_OUT, PSOC4_SROM_HMASTER_BIT, PSOC4_SROM_KEY1, PSOC4_SROM_KEY2, PSOC4_SROM_STATUS_MASK, PSOC4_SROM_STATUS_SUCCEEDED, PSOC4_SROM_SYSREQ_BIT, working_area::size, target_alloc_working_area(), target_buffer_set_u32(), target_free_working_area(), target_read_u32(), target_run_algorithm(), target_to_armv7m(), target_write_buffer(), and target_write_u32().

Referenced by psoc4_flash_prepare(), psoc4_get_silicon_id(), psoc4_mass_erase(), psoc4_protect(), and psoc4_write().

psoc4_test_flash_wounding()

static int psoc4_test_flash_wounding ( struct target *  target, uint32_t  flash_size  )

static

Definition at line 705 of file psoc4.c.

References addr, dummy, ERROR_OK, and target_read_u32().

Referenced by psoc4_probe().

psoc4_write()

static int psoc4_write ( struct flash_bank *  bank, const uint8_t *  buffer, uint32_t  offset, uint32_t  count  )

static

Definition at line 630 of file psoc4.c.

References bank, buffer, psoc4_flash_bank::cmd_program_row, count, ERROR_FAIL, ERROR_OK, jtag_poll_mask(), jtag_poll_unmask(), LOG_DEBUG, LOG_ERROR, NULL, offset, PSOC4_CMD_LOAD_LATCH, psoc4_flash_prepare(), PSOC4_ROWS_PER_MACRO, psoc4_sysreq(), psoc4_flash_bank::row_size, and target_buffer_set_u32().

Variable Documentation

psoc4_command_handlers

const struct command_registration psoc4_command_handlers[]

static

Initial value:

= {
    {
        .name = "psoc4",
        .mode = COMMAND_ANY,
        .help = "PSoC 4 flash command group",
        .usage = "",
        .chain = psoc4_exec_command_handlers,
    },
    COMMAND_REGISTRATION_DONE
}

Definition at line 876 of file psoc4.c.

psoc4_exec_command_handlers

const struct command_registration psoc4_exec_command_handlers[]

static

Initial value:

= {
    {
        .name = "mass_erase",
        .handler = psoc4_handle_mass_erase_command,
        .mode = COMMAND_EXEC,
        .usage = "bank_id",
        .help = "Erase entire flash device.",
    },
    {
        .name = "flash_autoerase",
        .handler = psoc4_handle_flash_autoerase_command,
        .mode = COMMAND_EXEC,
        .usage = "bank_id on|off",
        .help = "Set autoerase mode for flash bank.",
    },
    COMMAND_REGISTRATION_DONE
}

Definition at line 876 of file psoc4.c.

psoc4_families

const struct psoc4_chip_family psoc4_families[]

static

Initial value:

= {
    { 0x93, "PSoC4100/4200",           .flags = PSOC4_FAMILY_FLAG_LEGACY },
    { 0x9A, "PSoC4000",                .flags = 0 },
    { 0x9E, "PSoC/PRoC BLE (119E)",    .flags = 0 },
    { 0xA0, "PSoC4200L",               .flags = 0 },
    { 0xA1, "PSoC4100M/4200M",         .flags = 0 },
    { 0xA3, "PSoC/PRoC BLE (11A3)",    .flags = 0 },
    { 0xA9, "PSoC4000S",               .flags = 0 },
    { 0xAA, "PSoC/PRoC BLE (11AA)",    .flags = 0 },
    { 0xAB, "PSoC4100S",               .flags = 0 },
    { 0xAC, "PSoC Analog Coprocessor", .flags = 0 },
    { 0,    "Unknown",                 .flags = 0 }
}

Definition at line 1 of file psoc4.c.

Referenced by psoc4_family_by_id().

psoc4_flash

const struct flash_driver psoc4_flash

Initial value:

= {
    .name = "psoc4",
    .commands = psoc4_command_handlers,
    .flash_bank_command = psoc4_flash_bank_command,
    .erase = psoc4_erase,
    .protect = psoc4_protect,
    .write = psoc4_write,
    .read = default_flash_read,
    .probe = psoc4_probe,
    .auto_probe = psoc4_auto_probe,
    .erase_check = default_flash_blank_check,
    .protect_check = psoc4_protect_check,
    .info = get_psoc4_info,
    .free_driver_priv = default_flash_free_driver_priv,
}

Definition at line 876 of file psoc4.c.
