nand/core.h File Reference

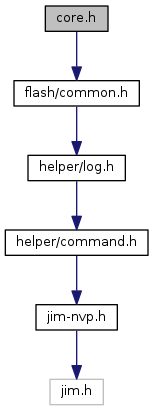

Include dependency graph for nand/core.h:

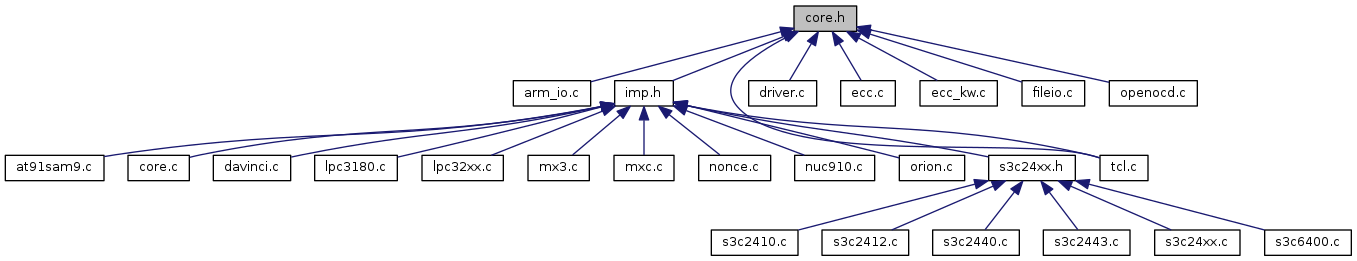

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	nand_block
	Representation of a single NAND block in a NAND device. More...
struct	nand_device
struct	nand_ecclayout
struct	nand_info
struct	nand_manufacturer
struct	nand_oobfree

Macros
#define	ERROR_NAND_DEVICE_INVALID   (-1100)
#define	ERROR_NAND_DEVICE_NOT_PROBED   (-1104)
#define	ERROR_NAND_ERROR_CORRECTION_FAILED   (-1105)
#define	ERROR_NAND_NO_BUFFER   (-1106)
#define	ERROR_NAND_OPERATION_FAILED   (-1101)
#define	ERROR_NAND_OPERATION_NOT_SUPPORTED   (-1103)
#define	ERROR_NAND_OPERATION_TIMEOUT   (-1102)

Enumerations
enum	{   NAND_MFR_TOSHIBA = 0x98 , NAND_MFR_SAMSUNG = 0xec , NAND_MFR_FUJITSU = 0x04 , NAND_MFR_NATIONAL = 0x8f ,   NAND_MFR_RENESAS = 0x07 , NAND_MFR_STMICRO = 0x20 , NAND_MFR_HYNIX = 0xad , NAND_MFR_MICRON = 0x2c }
enum	{   NAND_NO_AUTOINCR = 0x00000001 , NAND_BUSWIDTH_16 = 0x00000002 , NAND_NO_PADDING = 0x00000004 , NAND_CACHEPRG = 0x00000008 ,   NAND_COPYBACK = 0x00000010 , NAND_IS_AND = 0x00000020 , NAND_4PAGE_ARRAY = 0x00000040 , BBT_AUTO_REFRESH = 0x00000080 ,   NAND_NO_READRDY = 0x00000100 , NAND_SAMSUNG_LP_OPTIONS = (NAND_NO_PADDING | NAND_CACHEPRG | NAND_COPYBACK) , LP_OPTIONS = (NAND_SAMSUNG_LP_OPTIONS | NAND_NO_READRDY | NAND_NO_AUTOINCR) , LP_OPTIONS16 = (LP_OPTIONS | NAND_BUSWIDTH_16) }
enum	{   NAND_CMD_READ0 = 0x0 , NAND_CMD_READ1 = 0x1 , NAND_CMD_RNDOUT = 0x5 , NAND_CMD_PAGEPROG = 0x10 ,   NAND_CMD_READOOB = 0x50 , NAND_CMD_ERASE1 = 0x60 , NAND_CMD_STATUS = 0x70 , NAND_CMD_STATUS_MULTI = 0x71 ,   NAND_CMD_SEQIN = 0x80 , NAND_CMD_RNDIN = 0x85 , NAND_CMD_READID = 0x90 , NAND_CMD_ERASE2 = 0xd0 ,   NAND_CMD_RESET = 0xff , NAND_CMD_READSTART = 0x30 , NAND_CMD_RNDOUTSTART = 0xE0 , NAND_CMD_CACHEDPROG = 0x15 }
enum	{   NAND_STATUS_FAIL = 0x01 , NAND_STATUS_FAIL_N1 = 0x02 , NAND_STATUS_TRUE_READY = 0x20 , NAND_STATUS_READY = 0x40 ,   NAND_STATUS_WP = 0x80 }
enum	oob_formats {   NAND_OOB_NONE = 0x0 , NAND_OOB_RAW = 0x1 , NAND_OOB_ONLY = 0x2 , NAND_OOB_SW_ECC = 0x10 ,   NAND_OOB_HW_ECC = 0x20 , NAND_OOB_SW_ECC_KW = 0x40 , NAND_OOB_JFFS2 = 0x100 , NAND_OOB_YAFFS2 = 0x100 }

Functions
	COMMAND_HELPER (nand_command_get_device, unsigned name_index, struct nand_device **nand)
	helper for parsing a nand device command argument string More...
struct nand_device *	get_nand_device_by_num (int num)
int	nand_calculate_ecc (struct nand_device *nand, const uint8_t *dat, uint8_t *ecc_code)
int	nand_calculate_ecc_kw (struct nand_device *nand, const uint8_t *dat, uint8_t *ecc_code)
int	nand_page_command (struct nand_device *nand, uint32_t page, uint8_t cmd, bool oob_only)
int	nand_read_data_page (struct nand_device *nand, uint8_t *data, uint32_t size)
int	nand_read_page_raw (struct nand_device *nand, uint32_t page, uint8_t *data, uint32_t data_size, uint8_t *oob, uint32_t oob_size)
int	nand_read_status (struct nand_device *nand, uint8_t *status)
int	nand_register_commands (struct command_context *cmd_ctx)
int	nand_write_data_page (struct nand_device *nand, uint8_t *data, uint32_t size)
int	nand_write_finish (struct nand_device *nand)
int	nand_write_page_raw (struct nand_device *nand, uint32_t page, uint8_t *data, uint32_t data_size, uint8_t *oob, uint32_t oob_size)

Macro Definition Documentation

ERROR_NAND_DEVICE_INVALID

#define ERROR_NAND_DEVICE_INVALID   (-1100)

Definition at line 213 of file nand/core.h.

ERROR_NAND_DEVICE_NOT_PROBED

#define ERROR_NAND_DEVICE_NOT_PROBED   (-1104)

Definition at line 217 of file nand/core.h.

ERROR_NAND_ERROR_CORRECTION_FAILED

#define ERROR_NAND_ERROR_CORRECTION_FAILED   (-1105)

Definition at line 218 of file nand/core.h.

ERROR_NAND_NO_BUFFER

#define ERROR_NAND_NO_BUFFER   (-1106)

Definition at line 219 of file nand/core.h.

ERROR_NAND_OPERATION_FAILED

#define ERROR_NAND_OPERATION_FAILED   (-1101)

Definition at line 214 of file nand/core.h.

ERROR_NAND_OPERATION_NOT_SUPPORTED

#define ERROR_NAND_OPERATION_NOT_SUPPORTED   (-1103)

Definition at line 216 of file nand/core.h.

ERROR_NAND_OPERATION_TIMEOUT

#define ERROR_NAND_OPERATION_TIMEOUT   (-1102)

Definition at line 215 of file nand/core.h.

Enumeration Type Documentation

anonymous enum

anonymous enum

Enumerator
NAND_MFR_TOSHIBA
NAND_MFR_SAMSUNG
NAND_MFR_FUJITSU
NAND_MFR_NATIONAL
NAND_MFR_RENESAS
NAND_MFR_STMICRO
NAND_MFR_HYNIX
NAND_MFR_MICRON

Definition at line 66 of file nand/core.h.

anonymous enum

anonymous enum

Enumerator
NAND_NO_AUTOINCR
NAND_BUSWIDTH_16
NAND_NO_PADDING
NAND_CACHEPRG
NAND_COPYBACK
NAND_IS_AND
NAND_4PAGE_ARRAY
BBT_AUTO_REFRESH
NAND_NO_READRDY
NAND_SAMSUNG_LP_OPTIONS
LP_OPTIONS
LP_OPTIONS16

Definition at line 94 of file nand/core.h.

anonymous enum

anonymous enum

Enumerator
NAND_CMD_READ0
NAND_CMD_READ1
NAND_CMD_RNDOUT
NAND_CMD_PAGEPROG
NAND_CMD_READOOB
NAND_CMD_ERASE1
NAND_CMD_STATUS
NAND_CMD_STATUS_MULTI
NAND_CMD_SEQIN
NAND_CMD_RNDIN
NAND_CMD_READID
NAND_CMD_ERASE2
NAND_CMD_RESET
NAND_CMD_READSTART
NAND_CMD_RNDOUTSTART
NAND_CMD_CACHEDPROG

Definition at line 138 of file nand/core.h.

anonymous enum

anonymous enum

Enumerator
NAND_STATUS_FAIL
NAND_STATUS_FAIL_N1
NAND_STATUS_TRUE_READY
NAND_STATUS_READY
NAND_STATUS_WP

Definition at line 161 of file nand/core.h.

oob_formats

enum oob_formats

Enumerator
NAND_OOB_NONE
NAND_OOB_RAW
NAND_OOB_ONLY
NAND_OOB_SW_ECC
NAND_OOB_HW_ECC
NAND_OOB_SW_ECC_KW
NAND_OOB_JFFS2
NAND_OOB_YAFFS2

Definition at line 170 of file nand/core.h.

Function Documentation

COMMAND_HELPER()

COMMAND_HELPER	(	nand_command_get_device	,
		unsigned	name_index,
		struct nand_device **	nand
	)

helper for parsing a nand device command argument string

Definition at line 197 of file flash/nand/core.c.

References CMD, CMD_ARGV, COMMAND_PARSE_NUMBER, command_print(), ERROR_COMMAND_SYNTAX_ERROR, ERROR_OK, get_nand_device_by_name(), and get_nand_device_by_num().

get_nand_device_by_num()

struct nand_device* get_nand_device_by_num

(

int

num

)

Definition at line 184 of file flash/nand/core.c.

References nand_devices, nand_device::next, and NULL.

Referenced by COMMAND_HANDLER(), and COMMAND_HELPER().

nand_calculate_ecc()

int nand_calculate_ecc	(	struct nand_device *	nand,
		const uint8_t *	dat,
		uint8_t *	ecc_code
	)

Definition at line 48 of file ecc.c.

References nand_ecc_precalc_table.

Referenced by nand_fileio_read().

nand_calculate_ecc_kw()

int nand_calculate_ecc_kw	(	struct nand_device *	nand,
		const uint8_t *	dat,
		uint8_t *	ecc_code
	)

Definition at line 93 of file ecc_kw.c.

References gf_build_log_exp_table(), gf_exp, and gf_log.

Referenced by nand_fileio_read().

nand_page_command()

int nand_page_command	(	struct nand_device *	nand,
		uint32_t	page,
		uint8_t	cmd,
		bool	oob_only
	)

Definition at line 693 of file flash/nand/core.c.

References nand_flash_controller::address, nand_device::address_cycles, alive_sleep(), cmd, nand_flash_controller::command, nand_device::controller, nand_device::device, ERROR_NAND_DEVICE_NOT_PROBED, ERROR_NAND_OPERATION_TIMEOUT, ERROR_OK, NAND_CMD_READ0, NAND_CMD_READOOB, NAND_CMD_READSTART, nand_flash_controller::nand_ready, and nand_device::page_size.

Referenced by at91sam9_read_page(), at91sam9_write_page(), lpc3180_read_page(), lpc3180_write_page(), lpc32xx_read_page_slc(), lpc32xx_write_page_slc(), nand_read_page_raw(), and nand_write_page_raw().

nand_read_data_page()

int nand_read_data_page	(	struct nand_device *	nand,
		uint8_t *	data,
		uint32_t	size
	)

Definition at line 757 of file flash/nand/core.c.

References nand_device::controller, nand_device::device, ERROR_NAND_NO_BUFFER, ERROR_OK, NAND_BUSWIDTH_16, nand_info::options, nand_flash_controller::read_block_data, nand_flash_controller::read_data, and size.

Referenced by at91sam9_read_page(), and nand_read_page_raw().

nand_read_page_raw()

int nand_read_page_raw	(	struct nand_device *	nand,
		uint32_t	page,
		uint8_t *	data,
		uint32_t	data_size,
		uint8_t *	oob,
		uint32_t	oob_size
	)

Definition at line 778 of file flash/nand/core.c.

References ERROR_OK, NAND_CMD_READ0, nand_page_command(), and nand_read_data_page().

Referenced by lpc3180_read_page(), and nand_read_page().

nand_read_status()

int nand_read_status	(	struct nand_device *	nand,
		uint8_t *	status
	)

Definition at line 249 of file flash/nand/core.c.

References alive_sleep(), nand_flash_controller::command, nand_device::controller, nand_device::device, ERROR_NAND_DEVICE_NOT_PROBED, ERROR_OK, NAND_BUSWIDTH_16, NAND_CMD_STATUS, nand_info::options, nand_flash_controller::read_data, and status.

Referenced by davinci_writepage_tail(), lpc3180_write_page(), lpc32xx_write_page_mlc(), nand_erase(), and nand_write_finish().

nand_register_commands()

int nand_register_commands

(

struct command_context *

cmd_ctx

)

Definition at line 614 of file flash/nand/tcl.c.

References nand_command_handlers, NULL, and register_commands().

Referenced by setup_command_handler().

nand_write_data_page()

int nand_write_data_page	(	struct nand_device *	nand,
		uint8_t *	data,
		uint32_t	size
	)

Definition at line 797 of file flash/nand/core.c.

References nand_device::controller, nand_device::device, ERROR_NAND_NO_BUFFER, ERROR_OK, le_to_h_u16(), NAND_BUSWIDTH_16, nand_info::options, size, nand_flash_controller::write_block_data, write_data(), and nand_flash_controller::write_data.

Referenced by at91sam9_write_page(), and nand_write_page_raw().

nand_write_finish()

int nand_write_finish

(

struct nand_device *

nand

)

Definition at line 827 of file flash/nand/core.c.

References nand_flash_controller::command, nand_device::controller, ERROR_NAND_OPERATION_FAILED, ERROR_NAND_OPERATION_TIMEOUT, ERROR_OK, LOG_ERROR, NAND_CMD_PAGEPROG, nand_poll_ready(), nand_read_status(), nand_flash_controller::nand_ready, NAND_STATUS_FAIL, and status.

Referenced by at91sam9_write_page(), lpc3180_write_page(), lpc32xx_write_page_slc(), and nand_write_page_raw().

nand_write_page_raw()

int nand_write_page_raw	(	struct nand_device *	nand,
		uint32_t	page,
		uint8_t *	data,
		uint32_t	data_size,
		uint8_t *	oob,
		uint32_t	oob_size
	)

Definition at line 855 of file flash/nand/core.c.

References ERROR_OK, LOG_ERROR, NAND_CMD_SEQIN, nand_page_command(), nand_write_data_page(), and nand_write_finish().

Referenced by lpc3180_write_page(), lpc32xx_write_page(), and nand_write_page().
