embKernel.c File Reference

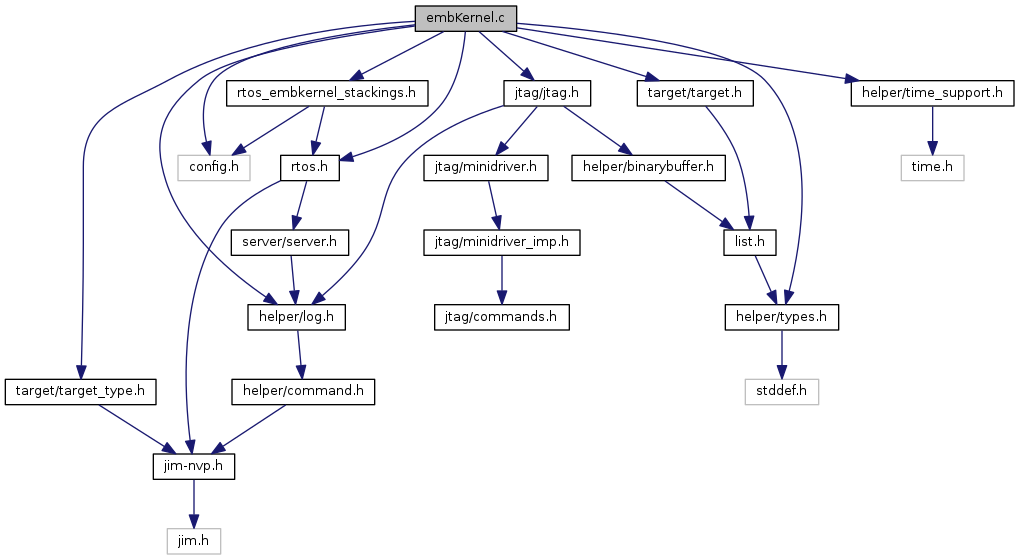

Include dependency graph for embKernel.c:

Go to the source code of this file.

Data Structures
struct	embkernel_params

Macros
#define	EMBKERNEL_MAX_THREAD_NAME_STR_SIZE   (64)

Enumerations
enum	{   SYMBOL_ID_S_CURRENT_TASK = 0 , SYMBOL_ID_S_LIST_READY = 1 , SYMBOL_ID_S_LIST_SLEEP = 2 , SYMBOL_ID_S_LIST_SUSPENDED = 3 ,   SYMBOL_ID_S_MAX_PRIORITIES = 4 , SYMBOL_ID_S_CURRENT_TASK_COUNT = 5 }

Functions
static int	embkernel_create (struct target *target)
static bool	embkernel_detect_rtos (struct target *target)
static int	embkernel_get_symbol_list_to_lookup (struct symbol_table_elem *symbol_list[])
static int	embkernel_get_tasks_details (struct rtos *rtos, int64_t iterable, const struct embkernel_params *param, struct thread_detail *details, const char *state_str)
static int	embkernel_get_thread_reg_list (struct rtos *rtos, int64_t thread_id, struct rtos_reg **reg_list, int *num_regs)
static int	embkernel_update_threads (struct rtos *rtos)

Variables
static const struct embkernel_params	embkernel_params_list []
struct rtos_type	embkernel_rtos
static const char *const	embkernel_symbol_list []

Macro Definition Documentation

EMBKERNEL_MAX_THREAD_NAME_STR_SIZE

#define EMBKERNEL_MAX_THREAD_NAME_STR_SIZE   (64)

Definition at line 21 of file embKernel.c.

Enumeration Type Documentation

anonymous enum

anonymous enum

Enumerator
SYMBOL_ID_S_CURRENT_TASK
SYMBOL_ID_S_LIST_READY
SYMBOL_ID_S_LIST_SLEEP
SYMBOL_ID_S_LIST_SUSPENDED
SYMBOL_ID_S_MAX_PRIORITIES
SYMBOL_ID_S_CURRENT_TASK_COUNT

Definition at line 40 of file embKernel.c.

Function Documentation

embkernel_create()

static int embkernel_create ( struct target *  target )

static

Definition at line 109 of file embKernel.c.

References ARRAY_SIZE, embkernel_params_list, LOG_WARNING, target_type::name, target::rtos, rtos::rtos_specific_params, target_name(), and target::type.

embkernel_detect_rtos()

static bool embkernel_detect_rtos ( struct target *  target )

static

Definition at line 100 of file embKernel.c.

References symbol_table_elem::address, target::rtos, SYMBOL_ID_S_CURRENT_TASK, and rtos::symbols.

embkernel_get_symbol_list_to_lookup()

static int embkernel_get_symbol_list_to_lookup ( struct symbol_table_elem *  symbol_list[] )

static

Definition at line 322 of file embKernel.c.

References ARRAY_SIZE, and embkernel_symbol_list.

embkernel_get_tasks_details()

static int embkernel_get_tasks_details ( struct rtos *  rtos, int64_t  iterable, const struct embkernel_params *  param, struct thread_detail *  details, const char *  state_str  )

static

Definition at line 126 of file embKernel.c.

References rtos::current_thread, EMBKERNEL_MAX_THREAD_NAME_STR_SIZE, ERROR_OK, thread_detail::exists, thread_detail::extra_info_str, LOG_OUTPUT, param, rtos::target, target_read_buffer(), thread_detail::thread_name_str, and thread_detail::threadid.

Referenced by embkernel_update_threads().

embkernel_get_thread_reg_list()

static int embkernel_get_thread_reg_list ( struct rtos *  rtos, int64_t  thread_id, struct rtos_reg **  reg_list, int *  num_regs  )

static

Definition at line 293 of file embKernel.c.

References ERROR_OK, LOG_ERROR, param, rtos_generic_stack_read(), rtos::rtos_specific_params, rtos::target, and target_read_buffer().

embkernel_update_threads()

static int embkernel_update_threads ( struct rtos *  rtos )

static

Definition at line 173 of file embKernel.c.

References symbol_table_elem::address, rtos::current_thread, embkernel_get_tasks_details(), ERROR_FAIL, ERROR_OK, LOG_ERROR, LOG_OUTPUT, param, rtos_free_threadlist(), rtos::rtos_specific_params, SYMBOL_ID_S_CURRENT_TASK, SYMBOL_ID_S_CURRENT_TASK_COUNT, SYMBOL_ID_S_LIST_READY, SYMBOL_ID_S_LIST_SLEEP, SYMBOL_ID_S_LIST_SUSPENDED, SYMBOL_ID_S_MAX_PRIORITIES, rtos::symbols, rtos::target, target_read_buffer(), rtos::thread_count, and rtos::thread_details.

Variable Documentation

embkernel_params_list

const struct embkernel_params embkernel_params_list[]

static

Initial value:

= {
        {
            "cortex_m",
            4,
            4,
            8,
            0,
            4,
            8,
            4,
            4,
            12,
            &rtos_embkernel_cortex_m_stacking,
        },
        { "hla_target",
            4,
            4,
            8,
            0,
            4,
            8,
            4,
            4,
            12,
            &rtos_embkernel_cortex_m_stacking,
        }
}

Definition at line 49 of file embKernel.c.

Referenced by embkernel_create().

embkernel_rtos

struct rtos_type embkernel_rtos

Initial value:

= {
        .name = "embKernel",
        .detect_rtos = embkernel_detect_rtos,
        .create = embkernel_create,
        .update_threads = embkernel_update_threads,
        .get_thread_reg_list =
        embkernel_get_thread_reg_list,
        .get_symbol_list_to_lookup = embkernel_get_symbol_list_to_lookup,
}

Definition at line 28 of file embKernel.c.

embkernel_symbol_list

const char* const embkernel_symbol_list[]

static

Initial value:

= {
        "Rtos::sCurrentTask",
        "Rtos::sListReady",
        "Rtos::sListSleep",
        "Rtos::sListSuspended",
        "Rtos::sMaxPriorities",
        "Rtos::sCurrentTaskCount",
        NULL }

Definition at line 49 of file embKernel.c.

Referenced by embkernel_get_symbol_list_to_lookup().
