avrf.c File Reference

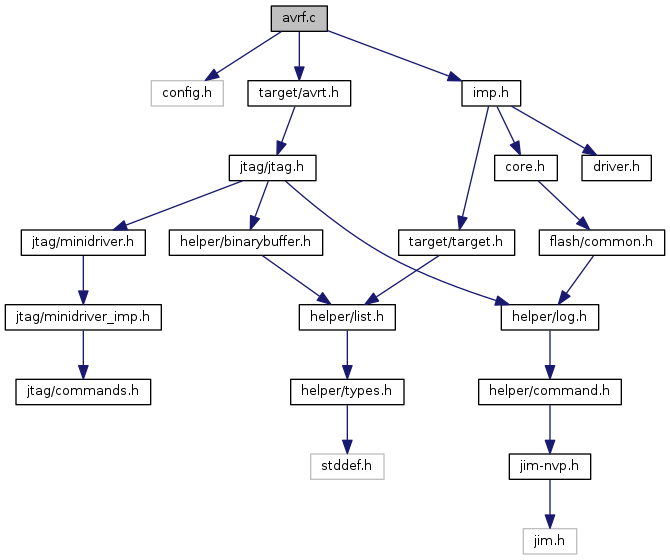

Include dependency graph for avrf.c:

Go to the source code of this file.

Data Structures

struct  avrf_flash_bank

struct  avrf_type


Macros

#define AVR_JTAG_INS_AVR_RESET   0x0C

#define AVR_JTAG_INS_BYPASS   0x0F

#define AVR_JTAG_INS_EXTEST   0x00

#define AVR_JTAG_INS_IDCODE   0x01

#define AVR_JTAG_INS_LEN   4

#define AVR_JTAG_INS_PROG_COMMANDS   0x05

#define AVR_JTAG_INS_PROG_ENABLE   0x04

#define AVR_JTAG_INS_PROG_PAGELOAD   0x06

#define AVR_JTAG_INS_PROG_PAGEREAD   0x07

#define AVR_JTAG_INS_SAMPLE_PRELOAD   0x02

#define AVR_JTAG_REG_BYPASS_LEN   1

#define AVR_JTAG_REG_DEVICEID_LEN   32

#define AVR_JTAG_REG_FLASH_DATA_BYTE_LEN   16

#define AVR_JTAG_REG_JTAGID_LEN   32

#define AVR_JTAG_REG_PROGRAMMING_COMMAND_LEN   15

#define AVR_JTAG_REG_PROGRAMMING_ENABLE_LEN   16

#define AVR_JTAG_REG_RESET_LEN   1

#define EXTRACT_MFG(X)   (((X) & 0xffe) >> 1)

#define EXTRACT_PART(X)   (((X) & 0xffff000) >> 12)

#define EXTRACT_VER(X)   (((X) & 0xf0000000) >> 28)


Functions

static int avr_jtag_read_jtagid (struct avr_common *avr, uint32_t *id)

static int avr_jtag_reset (struct avr_common *avr, uint32_t reset)

static int avr_jtagprg_chiperase (struct avr_common *avr)

static int avr_jtagprg_enterprogmode (struct avr_common *avr)

static int avr_jtagprg_leaveprogmode (struct avr_common *avr)

static int avr_jtagprg_writeflashpage (struct avr_common *avr, const bool ext_addressing, const uint8_t *page_buf, uint32_t buf_size, uint32_t addr, uint32_t page_size)

static int avrf_auto_probe (struct flash_bank *bank)

static int avrf_erase (struct flash_bank *bank, unsigned int first, unsigned int last)

static int avrf_info (struct flash_bank *bank, struct command_invocation *cmd)

static int avrf_mass_erase (struct flash_bank *bank)

static int avrf_probe (struct flash_bank *bank)

static int avrf_write (struct flash_bank *bank, const uint8_t *buffer, uint32_t offset, uint32_t count)

 COMMAND_HANDLER (avrf_handle_mass_erase_command)

 FLASH_BANK_COMMAND_HANDLER (avrf_flash_bank_command)


Variables

static const struct avrf_type avft_chips_info []

const struct flash_driver avr_flash

static const struct command_registration avrf_command_handlers []

static const struct command_registration avrf_exec_command_handlers []


Macro Definition Documentation

◆ AVR_JTAG_INS_AVR_RESET

#define AVR_JTAG_INS_AVR_RESET   0x0C

Definition at line 23 of file avrf.c.

◆ AVR_JTAG_INS_BYPASS

#define AVR_JTAG_INS_BYPASS   0x0F

Definition at line 21 of file avrf.c.

◆ AVR_JTAG_INS_EXTEST

#define AVR_JTAG_INS_EXTEST   0x00

Definition at line 18 of file avrf.c.

◆ AVR_JTAG_INS_IDCODE

#define AVR_JTAG_INS_IDCODE   0x01

Definition at line 19 of file avrf.c.

◆ AVR_JTAG_INS_LEN

#define AVR_JTAG_INS_LEN   4

Definition at line 16 of file avrf.c.

◆ AVR_JTAG_INS_PROG_COMMANDS

#define AVR_JTAG_INS_PROG_COMMANDS   0x05

Definition at line 25 of file avrf.c.

◆ AVR_JTAG_INS_PROG_ENABLE

#define AVR_JTAG_INS_PROG_ENABLE   0x04

Definition at line 24 of file avrf.c.

◆ AVR_JTAG_INS_PROG_PAGELOAD

#define AVR_JTAG_INS_PROG_PAGELOAD   0x06

Definition at line 26 of file avrf.c.

◆ AVR_JTAG_INS_PROG_PAGEREAD

#define AVR_JTAG_INS_PROG_PAGEREAD   0x07

Definition at line 27 of file avrf.c.

◆ AVR_JTAG_INS_SAMPLE_PRELOAD

#define AVR_JTAG_INS_SAMPLE_PRELOAD   0x02

Definition at line 20 of file avrf.c.

◆ AVR_JTAG_REG_BYPASS_LEN

#define AVR_JTAG_REG_BYPASS_LEN   1

Definition at line 30 of file avrf.c.

◆ AVR_JTAG_REG_DEVICEID_LEN

#define AVR_JTAG_REG_DEVICEID_LEN   32

Definition at line 31 of file avrf.c.

◆ AVR_JTAG_REG_FLASH_DATA_BYTE_LEN

#define AVR_JTAG_REG_FLASH_DATA_BYTE_LEN   16

Definition at line 37 of file avrf.c.

◆ AVR_JTAG_REG_JTAGID_LEN

#define AVR_JTAG_REG_JTAGID_LEN   32

Definition at line 34 of file avrf.c.

◆ AVR_JTAG_REG_PROGRAMMING_COMMAND_LEN

#define AVR_JTAG_REG_PROGRAMMING_COMMAND_LEN   15

Definition at line 36 of file avrf.c.

◆ AVR_JTAG_REG_PROGRAMMING_ENABLE_LEN

#define AVR_JTAG_REG_PROGRAMMING_ENABLE_LEN   16

Definition at line 35 of file avrf.c.

◆ AVR_JTAG_REG_RESET_LEN

#define AVR_JTAG_REG_RESET_LEN   1

Definition at line 33 of file avrf.c.

◆ EXTRACT_MFG

#define EXTRACT_MFG (   X)    (((X) & 0xffe) >> 1)

Definition at line 287 of file avrf.c.

◆ EXTRACT_PART

#define EXTRACT_PART (   X)    (((X) & 0xffff000) >> 12)

Definition at line 288 of file avrf.c.

◆ EXTRACT_VER

#define EXTRACT_VER (   X)    (((X) & 0xf0000000) >> 28)

Definition at line 289 of file avrf.c.

Function Documentation

◆ avr_jtag_read_jtagid()

static int avr_jtag_read_jtagid ( struct avr_common *  avr,
uint32_t *  id
)
static

Definition at line 78 of file avrf.c.

References AVR_JTAG_INS_IDCODE, AVR_JTAG_REG_JTAGID_LEN, avr_jtag_senddat(), avr_jtag_sendinstr(), ERROR_OK, avr_common::jtag_info, NULL, and mcu_jtag::tap.

Referenced by avrf_info(), and avrf_probe().

◆ avr_jtag_reset()

static int avr_jtag_reset ( struct avr_common *  avr,
uint32_t  reset
)
static

Definition at line 70 of file avrf.c.

References AVR_JTAG_INS_AVR_RESET, AVR_JTAG_REG_RESET_LEN, avr_jtag_senddat(), avr_jtag_sendinstr(), ERROR_OK, avr_common::jtag_info, NULL, and mcu_jtag::tap.

Referenced by avr_jtagprg_enterprogmode(), and avr_jtagprg_leaveprogmode().

◆ avr_jtagprg_chiperase()

static int avr_jtagprg_chiperase ( struct avr_common *  avr)
static

Definition at line 110 of file avrf.c.

References AVR_JTAG_INS_PROG_COMMANDS, AVR_JTAG_REG_PROGRAMMING_COMMAND_LEN, avr_jtag_senddat(), avr_jtag_sendinstr(), ERROR_FAIL, ERROR_OK, avr_common::jtag_info, LOG_DEBUG, mcu_execute_queue(), NULL, and mcu_jtag::tap.

Referenced by avrf_erase(), and avrf_mass_erase().

◆ avr_jtagprg_enterprogmode()

static int avr_jtagprg_enterprogmode ( struct avr_common *  avr)
static

Definition at line 86 of file avrf.c.

References AVR_JTAG_INS_PROG_ENABLE, AVR_JTAG_REG_PROGRAMMING_ENABLE_LEN, avr_jtag_reset(), avr_jtag_senddat(), avr_jtag_sendinstr(), ERROR_OK, avr_common::jtag_info, NULL, and mcu_jtag::tap.

Referenced by avrf_erase(), avrf_mass_erase(), and avrf_write().

◆ avr_jtagprg_leaveprogmode()

static int avr_jtagprg_leaveprogmode ( struct avr_common *  avr)
static

Definition at line 96 of file avrf.c.

References AVR_JTAG_INS_PROG_COMMANDS, AVR_JTAG_INS_PROG_ENABLE, AVR_JTAG_REG_PROGRAMMING_COMMAND_LEN, AVR_JTAG_REG_PROGRAMMING_ENABLE_LEN, avr_jtag_reset(), avr_jtag_senddat(), avr_jtag_sendinstr(), ERROR_OK, avr_common::jtag_info, NULL, and mcu_jtag::tap.

Referenced by avrf_erase(), avrf_mass_erase(), and avrf_write().

◆ avr_jtagprg_writeflashpage()

static int avr_jtagprg_writeflashpage ( struct avr_common *  avr,
const bool  ext_addressing,
const uint8_t *  page_buf,
uint32_t  buf_size,
uint32_t  addr,
uint32_t  page_size
)
static

Definition at line 134 of file avrf.c.

References addr, AVR_JTAG_INS_PROG_COMMANDS, AVR_JTAG_INS_PROG_PAGELOAD, AVR_JTAG_REG_PROGRAMMING_COMMAND_LEN, avr_jtag_senddat(), avr_jtag_sendinstr(), ERROR_FAIL, ERROR_OK, avr_common::jtag_info, LOG_DEBUG, mcu_execute_queue(), NULL, and mcu_jtag::tap.

Referenced by avrf_write().

◆ avrf_auto_probe()

static int avrf_auto_probe ( struct flash_bank *  bank)
static

Definition at line 351 of file avrf.c.

References avrf_info(), avrf_probe(), bank, and ERROR_OK.

◆ avrf_erase()

static int avrf_erase ( struct flash_bank *  bank,
unsigned int  first,
unsigned int  last
)
static

Definition at line 210 of file avrf.c.

References target::arch_info, avr_jtagprg_chiperase(), avr_jtagprg_enterprogmode(), avr_jtagprg_leaveprogmode(), bank, ERROR_OK, ERROR_TARGET_NOT_HALTED, LOG_DEBUG, LOG_ERROR, target::state, status, and TARGET_HALTED.

◆ avrf_info()

static int avrf_info ( struct flash_bank *  bank,
struct command_invocation *  cmd
)
static

Definition at line 359 of file avrf.c.

References target::arch_info, ARRAY_SIZE, avft_chips_info, avr_jtag_read_jtagid(), bank, avrf_type::chip_id, cmd, command_print_sameline(), ERROR_FAIL, ERROR_FLASH_OPERATION_FAILED, ERROR_OK, ERROR_TARGET_NOT_HALTED, EXTRACT_MFG, EXTRACT_PART, EXTRACT_VER, LOG_ERROR, LOG_INFO, mcu_execute_queue(), avrf_type::name, NULL, and TARGET_HALTED.

Referenced by avrf_auto_probe(), avrf_probe(), and FLASH_BANK_COMMAND_HANDLER().

◆ avrf_mass_erase()

static int avrf_mass_erase ( struct flash_bank *  bank)
static

Definition at line 402 of file avrf.c.

References target::arch_info, avr_jtagprg_chiperase(), avr_jtagprg_enterprogmode(), avr_jtagprg_leaveprogmode(), bank, ERROR_FAIL, ERROR_OK, ERROR_TARGET_NOT_HALTED, LOG_ERROR, target::state, and TARGET_HALTED.

◆ avrf_probe()

static int avrf_probe ( struct flash_bank *  bank)
static

Definition at line 291 of file avrf.c.

References target::arch_info, ARRAY_SIZE, avft_chips_info, avr_jtag_read_jtagid(), avrf_info(), bank, avrf_type::chip_id, ERROR_FAIL, ERROR_OK, ERROR_TARGET_NOT_HALTED, EXTRACT_MFG, EXTRACT_PART, avrf_type::flash_page_num, avrf_type::flash_page_size, LOG_ERROR, LOG_INFO, mcu_execute_queue(), avrf_type::name, NULL, and TARGET_HALTED.

Referenced by avrf_auto_probe().

◆ avrf_write()

static int avrf_write ( struct flash_bank *  bank,
const uint8_t *  buffer,
uint32_t  offset,
uint32_t  count
)
static

Definition at line 235 of file avrf.c.

References target::arch_info, avr_jtagprg_enterprogmode(), avr_jtagprg_leaveprogmode(), avr_jtagprg_writeflashpage(), bank, buffer, count, ERROR_FAIL, ERROR_FLASH_DST_BREAKS_ALIGNMENT, ERROR_OK, ERROR_TARGET_NOT_HALTED, keep_alive(), LOG_DEBUG, LOG_ERROR, LOG_WARNING, offset, and TARGET_HALTED.

◆ COMMAND_HANDLER()

COMMAND_HANDLER ( avrf_handle_mass_erase_command  )

Definition at line 420 of file avrf.c.

◆ FLASH_BANK_COMMAND_HANDLER()

FLASH_BANK_COMMAND_HANDLER ( avrf_flash_bank_command  )

Definition at line 195 of file avrf.c.

References avrf_info(), bank, CMD_ARGC, ERROR_COMMAND_SYNTAX_ERROR, and ERROR_OK.

Variable Documentation

◆ avft_chips_info

const struct avrf_type avft_chips_info[]
static
Initial value:
= {
{"atmega128", 0x9702, 256, 512, 8, 512},
{"atmega128rfa1", 0xa701, 128, 512, 8, 512},
{"atmega256rfr2", 0xa802, 256, 1024, 8, 1024},
{"at90can128", 0x9781, 256, 512, 8, 512},
{"at90usb128", 0x9782, 256, 512, 8, 512},
{"atmega164p", 0x940a, 128, 128, 4, 128},
{"atmega324p", 0x9508, 128, 256, 4, 256},
{"atmega324pa", 0x9511, 128, 256, 4, 256},
{"atmega644p", 0x960a, 256, 256, 8, 256},
{"atmega1284p", 0x9705, 256, 512, 8, 512},
}

Definition at line 1 of file avrf.c.

Referenced by avrf_info(), and avrf_probe().

◆ avr_flash

const struct flash_driver avr_flash
Initial value:
= {
.name = "avr",
.commands = avrf_command_handlers,
.flash_bank_command = avrf_flash_bank_command,
.erase = avrf_erase,
.write = avrf_write,
.read = default_flash_read,
.probe = avrf_probe,
.auto_probe = avrf_auto_probe,
.erase_check = default_flash_blank_check,
.info = avrf_info,
.free_driver_priv = default_flash_free_driver_priv,
}
avrf_auto_probe
static int avrf_auto_probe(struct flash_bank *bank)
Definition: avrf.c:351
avrf_write
static int avrf_write(struct flash_bank *bank, const uint8_t *buffer, uint32_t offset, uint32_t count)
Definition: avrf.c:235
avrf_command_handlers
static const struct command_registration avrf_command_handlers[]
Definition: avrf.c:449
avrf_info
static int avrf_info(struct flash_bank *bank, struct command_invocation *cmd)
Definition: avrf.c:359
avrf_probe
static int avrf_probe(struct flash_bank *bank)
Definition: avrf.c:291
avrf_erase
static int avrf_erase(struct flash_bank *bank, unsigned int first, unsigned int last)
Definition: avrf.c:210
default_flash_blank_check
int default_flash_blank_check(struct flash_bank *bank)
Provides default erased-bank check handling.
Definition: flash/nor/core.c:380
default_flash_read
int default_flash_read(struct flash_bank *bank, uint8_t *buffer, uint32_t offset, uint32_t count)
Provides default read implementation for flash memory.
Definition: flash/nor/core.c:121
default_flash_free_driver_priv
void default_flash_free_driver_priv(struct flash_bank *bank)
Deallocates bank->driver_priv.
Definition: flash/nor/core.c:210

Definition at line 420 of file avrf.c.

◆ avrf_command_handlers

const struct command_registration avrf_command_handlers[]
static
Initial value:
= {
{
.name = "avrf",
.mode = COMMAND_ANY,
.help = "AVR flash command group",
.usage = "",
.chain = avrf_exec_command_handlers,
},
COMMAND_REGISTRATION_DONE
}
avrf_exec_command_handlers
static const struct command_registration avrf_exec_command_handlers[]
Definition: avrf.c:439
COMMAND_REGISTRATION_DONE
#define COMMAND_REGISTRATION_DONE
Use this as the last entry in an array of command_registration records.
Definition: command.h:247
COMMAND_ANY
@ COMMAND_ANY
Definition: command.h:42

Definition at line 420 of file avrf.c.

◆ avrf_exec_command_handlers

const struct command_registration avrf_exec_command_handlers[]
static
Initial value:
= {
{
.name = "mass_erase",
.usage = "<bank>",
.handler = avrf_handle_mass_erase_command,
.mode = COMMAND_EXEC,
.help = "erase entire device",
},
COMMAND_REGISTRATION_DONE
}
COMMAND_EXEC
@ COMMAND_EXEC
Definition: command.h:40

Definition at line 420 of file avrf.c.
