at91sam7.c File Reference

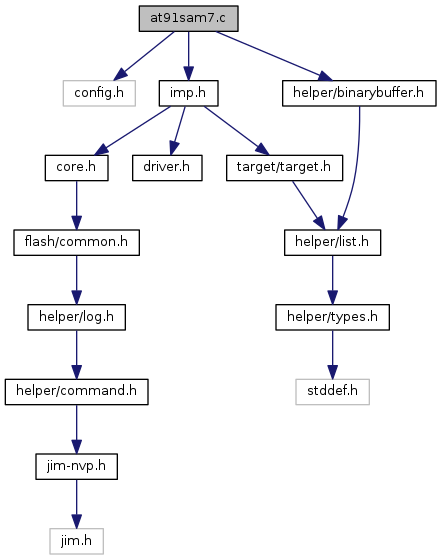

Include dependency graph for at91sam7.c:

Go to the source code of this file.

Data Structures

struct  at91sam7_flash_bank


Macros

#define CGPB   0x0D

#define CKGR_MCFR   0xFFFFFC24

#define CKGR_MCFR_MAINRDY   0x10000

#define CKGR_MOR   0xFFFFFC20

#define CKGR_PLLR   0xFFFFFC2c

#define CKGR_PLLR_DIV   0xff

#define CKGR_PLLR_MUL   0x07ff0000

#define CLB   0x04

#define DBGU_CIDR   0xFFFFF240

#define EA   0x08

#define FLASH_SIZE_1024KB   12

#define FLASH_SIZE_128KB   7

#define FLASH_SIZE_16KB   2

#define FLASH_SIZE_2048KB   14

#define FLASH_SIZE_256KB   9

#define FLASH_SIZE_32KB   3

#define FLASH_SIZE_512KB   10

#define FLASH_SIZE_64KB   5

#define FLASH_SIZE_8KB   1

#define FMR_TIMING_FLASH   2

#define FMR_TIMING_NONE   0

#define FMR_TIMING_NVBITS   1

#define MC_FSR_EOL   2

#define MC_FSR_FRDY   1

#define PMC_MCKR   0xFFFFFC30

#define PMC_MCKR_CSS   0x03

#define PMC_MCKR_PRES   0x1c

#define RC_FREQ   32000

#define SGPB   0x0B

#define SLB   0x02

#define SSB   0x0F

#define WP   0x01

#define WPL   0x03


Functions

static int at91sam7_erase (struct flash_bank *bank, unsigned int first, unsigned int last)

static int at91sam7_erase_check (struct flash_bank *bank)

static int at91sam7_flash_command (struct flash_bank *bank, uint8_t cmd, uint16_t pagen)

static uint32_t at91sam7_get_flash_status (struct target *target, int bank_number)

static int at91sam7_probe (struct flash_bank *bank)

static int at91sam7_protect (struct flash_bank *bank, int set, unsigned int first, unsigned int last)

static int at91sam7_protect_check (struct flash_bank *bank)

static void at91sam7_read_clock_info (struct flash_bank *bank)

static int at91sam7_read_part_info (struct flash_bank *bank)

static void at91sam7_set_flash_mode (struct flash_bank *bank, int mode)

static uint32_t at91sam7_wait_status_busy (struct flash_bank *bank, uint32_t waitbits, int timeout)

static int at91sam7_write (struct flash_bank *bank, const uint8_t *buffer, uint32_t offset, uint32_t count)

 COMMAND_HANDLER (at91sam7_handle_gpnvm_command)

 FLASH_BANK_COMMAND_HANDLER (at91sam7_flash_bank_command)

static int get_at91sam7_info (struct flash_bank *bank, struct command_invocation *cmd)


Variables

static const struct command_registration at91sam7_command_handlers []

static const struct command_registration at91sam7_exec_command_handlers []

const struct flash_driver at91sam7_flash

static const char * eproc [8]

static const uint32_t mc_fcr [4] = { 0xFFFFFF64, 0xFFFFFF74, 0xFFFFFF84, 0xFFFFFF94 }

static const uint32_t mc_fmr [4] = { 0xFFFFFF60, 0xFFFFFF70, 0xFFFFFF80, 0xFFFFFF90 }

static const uint32_t mc_fsr [4] = { 0xFFFFFF68, 0xFFFFFF78, 0xFFFFFF88, 0xFFFFFF98 }


Macro Definition Documentation

◆ CGPB

#define CGPB   0x0D

Definition at line 61 of file at91sam7.c.

◆ CKGR_MCFR

#define CKGR_MCFR   0xFFFFFC24

Definition at line 44 of file at91sam7.c.

◆ CKGR_MCFR_MAINRDY

#define CKGR_MCFR_MAINRDY   0x10000

Definition at line 46 of file at91sam7.c.

◆ CKGR_MOR

#define CKGR_MOR   0xFFFFFC20

Definition at line 45 of file at91sam7.c.

◆ CKGR_PLLR

#define CKGR_PLLR   0xFFFFFC2c

Definition at line 47 of file at91sam7.c.

◆ CKGR_PLLR_DIV

#define CKGR_PLLR_DIV   0xff

Definition at line 48 of file at91sam7.c.

◆ CKGR_PLLR_MUL

#define CKGR_PLLR_MUL   0x07ff0000

Definition at line 49 of file at91sam7.c.

◆ CLB

#define CLB   0x04

Definition at line 58 of file at91sam7.c.

◆ DBGU_CIDR

#define DBGU_CIDR   0xFFFFF240

Definition at line 43 of file at91sam7.c.

◆ EA

#define EA   0x08

Definition at line 59 of file at91sam7.c.

◆ FLASH_SIZE_1024KB

#define FLASH_SIZE_1024KB   12

Definition at line 84 of file at91sam7.c.

◆ FLASH_SIZE_128KB

#define FLASH_SIZE_128KB   7

Definition at line 81 of file at91sam7.c.

◆ FLASH_SIZE_16KB

#define FLASH_SIZE_16KB   2

Definition at line 78 of file at91sam7.c.

◆ FLASH_SIZE_2048KB

#define FLASH_SIZE_2048KB   14

Definition at line 85 of file at91sam7.c.

◆ FLASH_SIZE_256KB

#define FLASH_SIZE_256KB   9

Definition at line 82 of file at91sam7.c.

◆ FLASH_SIZE_32KB

#define FLASH_SIZE_32KB   3

Definition at line 79 of file at91sam7.c.

◆ FLASH_SIZE_512KB

#define FLASH_SIZE_512KB   10

Definition at line 83 of file at91sam7.c.

◆ FLASH_SIZE_64KB

#define FLASH_SIZE_64KB   5

Definition at line 80 of file at91sam7.c.

◆ FLASH_SIZE_8KB

#define FLASH_SIZE_8KB   1

Definition at line 77 of file at91sam7.c.

◆ FMR_TIMING_FLASH

#define FMR_TIMING_FLASH   2

Definition at line 74 of file at91sam7.c.

◆ FMR_TIMING_NONE

#define FMR_TIMING_NONE   0

Definition at line 72 of file at91sam7.c.

◆ FMR_TIMING_NVBITS

#define FMR_TIMING_NVBITS   1

Definition at line 73 of file at91sam7.c.

◆ MC_FSR_EOL

#define MC_FSR_EOL   2

Definition at line 66 of file at91sam7.c.

◆ MC_FSR_FRDY

#define MC_FSR_FRDY   1

Definition at line 65 of file at91sam7.c.

◆ PMC_MCKR

#define PMC_MCKR   0xFFFFFC30

Definition at line 50 of file at91sam7.c.

◆ PMC_MCKR_CSS

#define PMC_MCKR_CSS   0x03

Definition at line 51 of file at91sam7.c.

◆ PMC_MCKR_PRES

#define PMC_MCKR_PRES   0x1c

Definition at line 52 of file at91sam7.c.

◆ RC_FREQ

#define RC_FREQ   32000

Definition at line 69 of file at91sam7.c.

◆ SGPB

#define SGPB   0x0B

Definition at line 60 of file at91sam7.c.

◆ SLB

#define SLB   0x02

Definition at line 56 of file at91sam7.c.

◆ SSB

#define SSB   0x0F

Definition at line 62 of file at91sam7.c.

◆ WP

#define WP   0x01

Definition at line 55 of file at91sam7.c.

◆ WPL

#define WPL   0x03

Definition at line 57 of file at91sam7.c.

Function Documentation

◆ at91sam7_erase()

static int at91sam7_erase ( struct flash_bank *  bank,
unsigned int  first,
unsigned int  last
)
static

Definition at line 782 of file at91sam7.c.

References at91sam7_flash_command(), at91sam7_read_clock_info(), at91sam7_set_flash_mode(), at91sam7_write(), bank, buffer, at91sam7_flash_bank::cidr, EA, ERROR_FLASH_BANK_NOT_PROBED, ERROR_FLASH_OPERATION_FAILED, ERROR_FLASH_SECTOR_INVALID, ERROR_OK, ERROR_TARGET_NOT_HALTED, FMR_TIMING_FLASH, LOG_ERROR, and TARGET_HALTED.

◆ at91sam7_erase_check()

static int at91sam7_erase_check ( struct flash_bank *  bank)
static

Definition at line 627 of file at91sam7.c.

References at91sam7_read_clock_info(), at91sam7_set_flash_mode(), bank, default_flash_blank_check(), ERROR_TARGET_NOT_HALTED, FMR_TIMING_FLASH, LOG_ERROR, and TARGET_HALTED.

◆ at91sam7_flash_command()

static int at91sam7_flash_command ( struct flash_bank *  bank,
uint8_t  cmd,
uint16_t  pagen
)
static

Definition at line 314 of file at91sam7.c.

References at91sam7_wait_status_busy(), bank, at91sam7_flash_bank::cidr_arch, CLB, cmd, ERROR_FLASH_OPERATION_FAILED, ERROR_OK, LOG_DEBUG, mc_fcr, MC_FSR_EOL, MC_FSR_FRDY, SLB, and target_write_u32().

Referenced by at91sam7_erase(), at91sam7_protect(), and at91sam7_write().

◆ at91sam7_get_flash_status()

static uint32_t at91sam7_get_flash_status ( struct target *  target,
int  bank_number
)
static

Definition at line 168 of file at91sam7.c.

References mc_fsr, and target_read_u32().

Referenced by at91sam7_protect_check(), and at91sam7_wait_status_busy().

◆ at91sam7_probe()

static int at91sam7_probe ( struct flash_bank *  bank)
static

Definition at line 943 of file at91sam7.c.

References at91sam7_read_part_info(), bank, ERROR_OK, ERROR_TARGET_NOT_HALTED, LOG_ERROR, and TARGET_HALTED.

◆ at91sam7_protect()

static int at91sam7_protect ( struct flash_bank *  bank,
int  set,
unsigned int  first,
unsigned int  last
)
static

Definition at line 834 of file at91sam7.c.

References at91sam7_flash_command(), at91sam7_protect_check(), at91sam7_read_clock_info(), at91sam7_set_flash_mode(), bank, at91sam7_flash_bank::cidr, CLB, cmd, ERROR_FLASH_BANK_NOT_PROBED, ERROR_FLASH_OPERATION_FAILED, ERROR_FLASH_SECTOR_INVALID, ERROR_OK, ERROR_TARGET_NOT_HALTED, FMR_TIMING_NVBITS, LOG_ERROR, at91sam7_flash_bank::pages_per_sector, SLB, and TARGET_HALTED.

◆ at91sam7_protect_check()

static int at91sam7_protect_check ( struct flash_bank *  bank)
static

Definition at line 641 of file at91sam7.c.

References at91sam7_get_flash_status(), bank, at91sam7_flash_bank::cidr, ERROR_FLASH_BANK_NOT_PROBED, ERROR_OK, ERROR_TARGET_NOT_HALTED, at91sam7_flash_bank::lockbits, LOG_ERROR, at91sam7_flash_bank::num_lockbits_on, at91sam7_flash_bank::num_nvmbits, at91sam7_flash_bank::num_nvmbits_on, at91sam7_flash_bank::nvmbits, at91sam7_flash_bank::securitybit, status, and TARGET_HALTED.

Referenced by at91sam7_protect(), and at91sam7_read_part_info().

◆ at91sam7_read_clock_info()

static void at91sam7_read_clock_info ( struct flash_bank *  bank)
static

Definition at line 177 of file at91sam7.c.

References bank, CKGR_MCFR, CKGR_MCFR_MAINRDY, CKGR_MOR, CKGR_PLLR, CKGR_PLLR_DIV, CKGR_PLLR_MUL, at91sam7_flash_bank::ext_freq, at91sam7_flash_bank::mck_freq, at91sam7_flash_bank::mck_valid, PMC_MCKR, PMC_MCKR_CSS, PMC_MCKR_PRES, RC_FREQ, and target_read_u32().

Referenced by at91sam7_erase(), at91sam7_erase_check(), at91sam7_protect(), at91sam7_read_part_info(), and at91sam7_write().

◆ at91sam7_read_part_info()

static int at91sam7_read_part_info ( struct flash_bank *  bank)
static

Definition at line 341 of file at91sam7.c.

References at91sam7_protect_check(), at91sam7_read_clock_info(), at91sam7_set_flash_mode(), bank, flash_bank::bank_number, flash_bank::base, at91sam7_flash_bank::cidr, at91sam7_flash_bank::cidr_arch, at91sam7_flash_bank::cidr_eproc, at91sam7_flash_bank::cidr_ext, at91sam7_flash_bank::cidr_nvpsiz, at91sam7_flash_bank::cidr_nvpsiz2, at91sam7_flash_bank::cidr_nvptyp, at91sam7_flash_bank::cidr_sramsiz, at91sam7_flash_bank::cidr_version, DBGU_CIDR, flash_bank::driver, flash_bank::driver_priv, ERROR_FLASH_OPERATION_FAILED, ERROR_OK, at91sam7_flash_bank::ext_freq, at91sam7_flash_bank::flash_autodetection, FLASH_SIZE_1024KB, FLASH_SIZE_128KB, FLASH_SIZE_16KB, FLASH_SIZE_2048KB, FLASH_SIZE_256KB, FLASH_SIZE_32KB, FLASH_SIZE_512KB, FLASH_SIZE_64KB, FLASH_SIZE_8KB, at91sam7_flash_bank::flashmode, FMR_TIMING_NONE, flash_sector::is_erased, flash_sector::is_protected, LOG_DEBUG, LOG_ERROR, LOG_WARNING, flash_bank::name, flash_bank::next, NULL, at91sam7_flash_bank::num_nvmbits, at91sam7_flash_bank::num_nvmbits_on, flash_bank::num_sectors, flash_sector::offset, at91sam7_flash_bank::pages_per_sector, at91sam7_flash_bank::pagesize, flash_bank::sectors, flash_sector::size, flash_bank::size, flash_bank::target, target, at91sam7_flash_bank::target_name, and target_read_u32().

Referenced by at91sam7_probe().

◆ at91sam7_set_flash_mode()

static void at91sam7_set_flash_mode ( struct flash_bank *  bank,
int  mode
)
static

Definition at line 247 of file at91sam7.c.

References bank, at91sam7_flash_bank::cidr_arch, at91sam7_flash_bank::flashmode, FMR_TIMING_FLASH, FMR_TIMING_NVBITS, LOG_DEBUG, mc_fmr, at91sam7_flash_bank::mck_freq, mode, and target_write_u32().

Referenced by at91sam7_erase(), at91sam7_erase_check(), at91sam7_protect(), at91sam7_read_part_info(), and at91sam7_write().

◆ at91sam7_wait_status_busy()

static uint32_t at91sam7_wait_status_busy ( struct flash_bank *  bank,
uint32_t  waitbits,
int  timeout
)
static

Definition at line 288 of file at91sam7.c.

References alive_sleep(), at91sam7_get_flash_status(), bank, LOG_DEBUG, LOG_ERROR, and status.

Referenced by at91sam7_flash_command().

◆ at91sam7_write()

static int at91sam7_write ( struct flash_bank *  bank,
const uint8_t *  buffer,
uint32_t  offset,
uint32_t  count
)
static

Definition at line 876 of file at91sam7.c.

References at91sam7_flash_command(), at91sam7_read_clock_info(), at91sam7_set_flash_mode(), bank, buffer, at91sam7_flash_bank::cidr, at91sam7_flash_bank::cidr_arch, count, DIV_ROUND_UP, ERROR_FLASH_BANK_NOT_PROBED, ERROR_FLASH_DST_BREAKS_ALIGNMENT, ERROR_FLASH_DST_OUT_OF_BANK, ERROR_FLASH_OPERATION_FAILED, ERROR_OK, ERROR_TARGET_NOT_HALTED, FMR_TIMING_FLASH, LOG_DEBUG, LOG_ERROR, LOG_WARNING, offset, at91sam7_flash_bank::pagesize, TARGET_HALTED, target_write_memory(), and WP.

Referenced by at91sam7_erase().

◆ COMMAND_HANDLER()

COMMAND_HANDLER ( at91sam7_handle_gpnvm_command  )

Definition at line 1010 of file at91sam7.c.

◆ FLASH_BANK_COMMAND_HANDLER()

FLASH_BANK_COMMAND_HANDLER ( at91sam7_flash_bank_command  )

Definition at line 682 of file at91sam7.c.

References bank, flash_bank::bank_number, flash_bank::base, at91sam7_flash_bank::cidr, CMD_ARGC, CMD_ARGV, COMMAND_PARSE_NUMBER, flash_bank::driver, flash_bank::driver_priv, ERROR_OK, at91sam7_flash_bank::ext_freq, at91sam7_flash_bank::flash_autodetection, at91sam7_flash_bank::flashmode, freq, flash_sector::is_erased, flash_sector::is_protected, flash_bank::name, flash_bank::next, NULL, at91sam7_flash_bank::num_nvmbits, at91sam7_flash_bank::num_nvmbits_on, flash_bank::num_sectors, flash_sector::offset, at91sam7_flash_bank::pages_per_sector, at91sam7_flash_bank::pagesize, flash_bank::sectors, flash_sector::size, flash_bank::size, flash_bank::target, target, and at91sam7_flash_bank::target_name.

◆ get_at91sam7_info()

static int get_at91sam7_info ( struct flash_bank *  bank,
struct command_invocation *  cmd
)
static

Definition at line 961 of file at91sam7.c.

References bank, at91sam7_flash_bank::cidr, at91sam7_flash_bank::cidr_arch, at91sam7_flash_bank::cidr_eproc, at91sam7_flash_bank::cidr_version, cmd, command_print_sameline(), eproc, ERROR_FLASH_BANK_NOT_PROBED, ERROR_OK, at91sam7_flash_bank::ext_freq, at91sam7_flash_bank::lockbits, at91sam7_flash_bank::mck_freq, at91sam7_flash_bank::num_lockbits_on, at91sam7_flash_bank::num_nvmbits, at91sam7_flash_bank::num_nvmbits_on, at91sam7_flash_bank::nvmbits, at91sam7_flash_bank::pages_per_sector, at91sam7_flash_bank::pagesize, at91sam7_flash_bank::securitybit, and at91sam7_flash_bank::target_name.

Variable Documentation

◆ at91sam7_command_handlers

const struct command_registration at91sam7_command_handlers[]
static
Initial value:
= {
{
.name = "at91sam7",
.mode = COMMAND_ANY,
.help = "at91sam7 flash command group",
.usage = "",
.chain = at91sam7_exec_command_handlers,
},
COMMAND_REGISTRATION_DONE
}
at91sam7_exec_command_handlers
static const struct command_registration at91sam7_exec_command_handlers[]
Definition: at91sam7.c:1077
COMMAND_REGISTRATION_DONE
#define COMMAND_REGISTRATION_DONE
Use this as the last entry in an array of command_registration records.
Definition: command.h:247
COMMAND_ANY
@ COMMAND_ANY
Definition: command.h:42

Definition at line 1010 of file at91sam7.c.

◆ at91sam7_exec_command_handlers

const struct command_registration at91sam7_exec_command_handlers[]
static
Initial value:
= {
{
.name = "gpnvm",
.handler = at91sam7_handle_gpnvm_command,
.mode = COMMAND_EXEC,
.help = "set or clear one General Purpose Non-Volatile Memory "
"(gpnvm) bit",
.usage = "bitnum ('set'|'clear')",
},
COMMAND_REGISTRATION_DONE
}
COMMAND_EXEC
@ COMMAND_EXEC
Definition: command.h:40

Definition at line 1010 of file at91sam7.c.

◆ at91sam7_flash

const struct flash_driver at91sam7_flash
Initial value:
= {
.name = "at91sam7",
.usage = "gpnvm <bit> <set | clear>",
.commands = at91sam7_command_handlers,
.flash_bank_command = at91sam7_flash_bank_command,
.erase = at91sam7_erase,
.protect = at91sam7_protect,
.write = at91sam7_write,
.read = default_flash_read,
.probe = at91sam7_probe,
.auto_probe = at91sam7_probe,
.erase_check = at91sam7_erase_check,
.protect_check = at91sam7_protect_check,
.info = get_at91sam7_info,
}
get_at91sam7_info
static int get_at91sam7_info(struct flash_bank *bank, struct command_invocation *cmd)
Definition: at91sam7.c:961
at91sam7_command_handlers
static const struct command_registration at91sam7_command_handlers[]
Definition: at91sam7.c:1088
at91sam7_erase_check
static int at91sam7_erase_check(struct flash_bank *bank)
Definition: at91sam7.c:627
at91sam7_protect
static int at91sam7_protect(struct flash_bank *bank, int set, unsigned int first, unsigned int last)
Definition: at91sam7.c:834
at91sam7_write
static int at91sam7_write(struct flash_bank *bank, const uint8_t *buffer, uint32_t offset, uint32_t count)
Definition: at91sam7.c:876
at91sam7_erase
static int at91sam7_erase(struct flash_bank *bank, unsigned int first, unsigned int last)
Definition: at91sam7.c:782
at91sam7_protect_check
static int at91sam7_protect_check(struct flash_bank *bank)
Definition: at91sam7.c:641
at91sam7_probe
static int at91sam7_probe(struct flash_bank *bank)
Definition: at91sam7.c:943
default_flash_read
int default_flash_read(struct flash_bank *bank, uint8_t *buffer, uint32_t offset, uint32_t count)
Provides default read implementation for flash memory.
Definition: flash/nor/core.c:121

Definition at line 1010 of file at91sam7.c.

◆ eproc

const char* eproc[8]
static
Initial value:
= {
"Unknown", "ARM946-E", "ARM7TDMI", "Unknown", "ARM920T", "ARM926EJ-S", "Unknown", "Unknown"
}

Definition at line 100 of file at91sam7.c.

Referenced by get_at91sam7_info(), and samv_probe().

◆ mc_fcr

const uint32_t mc_fcr[4] = { 0xFFFFFF64, 0xFFFFFF74, 0xFFFFFF84, 0xFFFFFF94 }
static

Definition at line 97 of file at91sam7.c.

Referenced by at91sam7_flash_command().

◆ mc_fmr

const uint32_t mc_fmr[4] = { 0xFFFFFF60, 0xFFFFFF70, 0xFFFFFF80, 0xFFFFFF90 }
static

Definition at line 96 of file at91sam7.c.

Referenced by at91sam7_set_flash_mode().

◆ mc_fsr

const uint32_t mc_fsr[4] = { 0xFFFFFF68, 0xFFFFFF78, 0xFFFFFF88, 0xFFFFFF98 }
static

Definition at line 98 of file at91sam7.c.

Referenced by at91sam7_get_flash_status().
