arm_io.h File Reference

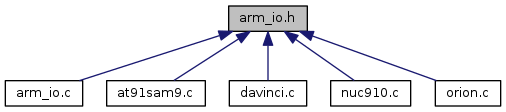

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures

struct  arm_nand_data
 The arm_nand_data struct is used for defining NAND I/O operations on an ARM core. More...


Enumerations

enum  arm_nand_op { ARM_NAND_NONE , ARM_NAND_READ , ARM_NAND_WRITE }
 Available operational states the arm_nand_data struct can be in. More...


Functions

int arm_nandread (struct arm_nand_data *nand, uint8_t *data, uint32_t size)
 Uses an on-chip algorithm for an ARM device to read from a NAND device and store the data into the host machine's memory. More...

int arm_nandwrite (struct arm_nand_data *nand, uint8_t *data, int size)
 ARM-specific bulk write from buffer to address of 8-bit wide NAND. More...


Enumeration Type Documentation

◆ arm_nand_op

Available operational states the arm_nand_data struct can be in.

Enumerator
ARM_NAND_NONE

No operation performed.

ARM_NAND_READ

Read operation performed.

ARM_NAND_WRITE

Write operation performed.

Definition at line 12 of file arm_io.h.

Function Documentation

◆ arm_nandread()

int arm_nandread ( struct arm_nand_data nand,
uint8_t *  data,
uint32_t  size
)

Uses an on-chip algorithm for an ARM device to read from a NAND device and store the data into the host machine's memory.

Parameters
nandPointer to the arm_nand_data struct that defines the I/O
dataPointer to the data buffer to store the read data
sizeAmount of data to be stored to the buffer.
Returns
Success or failure of the operation

Definition at line 190 of file arm_io.c.

References working_area::address, arm::arch, target::arch_info, ARM_ARCH_V4, arm_code_to_working_area(), ARM_COMMON_MAGIC, ARM_MODE_SVC, ARM_MODE_THREAD, ARM_NAND_READ, ARM_STATE_ARM, ARMV7M_COMMON_MAGIC, buf_set_u32(), arm_nand_data::chunk_size, arm_algorithm::common_magic, armv7m_algorithm::common_magic, arm_nand_data::copy_area, arm_algorithm::core_mode, armv7m_algorithm::core_mode, arm_algorithm::core_state, arm_nand_data::data, destroy_reg_param(), ERROR_OK, init_reg_param(), is_armv7m(), LOG_ERROR, NULL, arm_nand_data::op, PARAM_IN, size, arm_nand_data::target, target_read_buffer(), target_run_algorithm(), target_to_armv7m(), and reg_param::value.

Referenced by at91sam9_read_block_data(), and nuc910_nand_read_block_data().

◆ arm_nandwrite()

int arm_nandwrite ( struct arm_nand_data nand,
uint8_t *  data,
int  size
)

ARM-specific bulk write from buffer to address of 8-bit wide NAND.

For now this supports ARMv4,ARMv5 and ARMv7-M cores.

Enhancements to target_run_algorithm() could enable:

  • ARMv6 and ARMv7 cores in ARM mode

Different code fragments could handle:

  • 16-bit wide data (needs different setup)
Parameters
nandPointer to the arm_nand_data struct that defines the I/O
dataPointer to the data to be copied to flash
sizeSize of the data being copied
Returns
Success or failure of the operation

Definition at line 80 of file arm_io.c.

References working_area::address, arm::arch, target::arch_info, ARM_ARCH_V4, arm_code_to_working_area(), ARM_COMMON_MAGIC, ARM_MODE_SVC, ARM_MODE_THREAD, ARM_NAND_WRITE, ARM_STATE_ARM, ARMV7M_COMMON_MAGIC, buf_set_u32(), arm_nand_data::chunk_size, arm_algorithm::common_magic, armv7m_algorithm::common_magic, arm_nand_data::copy_area, arm_algorithm::core_mode, armv7m_algorithm::core_mode, arm_algorithm::core_state, arm_nand_data::data, destroy_reg_param(), ERROR_OK, init_reg_param(), is_armv7m(), LOG_ERROR, NULL, arm_nand_data::op, PARAM_IN, size, arm_nand_data::target, target_run_algorithm(), target_to_armv7m(), target_write_buffer(), and reg_param::value.

Referenced by at91sam9_write_block_data(), davinci_write_block_data(), nuc910_nand_write_block_data(), and orion_nand_fast_block_write().
