Include dependency graph for versaloon.h:

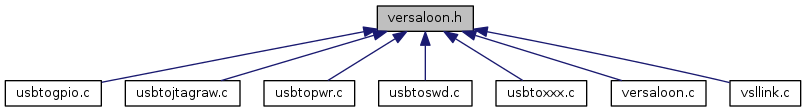

This graph shows which files directly or indirectly include this file:

Data Structures
struct	interface_delay_t

struct	interface_gpio_t

struct	interface_jtag_raw_t

struct	interface_swd_t

struct	interface_target_voltage_t

struct	usart_status_t

struct	versaloon_adaptors_t

struct	versaloon_interface_t

struct	versaloon_usb_setting_t

Macros
#define	GPIO_RTCK (1 << 7)

#define	GPIO_SRST (1 << 0)

#define	GPIO_TCK (1 << 4)

#define	GPIO_TDI (1 << 6)

#define	GPIO_TDO (1 << 5)

#define	GPIO_TMS (1 << 8)

#define	GPIO_TRST (1 << 1)

#define	GPIO_USR1 (1 << 2)

#define	GPIO_USR2 (1 << 3)

Variables
struct versaloon_interface_t	versaloon_interface

struct libusb_device_handle *	versaloon_usb_device_handle

Macro Definition Documentation

◆ GPIO_RTCK

#define GPIO_RTCK (1 << 7)

Definition at line 29 of file versaloon.h.

◆ GPIO_SRST

#define GPIO_SRST (1 << 0)

Definition at line 22 of file versaloon.h.

◆ GPIO_TCK

#define GPIO_TCK (1 << 4)

Definition at line 26 of file versaloon.h.

◆ GPIO_TDI

#define GPIO_TDI (1 << 6)

Definition at line 28 of file versaloon.h.

◆ GPIO_TDO

#define GPIO_TDO (1 << 5)

Definition at line 27 of file versaloon.h.

◆ GPIO_TMS

#define GPIO_TMS (1 << 8)

Definition at line 30 of file versaloon.h.

◆ GPIO_TRST

#define GPIO_TRST (1 << 1)

Definition at line 23 of file versaloon.h.

◆ GPIO_USR1

#define GPIO_USR1 (1 << 2)

Definition at line 24 of file versaloon.h.

◆ GPIO_USR2

#define GPIO_USR2 (1 << 3)

Definition at line 25 of file versaloon.h.

Variable Documentation

◆ versaloon_interface

struct versaloon_interface_t versaloon_interface

extern

Definition at line 36 of file versaloon.c.

Referenced by COMMAND_HANDLER(), versaloon_init(), versaloon_send_command(), vsllink_init(), vsllink_interface_init(), vsllink_jtag_execute(), vsllink_quit(), vsllink_reset(), vsllink_speed(), vsllink_swd_frequency(), vsllink_swd_read_reg(), vsllink_swd_run_queue(), vsllink_swd_switch_seq(), vsllink_swd_write_reg(), vsllink_usb_close(), and vsllink_usb_open().

◆ versaloon_usb_device_handle

struct libusb_device_handle* versaloon_usb_device_handle
