str9x.c File Reference

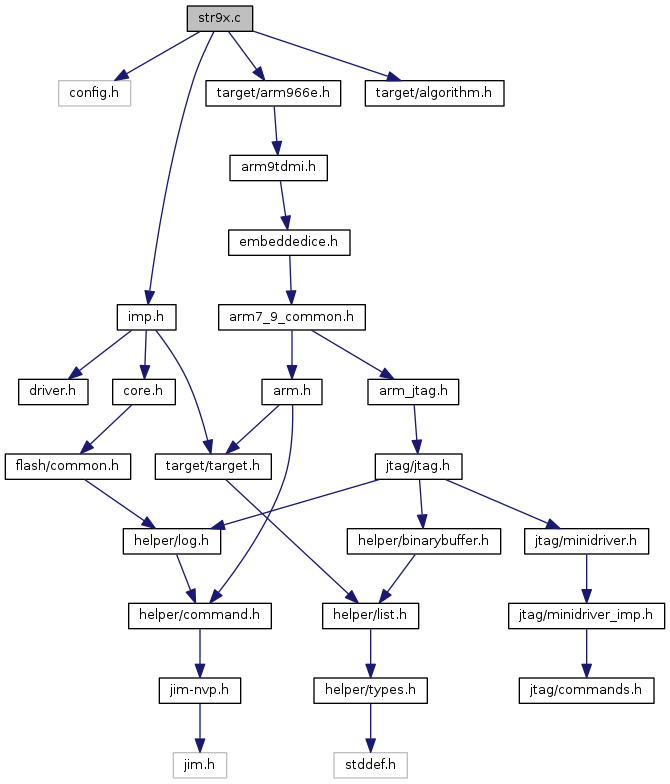

Include dependency graph for str9x.c:

Go to the source code of this file.

Data Structures

struct  str9x_flash_bank


Macros

#define FLASH_BBADR   0x5400000C /* Boot Bank Base Address Register */

#define FLASH_BBSR   0x54000000 /* Boot Bank Size Register */

#define FLASH_BCE5ADDR   0x54000020 /* BC Fifth Entry Target Address Register */

#define FLASH_CR   0x54000018 /* Control Register */

#define FLASH_NBBADR   0x54000010 /* Non-Boot Bank Base Address Register */

#define FLASH_NBBSR   0x54000004 /* Non-Boot Bank Size Register */

#define FLASH_SR   0x5400001C /* Status Register */


Enumerations

enum  str9x_status_codes {
  STR9X_CMD_SUCCESS = 0 , STR9X_INVALID_COMMAND = 1 , STR9X_SRC_ADDR_ERROR = 2 , STR9X_DST_ADDR_ERROR = 3 ,
  STR9X_SRC_ADDR_NOT_MAPPED = 4 , STR9X_DST_ADDR_NOT_MAPPED = 5 , STR9X_COUNT_ERROR = 6 , STR9X_INVALID_SECTOR = 7 ,
  STR9X_SECTOR_NOT_BLANK = 8 , STR9X_SECTOR_NOT_PREPARED = 9 , STR9X_COMPARE_ERROR = 10 , STR9X_BUSY = 11
}


Functions

 COMMAND_HANDLER (str9x_handle_flash_config_command)

 FLASH_BANK_COMMAND_HANDLER (str9x_flash_bank_command)

static int str9x_build_block_list (struct flash_bank *bank)

static int str9x_erase (struct flash_bank *bank, unsigned int first, unsigned int last)

static int str9x_probe (struct flash_bank *bank)

static int str9x_protect (struct flash_bank *bank, int set, unsigned int first, unsigned int last)

static int str9x_protect_check (struct flash_bank *bank)

static int str9x_write (struct flash_bank *bank, const uint8_t *buffer, uint32_t offset, uint32_t count)

static int str9x_write_block (struct flash_bank *bank, const uint8_t *buffer, uint32_t offset, uint32_t count)


Variables

static uint32_t bank1start = 0x00080000

static const struct command_registration str9x_command_handlers []

static const struct command_registration str9x_config_command_handlers []

const struct flash_driver str9x_flash


Macro Definition Documentation

◆ FLASH_BBADR

#define FLASH_BBADR   0x5400000C /* Boot Bank Base Address Register */

Definition at line 26 of file str9x.c.

◆ FLASH_BBSR

#define FLASH_BBSR   0x54000000 /* Boot Bank Size Register */

Definition at line 24 of file str9x.c.

◆ FLASH_BCE5ADDR

#define FLASH_BCE5ADDR   0x54000020 /* BC Fifth Entry Target Address Register */

Definition at line 30 of file str9x.c.

◆ FLASH_CR

#define FLASH_CR   0x54000018 /* Control Register */

Definition at line 28 of file str9x.c.

◆ FLASH_NBBADR

#define FLASH_NBBADR   0x54000010 /* Non-Boot Bank Base Address Register */

Definition at line 27 of file str9x.c.

◆ FLASH_NBBSR

#define FLASH_NBBSR   0x54000004 /* Non-Boot Bank Size Register */

Definition at line 25 of file str9x.c.

◆ FLASH_SR

#define FLASH_SR   0x5400001C /* Status Register */

Definition at line 29 of file str9x.c.

Enumeration Type Documentation

◆ str9x_status_codes

enum str9x_status_codes
Enumerator
STR9X_CMD_SUCCESS
STR9X_INVALID_COMMAND
STR9X_SRC_ADDR_ERROR
STR9X_DST_ADDR_ERROR
STR9X_SRC_ADDR_NOT_MAPPED
STR9X_DST_ADDR_NOT_MAPPED
STR9X_COUNT_ERROR
STR9X_INVALID_SECTOR
STR9X_SECTOR_NOT_BLANK
STR9X_SECTOR_NOT_PREPARED
STR9X_COMPARE_ERROR
STR9X_BUSY

Definition at line 38 of file str9x.c.

Function Documentation

◆ COMMAND_HANDLER()

COMMAND_HANDLER ( str9x_handle_flash_config_command  )

Definition at line 591 of file str9x.c.

References arm966e_write_cp15(), bank, CALL_COMMAND_HANDLER, CMD_ARGC, CMD_ARGV, COMMAND_PARSE_NUMBER, ERROR_COMMAND_SYNTAX_ERROR, ERROR_OK, ERROR_TARGET_NOT_HALTED, FLASH_BBADR, FLASH_BBSR, FLASH_CR, FLASH_NBBADR, FLASH_NBBSR, LOG_ERROR, NULL, TARGET_HALTED, and target_write_u32().

◆ FLASH_BANK_COMMAND_HANDLER()

FLASH_BANK_COMMAND_HANDLER ( str9x_flash_bank_command  )

Definition at line 135 of file str9x.c.

References bank, CMD_ARGC, ERROR_COMMAND_SYNTAX_ERROR, ERROR_OK, and str9x_build_block_list().

◆ str9x_build_block_list()

static int str9x_build_block_list ( struct flash_bank *  bank)
static

Definition at line 55 of file str9x.c.

References bank, str9x_flash_bank::bank1, bank1start, ERROR_OK, LOG_ERROR, offset, str9x_flash_bank::sector_bits, and str9x_flash_bank::variant.

Referenced by FLASH_BANK_COMMAND_HANDLER().

◆ str9x_erase()

static int str9x_erase ( struct flash_bank *  bank,
unsigned int  first,
unsigned int  last
)
static

Definition at line 212 of file str9x.c.

References alive_sleep(), bank, ERROR_FAIL, ERROR_FLASH_OPERATION_FAILED, ERROR_OK, ERROR_TARGET_NOT_HALTED, LOG_ERROR, status, TARGET_HALTED, target_read_u8(), and target_write_u16().

◆ str9x_probe()

static int str9x_probe ( struct flash_bank *  bank)
static

Definition at line 579 of file str9x.c.

References ERROR_OK.

◆ str9x_protect()

static int str9x_protect ( struct flash_bank *  bank,
int  set,
unsigned int  first,
unsigned int  last
)
static

Definition at line 295 of file str9x.c.

References bank, ERROR_OK, ERROR_TARGET_NOT_HALTED, LOG_ERROR, status, TARGET_HALTED, target_read_u8(), and target_write_u16().

◆ str9x_protect_check()

static int str9x_protect_check ( struct flash_bank *  bank)
static

Definition at line 150 of file str9x.c.

References bank, str9x_flash_bank::bank1, bank1start, ERROR_OK, ERROR_TARGET_NOT_HALTED, LOG_ERROR, str9x_flash_bank::sector_bits, status, TARGET_HALTED, target_read_u16(), target_read_u32(), target_write_u16(), and str9x_flash_bank::variant.

◆ str9x_write()

static int str9x_write ( struct flash_bank *  bank,
const uint8_t *  buffer,
uint32_t  offset,
uint32_t  count
)
static

Definition at line 443 of file str9x.c.

References alive_sleep(), bank, buffer, count, ERROR_FAIL, ERROR_FLASH_DST_BREAKS_ALIGNMENT, ERROR_FLASH_DST_OUT_OF_BANK, ERROR_FLASH_OPERATION_FAILED, ERROR_OK, ERROR_TARGET_NOT_HALTED, ERROR_TARGET_RESOURCE_NOT_AVAILABLE, LOG_ERROR, LOG_WARNING, offset, status, str9x_write_block(), TARGET_HALTED, target_read_u8(), target_write_memory(), and target_write_u16().

◆ str9x_write_block()

static int str9x_write_block ( struct flash_bank *  bank,
const uint8_t *  buffer,
uint32_t  offset,
uint32_t  count
)
static

Definition at line 331 of file str9x.c.

References working_area::address, ARM_COMMON_MAGIC, ARM_MODE_SVC, ARM_STATE_ARM, ARRAY_SIZE, bank, buf_get_u32(), buf_set_u32(), buffer, arm_algorithm::common_magic, arm_algorithm::core_mode, arm_algorithm::core_state, count, destroy_reg_param(), ERROR_FLASH_OPERATION_FAILED, ERROR_OK, ERROR_TARGET_RESOURCE_NOT_AVAILABLE, init_reg_param(), LOG_ERROR, LOG_WARNING, NULL, offset, PARAM_IN, PARAM_OUT, source, target_alloc_working_area(), target_alloc_working_area_try(), target_buffer_set_u32_array(), target_free_working_area(), target_run_algorithm(), and target_write_buffer().

Referenced by str9x_write().

Variable Documentation

◆ bank1start

uint32_t bank1start = 0x00080000
static

Definition at line 53 of file str9x.c.

Referenced by str9x_build_block_list(), and str9x_protect_check().

◆ str9x_command_handlers

const struct command_registration str9x_command_handlers[]
static
Initial value:
= {
{
.name = "str9x",
.mode = COMMAND_ANY,
.help = "str9x flash command group",
.usage = "",
.chain = str9x_config_command_handlers,
},
COMMAND_REGISTRATION_DONE
}
COMMAND_REGISTRATION_DONE
#define COMMAND_REGISTRATION_DONE
Use this as the last entry in an array of command_registration records.
Definition: command.h:247
COMMAND_ANY
@ COMMAND_ANY
Definition: command.h:42
str9x_config_command_handlers
static const struct command_registration str9x_config_command_handlers[]
Definition: str9x.c:630

Definition at line 591 of file str9x.c.

◆ str9x_config_command_handlers

const struct command_registration str9x_config_command_handlers[]
static
Initial value:
= {
{
.name = "flash_config",
.handler = str9x_handle_flash_config_command,
.mode = COMMAND_EXEC,
.help = "Configure str9x flash controller, prior to "
"programming the flash.",
.usage = "bank_id BBSR NBBSR BBADR NBBADR",
},
COMMAND_REGISTRATION_DONE
}
COMMAND_EXEC
@ COMMAND_EXEC
Definition: command.h:40

Definition at line 591 of file str9x.c.

◆ str9x_flash

const struct flash_driver str9x_flash
Initial value:
= {
.name = "str9x",
.commands = str9x_command_handlers,
.flash_bank_command = str9x_flash_bank_command,
.erase = str9x_erase,
.protect = str9x_protect,
.write = str9x_write,
.read = default_flash_read,
.probe = str9x_probe,
.auto_probe = str9x_probe,
.erase_check = default_flash_blank_check,
.protect_check = str9x_protect_check,
.free_driver_priv = default_flash_free_driver_priv,
}
default_flash_blank_check
int default_flash_blank_check(struct flash_bank *bank)
Provides default erased-bank check handling.
Definition: flash/nor/core.c:380
default_flash_read
int default_flash_read(struct flash_bank *bank, uint8_t *buffer, uint32_t offset, uint32_t count)
Provides default read implementation for flash memory.
Definition: flash/nor/core.c:121
default_flash_free_driver_priv
void default_flash_free_driver_priv(struct flash_bank *bank)
Deallocates bank->driver_priv.
Definition: flash/nor/core.c:210
str9x_command_handlers
static const struct command_registration str9x_command_handlers[]
Definition: str9x.c:642
str9x_probe
static int str9x_probe(struct flash_bank *bank)
Definition: str9x.c:579
str9x_erase
static int str9x_erase(struct flash_bank *bank, unsigned int first, unsigned int last)
Definition: str9x.c:212
str9x_protect_check
static int str9x_protect_check(struct flash_bank *bank)
Definition: str9x.c:150
str9x_write
static int str9x_write(struct flash_bank *bank, const uint8_t *buffer, uint32_t offset, uint32_t count)
Definition: str9x.c:443
str9x_protect
static int str9x_protect(struct flash_bank *bank, int set, unsigned int first, unsigned int last)
Definition: str9x.c:295

Definition at line 591 of file str9x.c.
