Holds driver for PRESTO programmer from ASIX. More...

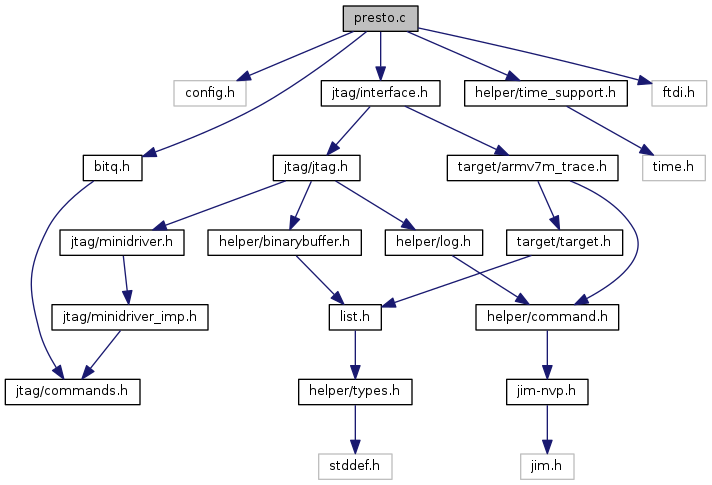

Include dependency graph for presto.c:

Data Structures
struct	presto

Macros
#define	BUFFER_SIZE (64*62)

#define	FT_DEVICE_NAME_LEN 64

#define	FT_DEVICE_SERNUM_LEN 64

#define	PRESTO_PID (0xf1a0)

#define	PRESTO_VID (0x0403)

#define	PRESTO_VID_PID 0x0403f1a0

Functions
static int	presto_adapter_khz (int khz, int *jtag_speed)

static int	presto_bitq_flush (void)

static int	presto_bitq_in (void)

static int	presto_bitq_in_rdy (void)

static int	presto_bitq_out (int tms, int tdi, int tdo_req)

static int	presto_bitq_reset (int trst, int srst)

static int	presto_bitq_sleep (unsigned long us)

static int	presto_close (void)

static int	presto_flush (void)

static int	presto_jtag_init (void)

static int	presto_jtag_quit (void)

static int	presto_jtag_speed (int speed)

static int	presto_jtag_speed_div (int speed, int *khz)

static int	presto_open (const char *req_serial)

static int	presto_open_libftdi (const char *req_serial)

static int	presto_read (uint8_t *buf, uint32_t size)

static int	presto_sendbyte (int data)

static int	presto_tck_idle (void)

static int	presto_tdi_flush (void)

static int	presto_write (uint8_t *buf, uint32_t size)

Variables
static struct presto *	presto = &presto_state

struct adapter_driver	presto_adapter_driver

static struct bitq_interface	presto_bitq

static uint8_t	presto_init_seq []

static struct jtag_interface	presto_interface

static struct presto	presto_state

Detailed Description

Holds driver for PRESTO programmer from ASIX.

http://tools.asix.net/prg_presto.htm

Definition in file presto.c.

Macro Definition Documentation

◆ BUFFER_SIZE

#define BUFFER_SIZE (64*62)

Definition at line 38 of file presto.c.

◆ FT_DEVICE_NAME_LEN

#define FT_DEVICE_NAME_LEN 64

Definition at line 31 of file presto.c.

◆ FT_DEVICE_SERNUM_LEN

#define FT_DEVICE_SERNUM_LEN 64

Definition at line 32 of file presto.c.

◆ PRESTO_PID

#define PRESTO_PID (0xf1a0)

Definition at line 36 of file presto.c.

◆ PRESTO_VID

#define PRESTO_VID (0x0403)

Definition at line 35 of file presto.c.

◆ PRESTO_VID_PID

#define PRESTO_VID_PID 0x0403f1a0

Definition at line 34 of file presto.c.

Function Documentation

◆ presto_adapter_khz()

static int presto_adapter_khz	(	int	khz,
		int *	jtag_speed
	)

static

Definition at line 452 of file presto.c.

References ERROR_COMMAND_SYNTAX_ERROR.

◆ presto_bitq_flush()

static int presto_bitq_flush ( void )

static

Definition at line 380 of file presto.c.

References presto_flush(), presto_sendbyte(), presto_tck_idle(), and presto_tdi_flush().

Referenced by presto_bitq_sleep().

◆ presto_bitq_in()

static int presto_bitq_in ( void )

static

Definition at line 397 of file presto.c.

References presto::buff_in, presto::buff_in_len, and presto::buff_in_pos.

◆ presto_bitq_in_rdy()

static int presto_bitq_in_rdy ( void )

static

Definition at line 390 of file presto.c.

References presto::buff_in_len, and presto::buff_in_pos.

◆ presto_bitq_out()

static int presto_bitq_out	(	int	tms,
		int	tdi,
		int	tdo_req
	)

static

Definition at line 338 of file presto.c.

References cmd, presto::jtag_rst, presto::jtag_speed, presto::jtag_tck, presto::jtag_tdi_count, presto::jtag_tdi_data, presto::jtag_tms, presto_sendbyte(), and presto_tdi_flush().

◆ presto_bitq_reset()

static int presto_bitq_reset	(	int	trst,
		int	srst
	)

static

Definition at line 426 of file presto.c.

◆ presto_bitq_sleep()

static int presto_bitq_sleep ( unsigned long us )

static

Definition at line 406 of file presto.c.

References jtag_sleep(), presto_bitq_flush(), presto_sendbyte(), presto_tck_idle(), and presto_tdi_flush().

◆ presto_close()

static int presto_close ( void )

static

Definition at line 209 of file presto.c.

References ERROR_JTAG_DEVICE_ERROR, ERROR_OK, presto::ftdic, presto_init_seq, and presto::retval.

Referenced by presto_jtag_init().

◆ presto_flush()

static int presto_flush ( void )

static

Definition at line 231 of file presto.c.

References presto::buff_in, presto::buff_in_exp, presto::buff_in_len, presto::buff_in_pos, presto::buff_out, presto::buff_out_pos, ERROR_JTAG_DEVICE_ERROR, ERROR_OK, LOG_DEBUG, presto_read(), presto_write(), presto::retval, presto::total_in, and presto::total_out.

Referenced by presto_bitq_flush(), and presto_sendbyte().

◆ presto_jtag_init()

static int presto_jtag_init ( void )

static

Definition at line 499 of file presto.c.

References adapter_get_required_serial(), ERROR_JTAG_INIT_FAILED, ERROR_OK, LOG_ERROR, LOG_INFO, presto_bitq, presto_close(), presto_open(), and presto::serial.

◆ presto_jtag_quit()

static int presto_jtag_quit ( void )

static

Definition at line 517 of file presto.c.

◆ presto_jtag_speed()

static int presto_jtag_speed ( int speed )

static

Definition at line 482 of file presto.c.

References ERROR_COMMAND_SYNTAX_ERROR, presto::jtag_speed, LOG_INFO, and presto_jtag_speed_div().

◆ presto_jtag_speed_div()

static int presto_jtag_speed_div	(	int	speed,
		int *	khz
	)

static

Definition at line 467 of file presto.c.

References ERROR_COMMAND_SYNTAX_ERROR.

Referenced by presto_jtag_speed().

◆ presto_open()

static int presto_open ( const char * req_serial )

static

Definition at line 188 of file presto.c.

References presto::buff_in_exp, presto::buff_in_len, presto::buff_in_pos, presto::buff_out_pos, presto::jtag_rst, presto::jtag_speed, presto::jtag_tck, presto::jtag_tdi_count, presto::jtag_tdi_data, presto::jtag_tms, presto_open_libftdi(), presto::total_in, and presto::total_out.

Referenced by presto_jtag_init().

◆ presto_open_libftdi()

static int presto_open_libftdi ( const char * req_serial )

static

Definition at line 125 of file presto.c.

References ERROR_JTAG_DEVICE_ERROR, ERROR_OK, ftdi_tcioflush(), presto::ftdic, LOG_DEBUG, LOG_ERROR, NULL, presto_init_seq, PRESTO_PID, presto_read(), PRESTO_VID, and presto_write().

Referenced by presto_open().

◆ presto_read()

static int presto_read	(	uint8_t *	buf,
		uint32_t	size
	)

static

Definition at line 93 of file presto.c.

References ERROR_JTAG_DEVICE_ERROR, ERROR_OK, presto::ftdic, gettimeofday(), LOG_ERROR, LOG_WARNING, NULL, presto::retval, size, timeval_add_time(), and timeval_compare().

Referenced by presto_flush(), and presto_open_libftdi().

◆ presto_sendbyte()

static int presto_sendbyte ( int data )

static

Definition at line 267 of file presto.c.

References presto::buff_in_exp, presto::buff_out, presto::buff_out_pos, BUFFER_SIZE, ERROR_JTAG_DEVICE_ERROR, ERROR_OK, and presto_flush().

Referenced by presto_bitq_flush(), presto_bitq_out(), presto_bitq_sleep(), presto_tck_idle(), and presto_tdi_flush().

◆ presto_tck_idle()

static int presto_tck_idle ( void )

static

Definition at line 326 of file presto.c.

References presto::jtag_tck, and presto_sendbyte().

Referenced by presto_bitq_flush(), and presto_bitq_sleep().

◆ presto_tdi_flush()

static int presto_tdi_flush ( void )

static

Definition at line 308 of file presto.c.

References presto::jtag_tck, presto::jtag_tdi_count, presto::jtag_tdi_data, LOG_ERROR, and presto_sendbyte().

Referenced by presto_bitq_flush(), presto_bitq_out(), and presto_bitq_sleep().

◆ presto_write()

static int presto_write	(	uint8_t *	buf,
		uint32_t	size
	)

static

Definition at line 74 of file presto.c.

References ERROR_JTAG_DEVICE_ERROR, ERROR_OK, presto::ftdic, LOG_ERROR, presto::retval, and size.

Referenced by presto_flush(), and presto_open_libftdi().

Variable Documentation

◆ presto

struct presto* presto = &presto_state

static

Definition at line 68 of file presto.c.

◆ presto_adapter_driver

struct adapter_driver presto_adapter_driver

Initial value:

= {
    .name = "presto",
    .transports = jtag_only,

    .init = presto_jtag_init,
    .quit = presto_jtag_quit,
    .speed = presto_jtag_speed,
    .khz = presto_adapter_khz,
    .speed_div = presto_jtag_speed_div,

    .jtag_ops = &presto_interface,
}

Definition at line 517 of file presto.c.

◆ presto_bitq

struct bitq_interface presto_bitq

static

Initial value:

= {
    .out = &presto_bitq_out,
    .flush = &presto_bitq_flush,
    .sleep = &presto_bitq_sleep,
    .reset = &presto_bitq_reset,
    .in_rdy = &presto_bitq_in_rdy,
    .in = &presto_bitq_in,
}

Definition at line 426 of file presto.c.

Referenced by presto_jtag_init().

◆ presto_init_seq

uint8_t presto_init_seq[]

static

Initial value:

= {
    0x80, 0xA0, 0xA8, 0xB0, 0xC0, 0xE0
}

Definition at line 70 of file presto.c.

Referenced by presto_close(), and presto_open_libftdi().

◆ presto_interface

struct jtag_interface presto_interface

static

Initial value:

= {
    .execute_queue = bitq_execute_queue,
}

Definition at line 517 of file presto.c.

◆ presto_state

struct presto presto_state

static

Definition at line 1 of file presto.c.
