Include dependency graph for list.h:

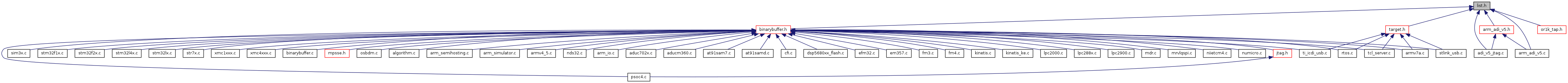

This graph shows which files directly or indirectly include this file:

Data Structures
struct	hlist_head

struct	hlist_node

struct	list_head

Macros
#define	hlist_entry(ptr, type, member) container_of(ptr, type, member)

#define	hlist_entry_safe(ptr, type, member)

#define	hlist_for_each(pos, head) for (pos = (head)->first; pos ; pos = pos->next)

#define	hlist_for_each_entry(pos, head, member)
	hlist_for_each_entry - iterate over list of given type More...

#define	hlist_for_each_entry_continue(pos, member)
	hlist_for_each_entry_continue - iterate over a hlist continuing after current point More...

#define	hlist_for_each_entry_from(pos, member)
	hlist_for_each_entry_from - iterate over a hlist continuing from current point More...

#define	hlist_for_each_entry_safe(pos, n, head, member)
	hlist_for_each_entry_safe - iterate over list of given type safe against removal of list entry More...

#define	hlist_for_each_safe(pos, n, head)

#define	HLIST_HEAD(name) struct hlist_head name = { .first = NULL }

#define	HLIST_HEAD_INIT { .first = NULL }

#define	INIT_HLIST_HEAD(ptr) ((ptr)->first = NULL)

#define	list_entry(ptr, type, member) container_of(ptr, type, member)
	list_entry - get the struct for this entry More...

#define	list_entry_is_head(pos, head, member) (&pos->member == (head))
	list_entry_is_head - test if the entry points to the head of the list More...

#define	list_first_entry(ptr, type, member) list_entry((ptr)->next, type, member)
	list_first_entry - get the first element from a list More...

#define	list_first_entry_or_null(ptr, type, member)
	list_first_entry_or_null - get the first element from a list More...

#define	list_for_each(pos, head) for (pos = (head)->next; pos != (head); pos = pos->next)
	list_for_each - iterate over a list More...

#define	list_for_each_continue(pos, head) for (pos = pos->next; pos != (head); pos = pos->next)
	list_for_each_continue - continue iteration over a list More...

#define	list_for_each_entry(pos, head, member)
	list_for_each_entry - iterate over list of given type More...

#define	list_for_each_entry_continue(pos, head, member)
	list_for_each_entry_continue - continue iteration over list of given type More...

#define	list_for_each_entry_continue_reverse(pos, head, member)
	list_for_each_entry_continue_reverse - iterate backwards from the given point More...

#define	list_for_each_entry_direction(forward, pos, head, member)
	list_for_each_entry_direction - iterate forward/backward over list of given type More...

#define	list_for_each_entry_from(pos, head, member)
	list_for_each_entry_from - iterate over list of given type from the current point More...

#define	list_for_each_entry_from_reverse(pos, head, member)
	list_for_each_entry_from_reverse - iterate backwards over list of given type from the current point More...

#define	list_for_each_entry_reverse(pos, head, member)
	list_for_each_entry_reverse - iterate backwards over list of given type. More...

#define	list_for_each_entry_safe(pos, n, head, member)
	list_for_each_entry_safe - iterate over list of given type safe against removal of list entry More...

#define	list_for_each_entry_safe_continue(pos, n, head, member)
	list_for_each_entry_safe_continue - continue list iteration safe against removal More...

#define	list_for_each_entry_safe_from(pos, n, head, member)
	list_for_each_entry_safe_from - iterate over list from current point safe against removal More...

#define	list_for_each_entry_safe_reverse(pos, n, head, member)
	list_for_each_entry_safe_reverse - iterate backwards over list safe against removal More...

#define	list_for_each_prev(pos, head) for (pos = (head)->prev; pos != (head); pos = pos->prev)
	list_for_each_prev - iterate over a list backwards More...

#define	list_for_each_prev_safe(pos, n, head)
	list_for_each_prev_safe - iterate over a list backwards safe against removal of list entry More...

#define	list_for_each_safe(pos, n, head)
	list_for_each_safe - iterate over a list safe against removal of list entry More...

#define	LIST_HEAD(name) struct list_head name = LIST_HEAD_INIT(name)

#define	LIST_HEAD_INIT(name) { &(name), &(name) }

#define	list_last_entry(ptr, type, member) list_entry((ptr)->prev, type, member)
	list_last_entry - get the last element from a list More...

#define	list_next_entry(pos, member) list_entry((pos)->member.next, typeof(*(pos)), member)
	list_next_entry - get the next element in list More...

#define	LIST_POISON1 NULL

#define	LIST_POISON2 NULL

#define	list_prepare_entry(pos, head, member) ((pos) ? (pos) : list_entry(head, typeof(*pos), member))
	list_prepare_entry - prepare a pos entry for use in list_for_each_entry_continue() More...

#define	list_prev_entry(pos, member) list_entry((pos)->member.prev, typeof(*(pos)), member)
	list_prev_entry - get the prev element in list More...

#define	list_safe_reset_next(pos, n, member) n = list_next_entry(pos, member)
	list_safe_reset_next - reset a stale list_for_each_entry_safe loop More...

Functions
static void	__hlist_del (struct hlist_node *n)

static void	__list_add (struct list_head new, struct list_head prev, struct list_head *next)

static bool	__list_add_valid (struct list_head new, struct list_head prev, struct list_head *next)

static void	__list_cut_position (struct list_head list, struct list_head head, struct list_head *entry)

static void	__list_del (struct list_head prev, struct list_head next)

static void	__list_del_entry (struct list_head *entry)

static bool	__list_del_entry_valid (struct list_head *entry)

static void	__list_splice (const struct list_head list, struct list_head prev, struct list_head *next)

static void	hlist_add_before (struct hlist_node n, struct hlist_node next)
	hlist_add_before - add a new entry before the one specified More...

static void	hlist_add_behind (struct hlist_node n, struct hlist_node prev)
	hlist_add_behind - add a new entry after the one specified More...

static void	hlist_add_fake (struct hlist_node *n)
	hlist_add_fake - create a fake hlist consisting of a single headless node More...

static void	hlist_add_head (struct hlist_node n, struct hlist_head h)
	hlist_add_head - add a new entry at the beginning of the hlist More...

static void	hlist_del (struct hlist_node *n)
	hlist_del - Delete the specified hlist_node from its list More...

static void	hlist_del_init (struct hlist_node *n)
	hlist_del_init - Delete the specified hlist_node from its list and initialize More...

static int	hlist_empty (const struct hlist_head *h)
	hlist_empty - Is the specified hlist_head structure an empty hlist? More...

static bool	hlist_fake (struct hlist_node *h)
	hlist_fake: Is this node a fake hlist? More...

static bool	hlist_is_singular_node (struct hlist_node n, struct hlist_head h)
	hlist_is_singular_node - is node the only element of the specified hlist? More...

static void	hlist_move_list (struct hlist_head old, struct hlist_head new)
	hlist_move_list - Move an hlist More...

static int	hlist_unhashed (const struct hlist_node *h)
	hlist_unhashed - Has node been removed from list and reinitialized? More...

static void	INIT_HLIST_NODE (struct hlist_node *h)

static void	INIT_LIST_HEAD (struct list_head *list)
	INIT_LIST_HEAD - Initialize a list_head structure. More...

static void	list_add (struct list_head new, struct list_head head)
	list_add - add a new entry More...

static void	list_add_tail (struct list_head new, struct list_head head)
	list_add_tail - add a new entry More...

static void	list_bulk_move_tail (struct list_head head, struct list_head first, struct list_head *last)
	list_bulk_move_tail - move a subsection of a list to its tail More...

static void	list_cut_before (struct list_head list, struct list_head head, struct list_head *entry)
	list_cut_before - cut a list into two, before given entry More...

static void	list_cut_position (struct list_head list, struct list_head head, struct list_head *entry)
	list_cut_position - cut a list into two More...

static void	list_del (struct list_head *entry)
	list_del - deletes entry from list. More...

static void	list_del_init (struct list_head *entry)
	list_del_init - deletes entry from list and reinitialize it. More...

static void	list_del_init_careful (struct list_head *entry)
	list_del_init_careful - deletes entry from list and reinitialize it. More...

static int	list_empty (const struct list_head *head)
	list_empty - tests whether a list is empty More...

static int	list_empty_careful (const struct list_head *head)
	list_empty_careful - tests whether a list is empty and not being modified More...

static int	list_is_first (const struct list_head list, const struct list_head head)
	list_is_first – tests whether list is the first entry in list head More...

static int	list_is_last (const struct list_head list, const struct list_head head)
	list_is_last - tests whether list is the last entry in list head More...

static int	list_is_singular (const struct list_head *head)
	list_is_singular - tests whether a list has just one entry. More...

static void	list_move (struct list_head list, struct list_head head)
	list_move - delete from one list and add as another's head More...

static void	list_move_tail (struct list_head list, struct list_head head)
	list_move_tail - delete from one list and add as another's tail More...

static void	list_replace (struct list_head old, struct list_head new)
	list_replace - replace old entry by new one More...

static void	list_replace_init (struct list_head old, struct list_head new)
	list_replace_init - replace old entry by new one and initialize the old one More...

static void	list_rotate_left (struct list_head *head)
	list_rotate_left - rotate the list to the left More...

static void	list_rotate_to_front (struct list_head list, struct list_head head)
	list_rotate_to_front() - Rotate list to specific item. More...

static void	list_splice (const struct list_head list, struct list_head head)
	list_splice - join two lists, this is designed for stacks More...

static void	list_splice_init (struct list_head list, struct list_head head)
	list_splice_init - join two lists and reinitialise the emptied list. More...

static void	list_splice_tail (struct list_head list, struct list_head head)
	list_splice_tail - join two lists, each list being a queue More...

static void	list_splice_tail_init (struct list_head list, struct list_head head)
	list_splice_tail_init - join two lists and reinitialise the emptied list More...

static void	list_swap (struct list_head entry1, struct list_head entry2)
	list_swap - replace entry1 with entry2 and re-add entry1 at entry2's position More...

Macro Definition Documentation

◆ hlist_entry

#define hlist_entry	(	ptr,
		type,
		member
	)	container_of(ptr, type, member)

Definition at line 991 of file list.h.

◆ hlist_entry_safe

#define hlist_entry_safe	(	ptr,
		type,
		member
	)

Value:

    ({ typeof(ptr) ____ptr = (ptr); \
       ____ptr ? hlist_entry(____ptr, type, member) : NULL; \
    })

Definition at line 1000 of file list.h.

◆ hlist_for_each

#define hlist_for_each	(	pos,
		head
	)	for (pos = (head)->first; pos ; pos = pos->next)

Definition at line 993 of file list.h.

◆ hlist_for_each_entry

#define hlist_for_each_entry	(	pos,
		head,
		member
	)

Value:

    for (pos = hlist_entry_safe((head)->first, typeof(*(pos)), member);\
         pos;                           \
         pos = hlist_entry_safe((pos)->member.next, typeof(*(pos)), member))

hlist_for_each_entry - iterate over list of given type

Parameters

pos	the type * to use as a loop cursor.
head	the head for your list.
member	the name of the hlist_node within the struct.

Definition at line 1011 of file list.h.

◆ hlist_for_each_entry_continue

#define hlist_for_each_entry_continue	(	pos,
		member
	)

Value:

    for (pos = hlist_entry_safe((pos)->member.next, typeof(*(pos)), member);\
         pos;                           \
         pos = hlist_entry_safe((pos)->member.next, typeof(*(pos)), member))

hlist_for_each_entry_continue - iterate over a hlist continuing after current point

Parameters

pos	the type * to use as a loop cursor.
member	the name of the hlist_node within the struct.

Definition at line 1021 of file list.h.

◆ hlist_for_each_entry_from

#define hlist_for_each_entry_from	(	pos,
		member
	)

Value:

for (; pos; \

pos = hlist_entry_safe((pos)->member.next, typeof(*(pos)), member))

hlist_for_each_entry_from - iterate over a hlist continuing from current point

Parameters

pos	the type * to use as a loop cursor.
member	the name of the hlist_node within the struct.

Definition at line 1031 of file list.h.

◆ hlist_for_each_entry_safe

#define hlist_for_each_entry_safe	(	pos,
		n,
		head,
		member
	)

Value:

    for (pos = hlist_entry_safe((head)->first, typeof(*pos), member);\
         pos && ({ n = pos->member.next; 1; });         \
         pos = hlist_entry_safe(n, typeof(*pos), member))

hlist_for_each_entry_safe - iterate over list of given type safe against removal of list entry

Parameters

pos	the type * to use as a loop cursor.
n	a &struct hlist_node to use as temporary storage
head	the head for your list.
member	the name of the hlist_node within the struct.

Definition at line 1042 of file list.h.

◆ hlist_for_each_safe

#define hlist_for_each_safe	(	pos,
		n,
		head
	)

Value:

for (pos = (head)->first; pos && ({ n = pos->next; 1; }); \

pos = n)

Definition at line 996 of file list.h.

◆ HLIST_HEAD

#define HLIST_HEAD ( name ) struct hlist_head name = { .first = NULL }

Definition at line 820 of file list.h.

◆ HLIST_HEAD_INIT

#define HLIST_HEAD_INIT { .first = NULL }

Definition at line 819 of file list.h.

◆ INIT_HLIST_HEAD

#define INIT_HLIST_HEAD ( ptr ) ((ptr)->first = NULL)

Definition at line 821 of file list.h.

◆ list_entry

#define list_entry	(	ptr,
		type,
		member
	)	container_of(ptr, type, member)

list_entry - get the struct for this entry

Parameters

ptr	the &struct list_head pointer.
type	the type of the struct this is embedded in.
member	the name of the list_head within the struct.

Definition at line 526 of file list.h.

◆ list_entry_is_head

#define list_entry_is_head	(	pos,
		head,
		member
	)	(&pos->member == (head))

list_entry_is_head - test if the entry points to the head of the list

Parameters

pos	the type * to cursor
head	the head for your list.
member	the name of the list_head within the struct.

Definition at line 634 of file list.h.

◆ list_first_entry

#define list_first_entry	(	ptr,
		type,
		member
	)	list_entry((ptr)->next, type, member)

list_first_entry - get the first element from a list

Parameters

ptr	the list head to take the element from.
type	the type of the struct this is embedded in.
member	the name of the list_head within the struct.

Note, that list is expected to be not empty.

Definition at line 537 of file list.h.

◆ list_first_entry_or_null

#define list_first_entry_or_null	(	ptr,
		type,
		member
	)

Value:

    ({ \
    struct list_head *head__ = (ptr); \
    struct list_head *pos__ = head__->next; \
    pos__ != head__ ? list_entry(pos__, type, member) : NULL; \
})

list_first_entry_or_null - get the first element from a list

Parameters

ptr	the list head to take the element from.
type	the type of the struct this is embedded in.
member	the name of the list_head within the struct.

Note that if the list is empty, it returns NULL.

Definition at line 559 of file list.h.

◆ list_for_each

#define list_for_each	(	pos,
		head
	)	for (pos = (head)->next; pos != (head); pos = pos->next)

list_for_each - iterate over a list

Parameters

pos	the &struct list_head to use as a loop cursor.
head	the head for your list.

Definition at line 586 of file list.h.

◆ list_for_each_continue

#define list_for_each_continue	(	pos,
		head
	)	for (pos = pos->next; pos != (head); pos = pos->next)

list_for_each_continue - continue iteration over a list

Parameters

pos	the &struct list_head to use as a loop cursor.
head	the head for your list.

Continue to iterate over a list, continuing after the current position.

Definition at line 596 of file list.h.

◆ list_for_each_entry

#define list_for_each_entry	(	pos,
		head,
		member
	)

Value:

    for (pos = list_first_entry(head, typeof(*pos), member);    \
         !list_entry_is_head(pos, head, member);            \
         pos = list_next_entry(pos, member))

list_for_each_entry - iterate over list of given type

Parameters

pos	the type * to use as a loop cursor.
head	the head for your list.
member	the name of the list_head within the struct.

Definition at line 643 of file list.h.

◆ list_for_each_entry_continue

#define list_for_each_entry_continue	(	pos,
		head,
		member
	)

Value:

    for (pos = list_next_entry(pos, member);            \
         !list_entry_is_head(pos, head, member);            \
         pos = list_next_entry(pos, member))

list_for_each_entry_continue - continue iteration over list of given type

Parameters

pos	the type * to use as a loop cursor.
head	the head for your list.
member	the name of the list_head within the struct.

Continue to iterate over list of given type, continuing after the current position.

Definition at line 693 of file list.h.

◆ list_for_each_entry_continue_reverse

#define list_for_each_entry_continue_reverse	(	pos,
		head,
		member
	)

Value:

    for (pos = list_prev_entry(pos, member);            \
         !list_entry_is_head(pos, head, member);            \
         pos = list_prev_entry(pos, member))

list_for_each_entry_continue_reverse - iterate backwards from the given point

Parameters

pos	the type * to use as a loop cursor.
head	the head for your list.
member	the name of the list_head within the struct.

Start to iterate over list of given type backwards, continuing after the current position.

Definition at line 707 of file list.h.

◆ list_for_each_entry_direction

#define list_for_each_entry_direction	(	forward,
		pos,
		head,
		member
	)

Value:

    for (pos = forward ? list_first_entry(head, typeof(*pos), member)   \
                       : list_last_entry(head, typeof(*pos), member);   \
         !list_entry_is_head(pos, head, member);                        \
         pos = forward ? list_next_entry(pos, member)                   \
                       : list_prev_entry(pos, member))

list_for_each_entry_direction - iterate forward/backward over list of given type

Parameters

forward	the iterate direction, true for forward, false for backward.
pos	the type * to use as a loop cursor.
head	the head for your list.
member	the name of the list_head within the struct.

Definition at line 666 of file list.h.

◆ list_for_each_entry_from

#define list_for_each_entry_from	(	pos,
		head,
		member
	)

Value:

for (; !list_entry_is_head(pos, head, member); \

pos = list_next_entry(pos, member))

list_for_each_entry_from - iterate over list of given type from the current point

Parameters

pos	the type * to use as a loop cursor.
head	the head for your list.
member	the name of the list_head within the struct.

Iterate over list of given type, continuing from current position.

Definition at line 720 of file list.h.

◆ list_for_each_entry_from_reverse

#define list_for_each_entry_from_reverse	(	pos,
		head,
		member
	)

Value:

for (; !list_entry_is_head(pos, head, member); \

pos = list_prev_entry(pos, member))

list_for_each_entry_from_reverse - iterate backwards over list of given type from the current point

Parameters

pos	the type * to use as a loop cursor.
head	the head for your list.
member	the name of the list_head within the struct.

Iterate backwards over list of given type, continuing from current position.

Definition at line 733 of file list.h.

◆ list_for_each_entry_reverse

#define list_for_each_entry_reverse	(	pos,
		head,
		member
	)

Value:

    for (pos = list_last_entry(head, typeof(*pos), member);     \
         !list_entry_is_head(pos, head, member);            \
         pos = list_prev_entry(pos, member))

list_for_each_entry_reverse - iterate backwards over list of given type.

Parameters

pos	the type * to use as a loop cursor.
head	the head for your list.
member	the name of the list_head within the struct.

Definition at line 654 of file list.h.

◆ list_for_each_entry_safe

#define list_for_each_entry_safe	(	pos,
		n,
		head,
		member
	)

Value:

    for (pos = list_first_entry(head, typeof(*pos), member),    \
        n = list_next_entry(pos, member);           \
         !list_entry_is_head(pos, head, member);            \
         pos = n, n = list_next_entry(n, member))

list_for_each_entry_safe - iterate over list of given type safe against removal of list entry

Parameters

pos	the type * to use as a loop cursor.
n	another type * to use as temporary storage
head	the head for your list.
member	the name of the list_head within the struct.

Definition at line 744 of file list.h.

◆ list_for_each_entry_safe_continue

#define list_for_each_entry_safe_continue	(	pos,
		n,
		head,
		member
	)

Value:

    for (pos = list_next_entry(pos, member),                \
        n = list_next_entry(pos, member);               \
         !list_entry_is_head(pos, head, member);                \
         pos = n, n = list_next_entry(n, member))

list_for_each_entry_safe_continue - continue list iteration safe against removal

Parameters

pos	the type * to use as a loop cursor.
n	another type * to use as temporary storage
head	the head for your list.
member	the name of the list_head within the struct.

Iterate over list of given type, continuing after current point, safe against removal of list entry.

Definition at line 760 of file list.h.

◆ list_for_each_entry_safe_from

#define list_for_each_entry_safe_from	(	pos,
		n,
		head,
		member
	)

Value:

    for (n = list_next_entry(pos, member);                  \
         !list_entry_is_head(pos, head, member);                \
         pos = n, n = list_next_entry(n, member))

list_for_each_entry_safe_from - iterate over list from current point safe against removal

Parameters

pos	the type * to use as a loop cursor.
n	another type * to use as temporary storage
head	the head for your list.
member	the name of the list_head within the struct.

Iterate over list of given type from current point, safe against removal of list entry.

Definition at line 776 of file list.h.

◆ list_for_each_entry_safe_reverse

#define list_for_each_entry_safe_reverse	(	pos,
		n,
		head,
		member
	)

Value:

    for (pos = list_last_entry(head, typeof(*pos), member),     \
        n = list_prev_entry(pos, member);           \
         !list_entry_is_head(pos, head, member);            \
         pos = n, n = list_prev_entry(n, member))

list_for_each_entry_safe_reverse - iterate backwards over list safe against removal

Parameters

pos	the type * to use as a loop cursor.
n	another type * to use as temporary storage
head	the head for your list.
member	the name of the list_head within the struct.

Iterate backwards over list of given type, safe against removal of list entry.

Definition at line 791 of file list.h.

◆ list_for_each_prev

#define list_for_each_prev	(	pos,
		head
	)	for (pos = (head)->prev; pos != (head); pos = pos->prev)

list_for_each_prev - iterate over a list backwards

Parameters

pos	the &struct list_head to use as a loop cursor.
head	the head for your list.

Definition at line 604 of file list.h.

◆ list_for_each_prev_safe

#define list_for_each_prev_safe	(	pos,
		n,
		head
	)

Value:

    for (pos = (head)->prev, n = pos->prev; \
         pos != (head); \
         pos = n, n = pos->prev)

list_for_each_prev_safe - iterate over a list backwards safe against removal of list entry

Parameters

pos	the &struct list_head to use as a loop cursor.
n	another &struct list_head to use as temporary storage
head	the head for your list.

Definition at line 623 of file list.h.

◆ list_for_each_safe

#define list_for_each_safe	(	pos,
		n,
		head
	)

Value:

for (pos = (head)->next, n = pos->next; pos != (head); \

pos = n, n = pos->next)

list_for_each_safe - iterate over a list safe against removal of list entry

Parameters

pos	the &struct list_head to use as a loop cursor.
n	another &struct list_head to use as temporary storage
head	the head for your list.

Definition at line 613 of file list.h.

◆ LIST_HEAD

#define LIST_HEAD ( name ) struct list_head name = LIST_HEAD_INIT(name)

Definition at line 51 of file list.h.

◆ LIST_HEAD_INIT

#define LIST_HEAD_INIT ( name ) { &(name), &(name) }

Definition at line 49 of file list.h.

◆ list_last_entry

#define list_last_entry	(	ptr,
		type,
		member
	)	list_entry((ptr)->prev, type, member)

list_last_entry - get the last element from a list

Parameters

ptr	the list head to take the element from.
type	the type of the struct this is embedded in.
member	the name of the list_head within the struct.

Note, that list is expected to be not empty.

Definition at line 548 of file list.h.

◆ list_next_entry

#define list_next_entry	(	pos,
		member
	)	list_entry((pos)->member.next, typeof(*(pos)), member)

list_next_entry - get the next element in list

Parameters

pos	the type * to cursor
member	the name of the list_head within the struct.

Definition at line 570 of file list.h.

◆ LIST_POISON1

#define LIST_POISON1 NULL

Definition at line 23 of file list.h.

◆ LIST_POISON2

#define LIST_POISON2 NULL

Definition at line 24 of file list.h.

◆ list_prepare_entry

#define list_prepare_entry	(	pos,
		head,
		member
	)	((pos) ? (pos) : list_entry(head, typeof(*pos), member))

list_prepare_entry - prepare a pos entry for use in list_for_each_entry_continue()

Parameters

pos	the type * to use as a start point
head	the head of the list
member	the name of the list_head within the struct.

Prepares a pos entry for use as a start point in list_for_each_entry_continue().

Definition at line 681 of file list.h.

◆ list_prev_entry

#define list_prev_entry	(	pos,
		member
	)	list_entry((pos)->member.prev, typeof(*(pos)), member)

list_prev_entry - get the prev element in list

Parameters

pos	the type * to cursor
member	the name of the list_head within the struct.

Definition at line 578 of file list.h.

◆ list_safe_reset_next

#define list_safe_reset_next	(	pos,
		n,
		member
	)	n = list_next_entry(pos, member)

list_safe_reset_next - reset a stale list_for_each_entry_safe loop

Parameters

pos	the loop cursor used in the list_for_each_entry_safe loop
n	temporary storage used in list_for_each_entry_safe
member	the name of the list_head within the struct.

list_safe_reset_next is not safe to use in general if the list may be modified concurrently (eg. the lock is dropped in the loop body). An exception to this is if the cursor element (pos) is pinned in the list, and list_safe_reset_next is called after re-taking the lock and before completing the current iteration of the loop body.

Definition at line 809 of file list.h.

Function Documentation

◆ __hlist_del()

static void __hlist_del ( struct hlist_node * n )

inlinestatic

Definition at line 852 of file list.h.

References hlist_node::next, and hlist_node::pprev.

Referenced by hlist_del(), and hlist_del_init().

◆ __list_add()

static void __list_add	(	struct list_head *	new,
		struct list_head *	prev,
		struct list_head *	next
	)

inlinestatic

Definition at line 91 of file list.h.

References __list_add_valid(), list_head::next, and hlist_node::next.

Referenced by list_add(), and list_add_tail().

◆ __list_add_valid()

static bool __list_add_valid	(	struct list_head *	new,
		struct list_head *	prev,
		struct list_head *	next
	)

inlinestatic

Definition at line 73 of file list.h.

Referenced by __list_add().

◆ __list_cut_position()

static void __list_cut_position	(	struct list_head *	list,
		struct list_head *	head,
		struct list_head *	entry
	)

inlinestatic

Definition at line 379 of file list.h.

References list_head::next, and list_head::prev.

Referenced by list_cut_position().

◆ __list_del()

static void __list_del	(	struct list_head *	prev,
		struct list_head *	next
	)

inlinestatic

Definition at line 138 of file list.h.

References list_head::next, and hlist_node::next.

Referenced by __list_del_entry().

◆ __list_del_entry()

static void __list_del_entry ( struct list_head * entry )

inlinestatic

Definition at line 146 of file list.h.

References __list_del(), __list_del_entry_valid(), list_head::next, and list_head::prev.

Referenced by list_del(), list_del_init(), list_del_init_careful(), list_move(), and list_move_tail().

◆ __list_del_entry_valid()

static bool __list_del_entry_valid ( struct list_head * entry )

inlinestatic

Definition at line 79 of file list.h.

Referenced by __list_del_entry().

◆ __list_splice()

static void __list_splice	(	const struct list_head *	list,
		struct list_head *	prev,
		struct list_head *	next
	)

inlinestatic

Definition at line 449 of file list.h.

References list_head::next, and list_head::prev.

Referenced by list_splice(), list_splice_init(), list_splice_tail(), and list_splice_tail_init().

◆ hlist_add_before()

static void hlist_add_before	(	struct hlist_node *	n,
		struct hlist_node *	next
	)

inlinestatic

hlist_add_before - add a new entry before the one specified

Parameters

n	new entry to be added
next	hlist node to add it before, which must be non-NULL

Definition at line 913 of file list.h.

References hlist_node::next, and hlist_node::pprev.

◆ hlist_add_behind()

static void hlist_add_behind	(	struct hlist_node *	n,
		struct hlist_node *	prev
	)

inlinestatic

hlist_add_behind - add a new entry after the one specified

Parameters

n	new entry to be added
prev	hlist node to add it after, which must be non-NULL

Definition at line 927 of file list.h.

References hlist_node::next, and hlist_node::pprev.

◆ hlist_add_fake()

static void hlist_add_fake ( struct hlist_node * n )

inlinestatic

hlist_add_fake - create a fake hlist consisting of a single headless node

Parameters

n	Node to make a fake list out of

This makes n appear to be its own predecessor on a headless hlist. The point of this is to allow things like hlist_del() to work correctly in cases where there is no list.

Definition at line 946 of file list.h.

References hlist_node::next, and hlist_node::pprev.

◆ hlist_add_head()

static void hlist_add_head	(	struct hlist_node *	n,
		struct hlist_head *	h
	)

inlinestatic

hlist_add_head - add a new entry at the beginning of the hlist

Parameters

n	new entry to be added
h	hlist head to add it after

Insert a new entry after the specified head. This is good for implementing stacks.

Definition at line 898 of file list.h.

References hlist_head::first, hlist_node::next, and hlist_node::pprev.

◆ hlist_del()

static void hlist_del ( struct hlist_node * n )

inlinestatic

hlist_del - Delete the specified hlist_node from its list

Parameters

n	Node to delete.

Note that this function leaves the node in hashed state. Use hlist_del_init() or similar instead to unhash n.

Definition at line 869 of file list.h.

References __hlist_del(), LIST_POISON1, LIST_POISON2, hlist_node::next, and hlist_node::pprev.

◆ hlist_del_init()

static void hlist_del_init ( struct hlist_node * n )

inlinestatic

hlist_del_init - Delete the specified hlist_node from its list and initialize

Parameters

n	Node to delete.

Note that this function leaves the node in unhashed state.

Definition at line 882 of file list.h.

References __hlist_del(), hlist_unhashed(), and INIT_HLIST_NODE().

◆ hlist_empty()

static int hlist_empty ( const struct hlist_head * h )

inlinestatic

hlist_empty - Is the specified hlist_head structure an empty hlist?

Parameters

h	Structure to check.

Definition at line 847 of file list.h.

References hlist_head::first.

◆ hlist_fake()

static bool hlist_fake ( struct hlist_node * h )

inlinestatic

hlist_fake: Is this node a fake hlist?

Parameters

h	Node to check for being a self-referential fake hlist.

Definition at line 955 of file list.h.

References hlist_node::next, and hlist_node::pprev.

◆ hlist_is_singular_node()

static bool hlist_is_singular_node	(	struct hlist_node *	n,
		struct hlist_head *	h
	)

inlinestatic

hlist_is_singular_node - is node the only element of the specified hlist?

Parameters

n	Node to check for singularity.
h	Header for potentially singular list.

Check whether the node is the only node of the head without accessing head, thus avoiding unnecessary cache misses.

Definition at line 969 of file list.h.

References hlist_head::first, hlist_node::next, and hlist_node::pprev.

◆ hlist_move_list()

static void hlist_move_list	(	struct hlist_head *	old,
		struct hlist_head *	new
	)

inlinestatic

hlist_move_list - Move an hlist

Parameters

old	hlist_head for old list.
new	hlist_head for new list.

Move a list from one list head to another. Fixup the pprev reference of the first entry if it exists.

Definition at line 982 of file list.h.

References hlist_head::first, NULL, and hlist_node::pprev.

◆ hlist_unhashed()

static int hlist_unhashed ( const struct hlist_node * h )

inlinestatic

hlist_unhashed - Has node been removed from list and reinitialized?

Parameters

h	Node to be checked

Not that not all removal functions will leave a node in unhashed state. For example, hlist_nulls_del_init_rcu() does leave the node in unhashed state, but hlist_nulls_del() does not.

Definition at line 836 of file list.h.

References hlist_node::pprev.

Referenced by hlist_del_init().

◆ INIT_HLIST_NODE()

static void INIT_HLIST_NODE ( struct hlist_node * h )

inlinestatic

Definition at line 822 of file list.h.

References hlist_node::next, NULL, and hlist_node::pprev.

Referenced by hlist_del_init().

◆ INIT_LIST_HEAD()

static void INIT_LIST_HEAD ( struct list_head * list )

inlinestatic

INIT_LIST_HEAD - Initialize a list_head structure.

Parameters

list	list_head structure to be initialized.

Initializes the list_head to point to itself. If it is a list header, the result is an empty list.

Definition at line 61 of file list.h.

References list_head::next, and list_head::prev.

Referenced by arc_init_arch_info(), bit_copy_queue_init(), command_init(), dap_cmd_new(), dap_instance_init(), get_dm(), jim_arm_tpiu_swo_create(), jim_target_smp(), list_cut_before(), list_cut_position(), list_del_init(), list_replace_init(), list_splice_init(), list_splice_tail_init(), riscv_info_init(), and vdebug_open().

◆ list_add()

static void list_add	(	struct list_head *	new,
		struct list_head *	head
	)

inlinestatic

list_add - add a new entry

Parameters

new	new entry to be added
head	list head to add it after

Insert a new entry after the specified head. This is good for implementing stacks.

Definition at line 112 of file list.h.

References __list_add(), and list_head::next.

Referenced by arm_tpiu_swo_service_new_connection(), dap_cmd_release(), get_dm(), help_add_command(), jtagdp_overrun_check(), list_move(), list_swap(), parse_ranges(), target_register_reset_callback(), and target_register_trace_callback().

◆ list_add_tail()

static void list_add_tail	(	struct list_head *	new,
		struct list_head *	head
	)

inlinestatic

list_add_tail - add a new entry

Parameters

new	new entry to be added
head	list head to add it before

Insert a new entry before the specified head. This is useful for implementing queues.

Definition at line 126 of file list.h.

References __list_add(), and list_head::prev.

Referenced by adi_jtag_dp_scan(), arc_reg_add(), arc_reg_data_type_add(), arm_tpiu_swo_create(), bit_copy_queued(), cti_create(), dap_create(), jim_target_smp(), list_move_tail(), or1k_du_adv_register(), or1k_tap_mohor_register(), or1k_tap_vjtag_register(), or1k_tap_xilinx_bscan_register(), telnet_auto_complete(), vdebug_jtag_shift_tap(), and vdebug_reg_read().

◆ list_bulk_move_tail()

static void list_bulk_move_tail	(	struct list_head *	head,
		struct list_head *	first,
		struct list_head *	last
	)

inlinestatic

list_bulk_move_tail - move a subsection of a list to its tail

Parameters

head	the head that will follow our entry
first	the first entry to move
last	the last entry to move, can be the same as first

Move all entries between first and including last before head. All three entries must belong to the same linked list.

Definition at line 256 of file list.h.

References list_head::next, and list_head::prev.

◆ list_cut_before()

static void list_cut_before	(	struct list_head *	list,
		struct list_head *	head,
		struct list_head *	entry
	)

inlinestatic

list_cut_before - cut a list into two, before given entry

Parameters

list	a new list to add all removed entries
head	a list with entries
entry	an entry within head, could be the head itself

This helper moves the initial part of head, up to but excluding entry, from head to list. You should pass in entry an element you know is on head. list should be an empty list or a list you do not care about losing its data. If entry == head, all entries on head are moved to list.

Definition at line 433 of file list.h.

References INIT_LIST_HEAD(), list_head::next, and list_head::prev.

◆ list_cut_position()

static void list_cut_position	(	struct list_head *	list,
		struct list_head *	head,
		struct list_head *	entry
	)

inlinestatic

list_cut_position - cut a list into two

Parameters

list	a new list to add all removed entries
head	a list with entries
entry	an entry within head, could be the head itself and if so we won't cut the list

This helper moves the initial part of head, up to and including entry, from head to list. You should pass on entry an element you know is on head. list should be an empty list or a list you do not care about losing its data.

Definition at line 405 of file list.h.

References __list_cut_position(), INIT_LIST_HEAD(), list_empty(), list_is_singular(), and list_head::next.

◆ list_del()

static void list_del ( struct list_head * entry )

inlinestatic

list_del - deletes entry from list.

Parameters

entry the element to delete from the list. Note: list_empty() on entry does not return true after this, the entry is in an undefined state.

Definition at line 160 of file list.h.

References __list_del_entry(), LIST_POISON1, LIST_POISON2, list_head::next, and list_head::prev.

Referenced by arm_tpiu_swo_service_connection_closed(), bit_copy_discard(), bit_copy_execute(), dap_cmd_new(), flush_journal(), help_del_all_commands(), help_del_command(), jtag_quit(), list_swap(), target_destroy(), target_unregister_reset_callback(), target_unregister_trace_callback(), vdebug_run_jtag_queue(), and vdebug_run_reg_queue().

◆ list_del_init()

static void list_del_init ( struct list_head * entry )

inlinestatic

list_del_init - deletes entry from list and reinitialize it.

Parameters

entry the element to delete from the list.

Definition at line 218 of file list.h.

References __list_del_entry(), and INIT_LIST_HEAD().

◆ list_del_init_careful()

static void list_del_init_careful ( struct list_head * entry )

inlinestatic

list_del_init_careful - deletes entry from list and reinitialize it.

Parameters

entry the element to delete from the list.

This is the same as list_del_init(), except designed to be used together with list_empty_careful() in a way to guarantee ordering of other memory operations.

Any memory operations done before a list_del_init_careful() are guaranteed to be visible after a list_empty_careful() test.

Definition at line 312 of file list.h.

References __list_del_entry(), list_head::next, and list_head::prev.

◆ list_empty()

static int list_empty ( const struct list_head * head )

inlinestatic

list_empty - tests whether a list is empty

Parameters

head	the list to test.

Definition at line 296 of file list.h.

References list_head::next.

Referenced by arc_build_bcr_reg_cache(), arc_build_reg_cache(), COMMAND_HANDLER(), dap_cmd_new(), jtagdp_overrun_check(), list_cut_position(), list_is_singular(), list_rotate_left(), list_splice(), list_splice_init(), list_splice_tail(), list_splice_tail_init(), riscv_init_registers(), telnet_auto_complete(), vdebug_run_jtag_queue(), and vdebug_run_reg_queue().

◆ list_empty_careful()

static int list_empty_careful ( const struct list_head * head )

inlinestatic

list_empty_careful - tests whether a list is empty and not being modified

Parameters

head	the list to test

Description: tests whether a list is empty and checks that no other CPU might be in the process of modifying either member (next or prev)

NOTE: using list_empty_careful() without synchronization can only be safe if the only activity that can happen to the list entry is list_del_init(). Eg. it cannot be used if another CPU could re-list_add() it.

Definition at line 332 of file list.h.

References list_head::next, and list_head::prev.

◆ list_is_first()

static int list_is_first	(	const struct list_head *	list,
		const struct list_head *	head
	)

inlinestatic

list_is_first – tests whether list is the first entry in list head

Parameters

list	the entry to test
head	the head of the list

Definition at line 275 of file list.h.

References list_head::prev.

◆ list_is_last()

static int list_is_last	(	const struct list_head *	list,
		const struct list_head *	head
	)

inlinestatic

list_is_last - tests whether list is the last entry in list head

Parameters

list	the entry to test
head	the head of the list

Definition at line 286 of file list.h.

References list_head::next.

◆ list_is_singular()

static int list_is_singular ( const struct list_head * head )

inlinestatic

list_is_singular - tests whether a list has just one entry.

Parameters

head	the list to test.

Definition at line 374 of file list.h.

References list_empty(), list_head::next, and list_head::prev.

Referenced by list_cut_position(), and telnet_auto_complete().

◆ list_move()

static void list_move	(	struct list_head *	list,
		struct list_head *	head
	)

inlinestatic

list_move - delete from one list and add as another's head

Parameters

list	the entry to move
head	the head that will precede our entry

Definition at line 229 of file list.h.

References __list_del_entry(), and list_add().

◆ list_move_tail()

static void list_move_tail	(	struct list_head *	list,
		struct list_head *	head
	)

inlinestatic

list_move_tail - delete from one list and add as another's tail

Parameters

list	the entry to move
head	the head that will follow our entry

Definition at line 240 of file list.h.

References __list_del_entry(), and list_add_tail().

Referenced by jtagdp_overrun_check(), list_rotate_left(), and list_rotate_to_front().

◆ list_replace()

static void list_replace	(	struct list_head *	old,
		struct list_head *	new
	)

inlinestatic

list_replace - replace old entry by new one

Parameters

old	the element to be replaced
new	the new element to insert

If old was empty, it will be overwritten.

Definition at line 174 of file list.h.

References list_head::next, and list_head::prev.

Referenced by list_replace_init(), and list_swap().

◆ list_replace_init()

static void list_replace_init	(	struct list_head *	old,
		struct list_head *	new
	)

inlinestatic

list_replace_init - replace old entry by new one and initialize the old one

Parameters

old	the element to be replaced
new	the new element to insert

If old was empty, it will be overwritten.

Definition at line 190 of file list.h.

References INIT_LIST_HEAD(), and list_replace().

◆ list_rotate_left()

static void list_rotate_left ( struct list_head * head )

inlinestatic

list_rotate_left - rotate the list to the left

Parameters

head	the head of the list

Definition at line 342 of file list.h.

References list_empty(), list_move_tail(), and list_head::next.

Referenced by riscv_init_registers().

◆ list_rotate_to_front()

static void list_rotate_to_front	(	struct list_head *	list,
		struct list_head *	head
	)

inlinestatic

list_rotate_to_front() - Rotate list to specific item.

Parameters

list	The desired new front of the list.
head	The head of the list.

Rotates list so that list becomes the new front of the list.

Definition at line 359 of file list.h.

References list_move_tail().

◆ list_splice()

static void list_splice	(	const struct list_head *	list,
		struct list_head *	head
	)

inlinestatic

list_splice - join two lists, this is designed for stacks

Parameters

list	the new list to add.
head	the place to add it in the first list.

Definition at line 468 of file list.h.

References __list_splice(), list_empty(), and list_head::next.

◆ list_splice_init()

static void list_splice_init	(	struct list_head *	list,
		struct list_head *	head
	)

inlinestatic

list_splice_init - join two lists and reinitialise the emptied list.

Parameters

list	the new list to add.
head	the place to add it in the first list.

The list at list is reinitialised

Definition at line 494 of file list.h.

References __list_splice(), INIT_LIST_HEAD(), list_empty(), and list_head::next.

◆ list_splice_tail()

static void list_splice_tail	(	struct list_head *	list,
		struct list_head *	head
	)

inlinestatic

list_splice_tail - join two lists, each list being a queue

Parameters

list	the new list to add.
head	the place to add it in the first list.

Definition at line 480 of file list.h.

References __list_splice(), list_empty(), and list_head::prev.

◆ list_splice_tail_init()

static void list_splice_tail_init	(	struct list_head *	list,
		struct list_head *	head
	)

inlinestatic

list_splice_tail_init - join two lists and reinitialise the emptied list

Parameters

list	the new list to add.
head	the place to add it in the first list.

Each of the lists is a queue. The list at list is reinitialised

Definition at line 511 of file list.h.

References __list_splice(), INIT_LIST_HEAD(), list_empty(), and list_head::prev.

◆ list_swap()

static void list_swap	(	struct list_head *	entry1,
		struct list_head *	entry2
	)

inlinestatic

list_swap - replace entry1 with entry2 and re-add entry1 at entry2's position

Parameters

entry1	the location to place entry2
entry2	the location to place entry1

Definition at line 202 of file list.h.

References list_add(), list_del(), list_replace(), and list_head::prev.

Data Structures

Macros

Functions

Macro Definition Documentation

◆ hlist_entry

◆ hlist_entry_safe

◆ hlist_for_each

◆ hlist_for_each_entry

◆ hlist_for_each_entry_continue

◆ hlist_for_each_entry_from

◆ hlist_for_each_entry_safe

◆ hlist_for_each_safe

◆ HLIST_HEAD

◆ HLIST_HEAD_INIT

◆ INIT_HLIST_HEAD

◆ list_entry

◆ list_entry_is_head

◆ list_first_entry

◆ list_first_entry_or_null

◆ list_for_each

◆ list_for_each_continue

◆ list_for_each_entry

◆ list_for_each_entry_continue

◆ list_for_each_entry_continue_reverse

◆ list_for_each_entry_direction

◆ list_for_each_entry_from

◆ list_for_each_entry_from_reverse

◆ list_for_each_entry_reverse

◆ list_for_each_entry_safe

◆ list_for_each_entry_safe_continue

◆ list_for_each_entry_safe_from

◆ list_for_each_entry_safe_reverse

◆ list_for_each_prev

◆ list_for_each_prev_safe

◆ list_for_each_safe

◆ LIST_HEAD

◆ LIST_HEAD_INIT

◆ list_last_entry

◆ list_next_entry

◆ LIST_POISON1

◆ LIST_POISON2

◆ list_prepare_entry

◆ list_prev_entry

◆ list_safe_reset_next

Function Documentation

◆ __hlist_del()

◆ __list_add()

◆ __list_add_valid()

◆ __list_cut_position()

◆ __list_del()

◆ __list_del_entry()

◆ __list_del_entry_valid()

◆ __list_splice()

◆ hlist_add_before()

◆ hlist_add_behind()

◆ hlist_add_fake()

◆ hlist_add_head()

◆ hlist_del()

◆ hlist_del_init()

◆ hlist_empty()

◆ hlist_fake()

◆ hlist_is_singular_node()

◆ hlist_move_list()

◆ hlist_unhashed()

◆ INIT_HLIST_NODE()

◆ INIT_LIST_HEAD()

◆ list_add()

◆ list_add_tail()

◆ list_bulk_move_tail()

◆ list_cut_before()

◆ list_cut_position()

◆ list_del()

◆ list_del_init()

◆ list_del_init_careful()

◆ list_empty()

◆ list_empty_careful()

◆ list_is_first()

◆ list_is_last()

◆ list_is_singular()

◆ list_move()
