OpenOCD
Macros | Functions | Variables
aice_transport.c File Reference

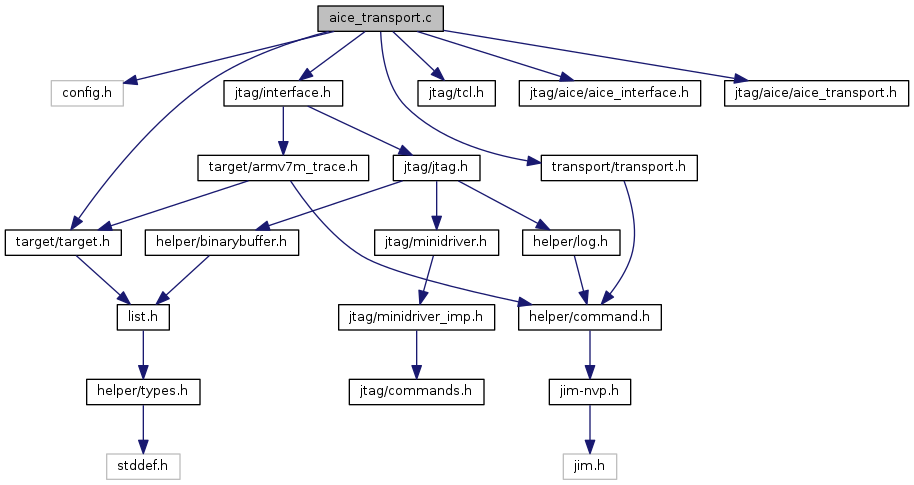

Include dependency graph for aice_transport.c:

Go to the source code of this file.

Macros

#define NTAP_OPT_EXPECTED_ID   0


Functions

static void aice_constructor (void)

static int aice_init_reset (struct command_context *cmd_ctx)

static int aice_transport_init (struct command_context *cmd_ctx)

static int aice_transport_register_commands (struct command_context *cmd_ctx)

static int aice_transport_select (struct command_context *ctx)

 COMMAND_HANDLER (handle_aice_init_command)

 COMMAND_HANDLER (handle_scan_chain_command)

static int jim_aice_arp_init (Jim_Interp *interp, int argc, Jim_Obj *const *argv)

static int jim_aice_arp_init_reset (Jim_Interp *interp, int argc, Jim_Obj *const *argv)

static int jim_aice_names (Jim_Interp *interp, int argc, Jim_Obj *const *argv)

static int jim_aice_newtap (Jim_Interp *interp, int argc, Jim_Obj *const *argv)

static int jim_aice_newtap_cmd (struct jim_getopt_info *goi)

static int jim_newtap_expected_id (struct jim_nvp *n, struct jim_getopt_info *goi, struct jtag_tap *tap)


Variables

static struct transport aice_jtag_transport

static const struct command_registration aice_transport_command_handlers []

static const struct command_registration aice_transport_jtag_subcommand_handlers []

const char * aice_transports [] = { "aice_jtag", NULL }


Macro Definition Documentation

◆ NTAP_OPT_EXPECTED_ID

#define NTAP_OPT_EXPECTED_ID   0

Definition at line 52 of file aice_transport.c.

Function Documentation

◆ aice_constructor()

static void aice_constructor ( void  )
static

Definition at line 428 of file aice_transport.c.

◆ aice_init_reset()

static int aice_init_reset ( struct command_context *  cmd_ctx)
static

Definition at line 213 of file aice_transport.c.

References ERROR_OK, jtag_add_reset(), jtag_execute_queue(), jtag_get_reset_config(), jtag_reset_config, LOG_DEBUG, RESET_HAS_SRST, and RESET_SRST_PULLS_TRST.

Referenced by jim_aice_arp_init_reset().

◆ aice_transport_init()

static int aice_transport_init ( struct command_context *  cmd_ctx)
static

Definition at line 382 of file aice_transport.c.

References aice_init_targets(), ERROR_FAIL, get_current_target(), get_current_transport(), LOG_DEBUG, LOG_ERROR, and transport::name.

◆ aice_transport_register_commands()

static int aice_transport_register_commands ( struct command_context *  cmd_ctx)
static

Definition at line 376 of file aice_transport.c.

References aice_transport_command_handlers, NULL, and register_commands().

◆ aice_transport_select()

static int aice_transport_select ( struct command_context *  ctx)
static

Definition at line 406 of file aice_transport.c.

◆ COMMAND_HANDLER() [1/2]

COMMAND_HANDLER ( handle_aice_init_command  )

Definition at line 136 of file aice_transport.c.

References CMD_ARGC, CMD_CTX, ERROR_COMMAND_SYNTAX_ERROR, ERROR_OK, jtag_init(), LOG_DEBUG, and LOG_INFO.

◆ COMMAND_HANDLER() [2/2]

COMMAND_HANDLER ( handle_scan_chain_command  )

Definition at line 152 of file aice_transport.c.

References jtag_tap::abs_chain_position, aice_scan_jtag_chain(), buf_get_u32(), CMD, command_print(), jtag_tap::dotted_name, jtag_tap::enabled, ERROR_OK, jtag_tap::expected, jtag_tap::expected_ids, jtag_tap::expected_ids_cnt, jtag_tap::expected_mask, jtag_tap::idcode, jtag_tap::ignore_version, jtag_tap::ir_length, jtag_all_taps(), and jtag_tap::next_tap.

◆ jim_aice_arp_init()

static int jim_aice_arp_init ( Jim_Interp *  interp,
int  argc,
Jim_Obj *const *  argv
)
static

Definition at line 205 of file aice_transport.c.

References LOG_DEBUG.

◆ jim_aice_arp_init_reset()

static int jim_aice_arp_init_reset ( Jim_Interp *  interp,
int  argc,
Jim_Obj *const *  argv
)
static

Definition at line 235 of file aice_transport.c.

References aice_init_reset(), jim_getopt_info::argc, jim_getopt_info::argv, current_command_context(), ERROR_OK, command_context::interp, jim_getopt_info::interp, and jim_getopt_setup().

◆ jim_aice_names()

static int jim_aice_names ( Jim_Interp *  interp,
int  argc,
Jim_Obj *const *  argv
)
static

Definition at line 255 of file aice_transport.c.

◆ jim_aice_newtap()

static int jim_aice_newtap ( Jim_Interp *  interp,
int  argc,
Jim_Obj *const *  argv
)
static

Definition at line 128 of file aice_transport.c.

References jim_getopt_info::argc, jim_getopt_info::argv, jim_getopt_info::interp, jim_aice_newtap_cmd(), and jim_getopt_setup().

◆ jim_aice_newtap_cmd()

static int jim_aice_newtap_cmd ( struct jim_getopt_info *  goi)
static

Definition at line 55 of file aice_transport.c.

References jim_getopt_info::argc, jtag_tap::chip, jtag_tap::disabled_after_reset, jtag_tap::dotted_name, jtag_tap::enabled, jim_getopt_info::interp, jim_getopt_nvp(), jim_getopt_nvp_unknown(), jim_getopt_string(), jim_newtap_expected_id(), jtag_tap_init(), LOG_DEBUG, jim_nvp::name, NTAP_OPT_EXPECTED_ID, NULL, jtag_tap::tapname, and jim_nvp::value.

Referenced by jim_aice_newtap().

◆ jim_newtap_expected_id()

static int jim_newtap_expected_id ( struct jim_nvp *  n,
struct jim_getopt_info *  goi,
struct jtag_tap *  tap
)
static

Definition at line 22 of file aice_transport.c.

References jtag_tap::expected_ids, jtag_tap::expected_ids_cnt, jim_getopt_info::interp, jim_getopt_wide(), and jim_nvp::name.

Referenced by jim_aice_newtap_cmd().

Variable Documentation

◆ aice_jtag_transport

struct transport aice_jtag_transport
static
Initial value:
= {
.name = "aice_jtag",
.select = aice_transport_select,
.init = aice_transport_init,
}
aice_transport_select
static int aice_transport_select(struct command_context *ctx)
Definition: aice_transport.c:406
aice_transport_init
static int aice_transport_init(struct command_context *cmd_ctx)
Definition: aice_transport.c:382

Definition at line 406 of file aice_transport.c.

◆ aice_transport_command_handlers

const struct command_registration aice_transport_command_handlers[]
static
Initial value:
= {
{
.name = "jtag",
.mode = COMMAND_ANY,
.usage = "",
.chain = aice_transport_jtag_subcommand_handlers,
},
COMMAND_REGISTRATION_DONE
}
aice_transport_jtag_subcommand_handlers
static const struct command_registration aice_transport_jtag_subcommand_handlers[]
Definition: aice_transport.c:276
COMMAND_REGISTRATION_DONE
#define COMMAND_REGISTRATION_DONE
Use this as the last entry in an array of command_registration records.
Definition: command.h:247
COMMAND_ANY
@ COMMAND_ANY
Definition: command.h:42

Definition at line 255 of file aice_transport.c.

Referenced by aice_transport_register_commands().

◆ aice_transport_jtag_subcommand_handlers

const struct command_registration aice_transport_jtag_subcommand_handlers[]
static

Definition at line 255 of file aice_transport.c.

◆ aice_transports

const char* aice_transports[] = { "aice_jtag", NULL }

Definition at line 426 of file aice_transport.c.
