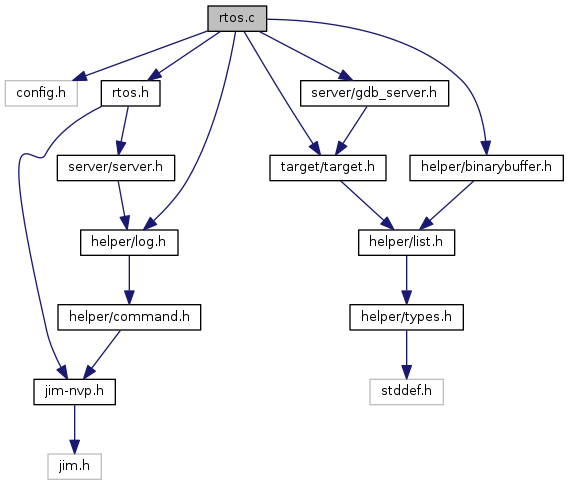

Include dependency graph for rtos.c:

Functions
static struct symbol_table_elem *	find_symbol (const struct rtos os, const char symbol)

int	gdb_thread_packet (struct connection connection, char const packet, int packet_size)

static struct symbol_table_elem *	next_symbol (struct rtos os, char cur_symbol, uint64_t cur_addr)

static int	os_alloc (struct target target, struct rtos_type ostype)

static int	os_alloc_create (struct target target, struct rtos_type ostype)

static void	os_free (struct target *target)

int	rtos_create (struct jim_getopt_info goi, struct target target)

void	rtos_destroy (struct target *target)

void	rtos_free_threadlist (struct rtos *rtos)

int	rtos_generic_stack_read (struct target target, const struct rtos_register_stacking stacking, int64_t stack_ptr, struct rtos_reg *reg_list, int num_regs)

int	rtos_get_gdb_reg (struct connection *connection, int reg_num)
	Look through all registers to find this register. More...

int	rtos_get_gdb_reg_list (struct connection *connection)
	Return a list of general registers. More...

static int	rtos_put_gdb_reg_list (struct connection connection, struct rtos_reg reg_list, int num_regs)

int	rtos_qsymbol (struct connection connection, char const packet, int packet_size)

int	rtos_read_buffer (struct target target, target_addr_t address, uint32_t size, uint8_t buffer)

int	rtos_set_reg (struct connection connection, int reg_num, uint8_t reg_value)

int	rtos_smp_init (struct target *target)

static int	rtos_target_for_threadid (struct connection connection, int64_t threadid, struct target *t)

int	rtos_thread_packet (struct connection connection, const char packet, int packet_size)

static int	rtos_try_next (struct target *target)

int	rtos_update_threads (struct target *target)

int	rtos_write_buffer (struct target target, target_addr_t address, uint32_t size, const uint8_t buffer)

Variables
struct rtos_type	chibios_rtos

struct rtos_type	chromium_ec_rtos

struct rtos_type	ecos_rtos

struct rtos_type	embkernel_rtos

struct rtos_type	freertos_rtos

struct rtos_type	hwthread_rtos

struct rtos_type	linux_rtos

struct rtos_type	mqx_rtos

struct rtos_type	nuttx_rtos

struct rtos_type	riot_rtos

static struct rtos_type *	rtos_types []

struct rtos_type	threadx_rtos

struct rtos_type	ucos_iii_rtos

struct rtos_type	zephyr_rtos

Function Documentation

◆ find_symbol()

static struct symbol_table_elem* find_symbol	(	const struct rtos *	os,
		const char *	symbol
	)

static

Definition at line 173 of file rtos.c.

References NULL, symbol_table_elem::symbol_name, and rtos::symbols.

Referenced by next_symbol(), and rtos_qsymbol().

◆ gdb_thread_packet()

int gdb_thread_packet	(	struct connection *	connection,
		char const *	packet,
		int	packet_size
	)

Definition at line 164 of file rtos.c.

References rtos::gdb_thread_packet, get_target_from_connection(), target::rtos, and rtos_thread_packet().

Referenced by gdb_input_inner(), and gdb_restart_inferior().

◆ next_symbol()

static struct symbol_table_elem* next_symbol	(	struct rtos *	os,
		char *	cur_symbol,
		uint64_t	cur_addr
	)

static

Definition at line 184 of file rtos.c.

References symbol_table_elem::address, find_symbol(), rtos_type::get_symbol_list_to_lookup, NULL, rtos::symbols, and rtos::type.

Referenced by rtos_qsymbol().

◆ os_alloc()

static int os_alloc	(	struct target *	target,
		struct rtos_type *	ostype
	)

static

Definition at line 71 of file rtos.c.

References rtos::current_thread, rtos::current_threadid, rtos::gdb_target_for_threadid, rtos::gdb_thread_packet, NULL, target::rtos, rtos_target_for_threadid(), rtos_thread_packet(), rtos::symbols, rtos::target, target, and rtos::type.

Referenced by os_alloc_create(), and rtos_create().

◆ os_alloc_create()

static int os_alloc_create	(	struct target *	target,
		struct rtos_type *	ostype
	)

static

Definition at line 101 of file rtos.c.

References rtos_type::create, os_alloc(), os_free(), target::rtos, and rtos::type.

Referenced by rtos_create().

◆ os_free()

static void os_free ( struct target * target )

static

Definition at line 91 of file rtos.c.

References NULL, target::rtos, and rtos::symbols.

Referenced by os_alloc_create(), rtos_create(), and rtos_destroy().

◆ rtos_create()

int rtos_create	(	struct jim_getopt_info *	goi,
		struct target *	target
	)

Definition at line 114 of file rtos.c.

References jim_getopt_info::argc, jim_getopt_info::argv, jim_getopt_info::interp, jim_getopt_info::isconfigure, jim_getopt_string(), rtos_type::name, name, NULL, os_alloc(), os_alloc_create(), os_free(), target::rtos_auto_detect, and rtos_types.

Referenced by target_configure().

◆ rtos_destroy()

void rtos_destroy ( struct target * target )

Definition at line 159 of file rtos.c.

References os_free().

Referenced by target_create(), and target_destroy().

◆ rtos_free_threadlist()

void rtos_free_threadlist ( struct rtos * rtos )

Definition at line 707 of file rtos.c.

References rtos::current_thread, rtos::current_threadid, NULL, rtos::thread_count, and rtos::thread_details.

Referenced by chibios_update_threads(), chromium_ec_update_threads(), ecos_update_threads(), embkernel_update_threads(), freertos_update_threads(), hwthread_update_threads(), mqx_update_threads(), nuttx_update_threads(), riot_update_threads(), threadx_update_threads(), ucos_iii_update_threads(), and zephyr_fetch_thread_list().

◆ rtos_generic_stack_read()

int rtos_generic_stack_read	(	struct target *	target,
		const struct rtos_register_stacking *	stacking,
		int64_t	stack_ptr,
		struct rtos_reg **	reg_list,
		int *	num_regs
	)

Definition at line 617 of file rtos.c.

References buf_cpy(), rtos_register_stacking::calculate_process_stack, ERROR_OK, LOG_DEBUG, LOG_ERROR, LOG_OUTPUT, rtos_register_stacking::num_output_registers, stack_register_offset::number, offset, stack_register_offset::offset, rtos_register_stacking::register_offsets, size, rtos_register_stacking::stack_growth_direction, rtos_register_stacking::stack_registers_size, target_read_buffer(), and stack_register_offset::width_bits.

Referenced by chibios_get_thread_reg_list(), chromium_ec_get_thread_reg_list(), ecos_get_thread_reg_list(), embkernel_get_thread_reg_list(), freertos_get_thread_reg_list(), mqx_get_thread_reg_list(), nuttx_get_thread_reg_list(), riot_get_thread_reg_list(), threadx_get_thread_reg_list(), ucos_iii_get_thread_reg_list(), zephyr_get_arc_state(), and zephyr_get_arm_state().

◆ rtos_get_gdb_reg()

int rtos_get_gdb_reg	(	struct connection *	connection,
		int	reg_num
	)

Look through all registers to find this register.

Definition at line 518 of file rtos.c.

References rtos::current_thread, rtos::current_threadid, ERROR_FAIL, ERROR_OK, get_target_from_connection(), rtos_type::get_thread_reg, rtos_type::get_thread_reg_list, LOG_DEBUG, LOG_ERROR, number, target::rtos, rtos_put_gdb_reg_list(), target::smp, and rtos::type.

Referenced by gdb_get_register_packet().

◆ rtos_get_gdb_reg_list()

int rtos_get_gdb_reg_list ( struct connection * connection )

Return a list of general registers.

Definition at line 570 of file rtos.c.

References rtos::current_thread, rtos::current_threadid, ERROR_FAIL, ERROR_OK, get_target_from_connection(), rtos_type::get_thread_reg_list, LOG_DEBUG, LOG_ERROR, target::rtos, rtos_put_gdb_reg_list(), target::smp, and rtos::type.

Referenced by gdb_get_registers_packet().

◆ rtos_put_gdb_reg_list()

static int rtos_put_gdb_reg_list	(	struct connection *	connection,
		struct rtos_reg *	reg_list,
		int	num_regs
	)

static

Definition at line 494 of file rtos.c.

References count, DIV_ROUND_UP, ERROR_OK, gdb_put_packet(), hexify(), and size.

Referenced by rtos_get_gdb_reg(), and rtos_get_gdb_reg_list().

◆ rtos_qsymbol()

int rtos_qsymbol	(	struct connection *	connection,
		char const *	packet,
		int	packet_size
	)

Definition at line 226 of file rtos.c.

References addr, rtos_type::detect_rtos, find_symbol(), GDB_BUFFER_SIZE, gdb_put_packet(), get_target_from_connection(), hexify(), LOG_DEBUG, LOG_ERROR, LOG_INFO, LOG_WARNING, rtos_type::name, next_symbol(), NULL, symbol_table_elem::optional, target::rtos, target::rtos_auto_detect, rtos_try_next(), symbol_table_elem::symbol_name, rtos::type, and unhexify().

Referenced by linux_thread_packet(), and rtos_thread_packet().

◆ rtos_read_buffer()

int rtos_read_buffer	(	struct target *	target,
		target_addr_t	address,
		uint32_t	size,
		uint8_t *	buffer
	)

Definition at line 725 of file rtos.c.

References buffer, ERROR_NOT_IMPLEMENTED, rtos_type::read_buffer, target::rtos, size, and rtos::type.

Referenced by gdb_read_memory_packet().

◆ rtos_set_reg()

int rtos_set_reg	(	struct connection *	connection,
		int	reg_num,
		uint8_t *	reg_value
	)

Definition at line 603 of file rtos.c.

References rtos::current_threadid, ERROR_FAIL, get_target_from_connection(), target::rtos, rtos_type::set_reg, and rtos::type.

Referenced by gdb_set_register_packet().

◆ rtos_smp_init()

int rtos_smp_init ( struct target * target )

Definition at line 55 of file rtos.c.

References ERROR_TARGET_INIT_FAILED, target::rtos, rtos_type::smp_init, and rtos::type.

Referenced by jim_target_smp().

◆ rtos_target_for_threadid()

static int rtos_target_for_threadid	(	struct connection *	connection,
		int64_t	threadid,
		struct target **	t
	)

static

Definition at line 62 of file rtos.c.

References ERROR_OK, and get_target_from_connection().

Referenced by os_alloc().

◆ rtos_thread_packet()

int rtos_thread_packet	(	struct connection *	connection,
		const char *	packet,
		int	packet_size
	)

◆ rtos_try_next()

static int rtos_try_next ( struct target * target )

static

Definition at line 678 of file rtos.c.

References NULL, target::rtos, rtos_types, rtos::symbols, type, and rtos::type.

Referenced by rtos_qsymbol().

◆ rtos_update_threads()

int rtos_update_threads ( struct target * target )

Definition at line 700 of file rtos.c.

References ERROR_OK, target::rtos, rtos::type, and rtos_type::update_threads.

Referenced by gdb_fileio_reply(), gdb_handle_vcont_packet(), gdb_new_connection(), and gdb_signal_reply().

◆ rtos_write_buffer()

int rtos_write_buffer	(	struct target *	target,
		target_addr_t	address,
		uint32_t	size,
		const uint8_t *	buffer
	)

Definition at line 733 of file rtos.c.

References buffer, ERROR_NOT_IMPLEMENTED, target::rtos, size, rtos::type, and rtos_type::write_buffer.

Referenced by gdb_write_memory_binary_packet(), and gdb_write_memory_packet().

Variable Documentation

◆ chibios_rtos

struct rtos_type chibios_rtos

extern

Definition at line 98 of file chibios.c.

◆ chromium_ec_rtos

struct rtos_type chromium_ec_rtos

extern

Definition at line 367 of file chromium-ec.c.

◆ ecos_rtos

struct rtos_type ecos_rtos

extern

Definition at line 70 of file eCos.c.

◆ embkernel_rtos

struct rtos_type embkernel_rtos

extern

Definition at line 28 of file embKernel.c.

◆ freertos_rtos

struct rtos_type freertos_rtos

extern

Definition at line 95 of file FreeRTOS.c.

◆ hwthread_rtos

struct rtos_type hwthread_rtos

extern

Definition at line 37 of file hwthread.c.

◆ linux_rtos

struct rtos_type linux_rtos

extern

Definition at line 248 of file linux.c.

◆ mqx_rtos

struct rtos_type mqx_rtos

extern

Definition at line 490 of file mqx.c.

◆ nuttx_rtos

struct rtos_type nuttx_rtos

extern

Definition at line 370 of file nuttx.c.

◆ riot_rtos

struct rtos_type riot_rtos

extern

Definition at line 73 of file riot.c.

◆ rtos_types

struct rtos_type* rtos_types[]

static

Initial value:

= {
    &threadx_rtos,
    &freertos_rtos,
    &ecos_rtos,
    &linux_rtos,
    &chibios_rtos,
    &chromium_ec_rtos,
    &embkernel_rtos,
    &mqx_rtos,
    &ucos_iii_rtos,
    &nuttx_rtos,
    &riot_rtos,
    &zephyr_rtos,

    &hwthread_rtos,
    NULL
}

Definition at line 33 of file rtos.c.

Referenced by rtos_create(), and rtos_try_next().

◆ threadx_rtos

struct rtos_type threadx_rtos

extern

Definition at line 187 of file ThreadX.c.

◆ ucos_iii_rtos

struct rtos_type ucos_iii_rtos

extern

Definition at line 500 of file uCOS-III.c.

◆ zephyr_rtos

struct rtos_type zephyr_rtos

extern

Definition at line 776 of file zephyr.c.
